Anti-mildew Nylon Filter Mesh For Refrigerators Water Filtration System
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 500 PCS | Price : | $1 for 1000 pcs, $0.9 for 5,000 pcs, $0.8 for 20, 000 pcs |
|---|---|---|---|
| Packaging Details : | PE bag and carton | Delivery Time : | 5 working days |
| Payment Terms : | L/C, T/T, Paypal | Supply Ability : | 10, 0000 pcs / day |
| Place of Origin: | Zhejiang, China | Brand Name: | SHARE FILTERS |
|---|---|---|---|
| Certification: | Reach Svhc, SGS RoHS, California Proposition 65 | Model Number: | SG-FT-PA-17 |
|
Detail Information |
|||
| Material: | Nylon | Color: | Natural White |
|---|---|---|---|
| Micron Opening: | 100. 125, 150, 190, 200, 220, 280 Microns | Forms: | Roll, Disc, Ribbon, Shapes, Bags |
| Process Methods: | Cutting, Stamping, Sewing, Welding, Molding | Advantage 1: | Great Strength And Elasticity, Wrinkle Resistance |
| Advantage 2: | Abrasion And Chemicals Resistance | Advantage 3: | Hydrophilic, Higher Water Absorption |
| Advantage 4: | Insect And Mold Resistance | Applications: | Home Electric Appliance, Automotive, Chemicals, Medicals, Food And Beverage, Industry Etc. |
| High Light: | Funnel Paper Strainer Nylon Filter Mesh,125 Micron Nylon Filter Mesh,Paint Nylon Mesh Strainer |
||
Product Description

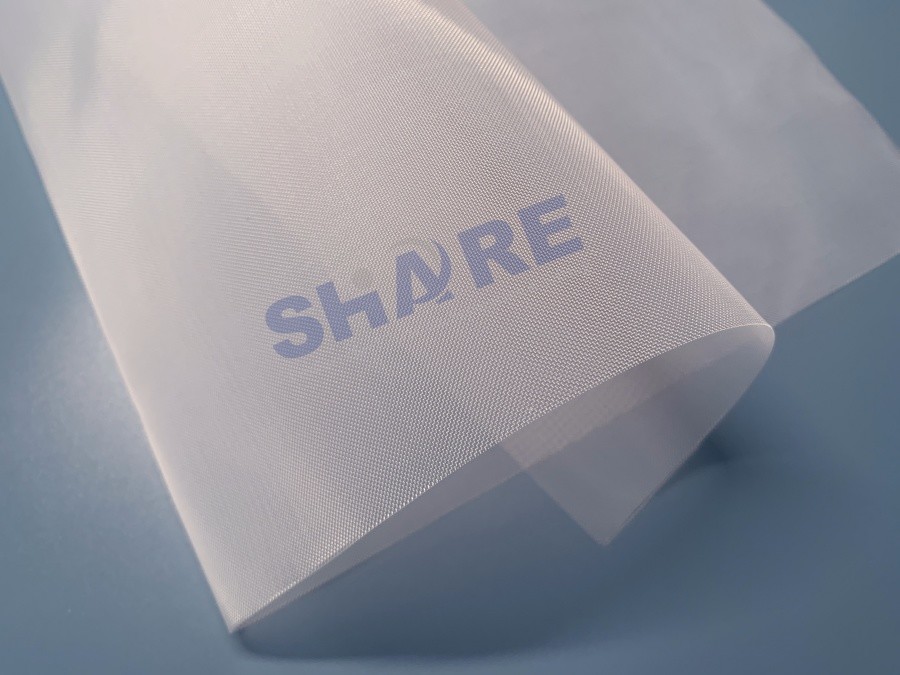

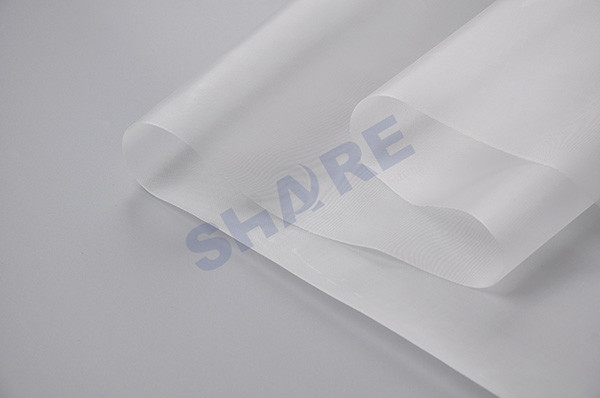

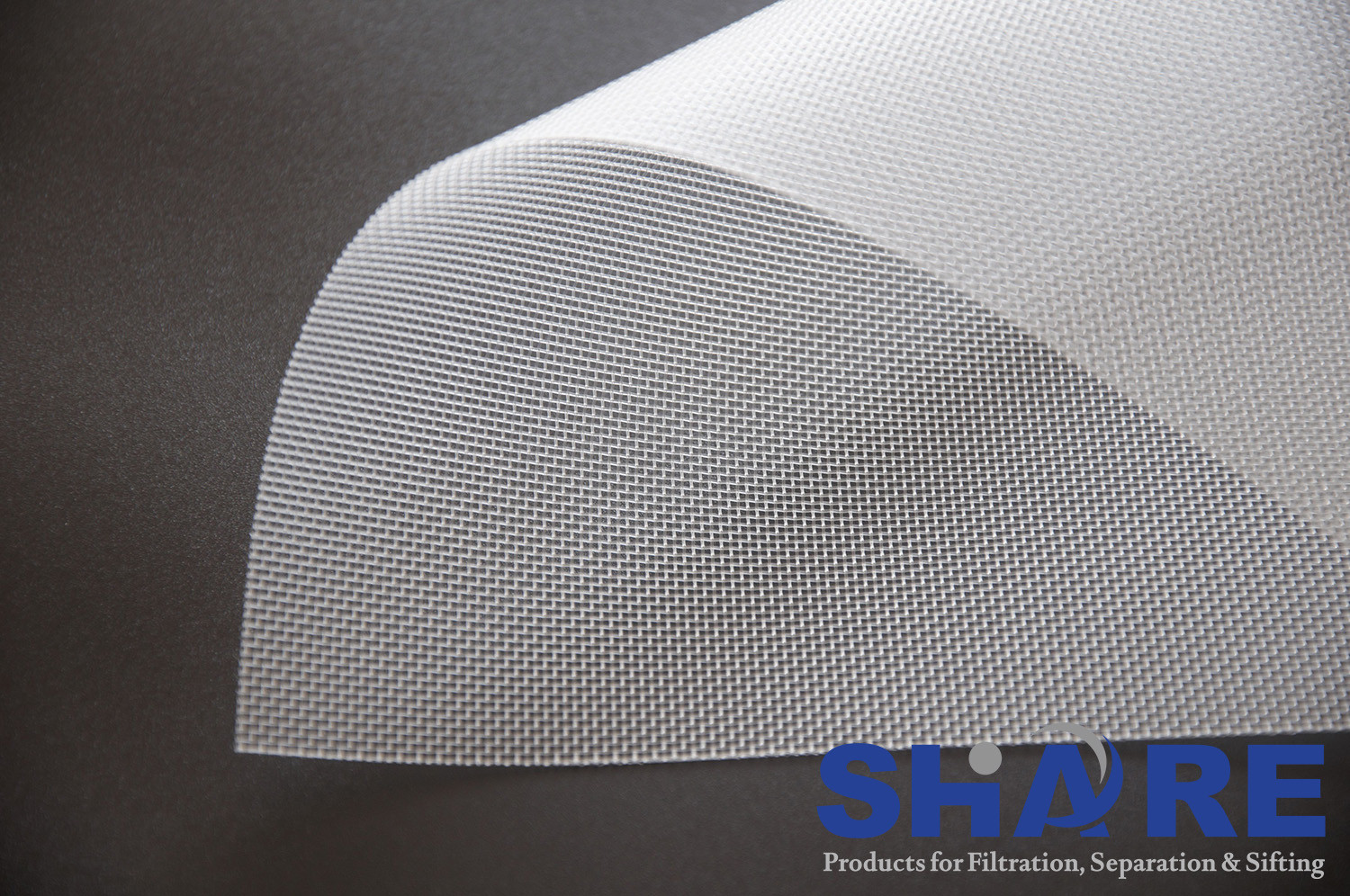

SHARE produces nylon monofilament filter mesh in standard and FDA compliant grades, it is certified silicone free, free from crater forming substances, and are very suitable for the collection of algae & cells, particle analysis & filtration, paint monitoring, medical filtration(blood filtration), etc.
Use SHARE nylon mesh to filter your paint before putting the paint into the spray gun and applying, it will prevent foreign particles entering the spray gun and causing damage and imperfections in the paintwork strainers come flattened.
Specifications
| Product Name | 100, 125, 150, 190, 200, 220, 280 Microns Paint Filtration Nylon Screen Mesh for Paper Paint Strainers |
| Manufacturer | Taizhou Share Filters Co. Ltd. |
| Brand | SHARE FILTERS |
| Material | Nylon monofilament pa6 and pa6.6 (Food grade are available) |
| Color | white or customized |
| Weave type | plain woven, twill woven, dutch woven |
| Common width | 50cm, 100cm, 127cm, 145cm, 165cm, 182cm, 220cm, 260cm, 280cm, 320cm, 360cm up to 390cm or customized width |
| Roll length | 30-100 meters or customized |
| Mesh Count/inch | 6 mesh/inch to 700 mesh/inch |
| Thread diameter | 30 to 1000 microns |
| Mesh Opening | 100, 125, 150, 190, 200, 220, 280 Microns. 1 to 3233 microns are available |
| Certificate | ISO9001 ROHS REACH PROPOSITION 65 SILICON TEST etc. |
| Samples | 1 meters free |
| Properties | Good dimensional stability, great precision and even mesh opening, smooth surface, excellent strength and elasticity, excellent abrasion resistance, good alkali and chemicals resistance, good solvent, fuel and lubricant resistance, higher moisture absorbency compared with polyester |
| Advantages | 1. High mechanical strength and flexibility 2. Fatigue resistance 3. Available in disc, tube, bag and special shapes 4. Abrasive and corrosive resistance 5. Heat-melting resistance 6. Wide ranges of mesh counts for choice 7. Available for water, air, oil, paint, powder filtration 8. Compliance with FDA food grade |
| Quality Control | Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, self-inspections, spot inspections and final inspections at every stage of the process |
| Application | Paint filtration |
|
Nylon Filter Mesh for Paint Filter • Mesh Opening SHARE nylon mesh 100, 125, 150, 190, 200, 220, 280 µm microns 125 micron and 190 micron are the most popular for paint filter. • Main Features Oil proof and waterproof. Prevents spray equipment clogging. • Applications All types of paints, varnishes, resins, and stains and automotive antifreeze, oil, or loose-leaf tea. |
| Precision Nylon Filter Mesh Technical Data Sheet | |||||||
| Fabric Number | Mesh Count | Thread Diameter | Mesh Opening | Open Area | Mesh Thickness | Weight | |
| n/cm | n/inch | μm | μm | % | μm | g/m2 | |
| PA 300/36 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
| PA 267/41 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
| PA 237/44 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
| PA 213/41 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
| PA 213/46 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
| PA 178/41 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
| PA 150/36 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
| PA 152/43 | 43 | 110 | 80 | 152 | 42 | 135 | 60 |
| PA 130/38 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
| PA 120/44 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
| PA 110/42 | 59 | 150 | 60 | 110 | 41 | 98 | 46 |
| PA 100/37 | 64 | 160 | 60 | 100 | 38 | 105 | 50 |
The data are compiled to the best of our knowledge. Subject to change without notice. Complete product range is available on request.
Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Opening Size=25.4 mm÷Mesh Count−Wire Diameter
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Open Area %=(Opening Size)2÷(Opening Size+Wire Diameter)2×100
Typical Applications of SHARE Nylon Filter Mesh
Established in 1983, Taizhou Share Filters Co., Ltd. has been producing a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene, stainless steel etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products including:
|
Monofilament Mesh Rolls
• 30 years of experience & capabilities
• PA, PET, PP, PE, PPS, PEEK etc.
• Characterized by precise mesh opening, open area and thickness
• Excellent converting capabilities from yarn over weaving to converted items
|
|
Discs, Tubes, Ribbons, Bags
• Cutting, calendering, welding, slitting, sewing, pleating, molding
• Discs, tubes, ribbons, bags etc.
• Various converting capabilities by stamping or slitting technology: cold, heat, laser, ultrasonics
• Clean, smooth & closed edge quality
• Maximum compatibility with injection molding process
|
|
Plastic Molded Filters
• Insert molding and over molding
• Mold design, modeling, prototyping, manufacturing and testing
• High efficiency, excellent particles holding capacity and low pressure drop
• High stability, repeatability and reliability
• Extensive material options and industry-best lead times
|
Contact us today and SHARE application specialists with decades of experience will help you create the best filter solution for your application.
Packaging & Shipping
For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
| Port to Port | Door to Door | |
| Express(DHL,UPS,FEDEX, EMS) | 1 - 5 days | |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
