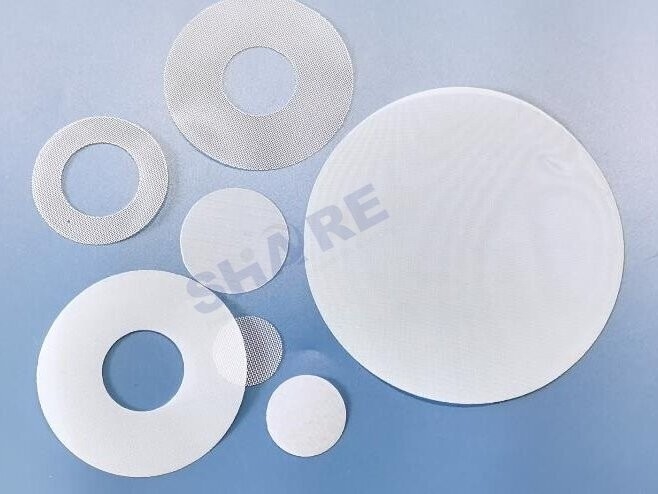

Micron 10μM Polyester Mesh Disc For Cleanliness Analysis Filtration 30mm

Minimum Order Quantity : 500pcs Price : USD0.04-USD0.90/pc
Packaging Details : Caron, Polybag Delivery Time : 3-9 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPal Supply Ability : 20000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: RoHS Model Number: 10μm Polyester Filter Mesh Disc 30mm

Detail Information

Product Name: 10μm Polyester Mesh Disc Filter For Cleanliness Analysis Keywords: 10μm Polyester Filter Mesh Disc Filter 30mm
Material Option: Polyester Filter Mesh, Nylon Filter Mesh Micron Rating: 5μm-1000μm
Thread Diameter: 31μm-350μm Diameter: 13 25 47 50 60 90 100 110 150 200mm, Custom
Application: Cleanliness Analysis, Other Lab Filtration
High Light:

10uM Polyester Mesh Filter


30mm Polyester Mesh Disc


Cleanliness Analysis Filtration Polyester Mesh Disc

Product Description


Micron 10μm Polyester Mesh Disc for Cleanliness Analysis Filtration 30mm


In the cleanliness chekcing and analysis, filter cleanliness is of importance and should be specified. the mesh filters are preferred against foamed filters due to the quicker filtration processes. Polyester (PET) filter mesh and nylon (Polyamide) filter mesh and suitable for all rinsing liquids used because of their chemical stability. Because of moisture-absorbing and thermal asistance advantages, polyester mesh filters are mostly used in cleanliness analysis applications. Share Filters precision polyester filter mesh is compatible with a broad range of solvents, with mesh openings ranging from 5 to 4400 µm.

Polyester filter mesh is known for having a mechanical and chemical resistance greater than that of polyamide (nylon). Polyester filter mesh is often used in chemically aggressive environments. Share Filters not only offers a wide range of specification polyester filter mesh in rolls, but also can process the filter mesh into all kinds of filter components, including mesh ribbons, discs, shapes, tubes, bags, moulded filters. Thanks to the advanced process equipments, Share Filters' filter mesh discs and shapes can be tailored to any shape or dimension.



Polyester Mesh Filter Disc by Laser Cut


Due to cleanliness requirements and to avoid entangling with environment, Share Filters offers most filter mesh discs by laser cut. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh shapes can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality. These mesh discs and shapes are convenient for directly usage or custom injection moulding.


polyester filter disc by laser cut

Laser cut



Technical Data


Product name: 10μm polyester mesh disc filter  Diameter: 13 25 47 50 60 90 100 110 150 200mm, etc.
Material: Monofilament woven polyester filter mesh Pore size: 10μm
Fabricated method: Laser cut, punching Thread diam: 39μm
Application: Cleanliness analysis, other laboratory filtration Weave type: Twill weave
HS code: 5911200090 Package: 50pcs/bag 100pcs/bag 150 pcs/bag 200pcs/bag


Product Details


polyester filter mesh disc  filter mesh disc  filter mesh shapes

polyester filter mesh  filter mesh  mesh filter disc



Chemistry and Mechanical Properties


Mesh filters are preferred against foamed filters due to quicker filtration processes. Because of their chemical stability, polyester mesh filters and Nylon (Polyamide) are suitable for all rinsing liquids used.



Filter material

Medium (test or final rinsing liquid)
Aqueous neutral cleaner Aliphatic hydrocarbons (cold cleaners) Isopropanol Ethanol (spirit) Ketones
Filter mesh Polyester + + + + +
Polyamide/Nylon + + + + +
+ suitable, - unsuitable



Polyester mesh filters are mostly used in cleanliness analysis applications, due to its moisture-absorbing and thermal asistance advantages.


Filter Mesh Melting Temperature Moisture Regain (20 deg C, 65%rel.Hum.) Recommended drying temperature
Polyester PET approx. 250 deg C 0.2% 90 deg C
Polyamide 6 (Nylon) approx. 210 deg C 4.5% 70 deg C



The Feature of Polyester Mesh Disc


  • Compatible with a broad range of solvents
  • Hydrophobic
  • Excellent dimensional stability
  • Thermal resistance
  • Autoclavable

The Benefits of Pre Cut  Mesh Discs


  • Specific to the customer’s design needs
  • Special-made tool make size in tight tolerance
  • Non-fraying edges(depends on the technology)
  • Convenient for directly uasage or insert moulding
  • High productivity



Ployester Filter Mesh Specifications for Cleanliness Analysis


Mesh count Thread
No. mesh/cm mesh/inch micron micron % micron g/m2
PES 215/53 34S 86 80 215 53 150 56
PES 195/44 34T 86 100 195 44 180 87
PES 180/42 36T 91 100 180 42 180 92
PES 200/61 39S 99 55 200 61 95 30
PES 190/55 39T 99 64 190 55 115 40
PES 150/36 40T 102 100 150 36 190 103
PES 150/42 43T 110 80 150 42 155 71
PES 160/57 47S 120 55 160 57 96 36
PES 150/50 47T 120 64 150 50 120 48
PES 140/43 47HD 120 71 140 43 130 59
PES 140/47 49S 125 64 140 47 120 50
PES 135/44 49T 125 71 135 44 130 62
PES 144/55 53S 135 45 144 55 76 27
PES 135/51 53S 135 55 135 51 97 40
PES 125/44 53T 135 64 125 44 122 54
PES 117/39 53T 135 71 117 39 132 67
PES 115/46 59S 150 55 115 46 99 45
PES 105/38 59T 150 64 105 38 123 61
PES 100/41 64S 160 55 100 41 100 48
PES 90/33 64T 160 64 90 33 125 66
PES 95/47 72S 180 45 95 47 78 37
PES 85/38 72T 180 55 85 38 102 55
PES 75/33 77T 195 55 75 33 105 58
PES 80/41 80S 200 45 80 41 80 41
PES 85/44 80T 200 48 85 44 86 44
PES 70/40 90M 230 39 70 40 68 34
PES 68/34 90T 230 45 68 34 80 46
PES 65/33 90T 230 48 65 33 82 49
PES 60/36 100T 250 39 60 36 69 38
PES 56/38 110T 280 34 56 38 62 34
PES 52/33 110HD 280 39 52 33 70 42
PES 52/40 120S 300 31 52 40 48 32
PES 48/33 120T 300 34 48 33 63 37
PES 44/28 120HD 300 39 44 28 72 46
PES 47/37 130S 330 31 47 37 50 35
PES 42/30 130T 330 34 42 30 58 40
PES 43/34 140S 350 31 43 34 50 37
PES 36/25 140T 355 34 36 25 62 43
PES 37/30 150S 380 31 37 30 50 40
PES 32/24 150 381 34 32 24 56 43
PES 33/31 165S 420 27 33 31 40 26
PES 32/23 165T 420 31 32 23 50 36
PES 25/16 165 419 34 25 16 66 49
PES 24/18 180 457 27 24 18 43 33
PES 23/17 180 457 31 23 17 56 40
PES 18/18 235x245 597x622 24 18 18 44 32
PES 18/13 200 508 31 18 13 60 48
PES 23/25 200T 500 27 23 25 45 32
PES 15/10 200x215 508x546 31 15 10 59 50

This just a part of specifications which common used.



Share Filters Fabricated Filter Mesh Parts and Moulded Filters


 filter mesh ribbon shapes tubes, bags

mesh insert injection moulded plastic filter



What Share Filters Do?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.


Combine the Filter Mesh with Plastic


We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.


weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene, Stainless Steel wire


Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of  filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.



Filter Mesh Slitted in Narrow Ribbons


Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

      Filter mesh slitted to be ribbons



Micron 10μM Polyester Mesh Disc For Cleanliness Analysis Filtration 30mm 11

Filter Mesh Pre Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.




 Filter Mesh Tubes and Tubular Ribbon


Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

nylon filter mesh weld tube ribbon


mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing


Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.



Standard Filter Bags

Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

    mesh filter bag


custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Filters


Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.



Application of Share Filters Products


Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


injector filter BIOPSY BAG Micron 10μM Polyester Mesh Disc For Cleanliness Analysis Filtration 30mm 18 coffee filter Micron 10μM Polyester Mesh Disc For Cleanliness Analysis Filtration 30mm 20 Micron 10μM Polyester Mesh Disc For Cleanliness Analysis Filtration 30mm 21

Fuel filter


Biopsy bag


Air purifier filter


Coffee filter


Irrigation filter


Mesh disc filter


Automotive Laboratory Appliance Food & Beverage Agriculture Power tool
