Micron 100μM Nylon Mesh Disc Filter For Laboratory Cleanliness Analysis

Minimum Order Quantity : 1000pcs Price : USD0.03-USD0.90/pc
Packaging Details : Caron, Polybag Delivery Time : 3-9 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPal Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: RoHS Model Number: 100 Micron Nylon Mesh Disc Filter

Detail Information

Product Name: 100 Micron Nylon Mesh Disc Filter For Cleanliness Analysis Keywords: Cleanliness Analysis Mesh Filter Disc
Material Option: Nylon Filter Mesh, Polyester Filter Mesh Micron Rating: 3μm-1000μm
Thread Diameter: 30μm-200μm Diameter: 13 25 47 50 60 90 100 110 150 200mm, Custom
Application: Cleanliness Analysis, Other Laboratory Filtration
High Light:

Laboratory Nylon Mesh Filter Disc

,

Laboratory Cleanliness Analysis Disc Filter

,

Micron 100uM Nylon Mesh Filter

Product Description

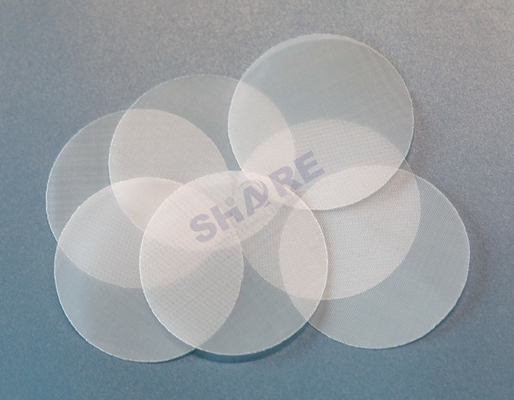

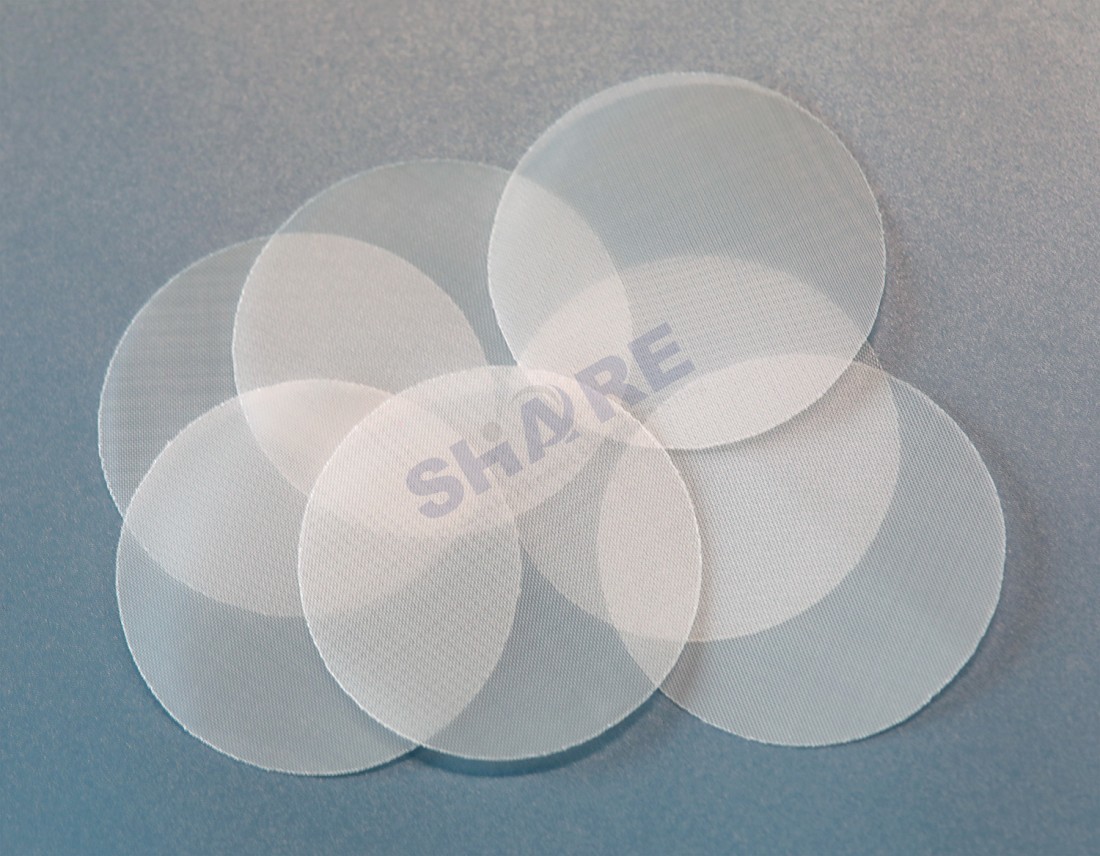

Micron 100μm Nylon Mesh Disc Filter For Laboratory Cleanliness Analysis



In the laboratory cleanliness chekcing and analysis filtration,  the mesh filters are preferred against foamed filters due to the quicker filtration processes. Nylon (Polyamide) filter mesh and polyester filter mesh are suitable for all rinsing liquids used because of their chemical stability. Share Filters precision nylon mesh filters are compatible with a broad range of solvents, with mesh openings ranging from 3 to 3233 µm.


Nylon filter mesh is the most popular and economical synthetic filtration mesh. Share Filters monofilament woven nylon mesh material is nylon PA6 feature with effective abrasion and alkali resistance. Share Filters not only offers a wide range of specification nylon filter mesh in rolls, but also can process the filter mesh into all kinds of filter components, including mesh ribbons, discs, shapes, tubes, bags, moulded filters. Thanks to the advanced process equipments, Share Filters' filter mesh discs and shapes can be tailored to any shape or dimension.





Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh shapes can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality. These mesh discs and shapes are convenient for directly usage or custom injection moulding.

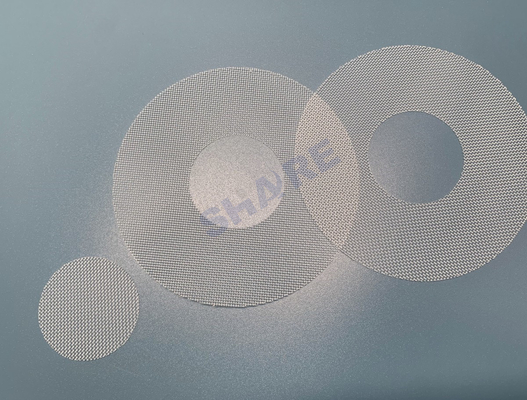

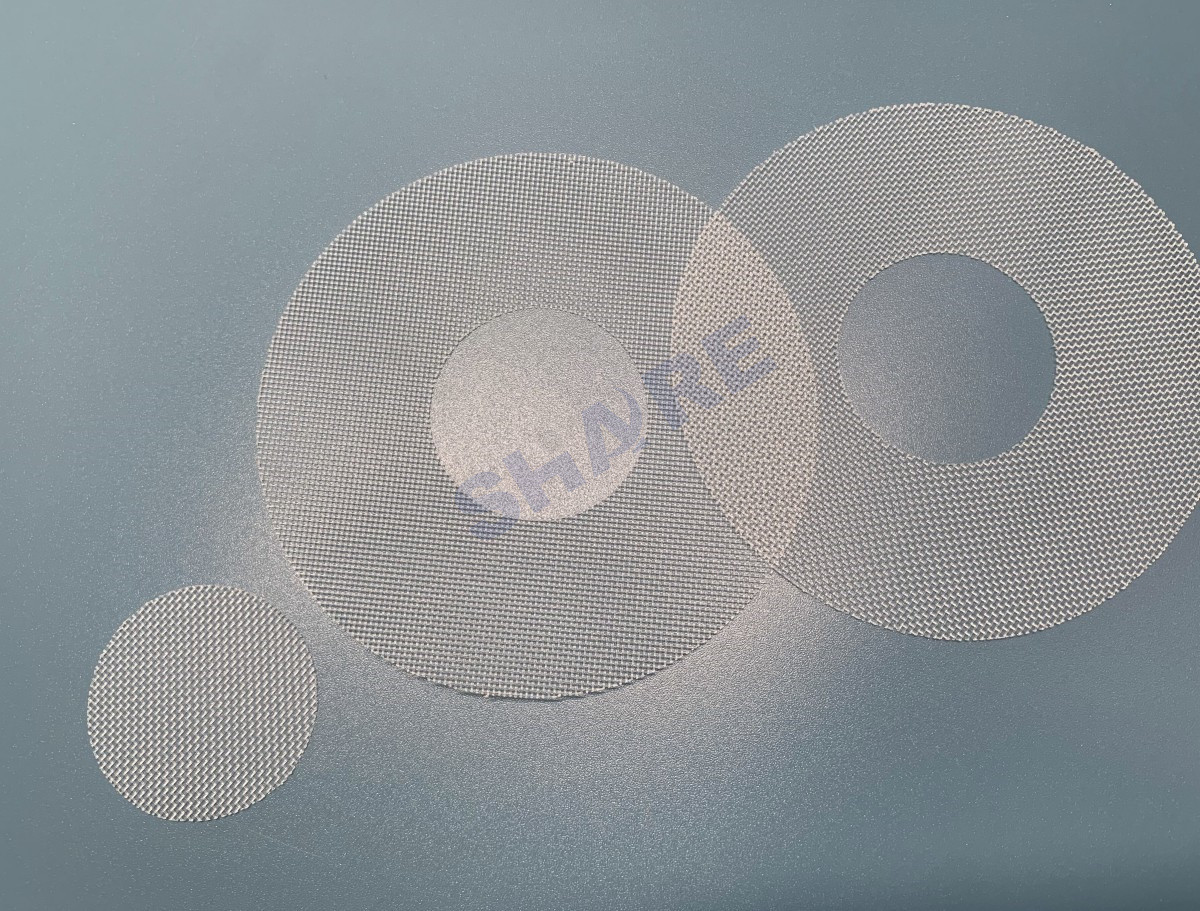

              filter mesh disc



Technical Data



Product name: 100μm nylon mesh disc filter  Diameter: 13 25 47 50 60 90 100 110 150 200mm, etc.
Material: Monofilament woven nylon filter mesh Pore size: 100μm
Fabricated method: Laser cut, punching Open Area: 38%
Application: Cleanliness analysis, other laboratory filtration Thickness: 105μm
HS code: 5911200090 Package: 50pcs/bag 100pcs/bag 150 pcs/bag 200pcs/bag




Product Details





nylon filter mesh

Micron 100μM Nylon Mesh Disc Filter For Laboratory Cleanliness Analysis 2



Chemistry and Mechanical Properties



Mesh filters are preferred against foamed filters due to quicker filtration processes. Because of their chemical stability, Nylon (Polyamide) and Polyester mesh filters are suitable for all rinsing liquids used.





Filter material

Medium (test or final rinsing liquid)
Aqueous neutral cleaner Isopropanol Ethanol (spirit) Aliphatic hydrocarbons (cold cleaners) Ketones
Filter mesh Polyamide/Nylon + + + + +
Polyester + + + + +
Foamed membrane Cellulose nitrate + - - + -
Cellulose acetate + + - + -
Polyamide/Nylon + + + + +
+ suitable, - unsuitable





The Feature of Nylon Mesh Disc

  • Compatible with a broad range of solvents
  • Midly hydrophobic
  • Good resistance against alkalis and organics
  • Resistant against pH 3 to 13
  • Autoclavable

The Benefits from Pre Cut Nylon Mesh Discs

  • Specific to the customer’s design needs
  • Special-made tool make size in tight tolerance
  • Non-fraying edges(depends on the technology)
  • Convenient for directly uasage or insert moulding
  • High productivity





Nylon Filter Mesh Specifications for Cleanliness Analysis



Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
  n/cm n/inch μm μm % μm g/m2
PA 300/36 20 50 200 300 36 385 173
PA 267/41 24 60 150 267 41 285 117
PA 237/44 28 70 120 237 44 215 87
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/43 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/42 59 150 60 110 41 98 46
PA 100/37 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/36 100 250 42 60 34 65 35
PA 42/25 120 305 42 42 24 75 42
PA 44/27 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/29 120 305 35 45 33 60 28
PA 55/42 120 305 30 55 40 52 20
PA 40/26 130 330 38 40 25 74 36
PA 42/30 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22
PA 32/20 140 355 38 32 21 68 36
PA 37/26 140 355 35 37 26 65 33
PA 38/28 140 355 30 38 33 53 25
PA 31/21 150 380 38 31 18 68 40
PA 35/27 150 380 30 35 29 57 26
PA 34/26 150 380 30 34 26 50 26
PA 30/25 165 420 30 30 25 59 28
PA 30/19 145 368 38 30 19 64 40
PA 25/21 180 460 30 25 21 60 31
PA 25/15 165 420 38 25 15 75 42
PA 20/16 200 508 30 20 16 65 34
PA 10/4.3 208 530 38 10 4.3 77 53
PA 8/3 220 560 38 8 3 78 56
PA 6/1.7 228 580 38 6 1.7 80 59
PA 3/1 236 600 38 3 1 85 61

This just a part of specifications which common used.





Share Filters Fabricated Filter Mesh Parts and Moulded Filters



fabricated mesh parts moulded filters





What does Share Filters Offer?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



Combine the Filter Mesh with Plastic



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene, Stainless Steel wire



Selecting the high-quality monofilament polyester thread with high tenacity, high tension characteristics, Share weaves filter mesh with Sulzer P7100 looms. The width of  filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons



Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

      Filter mesh slitted to be ribbons





Micron 100μM Nylon Mesh Disc Filter For Laboratory Cleanliness Analysis 7

Filter Mesh Pre Cut Pieces and Shapes



Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.







 Filter Mesh Tubes and Tubular Ribbon



Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

nylon filter mesh weld tube ribbon




mesh filter bag

Customized Mesh Bag by Welding and Sewing



Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.


Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

    mesh filter bag

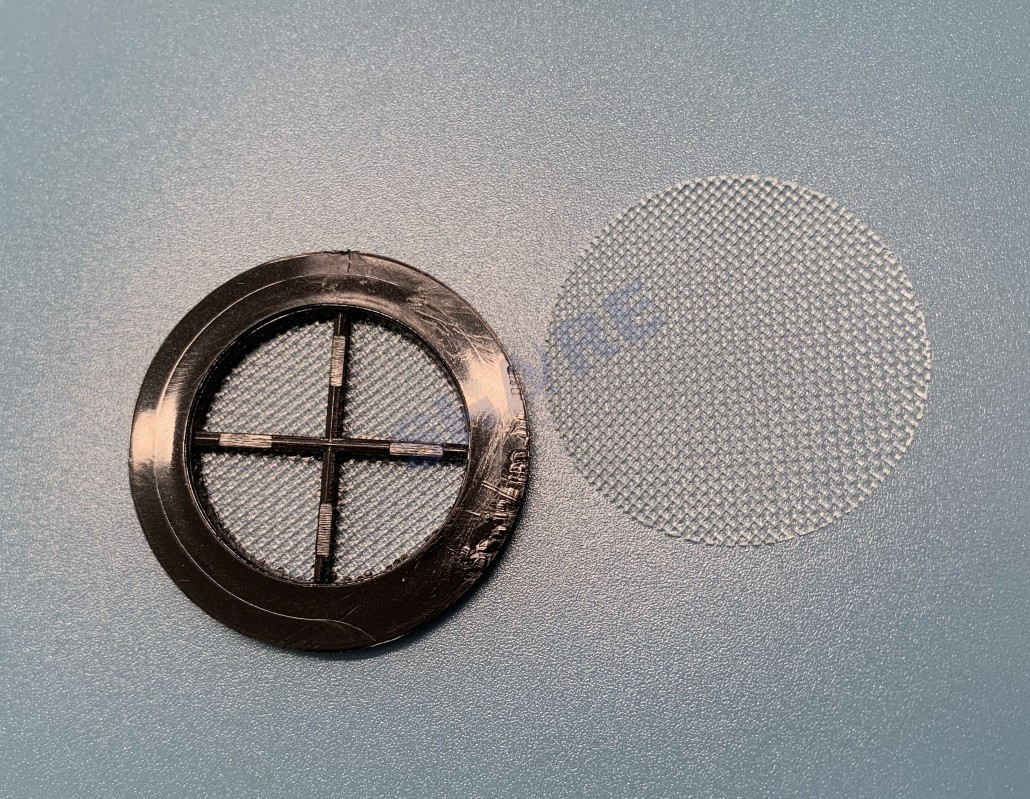

custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.



Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.






Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Micron 100μM Nylon Mesh Disc Filter For Laboratory Cleanliness Analysis 14 coffee filter Micron 100μM Nylon Mesh Disc Filter For Laboratory Cleanliness Analysis 16 Micron 100μM Nylon Mesh Disc Filter For Laboratory Cleanliness Analysis 17
Fuel filter Biopsy bag Air purifier filter Coffee filter Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!
