Nylon Mesh Welded Tube For Orifice Tube Filter For Automotive A/C Compressor

Product Description

Nylon Mesh Welded Tube for Orifice Tube Filter For Automotive A/C Compressor

The A/C orifice tube filters are injection-moulded for enhanced durability, and are designed with standard, application-specific sizing for efficient refrigerant metering and cooling performance. All tube filters are engineered to be application specific, are color-coded, and can include all the necessary O-rings, gaskets, or seals for a complete repair, it's built to meet or exceed OEM standards for function and performance to ensure dependable and efficient A/C system operation. Share Filters can supply from the mesh screen from ribbons to final moulded filter elements according to customers' design.

Nylon filter mesh is the most popular and economical synthetic filtration mesh. Share weaves nylon filter mesh with Sulzer P7100 looms. More than 20 years of production experience enables us to weave nylon filter mesh with precise and uniform mesh holes. Share Filters not only offers a wide range of specifications of nylon filter mesh in rolls, we also process the filter mesh into all kinds of filter components.

Converting Filter Mesh To Be Mesh Ribbons, Pieces, Tubes, Moulded Filter

Thanks to the advanced process equipments and many years of experience, Share Filters' filter mesh pieces and tubes can be tailored to any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Share Filters has the competence to manufacture tubes either by heat slitting or by ultrasonic welding. By slitting two layers of mesh simultaneously, the heat emitting from the slitting facility will weld both sides together creating a tube. These mesh pieces and tubes are suitable for mesh insert injection moulding and simple and cheap in production. For higher weld strength, we recommend ultrasonic welded tubes having one overlapping weld.

Share Filters' Filter Mesh Options for Orifice Tube Filter For Automotive A/C Compressor

Product Details







Share Filters can supply mesh filter elements in every stages, from the mesh in rolls to final moulded filters.



	Slitted filter mesh ribbon
	Cutted pieces, precise size is convenient for installment

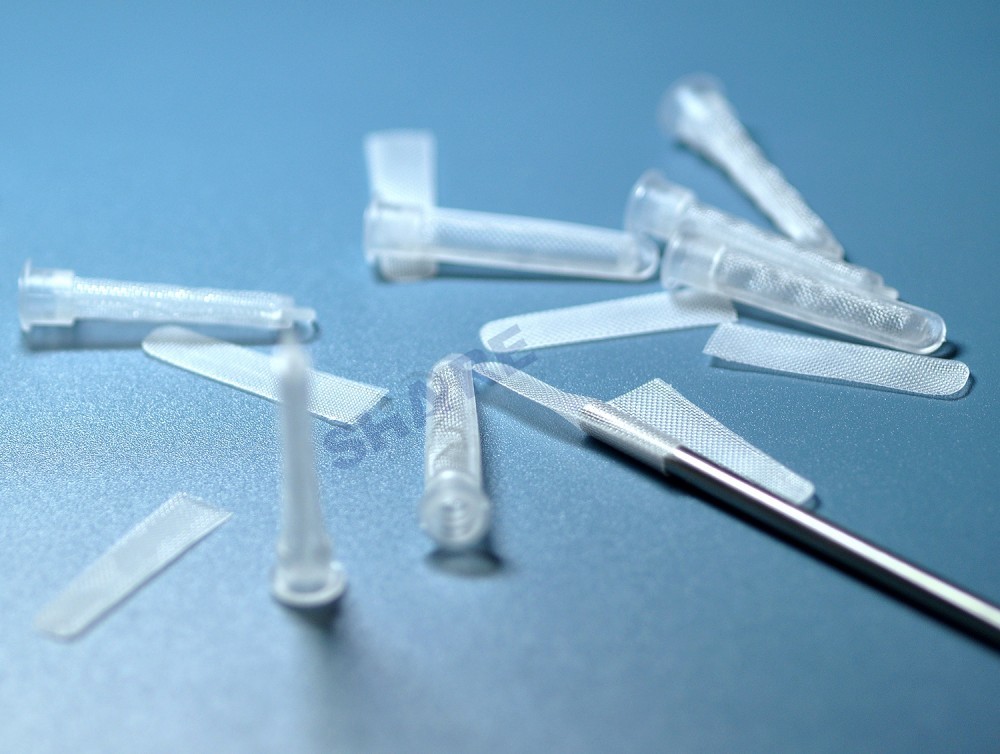

	Welded mesh filter tube, convenient for injection moulding

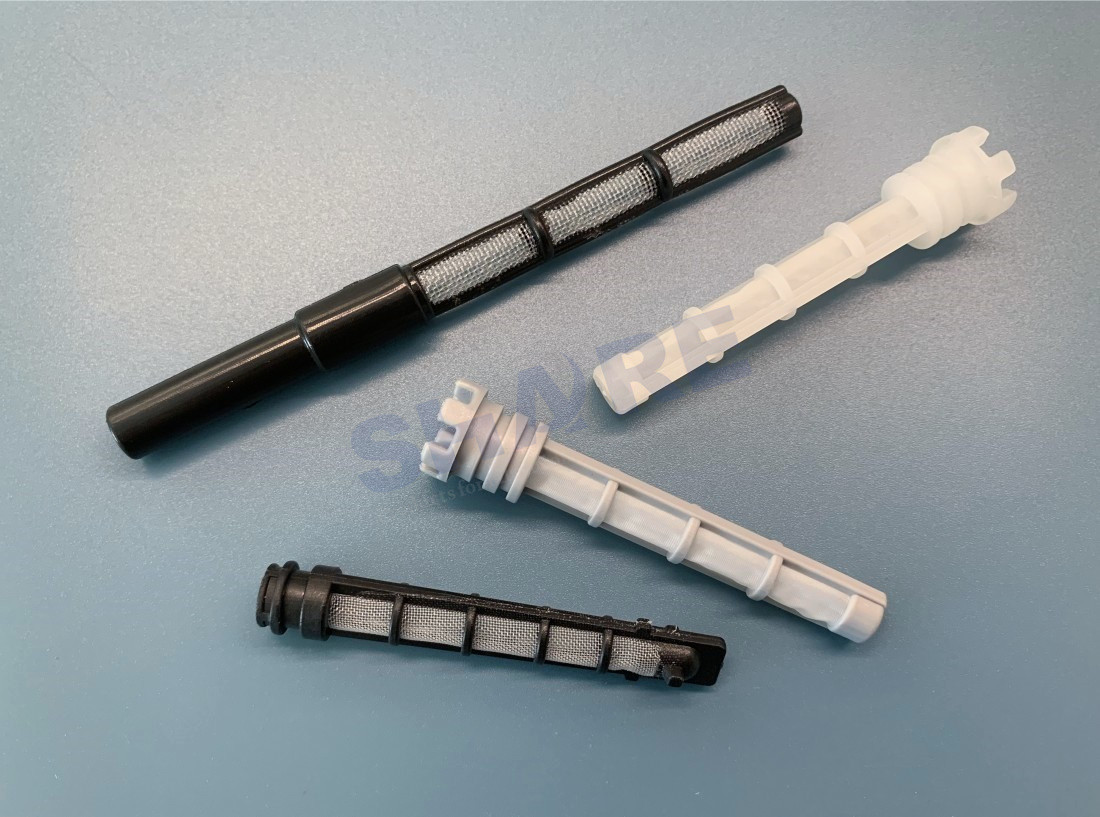

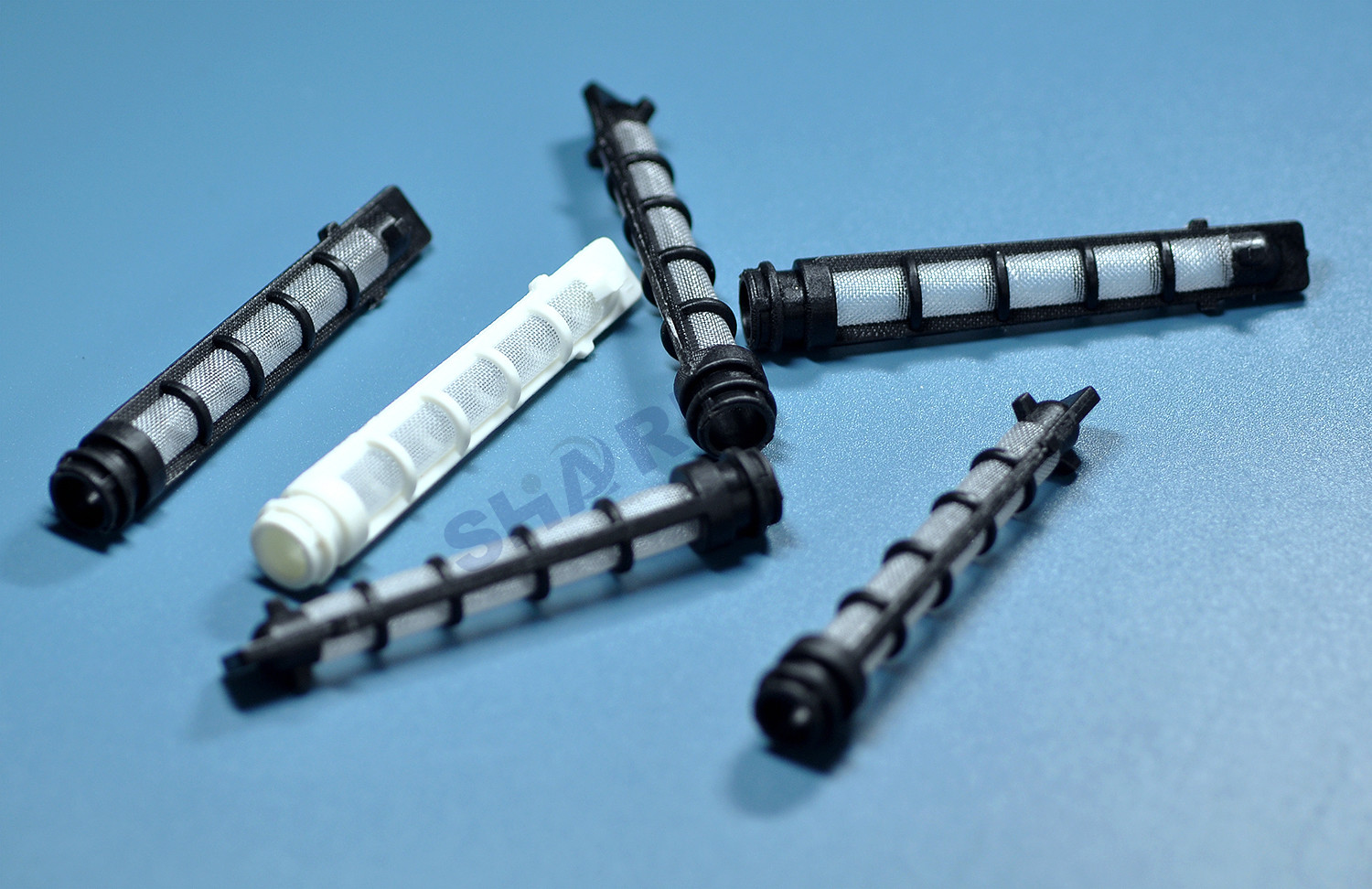

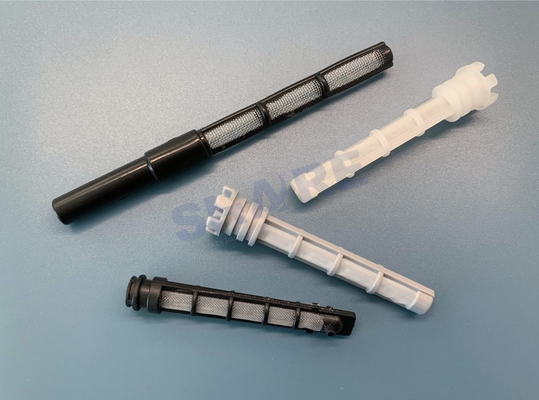

	Mesh insert injection moulded filter







Benefits from Precut Nylon Mesh Tubes: Specific to the customer’s design needs Wide range of micron rating and thread diameter options Non-fraying and clean edges(depends on the technology) Convenient for insert moulding High productivity

The Property of Nylon Filter Mesh: High tensile strength and cost-effective Precise and even mesh opening Elasticity and flexibility Good resistance to alkline Easy cutting, dyeing, and cleaning





Nylon Filter Mesh Specifications for Domestic Water Purifier Filter​



Fabric number	Mesh count		Thread diameter	Mesh opening	Open area	Fabric thickness	Weight
No.	mesh/cm	mesh/inch	micron	micron	%	micron	g/m2
JPP2	2.3	6	1000	3233	58.3	1900	412
JPP3	3.1	8	900	2300	51.3	1700	450
JPP4	4	10	550	1950	61	950	262
JPP5	5	12	500	1500	56	850	271
JPP6	6	16	400	1267	58	780	208
JPP7	7	18	350	1079	57	675	186
JPP8	8	20	350	900	52	685	212
JPP9	9	24	250	860	60	455	145
JPP10	10	25	300	700	49	576	195
JPP12	12	30	250	583	49	470	162
JPP12	12	30	300	533	41	585	234
JPP14	14	35	300	414	34	595	273
JPP16	16	40	200	425	46	370	139
JPP16	16	40	250	375	36	485	217
JPP20	20	50	150	350	49	375	98
JPP20	20	50	200	300	36	385	173



This just a part of specifications which common used.

Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch.   Mesh opening (w), (μm) The mesh opening w is the distance between two adjacent warp or weft thread.   Thread diameter (d),( μm) The thread diameter is measured on the thread before weaving.   Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area



Share Filters Other Fabricated Filter Mesh Parts



Slitted mesh ribbon	Mesh Disc	Mesh Shape	Mesh tube	Welded bag





Properties of Polymers



Share Filters’ line of specialty filter meshes is ideal where high temperature,

chemical resistance and material fatigue are common.



Material	PA6	PA66	PET	PP	PEEK
Specific gravity (g/mm²)	1.14	1.14	1.38	0.91	1.3
Tensile strength(daN/mm²)	41-67	41-67	45-75	35-62	33-75
Relative strength at wet conditions(%)	89-90	85-90	100	100	100
Elongation at break (%)	20-35	20-35	15-30	20-50	20-40
Moisture absorption at 20°C / 65% r.h. (%)	3.5-4	3.5-4	0.4	0	0.1
Melting point (°C)	210-220	260-268	250-260	165-175	334
Softening point (°C)	-	-	220-240	140-155	300
Working temperature dry (°C)	-	-	-75 to +150	-30 to +90	up to 250
Stability to light	poor	poor	poor	poor	good
Atmospheric influence	-	-	none	none	none
Abrasion resistance	good	good	limited	limited	good
Acid resistance	limited-poor	limited-poor	good	good	good
Alkaline resistance	good	good	limited	good	good
Stability to solvents	limited	limited	good	good	good
Hydrolysis resistance	good	good	limited	good	good





Why Work With Share Filters ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.



We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



Precise Filter Mesh Weaving   The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.





Filter Mesh Slitted in Narrow Ribbons   Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons with clean edges.





Filter Mesh Pre-Cut Pieces and Shapes   Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.





Cutting and Welding Tubes   Share Filters has the competence to manufacture tubes either by heat slitting or by ultrasonic welding. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.





Ultrasonic Welded Mesh Bag	Sewn Mesh Bag





Standard Filter Bags   Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance. Top design: plastic collar, metallic ring





Mesh Insert Injection Moulded Plastic Filters   Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.





Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Fuel filter	Biopsy bag	Air purifier filter	Coffee filter	Irrigation filter	Mesh disc filter
Automotive	Laboratory	Appliance	Food & Beverage	Agriculture	Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!
