Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 200pcs | Price : | USD0.02-USD1.20/pc |
---|---|---|---|
Packaging Details : | Caron, Polybag | Delivery Time : | 3-9 days |
Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 50000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | RoHS | Model Number: | Nylon Filter Mesh Disc For Vacuum Cleaner Pre Filter |
Detail Information |
|||
Product Name: | Nylon Filter Mesh Disc For Vacuum Cleaner Pre Filter | Keywords: | Vacuum Cleaner Filter Mesh Disc |
---|---|---|---|
Material Option: | Nylon Filter Mesh, Polyester Filter Mesh | Micron Rating: | 300μm-1000μm |
Thread Diameter: | 60μm-350μm | Size: | Any Custom Size Or Shapes |
Application: | Vacuum Cleaner Filter, Other Appliance Filter | ||
Highlight: | Washable Nylon Mesh Disc Screen,Pre-Motor Nylon Mesh Disc Screen |
Product Description

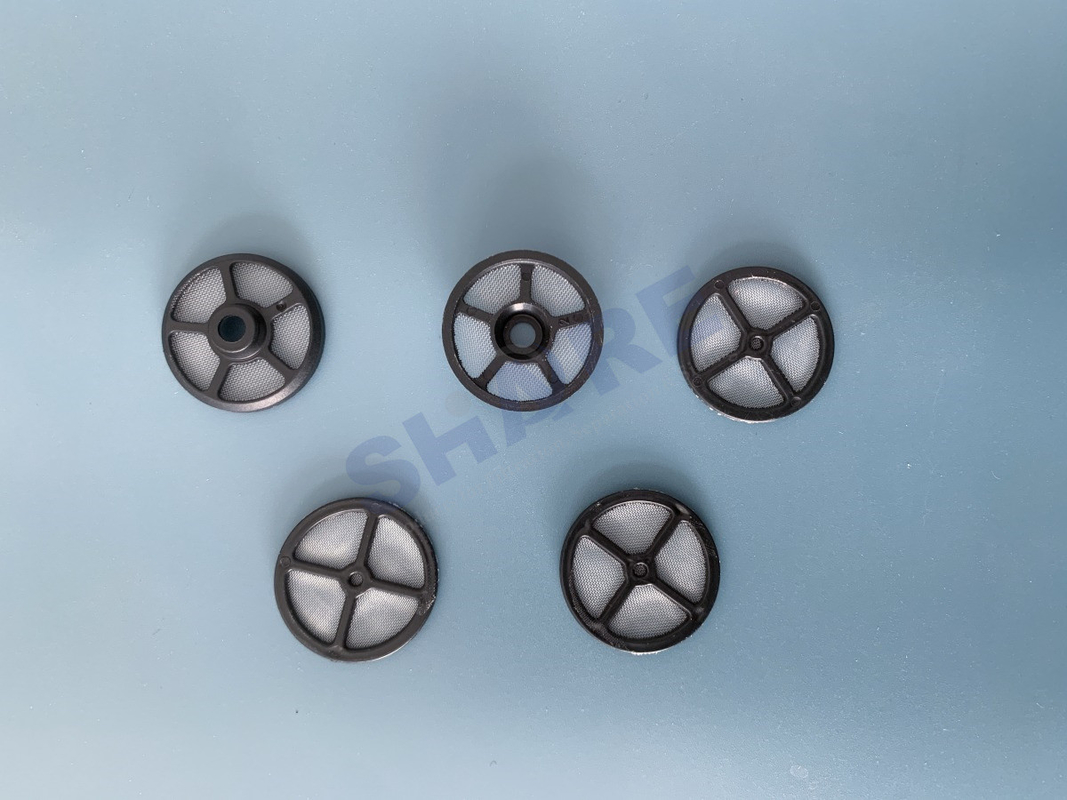

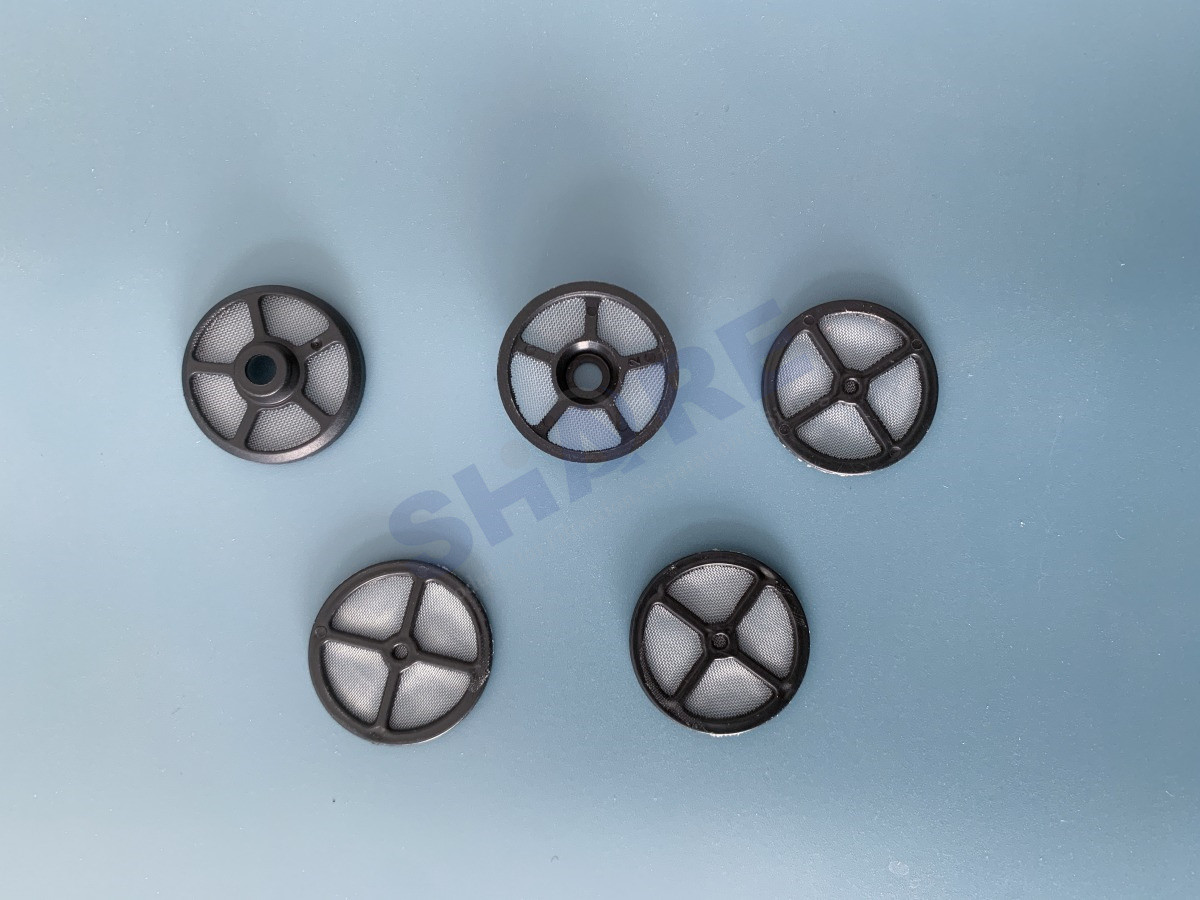

Washable Nylon Filter Mesh Disc Screen for Vacuum Cleaner Pre-Motor Filter
The pre-motor filter is located near the vacuum cleaner's motor. Its purpose is to protect the motor from debris and dust. Pre-motor filters are often made of foam or mesh fabric and need to be cleaned or replaced regularly to maintain optimal performance. Nylon(polyamide) mesh and polyester mesh are the mostly used for the pre-motor filter in the vacuum cleaner.
Nylon filter mesh is the most popular and economical synthetic filtration mesh. Share Filters not only offers a wide range of nylon filter mesh in rolls, we also process the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh shapes and discs can be tailored to any shape or dimension.
Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh shapes can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality. These mesh discs shapes are convenient for custom injection moulding, or directly installment.
Share Filters' Filter Mesh Options Used for Vacuum Cleaner Disc Filters
Material Options: | Monofilament woven nylon filter mesh, polyester filter mesh |
Mesh Opening: | From 300 micron to 1000 micron |
Thread Diameter: | From 200 micron to 350 micron |
Open Area: | From 34% to 60% |
Weave Type: | Plain Weave |
Fabricated Part: | Pieces, discs, shapes, ribbons, tubes |
Dimension: | Can be tailored to any shape or dimension |
Colour: | White, or customize |
Product Details
The Benefits from Share Filters' Pre Cut Nylon Mesh Discs and Shapes:
Nylon Filter Mesh Specifications for Vacuum Cleaner Filter Disc
Fabric number |
Mesh count | Thread diameter |
Mesh opening |
Open area |
Fabric thickness |
Weight | |
No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
JPP12 | 12 | 30 | 300 | 533 | 41 | 585 | 234 |
JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
JPP16 | 16 | 40 | 250 | 375 | 36 | 485 | 217 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
This just a part of specifications which common used.
Why Work With Share Filters ?
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.
We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.
![]() |
Filter Mesh Weaving
The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length. |
Filter Mesh Slitted in Narrow Ribbons Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipment enables the production of ribbons from Share Filters. |
![]() |
![]() |

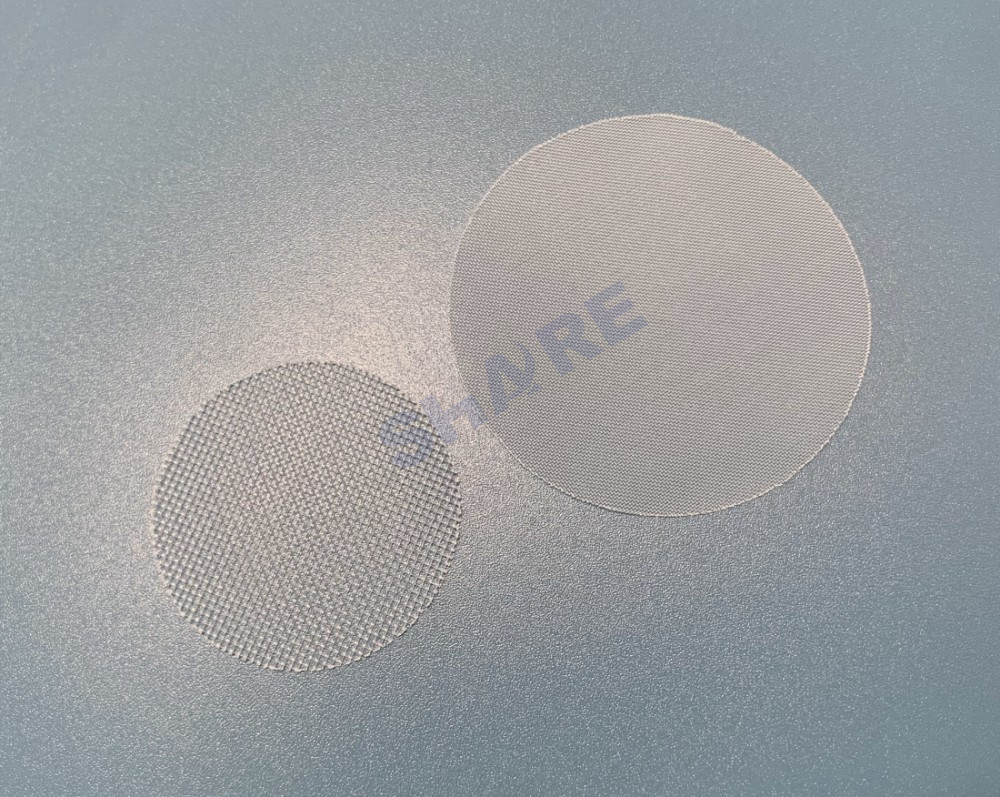

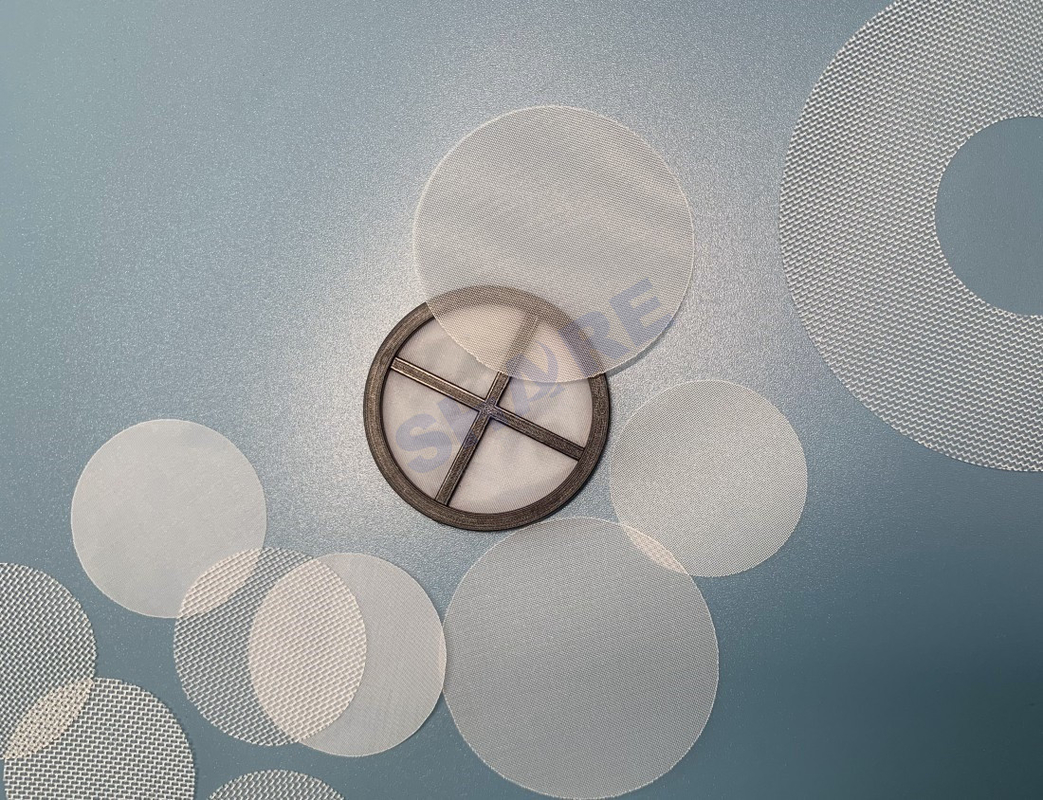

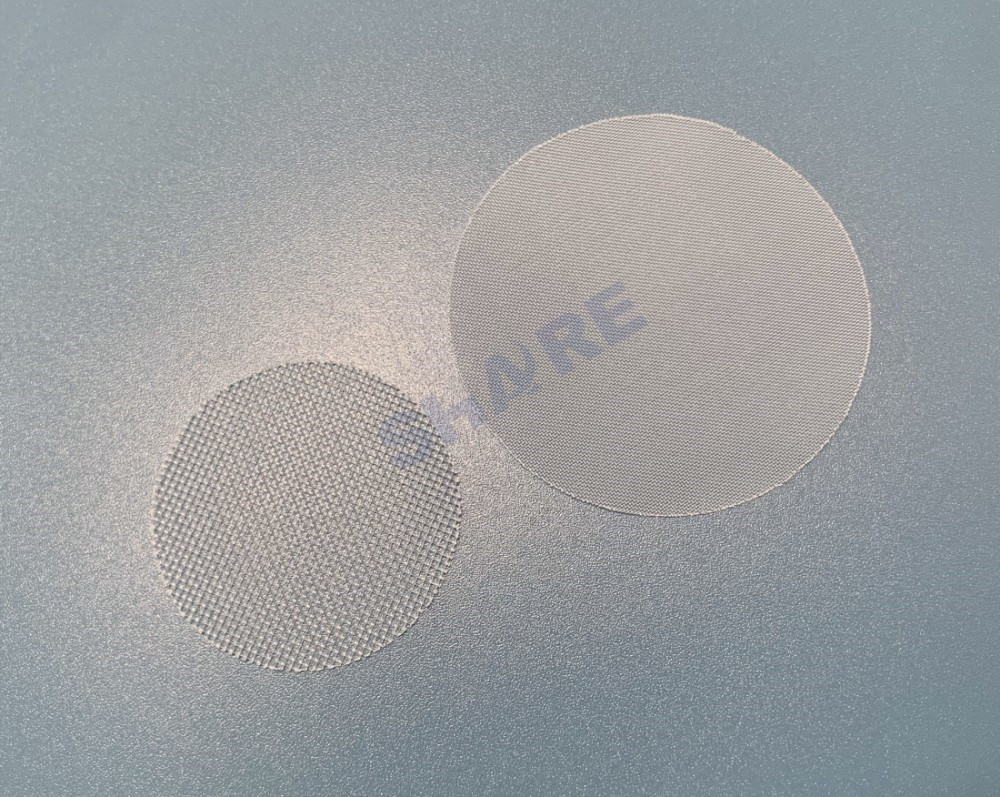

Filter Mesh Pre-Cut Pieces and Shapes Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.
|
Ultrasonic Cutting and Welding Tubes
With our heat and ultrasonic cutting technologies, we can create tubes down to a minimum diameter of 5 mm. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength. |
![]() |
Ultrasonic Welded Mesh Bag | Sewn Mesh Bag |
|
![]() |
Standard Filter Bags Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.
Top design: plastic collar, metallic ring Filter media: mesh, felt |
![]() |
![]() |

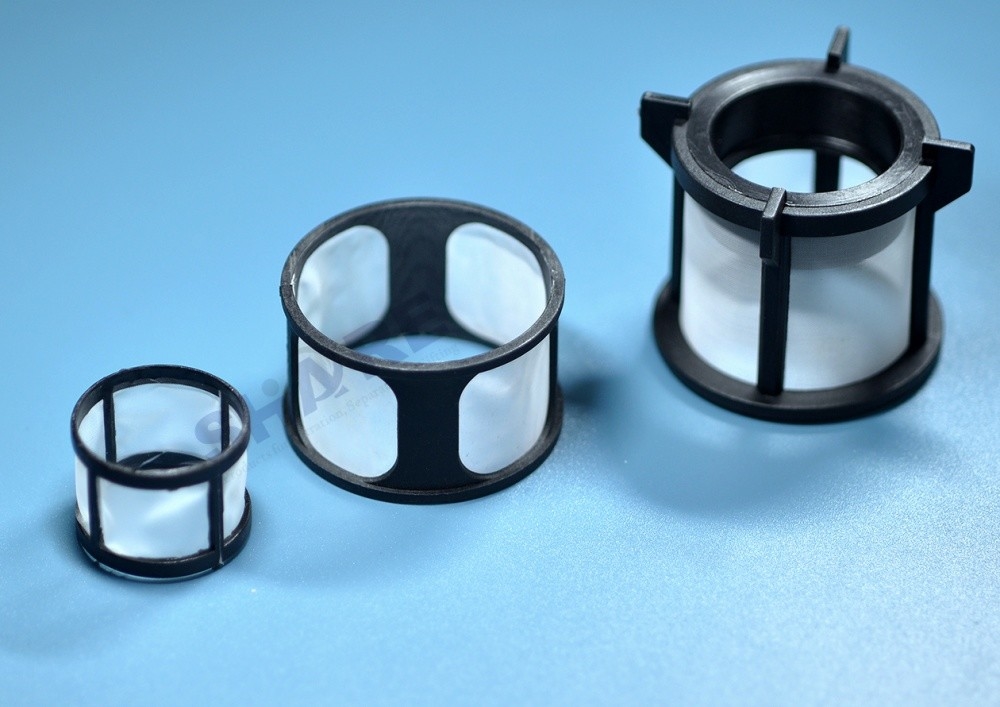

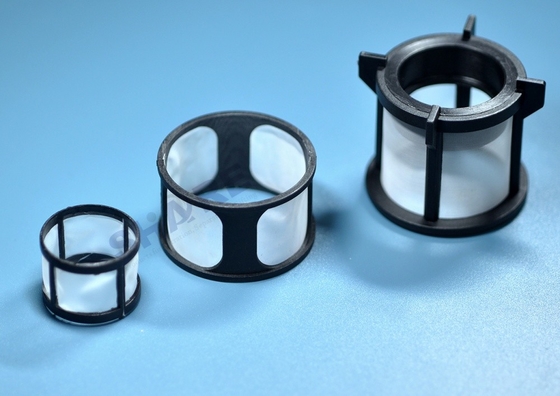

Mesh Insert Injection Moulded Plastic Filters
Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens. |
Application of Share Filters Products
Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Fuel filter | Biopsy bag | Air purifier filter | Coffee filter | Irrigation filter | Mesh disc filter |
Automotive | Laboratory | Appliance | Food & Beverage | Agriculture | Power tool |
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.
Please connect with us so we can learn more about your application and design specifications!
