Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter

Minimum Order Quantity : 1000pcs Price : USD0.04-USD1.00/pc
Packaging Details : Caron, Polybag Delivery Time : 3-9 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 20000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: Rohs Model Number: Polyester Mesh Disc Screen for Oil Heater Filter

Detail Information

Product Name: Polyester Mesh Disc Screen For Oil Heater Filter Keywords: Household Oil Heater Filter Mesh Disc
Material Option: Polyester Filter Mesh, Nylon Filter Mesh Micron Rating: 100μm-500μm
Thread Diameter: 64μm-200μm Size: Any Custom Size Or Shapes
Application: Fire Alarm Filter, Other Household Filter
High Light:

Oil Heater Polyester Mesh Filter Disc

,

Filter Mesh Precut Disc Screen

,

Precut Disc Screen Thermal Resistant

Product Description



Polyester Filter Mesh Precut Disc Screen Thermal Resistant for Oil Heater Filter



Polyester woven filter mesh is a standardize mesh which means that all threads are at an exact, fixed distance from each other in even apertures. The thermal resistance is up to 150℃. Share Filters’ polyester mesh is woven with quality monofilament threads and comes in a high variety of mesh opening, ranging from 15 to 4400 microns. Share Filters not only offers a wide range of specifications of polyester filter mesh in rolls, we also process the filter mesh into all kinds of filter components.



Thanks to the advanced process equipments and many years of experience, Share Filters' filter mesh discs and pieces can be tailored to any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Mesh pieces can be created in double layers. Share Filters has the competence to manufacture tubes and rings either by heat slitting or by ultrasonic welding. For even better filter performance a combination of support and filter fabrics are possible. For higher weld strength, we recommend ultrasonic welded tubes having one overlapping weld. These mesh pieces and tubes are suitable for mesh insert injection moulding and simple and cheap in production.





Share Filters' Filter Mesh Options for Fire Oil Heater Filter

Material Options: Monofilament woven polyester filter mesh, nylon filter mesh
Mesh Opening: From 100 micron to 500 micron
Thread Diameter: From 64 micron to 200 micron
Mesh Count: From 36 mesh to 160 mesh
Weave Type: Plain weave
Fabricated Part: Sheets, pieces, strips, tubes, discs, shapes, ribbons
Dimension: Can be tailored to any shape or dimension
Colour: White, or customize





Product Details

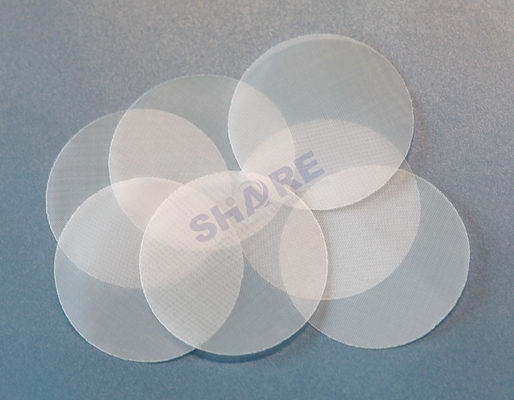

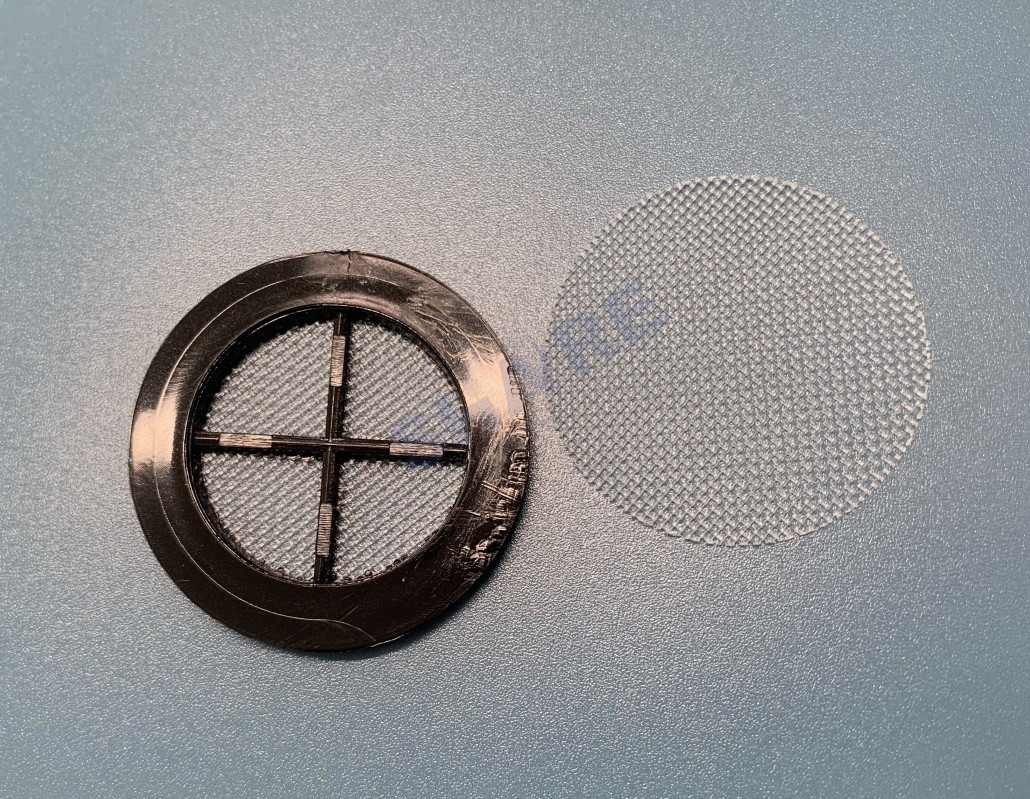

Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 0 Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 1

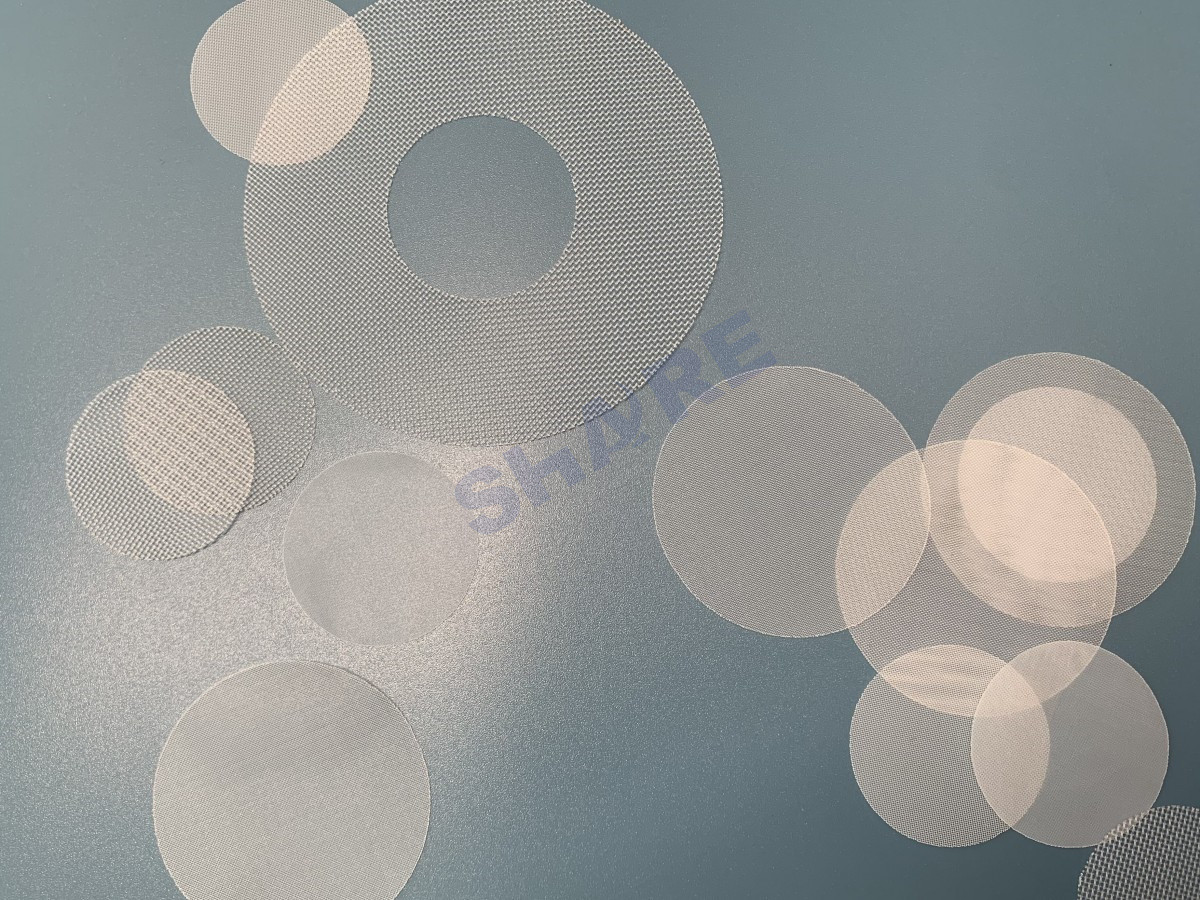

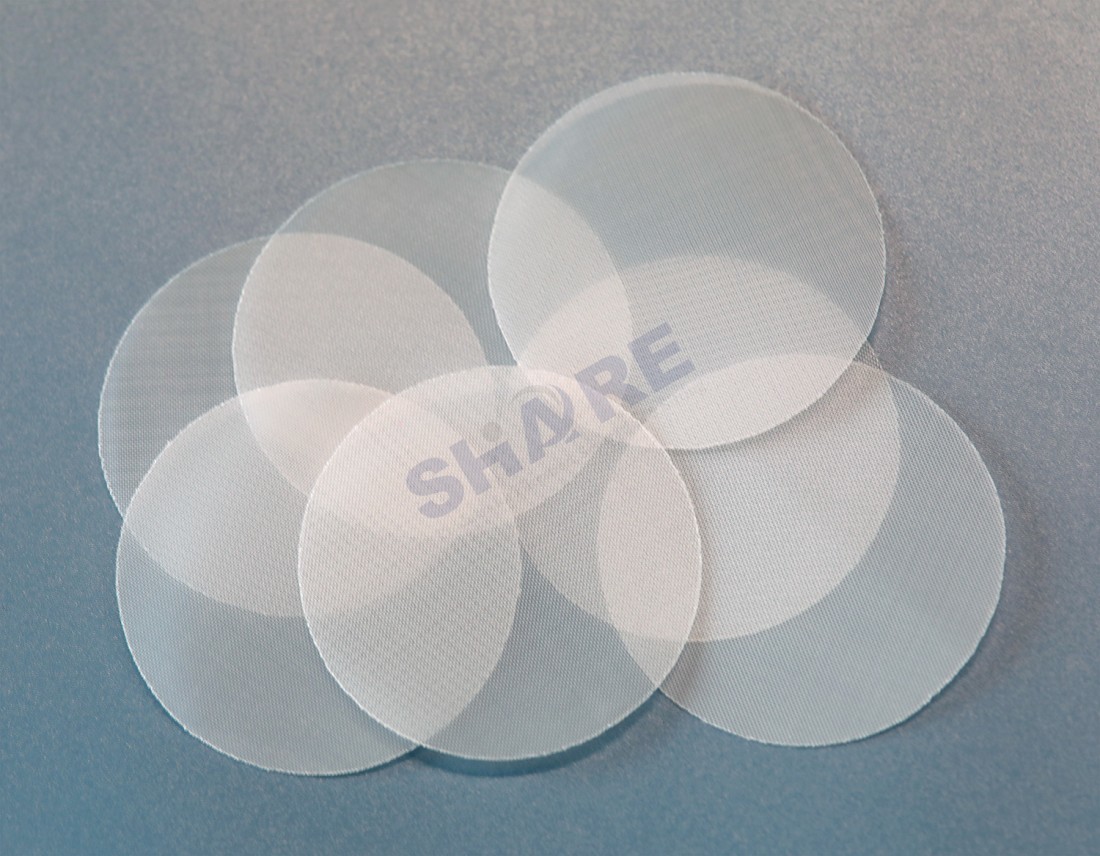

Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 2 Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 3





Benefits from Polyester Mesh Precut Discs:

  • Specific to the customer’s design needs
  • Wide range of micron rating and thread diameter options
  • Non-fraying and clean edges(depends on the technology)
  • Convenient for insert moulding, or directly installment
  • High productivity

The Property of Polyester Filter Mesh:

  • High tensile strength
  • Precise and even mesh opening
  • Elasticity and flexibility
  • Good resistance to acid
  • High operating temperature up to 150°C
  • Easy cutting, dyeing, and cleaning





Polyester Filter Mesh Specifications for Househould Oil Heater Filter



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
surface
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
PES 515/52 14S 36 200 515 52 360 143
PES 470/50 15S 38 200 470 50 380 154
PES 420/40 15T 38 250 420 40 470 240
PES 525/92 16S 41 100 525 92 180 36
PES 425/46 16T 41 200 425 46 380 164
PES 405/53 18S 46 150 405 53 260 104
PES 375/46 18T 46 180 375 46 330 150
PES 375/51 19T 48 150 375 51 260 110
PES 420/71 20S 50 80 420 71 140 33
PES 400/64 20S 50 110 400 64 180 51
PES 350/49 20T 50 150 350 49 260 115
PES 325/47 21T 53 150 325 47 270 121
PES 340/67 24S 61 120 340 67 220 88
PES 270/42 24T 61 150 270 42 280 138
PES 250/46 27T 68 120 250 46 230 100
PES 280/62 28S 71 80 280 62 150 46
PES 240/45 28T 71 120 240 45 230 103
PES 225/43 29T 74 120 225 43 230 107
PES 215/42 30T 76 120 215 42 230 111
PES 230/54 32S 80 80 230 54 150 52
PES 210/45 32T 80 100 210 45 180 82
PES 215/53 34S 86 80 215 53 150 56
PES 195/44 34T 86 100 195 44 180 87
PES 180/42 36T 91 100 180 42 180 92
PES 200/61 39S 99 55 200 61 95 30
PES 190/55 39T 99 64 190 55 115 40
PES 150/36 40T 102 100 150 36 190 103
PES 150/42 43T 110 80 150 42 155 71
PES 160/57 47S 120 55 160 57 96 36
PES 150/50 47T 120 64 150 50 120 48
PES 140/43 47HD 120 71 140 43 130 59
PES 140/47 49S 125 64 140 47 120 50
PES 135/44 49T 125 71 135 44 130 62
PES 144/55 53S 135 45 144 55 76 27
PES 135/51 53S 135 55 135 51 97 40
PES 125/44 53T 135 64 125 44 122 54
PES 117/39 53T 135 71 117 39 132 67
PES 115/46 59S 150 55 115 46 99 45
PES 105/38 59T 150 64 105 38 123 61
PES 100/41 64S 160 55 100 41 100 48
PES 90/33 64T 160 64 90 33 125 66

This just a part of specifications which common used.



 Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 4

Mesh count (n/cm), (n/in)

The mesh count stands for the number of openings per inch.



Mesh opening (w), (μm)

The mesh opening w is the distance between two adjacent warp or weft thread.



Thread diameter (d),( μm)

The thread diameter is measured on the thread before weaving.



Open area (%)

The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area







Share Filters Other Fabricated Filter Mesh Parts



filter mesh ribbon nylon filter mesh discs Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 7 polyester mesh tube Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 9
Slitted mesh ribbon Mesh Disc Mesh Shape Mesh tube Welded bag





Fabricated Filter Mesh Edge Qualities



The edge quality differs significantly depending on processing technology



Processing Technologies Ultrasonic slitting & welding Heat slitting & cutting Laser cutting Cold cutting & punching
Fabrication Method Mesh materials are slitted while crushing the edge with ultrasonic vibration Mesh materials are slitted by heat treatment (temperature close to melting point) Almost all shapes and sizes can be processed with laser cutter Mesh are cut by cold slitting or punching
Edge Quality

Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 10



Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 11

Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 12



Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 13

Advantage

Very clean cut edges, small material build-up
tight tolerances possible

Closed edge due to melting, possible for most mesh fabrics

Heat-sealed, non-fraying edges. High flexibility Non-sealed edge. The most economical process, possible for all fabrics.





Why Work With Share Filters ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.



We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good performance. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



filter mesh weaving

Precise Filter Mesh Weaving



The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.





Filter Mesh Slitted in Narrow Ribbons



Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons with clean edges.

      Filter mesh slitted to be ribbons





Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 16

Filter Mesh Pre-Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.






Cutting and Welding Tubes



Share Filters has the competence to manufacture tubes either by heat slitting or by ultrasonic welding. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 17




Ultrasonic Welded Mesh Bag Sewn Mesh Bag

Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 18

sewn filter mesh bag





Standard and Custom Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

      Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 20




Mesh insert plastic moulded filter

Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.




Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 24 coffee filter Polyester Filter Mesh Precut Disc Screen Thermal Resistant For Oil Heater Filter 26 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!
