Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter

Minimum Order Quantity : 1000pcs Price : USD0.05-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 3-9 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: Rohs Model Number: Polyester Mesh Shapes Tubes For Water Heater Filter

Detail Information

Product Name: Polyester Mesh Shapes Tubes For Water Heater Filter Keywords: Water Heater Filter Mesh Tube
Material Option: Polyester Filter Mesh, Stainless Steel Filter Mesh Micron Rating: 26μm-2630μm
Thread Diameter: 25μm-1000μm Size: Any Custom Size Or Shapes
Application: Water Heater Filter, Other Water Filter
High Light:

Heat Pump Filter Mesh Tube


Welded Tube Stainless Steel Filter Mesh


Water Heater Stainless Steel Filter Mesh

Product Description


Polyester Filter Mesh Welded Tube for Heat Pump Water Heater Filter


The Heat pump water heater filter is a built-in filter to protect the heat pump components from debris or sediment in the water supply. These filters are usually located near the inlet of the water heater.  Typically, the filter can be removed, cleaned, and reinstalled periodically to ensure proper operation and efficiency.


Converting To Be Mesh Sheet, Pieces, Tubes


Share Filters supplies a wide range of polyester woven mesh. Polyester mesh is widely used in everyday electric appliances. Examples are dishwasher filters, lime filters in kettles, dust filters in dryers or vacuum cleaners, or filter mesh in the speaker or mobile phone. Share Filters not only offers a wide range of specifications of polyester filter mesh in rolls, we also process the filter mesh into all kinds of filter components.


Share Filters fabricate custom made to order stainless steel filters of varying sizes in single or multiple layers of woven wire mesh. The stainless-steel weaving styles that are available include plain, twill, plain dutch, and reverse dutch twill weaves. These wire mesh filters can be stamped to shapes, sintered, soldered, welded, and rolled according to custom size. The stainless steel mesh pieces and tubes are convenient for mesh insert injection moulding.



Share Filters' Filter Mesh Fabricated Parts Options for Heat Pump Water Heater Filter


Material Options: Stainless steel filter mesh, polyester filter mesh
Mesh Opening: From 26 micron to 550 micron
Thread Diameter: From 25 micron to 300 micron
Material: 304, 316, 316L
Weave Type: Plain weave, twill weave
Fabricated Part: Sheets, pieces, tubes, discs, shapes
Dimension: Can be tailored to any shape or dimension
Colour: Nature



Product Details

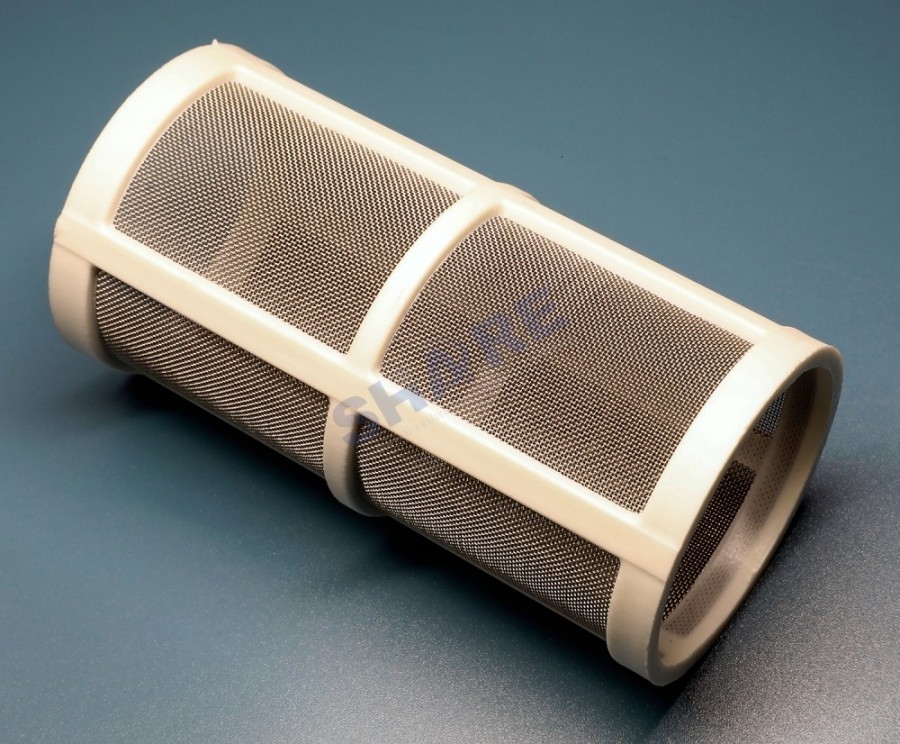

 stainless steel filter mesh tube Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 1

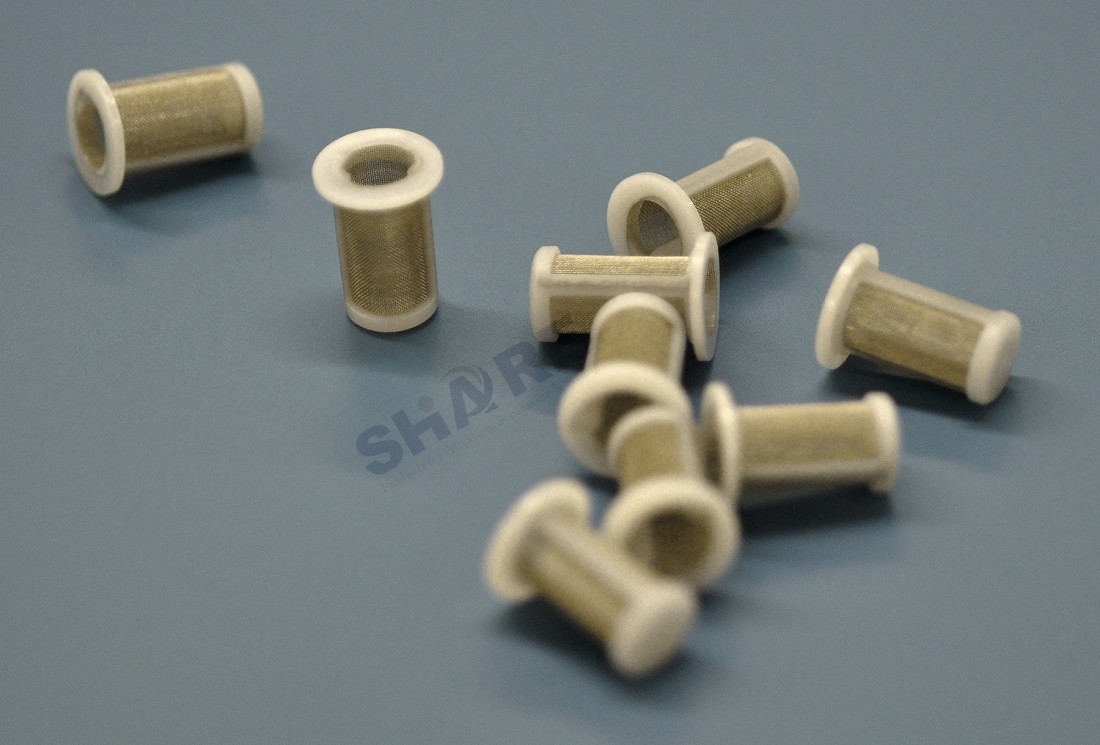

 stainless steel filter mesh Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 3



Benefits from Precut Polyester Mesh Tubes:

  • Specific to the customer’s design needs
  • Wide range of micron rating and thread diameter options
  • Convenient for insert moulding
  • High productivity

The Property of Stainless Steel Mesh:

  • Heat resistance
  • Ease of fabrication
  • Cleanability and hygiene properties
  • High Levels of Stability



Stainless Steel Filter Mesh Specifications for Water Heater Filter


Mesh Wire Dia. (μm) Opening (μm) Material (AISI) Weave Type
7meshx7mesh 1000 2630 304 or316 Plain Weave
10meshx10mesh 600 1940 304 or316 Plain Weave
12meshx12mesh 500 1620 304 or316 Plain Weave
16meshx16mesh 400 1190 304 or316 Plain Weave
16meshx16mesh 350 1240 304 or316 Plain Weave
18meshx18mesh 350 1060 304 or316 Plain Weave
20meshx20mesh 400 870 304 or316 Plain Weave
24meshx24mesh 260 800 304 or316 Plain Weave
30meshx30mesh 300 550 304 or316 Plain Weave
35meshx35mesh 170 560 304 or316 Plain Weave
40meshx40mesh 230 400 304 or316 Plain Weave
50meshx50mesh 200 310 304 or316 Plain Weave
60meshx60mesh 150 270 304 or316 Plain Weave
70meshx70mesh 120 240 304 or316 Plain Weave
80meshx80mesh 130 190 304 or316 Plain Weave
90meshx90mesh 120 160 304 or316 Plain Weave
100meshx100mesh 100 150 304 or316 Plain Weave
120meshx120mesh 90 120 304 or316 Plain Weave
150meshx150mesh 63 110 304 or316 Plain Weave
180meshx180mesh 53 90 304 or316 Plain Weave
250meshx250mesh 40 63 316 Twill Weave
300meshx300mesh 40 44 316 Twill Weave
325meshx325mesh 35 43 316L Twill Weave
350meshx350mesh 30 42 316L Twill Weave
400meshx400mesh 30 33 316L Twill Weave
450meshx450mesh 28 28 316L Twill Weave
500meshx500mesh 25 26 316L Twill Weave

This just a part of specifications which common used.

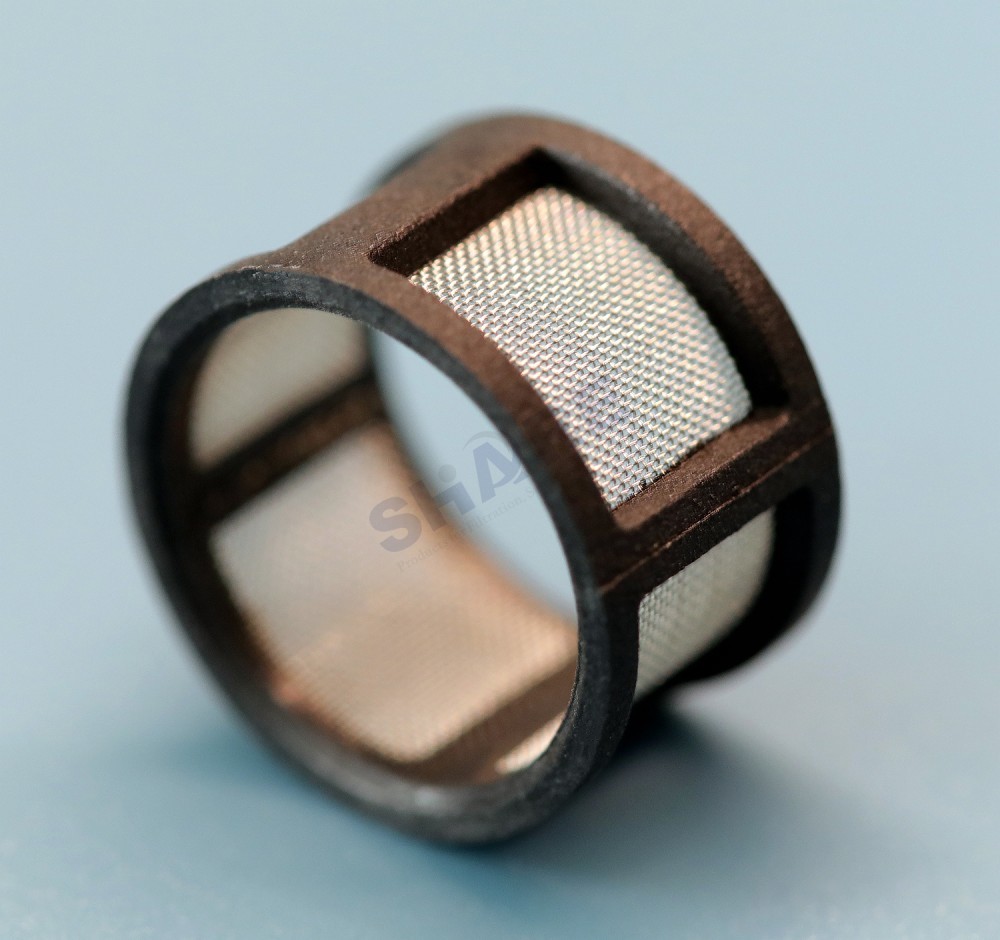

  Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 4Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 5        Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 6



Share Filters Other Fabricated Filter Mesh Parts


filter mesh ribbon nylon filter mesh discs Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 9 polyester mesh tube nylon biopsy bag
Slitted mesh ribbon Mesh Disc Mesh Shape Mesh tube Welded bag



Why Work With Share Filters ?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.


We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.


filter mesh weaving

Filter Mesh Weaving


The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.



Filter Mesh Slitted in Narrow Ribbons


Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons with clean edges.

      Filter mesh slitted to be ribbons



Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 14

Filter Mesh Pre-Cut Pieces and Shapes

Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.



Cutting and Welding Tubes


Share Filters has the competence to manufacture tubes either by heat slitting or by ultrasonic welding. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 15


Ultrasonic Welded Mesh Bag Sewn Mesh Bag

Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 16

sewn filter mesh bag



Standard Filter Bags

Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

      Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 18


Mesh insert plastic moulded filter

Mesh Insert Injection Moulded Plastic Filters


Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


Application of Share Filters Products


Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


injector filter BIOPSY BAG Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 22 coffee filter Stainless Steel Filter Mesh Welded Tube For Heat Pump Water Heater Filter 24 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool



Contact Us


Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us today so we can learn more about your application and design specifications!
