Paint Filtration Nylon Filter Mesh Sheet Micron 100 125 150 190 200 220 280um

Product Description

Paint Filtration Nylon Filter Mesh Sheet Micron 100 125 150 190 200 220 280 μm

There are many different filtration solutions for paints. The cost of technical paints is driving the market players towards waste-free industrial filtration solutions. The new application techniques for technical paints require increasingly low filtration fineness.  Share Filters offers a full range of woven mesh filters, the mostly used is nylon mesh and polyester mesh, each with its advantages.

Converting To Be Mesh Sheet, Pieces, Tubes, Bags, Moulded Filters

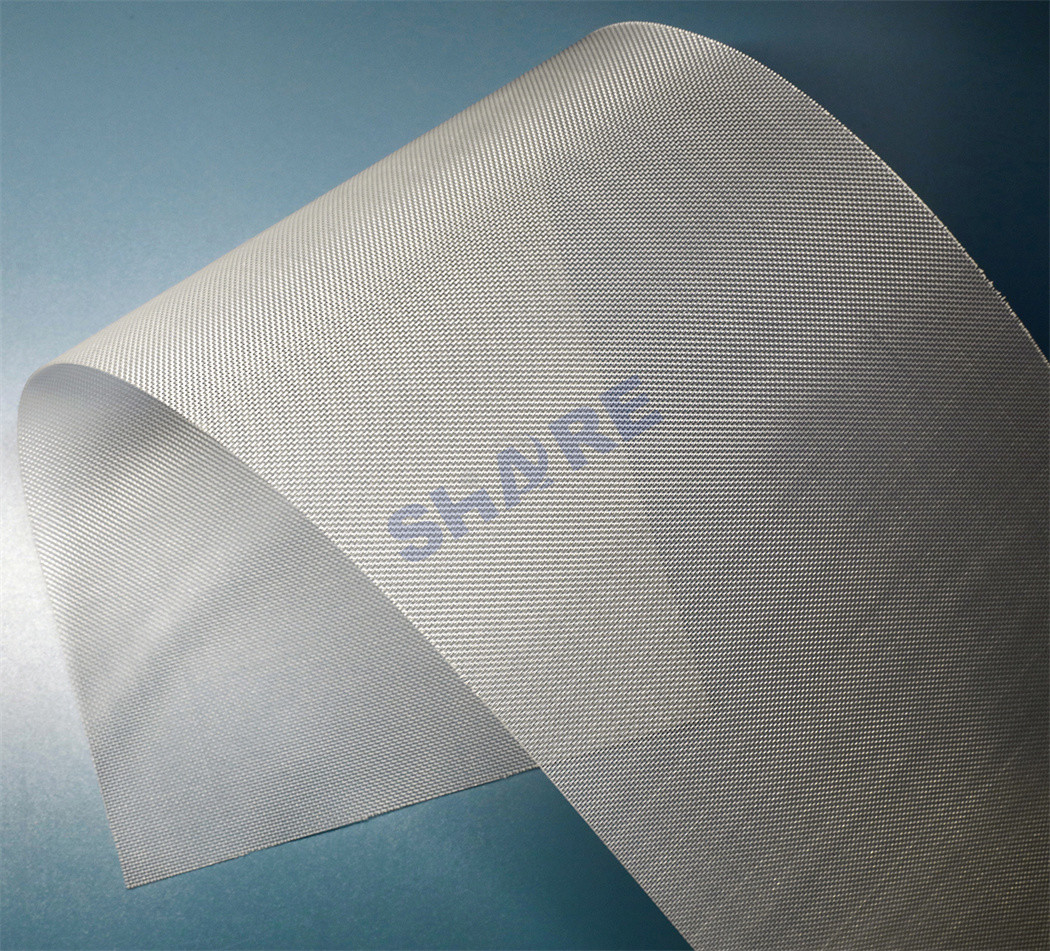

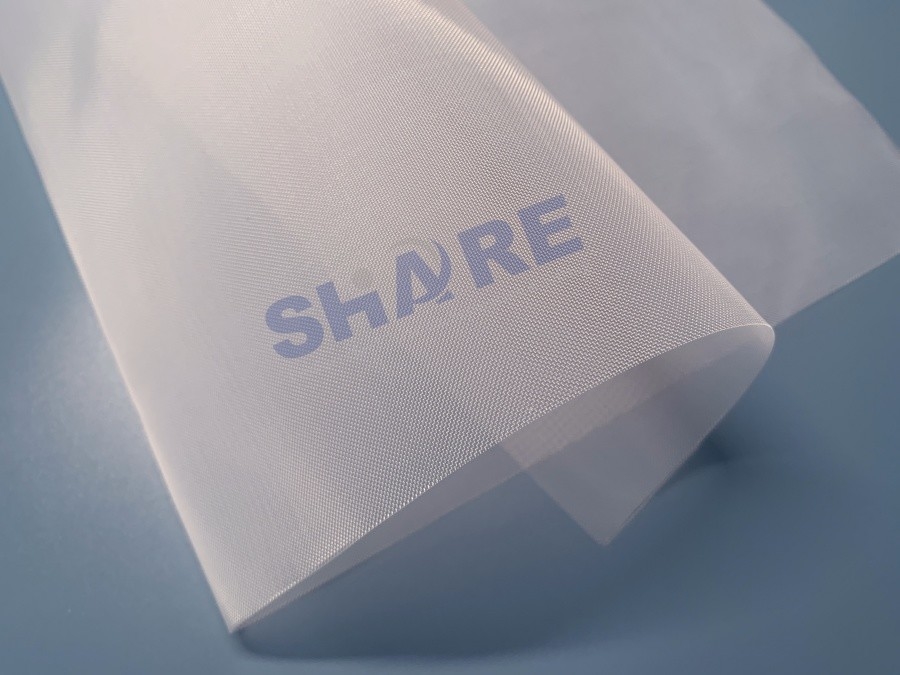

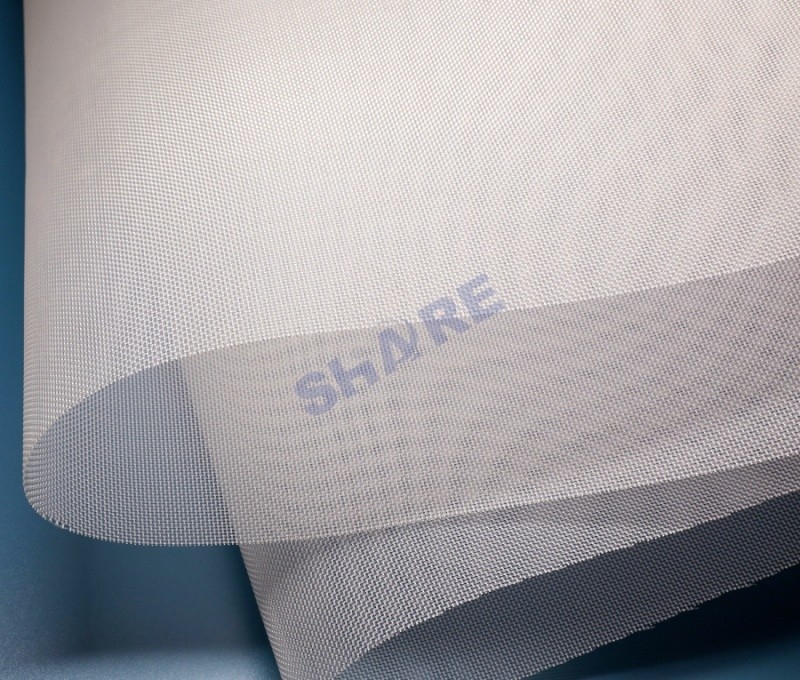

Nylon filter mesh is the most popular and economical synthetic filtration mesh. The mesh has openings it can allow air to flow freely through the screen while filtering out dust and other airborne particles. Share Filters not only offers a wide range of specifications of nylon filter mesh in rolls, we also process the filter mesh into all kinds of filter components, like ribbons, pieces, tubes, bags, moulded filters, which applied in different equipments.

Thanks to the advanced process equipments, Share Filters' mesh filters can be tailored to any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh pieces can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality.  These mesh pieces and shapes are convenient for custom injection moulding.

Share Filters' Filter Mesh Options for Paint Filtration

This just a part of specifications which common used.





Share Filters Fabricated Filter Mesh Parts and Moulded Filters









Fabricated Filter Mesh Edge Qualities



The edge quality differs significantly depending on processing technology



Processing Technologies	Ultrasonic slitting & welding	Heat slitting & cutting	Laser cutting	Cold cutting & punching
Fabrication Method	Mesh materials are slitted while crushing the edge with ultrasonic vibration	Mesh materials are slitted by heat treatment (temperature close to melting point)	Almost all shapes and sizes can be processed with laser cutter	Mesh are cut by cold slitting or punching
Edge Quality
Advantage	Very clean cut edges , small material build-up tight tolerances possible	Closed edge due to melting , possible for most mesh fabrics	Heat-sealed, non-fraying edges. High flexibility	Non-sealed edge. The most economical process, possible for all fabrics.





Why Work With Share Filters ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



Precise Filter Mesh Weaving   The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.





Filter Mesh Slitted in Narrow Ribbons   Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons with clean edges.





Filter Mesh Pre-Cut Pieces and Shapes   Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.





Cutting and Welding Tubes   With our heat and ultrasonic cutting technologies, we can create continuos tubular in ribbons and pre-cut tubes. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.





Ultrasonic Welded Mesh Bag	Sewn Mesh Bag





Standard Filter Bags   Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance. Top design: plastic collar, metallic ring

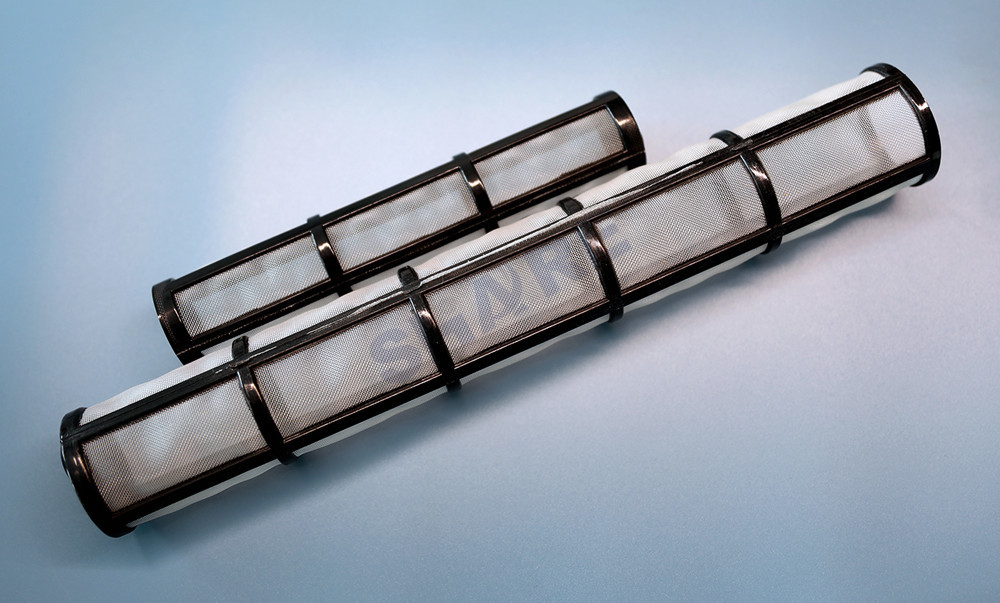

Mesh Insert Injection Moulded Plastic Filters   Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.





Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Fuel filter	Biopsy bag	Air purifier filter	Coffee filter	Irrigation filter	Mesh disc filter
Automotive	Laboratory	Appliance	Food & Beverage	Agriculture	Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us today so we can learn more about your application and design specifications!
