Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580

Minimum Order Quantity : 1000pcs Price : USD0.05-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 3-9 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: Rohs Model Number: Precut nylon filter mesh pieces micron 260 300 350 375 425 530 580

Detail Information

Product Name: Precut Nylon Filter Mesh Pieces Keywords: Air Purifier Screen Filter Mesh Pieces
Material Option: Nylon Filter Mesh, Polyester Filter Mesh Micron Rating: 260μm-580μm
Thread Diameter: 150μm-250μm Size: Any Custom Size Or Shapes
Application: Air Purifier Filter, Other Appliance Filter
High Light:

Air Purifier Nylon Filter Mesh Screen

,

Micron 260 Nylon Filter Mesh Pieces

Product Description

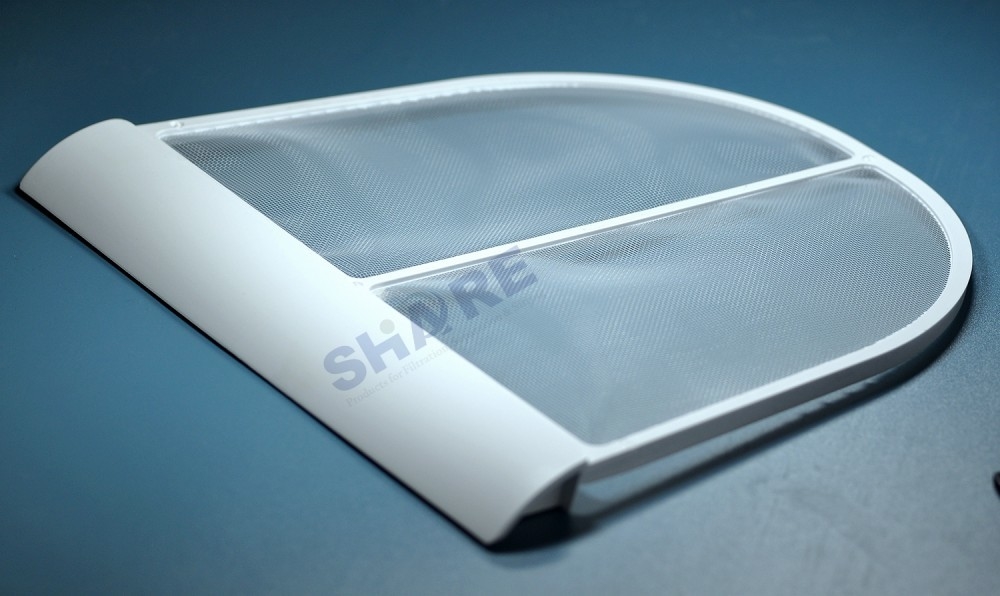

Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580



The pre-screen is an integral part of almost any air purifier. It’s the first stage of filtration, and it essentially helps to capture large particles. This prolongs the life of air purifier, and it makes the system much more efficient. The pre-screen is great because it helps to collect pet and carpet hair, which can cause blockages. Nylon filter mesh is the fabric commonly used in the air purifier screen.

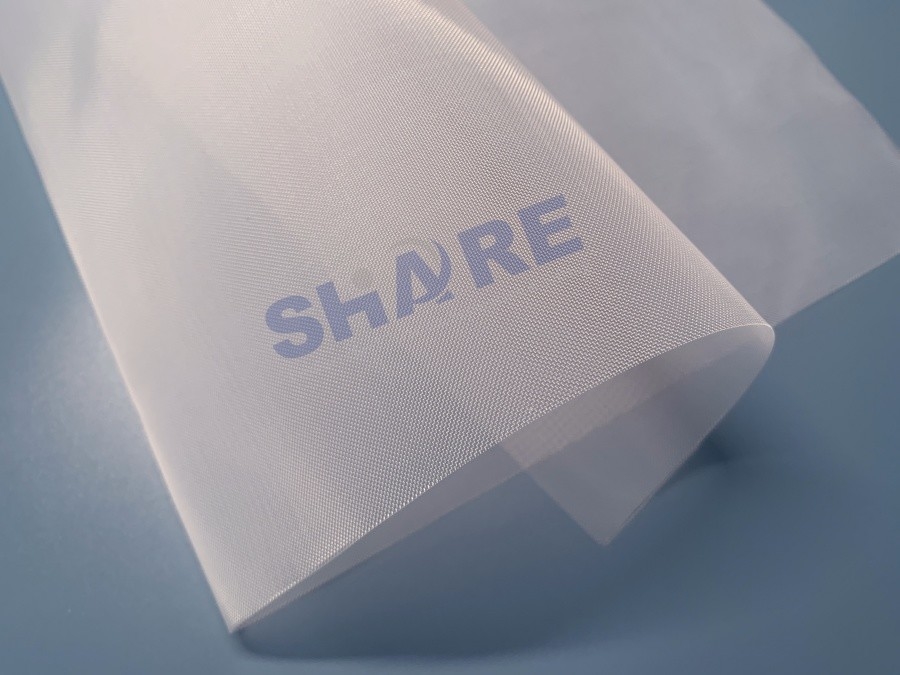

Nylon filter mesh is the most popular and economical synthetic filtration mesh. The mesh has openings it can allow air to flow freely through the screen while filtering out dust and other airborne particles. Share Filters not only offers a wide range of specifications of nylon filter mesh in rolls, we also process the filter mesh into all kinds of filter components.



Thanks to the advanced process equipments, Share Filters' filter mesh pieces and shapes can be tailored to any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh pieces can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality.  These mesh pieces and shapes are convenient for custom injection moulding.



Share Filters' Filter Mesh Precut Pieces Options for Air Purifier Screen



Material Options: Monofilament woven nylon filter mesh, polyester filter mesh,PP mesh
Mesh Opening: From 260 micron to 580 micron
Thread Diameter: From 150 micron to 250 micron
Open Area: From 34% to 49%
Weave Type: Plain Weave
Fabricated Part: Pieces, discs, shapes, ribbons
Dimension: Can be tailored to any shape or dimension
Colour: White, or customize





Product Details

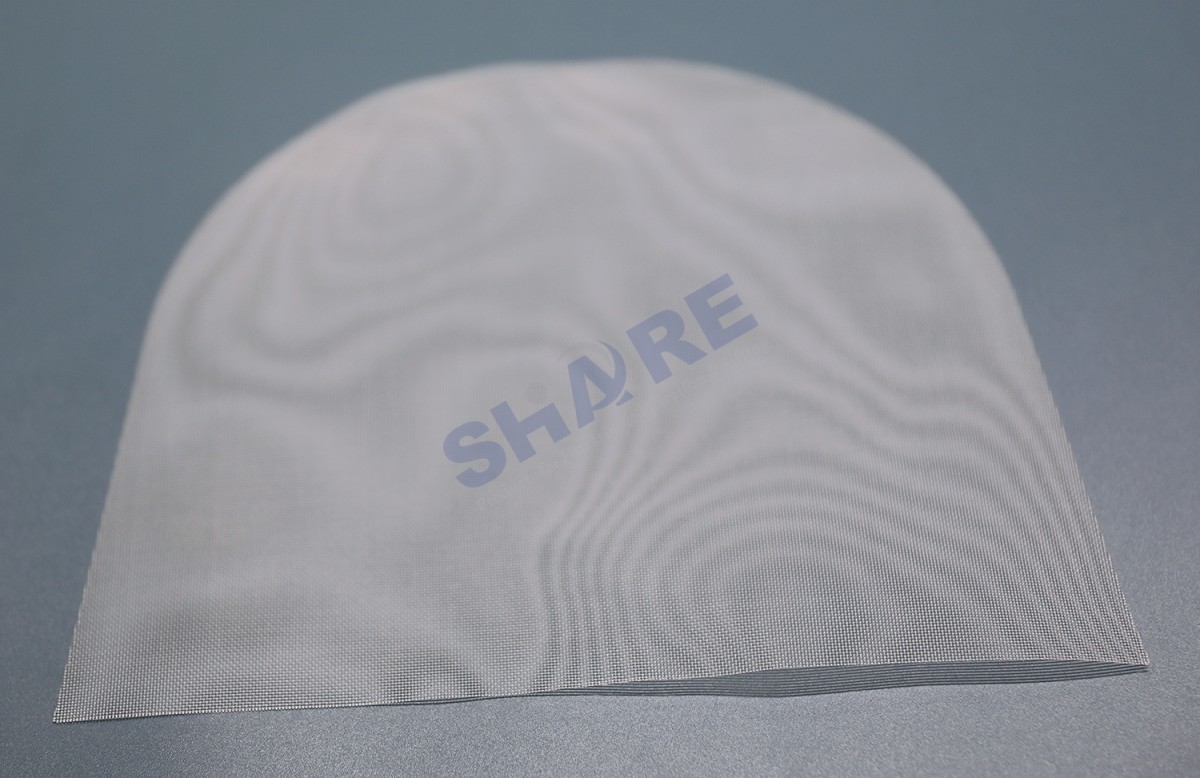

nylon filter shapes for air purifier screen  filter mesh shapes

air purifer filter Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 3





The Benefits from Share Filters' Precut Nylon Filter Mesh Pieces:

  • Specific to the customer’s design needs
  • Wide range of micron rating and thread diameter options
  • Non-fraying and clean edges(depends on the technology)
  • Convenient for insert moulding
  • High productivity



Nylon Filter Mesh Specifications for Air Purifier Screen



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
area
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
JPP12 12 30 250 583 49 470 162
JPP12 12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117

This just a part of specifications which common used.





Share Filters Other Fabricated Filter Mesh Parts



filter mesh ribbon nylon filter mesh discs Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 6 polyester mesh tube nylon biopsy bag
Slitted mesh ribbon Mesh Disc Mesh Shape Mesh tube Welded bag





Fabricated Filter Mesh Edge Qualities



The edge quality differs significantly depending on the stamping or slitting technology



Processing Technologies Ultrasonic slitting & welding Heat slitting & cutting Laser cutting Cold cutting & punching
Fabrication Method Mesh materials are slitted while crushing the edge with ultrasonic vibration Mesh materials are slitted by heat treatment (temperature close to melting point) Almost all shapes and sizes can be processed with laser cutter Mesh are cut by cold slitting or punching
Edge Quality

Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 9



Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 10

Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 11



Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 12

Advantage

Very clean cut edges

, small material build-up
tight tolerances possible

Closed edge due to melting

, possible for most mesh fabrics

Heat-sealed, non-fraying edges. High flexibility Non-sealed edge. The most economical process, possible for all fabrics.





Why Work With Share Filters ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.



We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



filter mesh weaving

Filter Mesh Weaving



The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

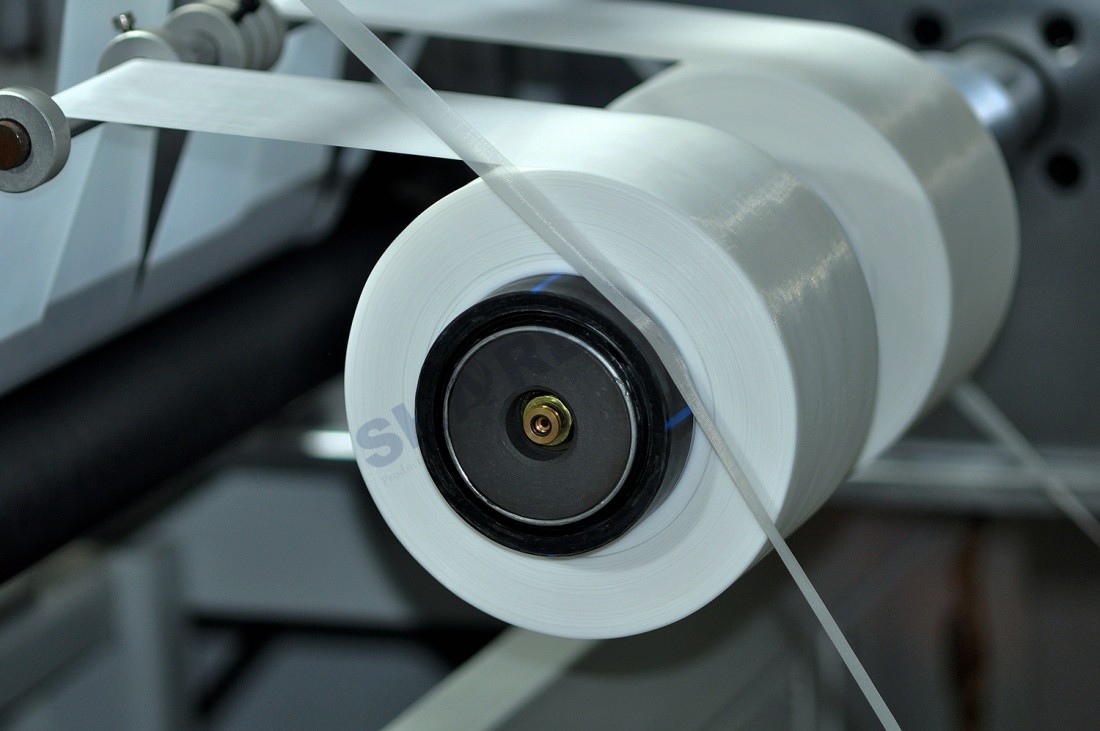

Filter Mesh Slitted in Narrow Ribbons



Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons with clean edges.

      Filter mesh slitted to be ribbons





Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 15

Filter Mesh Pre-Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.






Cutting and Welding Tubes



With our heat and ultrasonic cutting technologies, we can create continuos tubular in ribbons and pre-cut tubes. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 16




Ultrasonic Welded Mesh Bag Sewn Mesh Bag

Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 17

sewn filter mesh bag





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

      Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 19




Mesh insert plastic moulded filter

Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.




Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 23 coffee filter Nylon Filter Mesh Pieces For Air Purifier Screen Micron 260 300 350 375 425 530 580 25 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us today so we can learn more about your application and design specifications!
