Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 200pcs | Price : | USD0.02-USD1.20/pc |
---|---|---|---|
Packaging Details : | Caron, Polybag | Delivery Time : | 3-9 days |
Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 50000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | Rohs | Model Number: | Precut polyester filter mesh discs pieces |
Detail Information |
|||
Product Name: | Precut Polyester Filter Mesh Discs Pieces | Keywords: | Kettle Filter Mesh |
---|---|---|---|
Material Option: | Polyester Filter Mesh, Nylon Filter Mesh | Micron Rating: | 200μm-500μm |
Thread Diameter: | 64μm-300μm | Size: | Any Custom Size Or Shapes |
Application: | Kettle Filter, Other Appliance Filter | ||
Highlight: | Discs Fabricated Filters Screen,Discs Shapes Polyester Filter Mesh,Water Kettle Polyester Filter Mesh |
Product Description

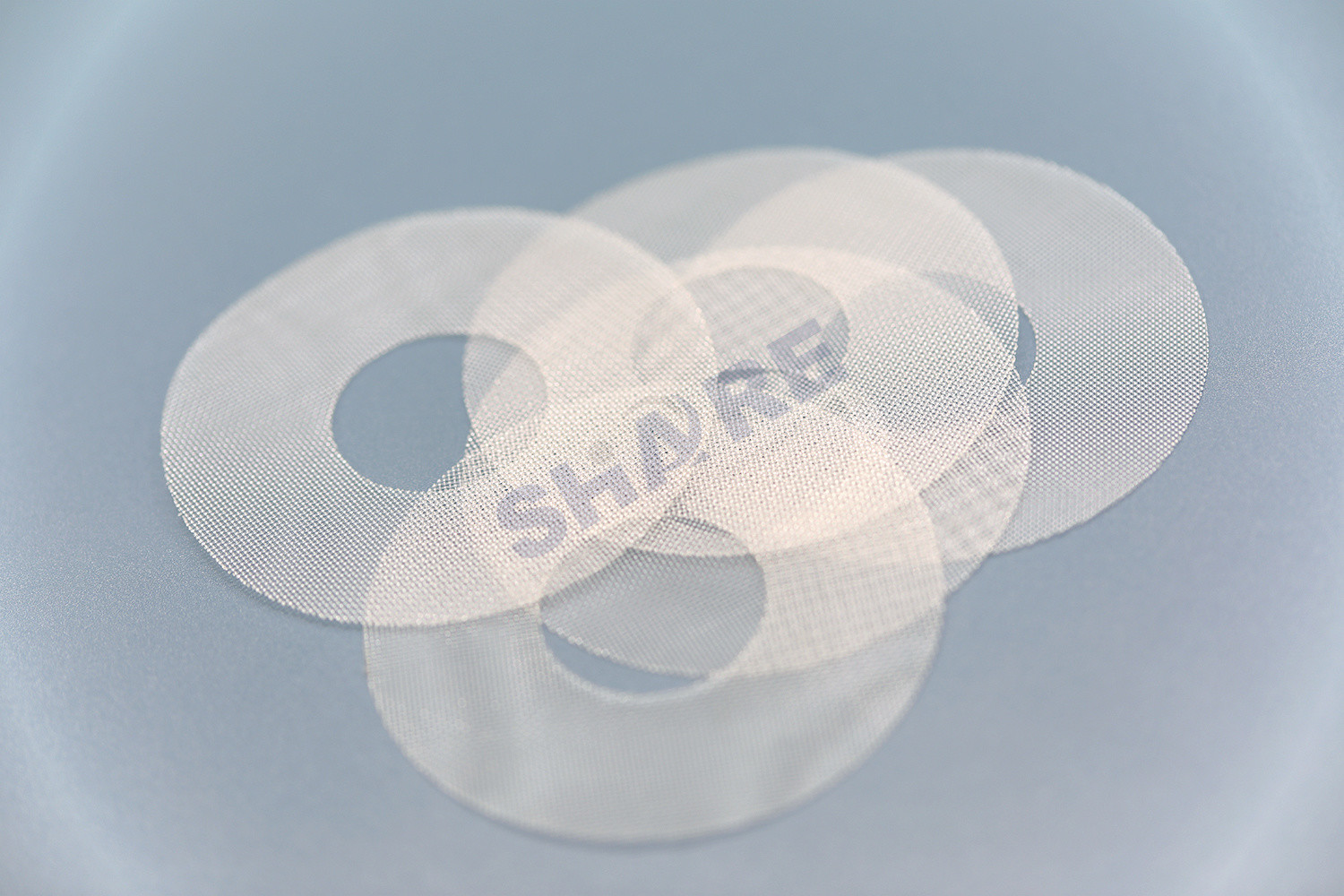

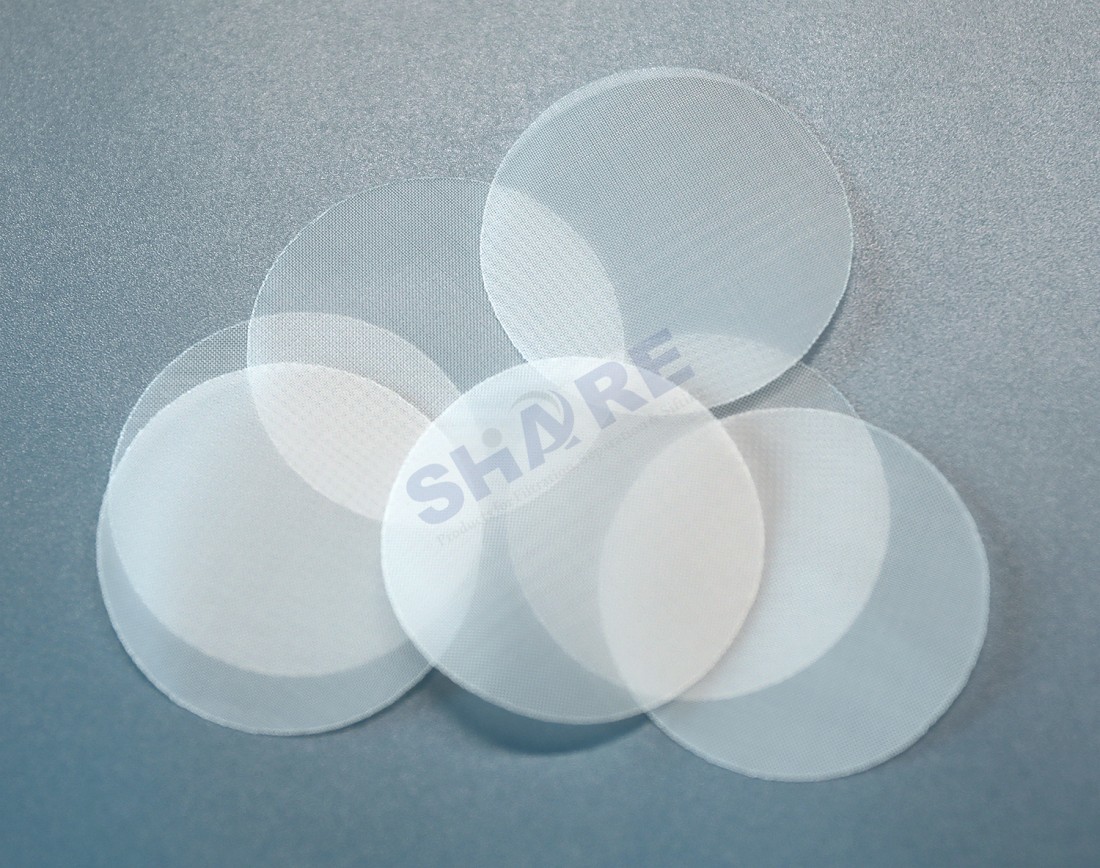

Polyester Filter Mesh Cut Discs Shapes For Water Kettle Screen 200-500 Micron

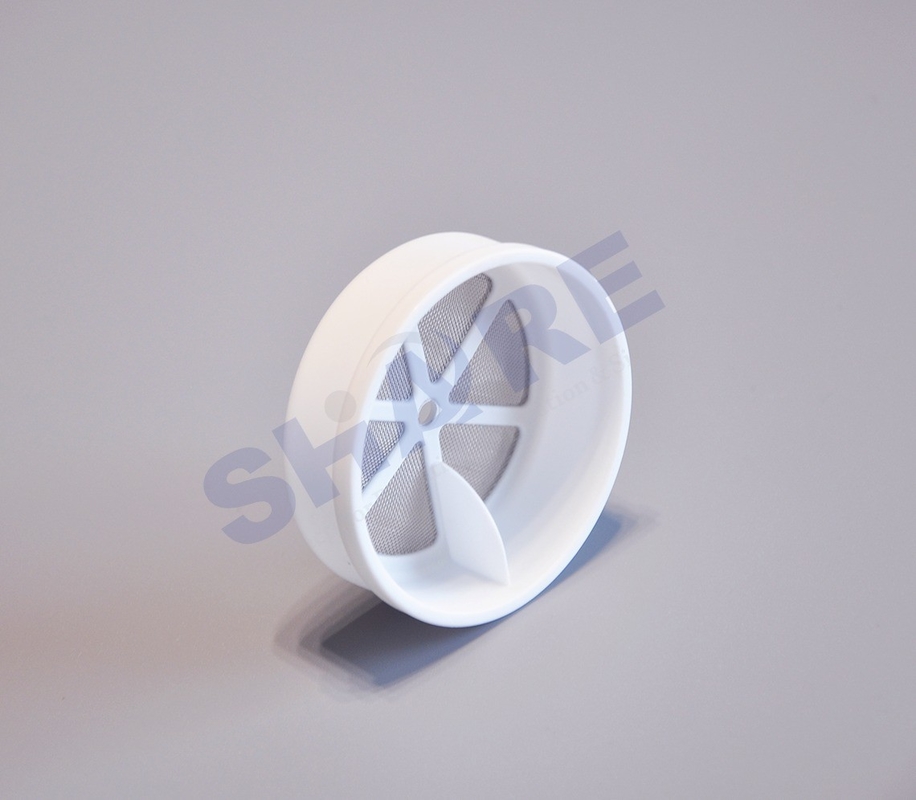

The kettle filter is a device used in electric kettles to remove impurities from the water. The main purpose of a kettle filter is to prevent limescale buildup, which can occur due to minerals present in hard water. Polyester filter mesh is the fabric mostly used in the kettle filter. Polyester is one of the strongest fibers and remains resistant even if it gets wet and exposed to friction. Its low moisture absorbency prevents it from expanding, contracting, becoming wrinkled, and it also features resistance to chemicals.
Share Filters not only offers a wide range of specifications of polyester filter mesh in rolls, we also process the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh shapes and discs can be tailored to any shape or dimension.

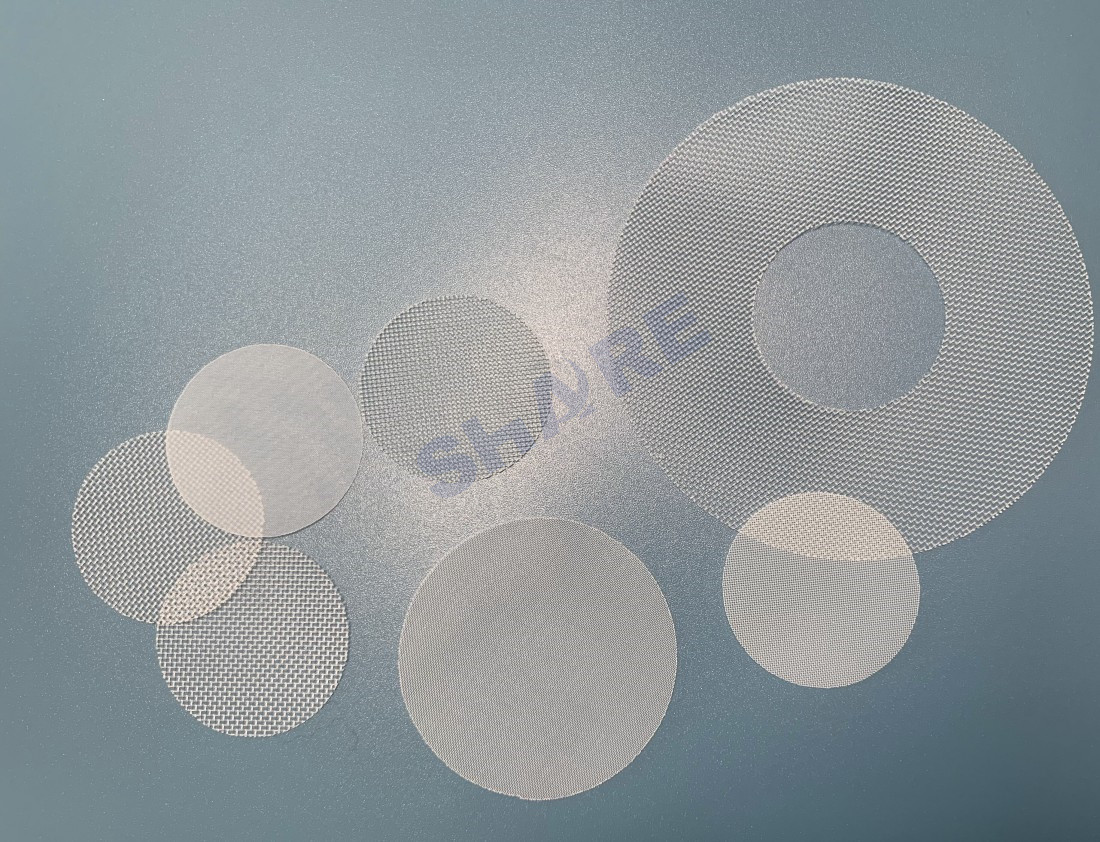

Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh pieces can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. These mesh discs and shapes are convenient for custom injection moulding.
Share Filters' Filter Mesh Cut Discs Pieces Options for Kettle Filters
Material Options: | Monofilament woven polyester filter mesh |
Mesh Opening: | From 200 micron to 500 micron |
Thread Diameter: | From 55 micron to 300 micron |
Open Area: | From 40% to 71% |
Weave Type: | Plain Weave |
Fabricated Part: | Pieces, discs, shapes, ribbons |
Dimension: | Can be tailored to any shape or dimension |
Colour: | White, or customize |
Product Details
The Benefits from Share Filters' Precut Polyester Filter Mesh Discs:
Polyester Filter Mesh Specifications for Kettle Filter
Fabric number |
Mesh count | Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
PES 530/40 | 12T | 30 | 300 | 530 | 40 | 580 | 277 |
PES 515/52 | 14S | 36 | 200 | 515 | 52 | 360 | 143 |
PES 470/50 | 15S | 38 | 200 | 470 | 50 | 380 | 154 |
PES 420/40 | 15T | 38 | 250 | 420 | 40 | 470 | 240 |
PES 525/92 | 16S | 41 | 100 | 525 | 92 | 180 | 36 |
PES 425/46 | 16T | 41 | 200 | 425 | 46 | 380 | 164 |
PES 405/53 | 18S | 46 | 150 | 405 | 53 | 260 | 104 |
PES 375/46 | 18T | 46 | 180 | 375 | 46 | 330 | 150 |
PES 375/51 | 19T | 48 | 150 | 375 | 51 | 260 | 110 |
PES 420/71 | 20S | 50 | 80 | 420 | 71 | 140 | 33 |
PES 400/64 | 20S | 50 | 110 | 400 | 64 | 180 | 51 |
PES 350/49 | 20T | 50 | 150 | 350 | 49 | 260 | 115 |
PES 325/47 | 21T | 53 | 150 | 325 | 47 | 270 | 121 |
PES 340/67 | 24S | 61 | 120 | 340 | 67 | 220 | 88 |
PES 270/42 | 24T | 61 | 150 | 270 | 42 | 280 | 138 |
PES 250/46 | 27T | 68 | 120 | 250 | 46 | 230 | 100 |
PES 280/62 | 28S | 71 | 80 | 280 | 62 | 150 | 46 |
PES 240/45 | 28T | 71 | 120 | 240 | 45 | 230 | 103 |
PES 225/43 | 29T | 74 | 120 | 225 | 43 | 230 | 107 |
PES 215/42 | 30T | 76 | 120 | 215 | 42 | 230 | 111 |
PES 230/54 | 32S | 80 | 80 | 230 | 54 | 150 | 52 |
PES 210/45 | 32T | 80 | 100 | 210 | 45 | 180 | 82 |
PES 215/53 | 34S | 86 | 80 | 215 | 53 | 150 | 56 |
PES 195/44 | 34T | 86 | 100 | 195 | 44 | 180 | 87 |
PES 180/42 | 36T | 91 | 100 | 180 | 42 | 180 | 92 |
PES 200/61 | 39S | 99 | 55 | 200 | 61 | 95 | 30 |
PES 190/55 | 39T | 99 | 64 | 190 | 55 | 115 | 40 |
This just a part of specifications which common used.
Share Filter Other Fabricated Filter Mesh Parts
![]() |
![]() |
![]() |
![]() |
![]() |
Slitted mesh ribbon | Mesh Disc | Mesh Shape | Mesh tube | Welded bag |
Fabricated Filter Mesh Edge Qualities
The edge quality differs significantly depending on the stamping or slitting technology
Processing Technologies | Ultrasonic slitting & welding | Heat slitting & cutting | Laser cutting | Cold cutting & punching |
Fabrication Method | Mesh materials are slitted while crushing the edge with ultrasonic vibration | Mesh materials are slitted by heat treatment (temperature close to melting point) | Almost all shapes and sizes can be processed with laser cutter | Mesh are cut by cold slitting or punching |
Edge Quality |
|
|
|
|
Advantage |
Very clean cut edges , small material build-up |
Closed edge due to melting , possible for most mesh fabrics |
Heat-sealed, non-fraying edges. High flexibility | Non-sealed edge. The most economical process, possible for all fabrics. |
Why Work With Share Filters ?
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.
We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.
![]() |
Filter Mesh Weaving
The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length. |
Filter Mesh Slitted in Narrow Ribbons Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons. |
![]() |
![]() |
Filter Mesh Pre-Cut Pieces and Shapes Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.
|
Cutting and Welding Tubes
With our heat and ultrasonic cutting technologies, we can create continuos tubular in ribbons and pre-cut tubes. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength. |
![]() |
Ultrasonic Welded Mesh Bag | Sewn Mesh Bag |
|
![]() |
Standard Filter Bags Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.
Top design: plastic collar, metallic ring |
![]() |
![]() |
Mesh Insert Injection Moulded Plastic Filters
Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens. |
Application of Share Filters Products
Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Fuel filter | Biopsy bag | Air purifier filter | Coffee filter | Irrigation filter | Mesh disc filter |
Automotive | Laboratory | Appliance | Food & Beverage | Agriculture | Power tool |
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.
Please connect with us today so we can learn more about your application and design specifications!
