Micron 100 150 200 250 μM Polyester Filter Mesh Shapes Discs For Tea Filter

Minimum Order Quantity : 1000pcs Price : USD0.02-USD1.20/pc
Packaging Details : Caron, Polybag Delivery Time : 3-9 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: RoHS Model Number: Micron 100 150 200 250 μm Polyester Filter Mesh Shapes

Detail Information

Product Name: Micron 100 150 200 250 μm Polyester Filter Mesh Shapes Keywords: Tea Filter Mesh Shapes
Material: Polyester Filter Mesh Micron Rating: 100μm-250μm
Thread Diameter: 60μm-350μm Size: Any Custom Size Or Shapes
Application: Tea Filter, Other Appliance Filter
High Light:

Fabricated Filter Mesh Discs

,

Tea Polyester Filter Mesh

,

Disc Polyester Filter Mesh

Product Description



Micron 100 150 200 250 μm Polyester Filter Mesh Shapes Discs For Tea Filter



The tea filter is a device used to steep loose tea leaves or herbal infusions in hot water. It refine the flavor of tea and benefits of loose tea without having the leaves float freely in cup. Polyester filter mesh is the fabric mostly used in the tea filter, to improved purity and taste of tea.



Polyester is one of the strongest fibers and remains resistant even if it gets wet and exposed to friction. Its low moisture absorbency prevents it from expanding, contracting, becoming wrinkled, and it also features resistance to chemicals. Share Filters not only offers a wide range of specifications of polyester filter mesh in rolls, we also process the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh shapes and pieces can be tailored to any shape or dimension.



Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh pieces can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. With our heat and ultrasonic cutting technologies, we can create mesh tubes equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. These mesh shapes and tubes are convenient for custom injection moulding.



Share Filters' Filter Mesh Cut Pieces Options for Tea Filter



Material Options: Monofilament woven polyester filter mesh
Mesh Opening: From 80 micron to 120 micron
Thread Diameter: From 45 micron to 70 micron
Open Area: From 33% to 47%
Weave Type: Plain Weave
Fabricated Part: Pieces, shapes, ribbons
Dimension: Can be tailored to any shape or dimension
Colour: White, or customize





Product Details

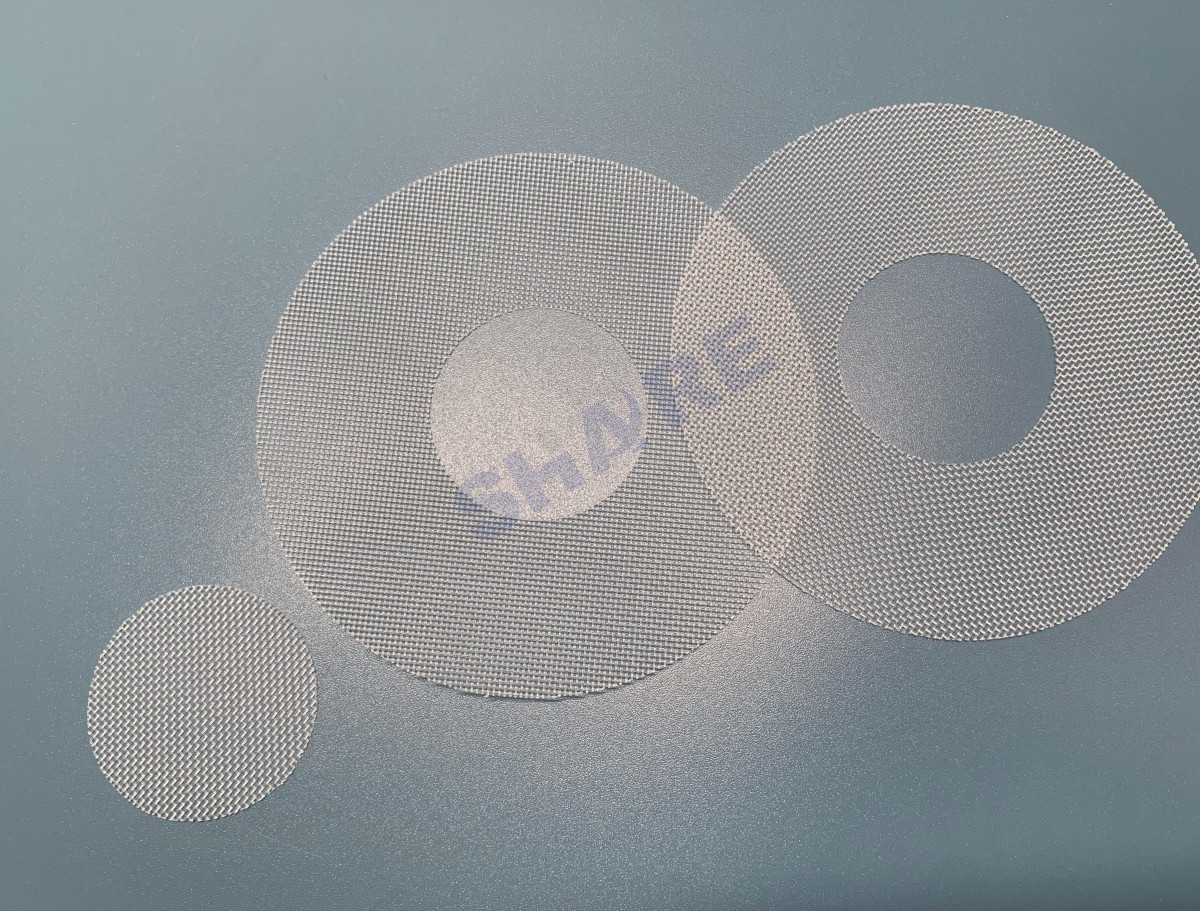

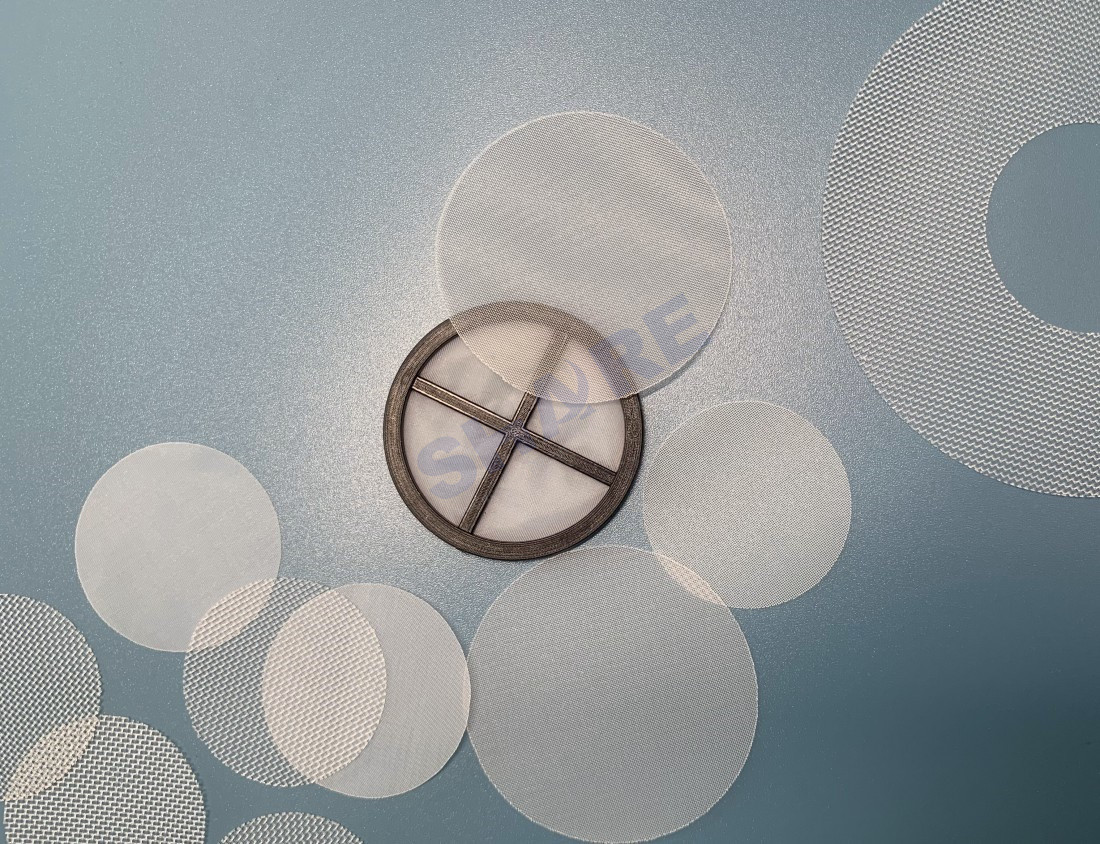

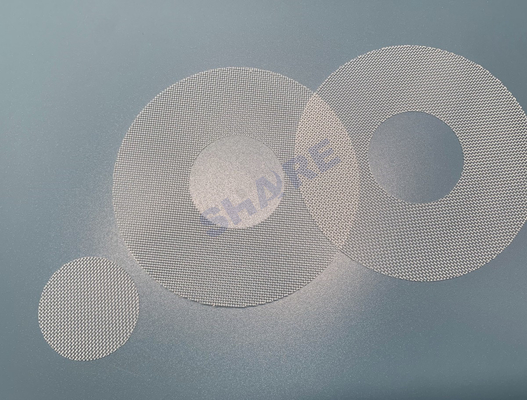

 polyester mesh disc shapes for tea filter

filter mesh shapes Micron 100 150 200 250 μM Polyester Filter Mesh Shapes Discs For Tea Filter 2





The Benefits from Share Filters' Precut Polyester Filter Mesh Shapes:

  • Specific to the customer’s design needs
  • Wide range of micron rating and thread diameter options
  • Non-fraying edges(depends on the technology)
  • Convenient for insert molding
  • High productivity
  • Polyester filter mesh withstand high temperatures 130℃
  • Polyester filter mesh is acid and chemical resistance



Polyester Filter Mesh Specifications for Tea Filter



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
surface
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
PES 250/46 27T 68 120 250 46 230 100
PES 280/62 28S 71 80 280 62 150 46
PES 240/45 28T 71 120 240 45 230 103
PES 225/43 29T 74 120 225 43 230 107
PES 215/42 30T 76 120 215 42 230 111
PES 230/54 32S 80 80 230 54 150 52
PES 210/45 32T 80 100 210 45 180 82
PES 215/53 34S 86 80 215 53 150 56
PES 195/44 34T 86 100 195 44 180 87
PES 180/42 36T 91 100 180 42 180 92
PES 200/61 39S 99 55 200 61 95 30
PES 190/55 39T 99 64 190 55 115 40
PES 150/36 40T 102 100 150 36 190 103
PES 150/42 43T 110 80 150 42 155 71
PES 160/57 47S 120 55 160 57 96 36
PES 150/50 47T 120 64 150 50 120 48
PES 140/43 47HD 120 71 140 43 130 59
PES 140/47 49S 125 64 140 47 120 50
PES 135/44 49T 125 71 135 44 130 62
PES 144/55 53S 135 45 144 55 76 27
PES 135/51 53S 135 55 135 51 97 40
PES 125/44 53T 135 64 125 44 122 54
PES 117/39 53T 135 71 117 39 132 67
PES 115/46 59S 150 55 115 46 99 45
PES 105/38 59T 150 64 105 38 123 61
PES 100/41 64S 160 55 100 41 100 48
PES 90/33 64T 160 64 90 33 125 66

This just a part of specifications which common used.





Fabricated Mesh Screens & Moulded Filters

fabricated mesh parts mesh insert plastic moulded filter





Why Work With Share Filters ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



filter mesh weaving

Filter Mesh Weaving



The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

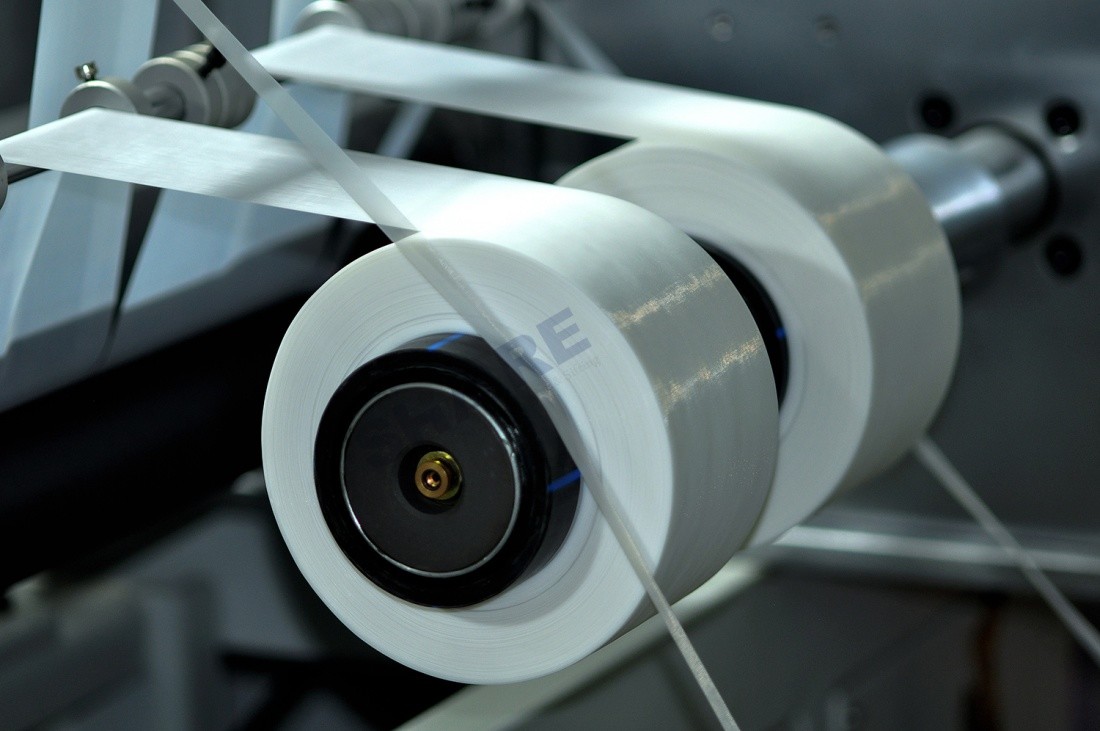

Filter Mesh Slitted in Narrow Ribbons



Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons.

      Filter mesh slitted to be ribbons





Micron 100 150 200 250 μM Polyester Filter Mesh Shapes Discs For Tea Filter 7

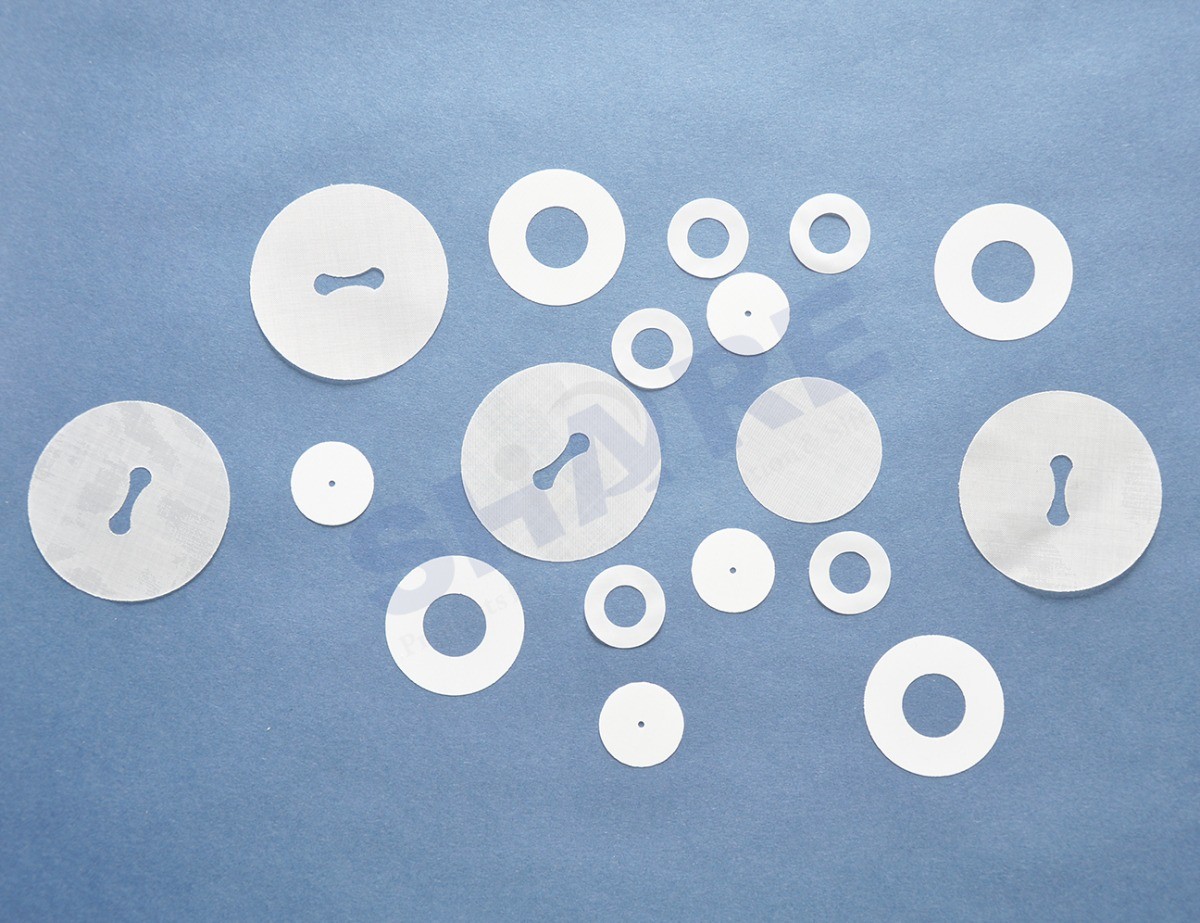

Filter Mesh Pre-Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.






Cutting and Welding Tubes



With our heat and ultrasonic cutting technologies, we can create continuos tubular in ribbons and pre-cut tubes. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Micron 100 150 200 250 μM Polyester Filter Mesh Shapes Discs For Tea Filter 8




Ultrasonic Welded Mesh Bag Sewn Mesh Bag

Micron 100 150 200 250 μM Polyester Filter Mesh Shapes Discs For Tea Filter 9

sewn filter mesh bag





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

      Micron 100 150 200 250 μM Polyester Filter Mesh Shapes Discs For Tea Filter 11




Mesh insert plastic moulded filter

Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.




Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Micron 100 150 200 250 μM Polyester Filter Mesh Shapes Discs For Tea Filter 15 coffee filter Micron 100 150 200 250 μM Polyester Filter Mesh Shapes Discs For Tea Filter 17 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us today so we can learn more about your application and design specifications!
