Micron 20 30 40 60 75 90 100 μM Polyester Filter Mesh Sheet For Air Filtration

Minimum Order Quantity : 1000pcs Price : USD0.03-USD1.20/pc
Packaging Details : Caron, Polybag Delivery Time : 3-9 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: RoHS Model Number: 20 30 40 60 75 90 100 μm Polyester Filter Mesh Sheet

Detail Information

Product Name: 20 30 40 60 75 90 100 μm Polyester Filter Mesh Sheet Keywords: Polyester Filter Mesh Sheet
Material Option: Polyester Filter Mesh, Nylon Filter Mesh Micron Rating: 20μm-100μm
Thread Diameter: 31μm-64μm Size: Any Custom Size Or Shapes
Application: Vacuum Cleaner Filter, Other Appliance Filter
High Light:

Fabricated Polyester Filter Mesh Sheet

,

Micron 100 Polyester Filter Mesh Sheet

,

Air Filtration Polyester Filter Mesh Sheet

Product Description



Micron 20 30 40 60 75 90 100 μm Polyester Filter Mesh Sheet for Appliant Air Filtration



The air filter is located near the engine of appliant, the engine needs high demands on clean air to prevent particles from entering the motor and causing damagee. Share Filters' precise openning mesh and mesh moulded filters provide protection against particle migration, with excellent debris holding capacity and low pressure drops in all conditions. Polyester mesh nylon(polyamide) mesh are the mostly used for the air filtration.



Polyester woven filter mesh is a standardize mesh which means that all threads are at an exact, fixed distance from each other in even apertures. Share Filters not only offers a wide range of specifications of nylon filter mesh in rolls, we also process the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh sheets and shapes can be tailored to any dimension or shape.



Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh pieces can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality. These mesh shapes are convenient for injection moulding.





Share Filters' Filter Mesh Sheets Options Used for Appliant Air Filtration

Material Options: Monofilament woven polyester filter mesh, nylon filter mesh
Mesh Opening: From 20 micron to 100 micron
Thread Diameter: From 30 micron to 60 micron
Open Area: From 36% to 57%
Weave Type: Plain Weave
Fabricated Part:  Pieces, ribbons, tubes
Dimension: Can be tailored to any shape or dimension
Colour: White, or customize





Product Details

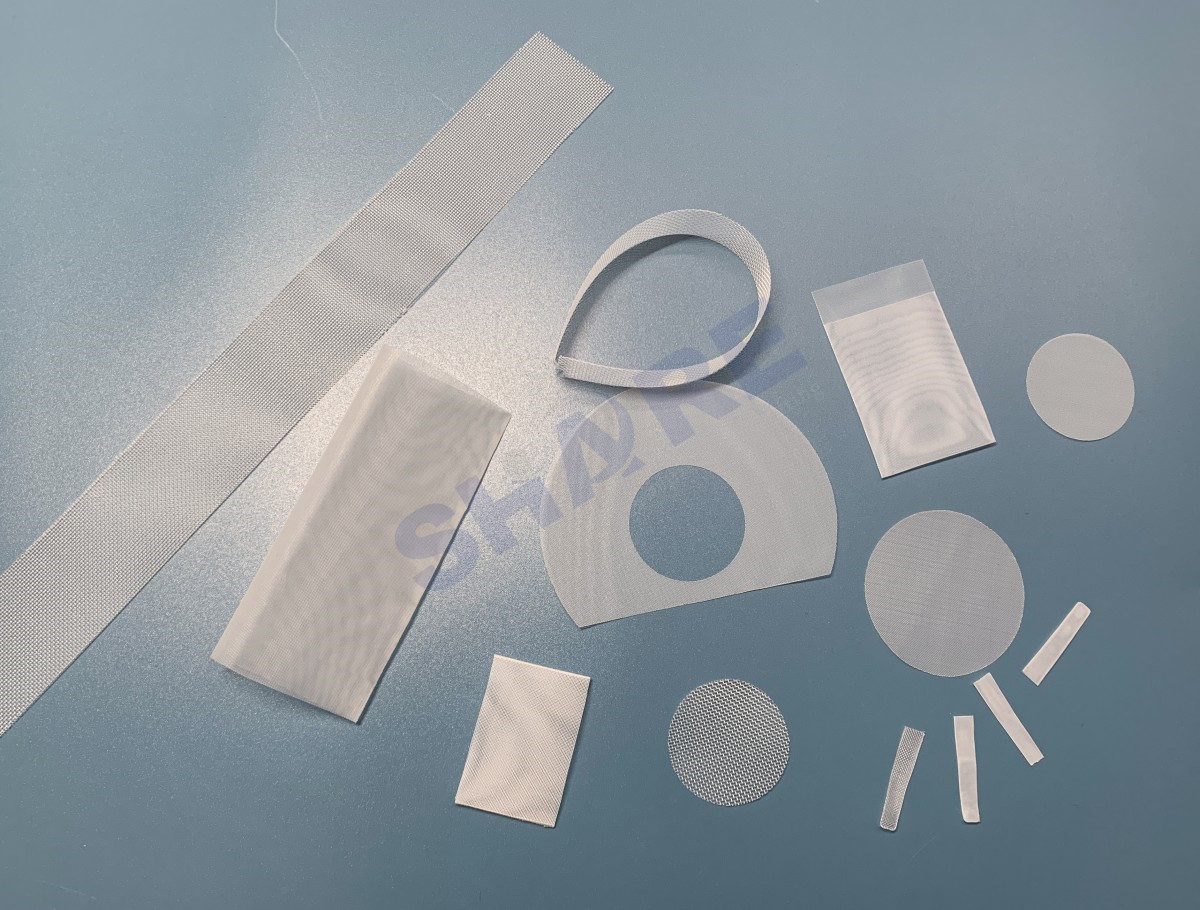

 polyester filter mesh sheet  polyester filter mesh shapes

air filter



The Benefits from Share Filters' Precut Polyester Filter Mesh Shapes:

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • Convenient for insert molding
  • Save your time and budget
  • High productivity
  • High strength and durability
  • High operating temperature: up to 302 °F(150℃).
  • Long service life

Polyester Filter Mesh Specifications For Air Filtration



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
surface
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
PES 125/44 53T 135 64 125 44 122 54
PES 117/39 53T 135 71 117 39 132 67
PES 115/46 59S 150 55 115 46 99 45
PES 105/38 59T 150 64 105 38 123 61
PES 100/41 64S 160 55 100 41 100 48
PES 90/33 64T 160 64 90 33 125 66
PES 95/47 72S 180 45 95 47 78 37
PES 85/38 72T 180 55 85 38 102 55
PES 75/33 77T 195 55 75 33 105 58
PES 80/41 80S 200 45 80 41 80 41
PES 85/44 80T 200 48 85 44 86 44
PES 70/40 90M 230 39 70 40 68 34
PES 68/34 90T 230 45 68 34 80 46
PES 65/33 90T 230 48 65 33 82 49
PES 60/36 100T 250 39 60 36 69 38
PES 56/38 110T 280 34 56 38 62 34
PES 52/33 110HD 280 39 52 33 70 42
PES 52/40 120S 300 31 52 40 48 32
PES 48/33 120T 300 34 48 33 63 37
PES 44/28 120HD 300 39 44 28 72 46
PES 47/37 130S 330 31 47 37 50 35
PES 42/30 130T 330 34 42 30 58 40
PES 43/34 140S 350 31 43 34 50 37
PES 36/25 140T 355 34 36 25 62 43
PES 37/30 150S 380 31 37 30 50 40
PES 32/24 150 381 34 32 24 56 43
PES 33/31 165S 420 27 33 31 40 26
PES 32/23 165T 420 31 32 23 50 36
PES 25/16 165 419 34 25 16 66 49
PES 24/18 180 457 27 24 18 43 33
PES 23/17 180 457 31 23 17 56 40
PES 18/18 235x245 597x622 24 18 18 44 32
PES 18/13 200 508 31 18 13 60 48
PES 23/25 200T 500 27 23 25 45 32
PES 15/10 200x215 508x546 31 15 10 59 50

This just a part of specifications which common used.





Fabricated Mesh Screens  & Filters

fabricated mesh parts mesh insert plastic moulded filter



Why Work With Us ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

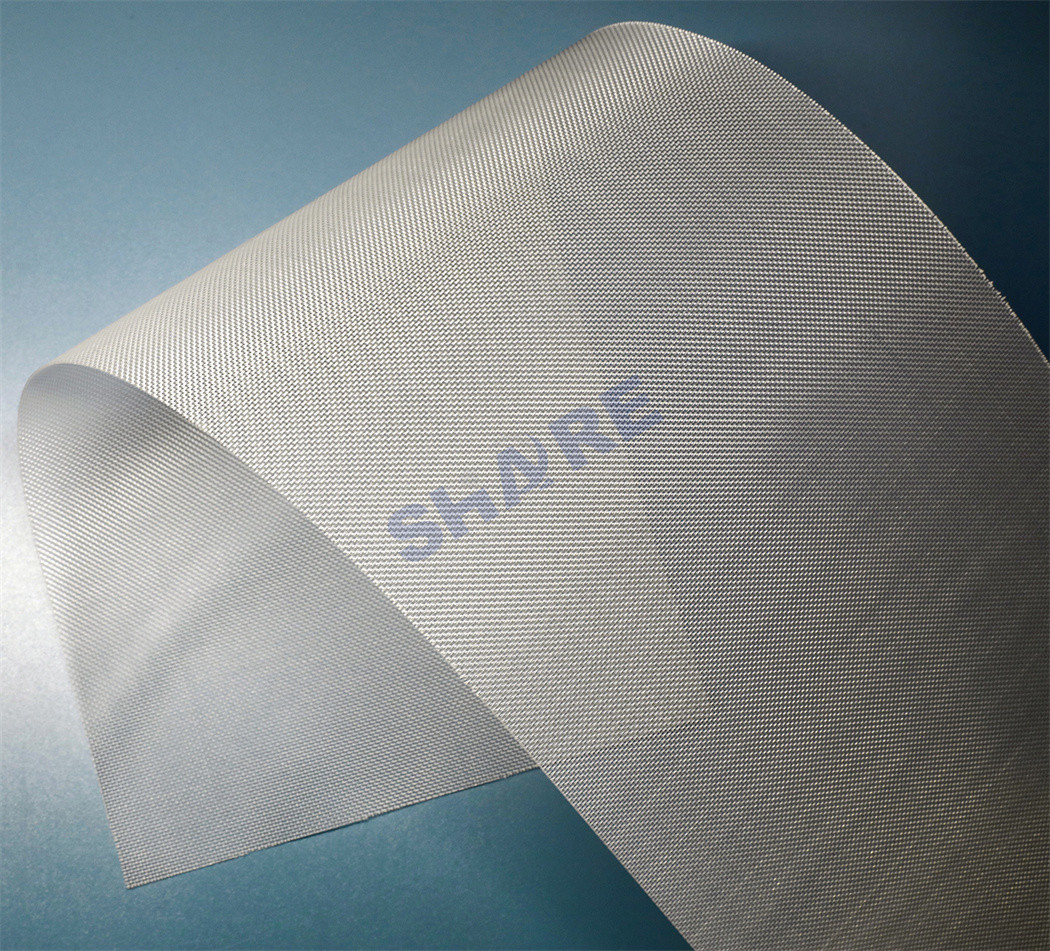

woven filter mesh

Filter Mesh Weaving



The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

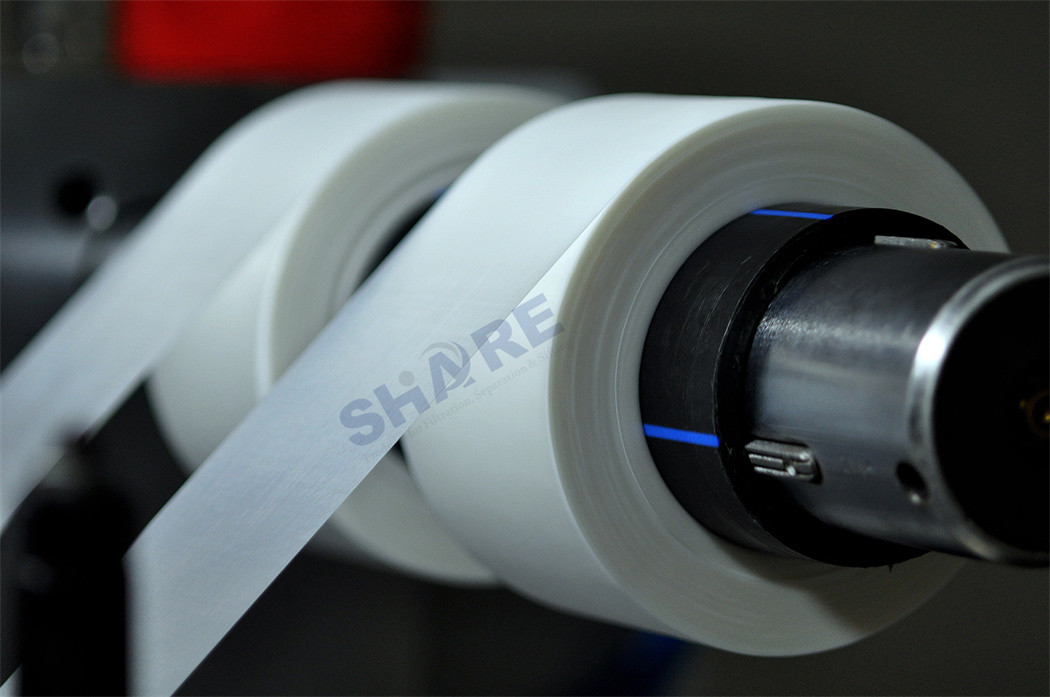

Filter Mesh Slitted in Narrow Ribbons



Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipment enables the production of ribbons from Share Filters.

      Filter mesh slitted to be ribbons





Micron 20 30 40 60 75 90 100 μM Polyester Filter Mesh Sheet For Air Filtration 7

Filter Mesh Pre-Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.






Ultrasonic Cutting and Welding Tubes



With our heat and ultrasonic cutting technologies, we can create tubes down to a minimum diameter of 5 mm. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Micron 20 30 40 60 75 90 100 μM Polyester Filter Mesh Sheet For Air Filtration 8




Ultrasonic Welded Mesh Bag Sewn Mesh Bag

Micron 20 30 40 60 75 90 100 μM Polyester Filter Mesh Sheet For Air Filtration 9

sewn filter mesh bag





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

      Micron 20 30 40 60 75 90 100 μM Polyester Filter Mesh Sheet For Air Filtration 11

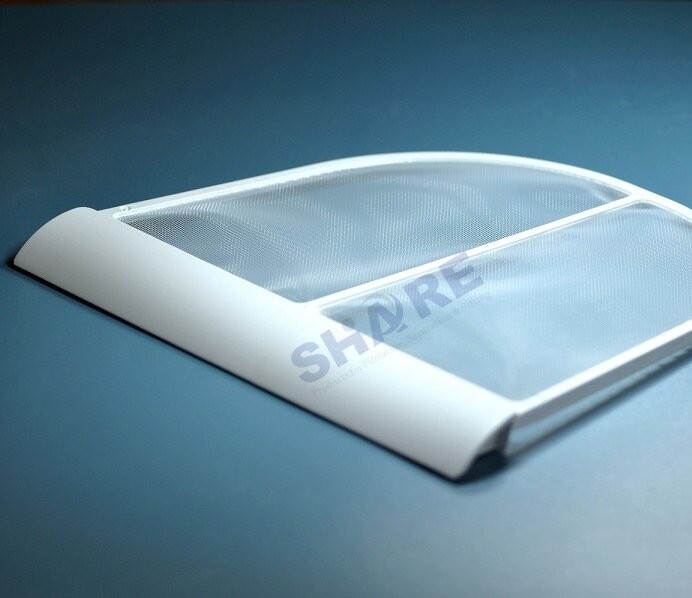

plastic moulded filter

Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.




Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Micron 20 30 40 60 75 90 100 μM Polyester Filter Mesh Sheet For Air Filtration 15 coffee filter Micron 20 30 40 60 75 90 100 μM Polyester Filter Mesh Sheet For Air Filtration 17 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Test device





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!




Packing & Transportation


packing  delivery
