Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 1000pcs | Price : | USD0.02-USD1.20/pc |
---|---|---|---|
Packaging Details : | Caron, Polybag | Delivery Time : | 3-7 days |
Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 50000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | SGS, RoHS | Model Number: | Micron 149 183 209 294 Nylon Filter Mesh Tube |
Detail Information |
|||
Product Name: | Micron 149 183 209 294 Nylon Filter Mesh Tube Cuts | Keywords: | Nylon Mesh Filter Tube Cuts |
---|---|---|---|
Material Option: | Nylon Mesh, Polyester Mesh, PP Filter Mesh | Micron Rating: | 149μm-300μm |
Thread Diameter: | 55μm-150μm | Size: | Any Custom Size Or Shapes |
Application: | Washing Machine Filter, Other Appliance Filter | ||
Highlight: | Micron 252 Filter Mesh Tube,Washing Machine Fabricated Filters,Custom Nylon PA Filter Mesh Tube |
Product Description

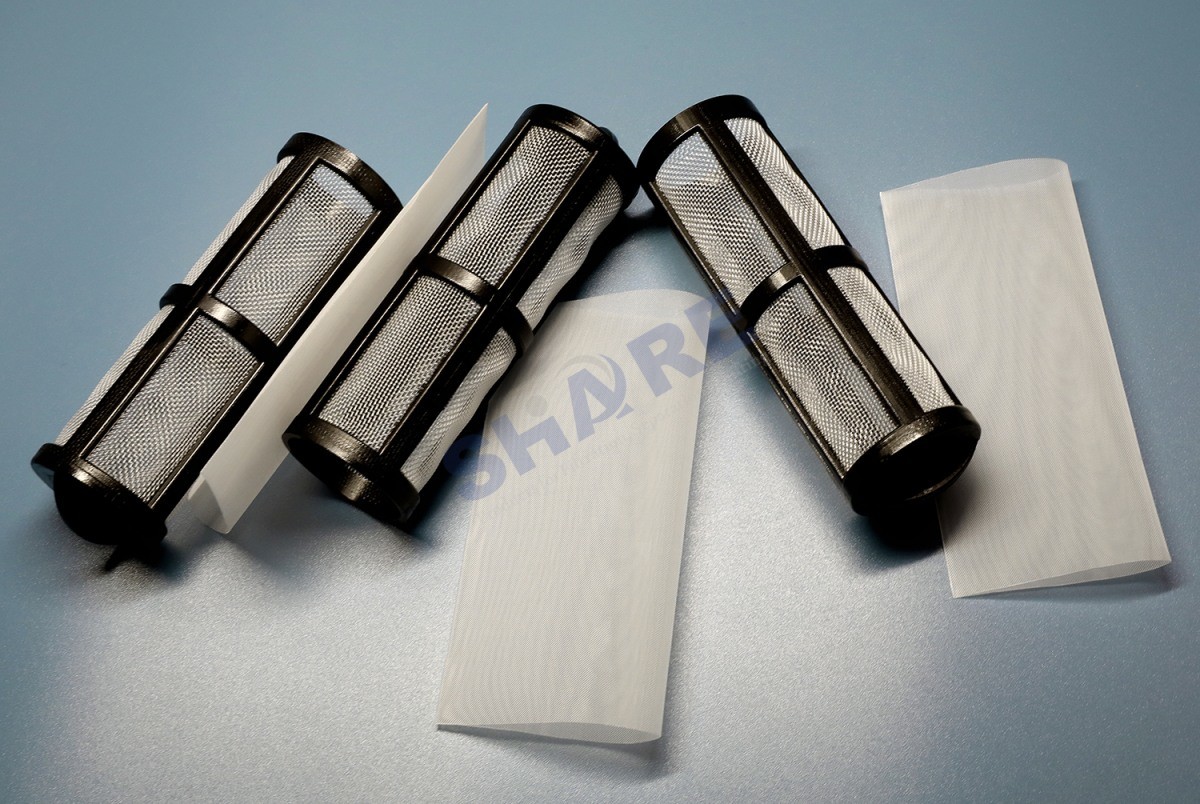

Micron 190 252 μm Nylon PA Filter Mesh Tube for Washing Machine Filter 150-300μm
The washing machine filter is an essential component of a washing machine. Its primary function is to trap lint, hair, fabric particles, and other debris that may be present in the laundry water. This helps prevent these materials from clogging the drain or circulating back into the washing machine. Share Fitlters open mesh tube and moulded filters provide protection against particle migration with excellent debris holding capacity.
Nylon filter mesh is the most popular and economical synthetic filtration mesh. Thanks to the wide variety of filament diameters and opening sizes, Share Filters nylon filter meshes are not only used in many industrial filtration applications, but also in appliances filters. Share Filters not only offers nylon filter mesh in rolls, we also convert the mesh into all kinds of filter components. With the advanced process equipments, Share Filters' filter mesh tube cuts and shapes can be tailored to any shape or dimension.
Share Filters has the competence to manufacture mesh tubes either by heat slitting or by ultrasonic welding. For even better filter performance a combination of support- and filter fabrics are possible.
Share Filters' Filter Mesh Tube Cuts Used for Washing Machine Filters Options
Material Options: | 100% monofilament woven nylon mesh, polyester mesh, PP mesh |
Mesh Opening: | From 149 micron to 300 micron |
Thread Diameter: | From 55 micron to 150 micron |
Open Area: | From 42% to 67% |
Weave Type: | Plain Weave |
Fabricated Part: | Mesh tubes, tube ribbon |
Dimension: | Can be tailored to any shape or dimension |
Colour: | White, or customize |
Product Details
The Benefits from Share Filters' Precut Nylon Mesh Tubes:
Nylon(PA) Filter Mesh Specifications For Washing Machine Filter
Fabric number |
Mesh count | Thread diameter |
Mesh opening |
Open area |
Fabric thickness |
Weight | |
No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
This just a part of specifications which common used.
Share Filter Other Fabricated Filter Mesh Parts
![]() |
![]() |
![]() |
![]() |
![]() |
Why Work With Us ?
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.
We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed in house.
![]() |
Precise Filter Mesh Weaving
The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length. |
Woven Filter Mesh Slitted in Narrow Ribbons Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.
|
![]() |
![]() |
Filter Mesh Cutting Pieces and Shapes Share Filters cutting method include Laser cutting, Cold cutting, Heatt cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs
|

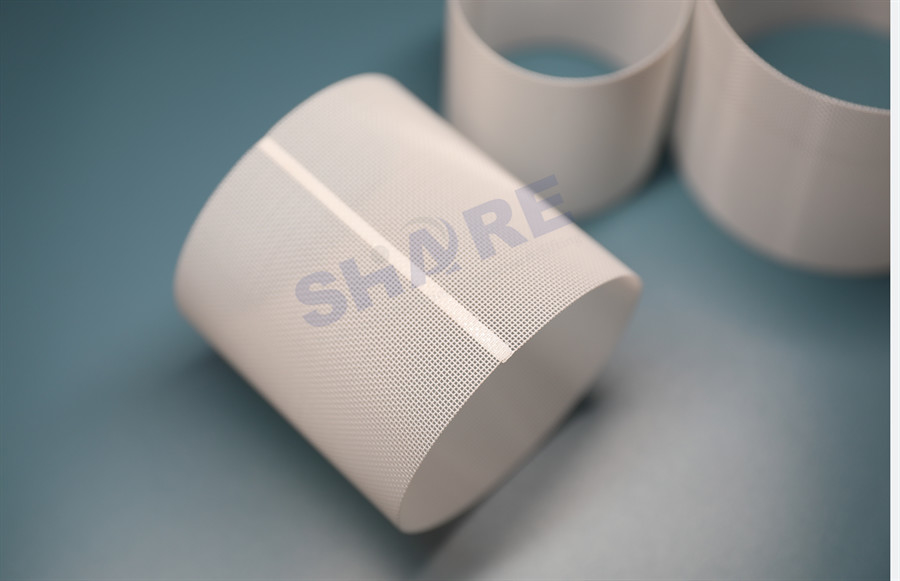

Ultrasonic Cutting and Welding Tubes
With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength. |
![]() |
Ultrasonic Welded Mesh Bag | Sewn Mesh Bag |
|
![]() |
Standard Filter Bags Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.
Top design: plastic collar, metallic ring |
![]() |
![]() |
Custom Mesh Insert Injection Moulded Plastic Filters
Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens. |
Application of Share Filters Products
Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Fuel filter | Biopsy bag | Air purifier filter | Coffee filter | Irrigation filter | Mesh disc filter |
Automotive | Laboratory | Appliance | Food & Beverage | Agriculture | Power tool |
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.
Please connect with us now so we can learn more about your application and design specifications!
Packing & Transportation
