Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter

Minimum Order Quantity : 1000pcs Price : USD0.02-USD1.20/pc
Packaging Details : Caron, Polybag Delivery Time : 3-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS, RoHS Model Number: Micron 149 183 209 294 PET Filter Mesh Tube Cuts

Detail Information

Product Name: Micron 149 183 209 294 PET Filter Mesh Tube Cuts Keywords: PET Mesh Filter Tube Cuts
Material Option: Polyester Mesh, Nylon Mesh, PP Filter Mesh Micron Rating: 149μm-300μm
Thread Diameter: 55μm-150μm Size: Any Custom Size Or Shapes
Application: Washing Machine Filter, Other Appliance Filter
High Light:

Micron 149 PET Filter Mesh


PET Filter Mesh Tube


Washing Machine Filter Mesh Tube

Product Description


Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter

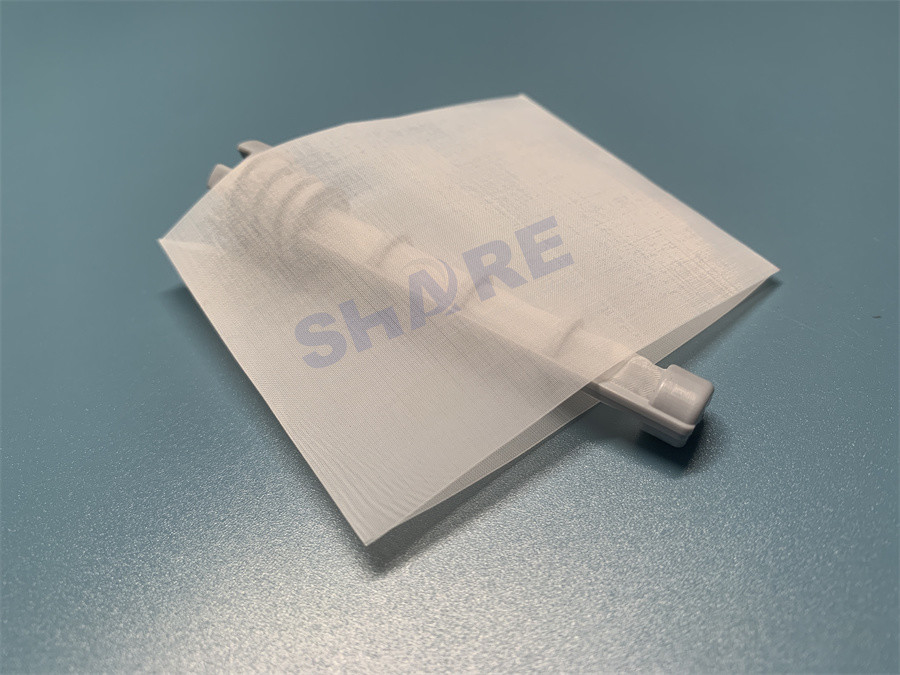

The washing machine filter is an essential component of a washing machine. Its primary function is to trap lint, hair, fabric particles, and other debris that may be present in the laundry water. This helps prevent these materials from clogging the drain or circulating back into the washing machine. Share Fitlters open mesh tube and moulded filters provide protection against particle migration with excellent debris holding capacity.


PET (polyester) filter mesh is a standardize mesh which means that all threads are at an exact, fixed distance from each other in even apertures. Share Filters not only offers a wide range of specifications PET filter mesh in rolls, we also convert the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh tube cuts and shapes can be tailored to any shape or dimension.


Share Filters has the competence to manufacture mesh tubes either by heat slitting or by ultrasonic welding. For even better filter performance a combination of support- and filter fabrics are possible.

  • Two-edge sealed by ultrasonic and by heat welding
  • One-edge sealed by ultrasonic technique and heat welding
  • Overlapping welding by ultrasonic

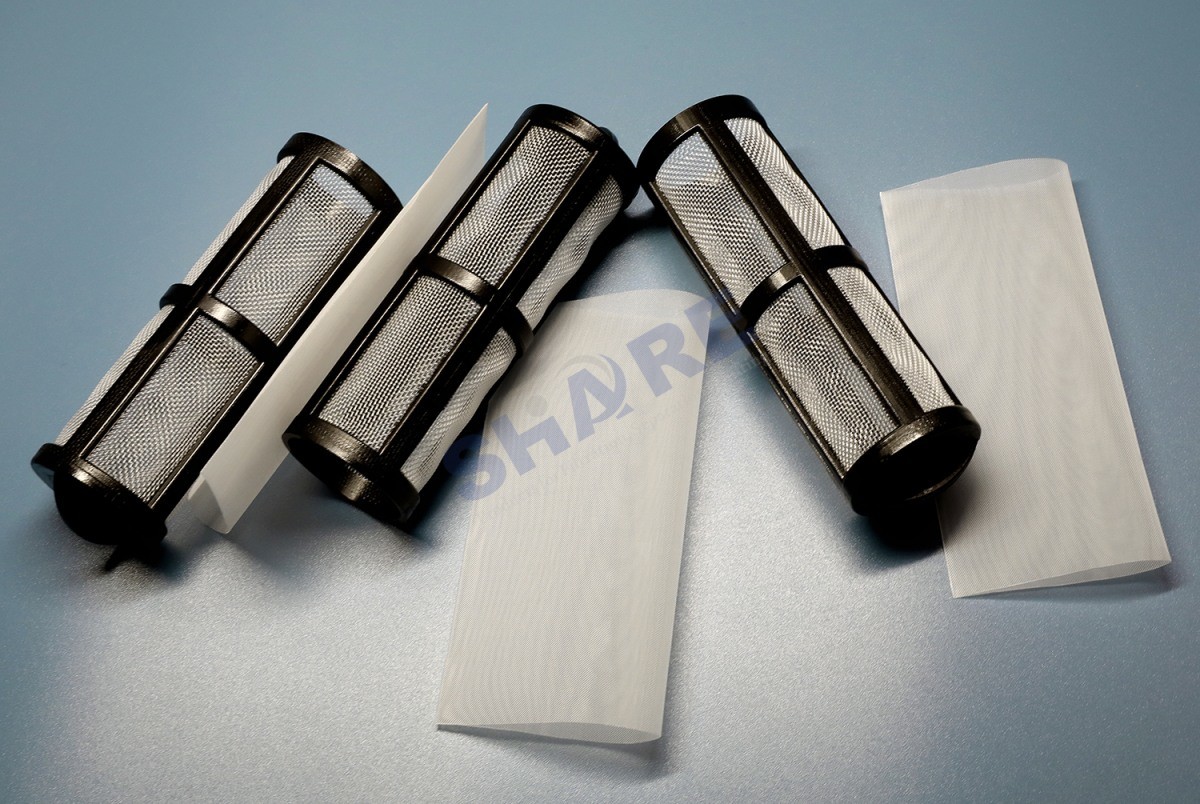

Share Filters' Filter Mesh Tube Cuts Used for Washing Machine Filters Options

Material Options: Monofilament woven PET mesh, nylon mesh, PP mesh
Mesh Opening: From 149 micron to 300 micron
Thread Diameter: From 55 micron to 150 micron
Open Area: From 42% to 67%
Weave Type: Plain Weave
Fabricated Part:  Mesh tubes, tube ribbon
Dimension: Can be tailored to  any shape or dimension
Colour: White, or customize


Product Details

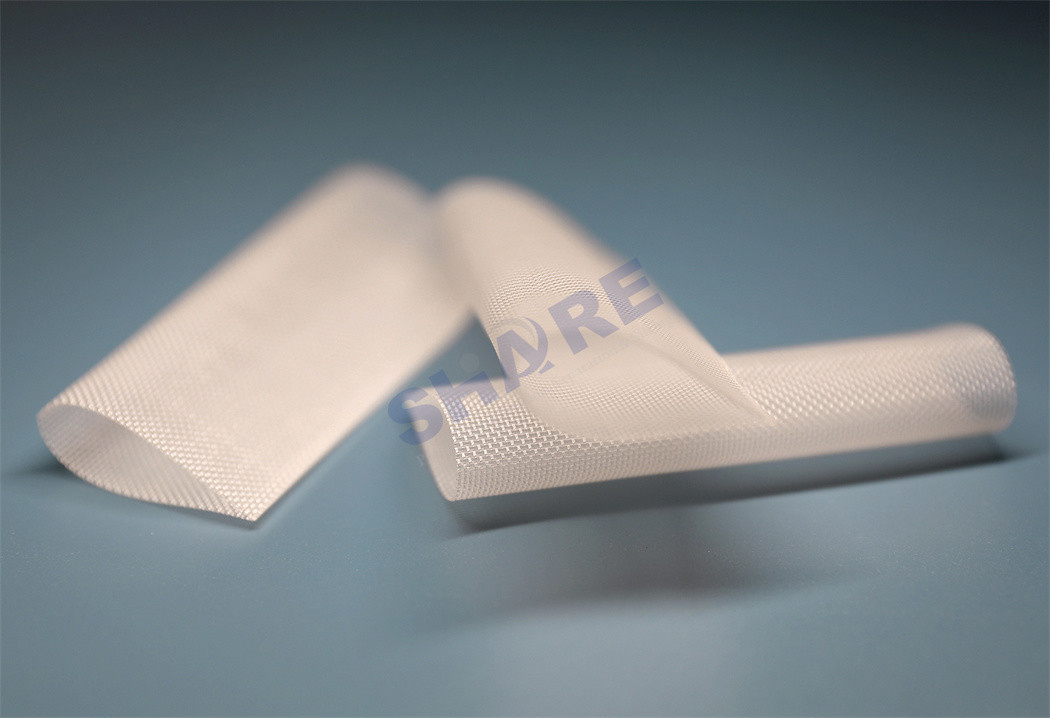

PET mesh tube cuts

PET mesh tube ribbon


The Benefits from Share Filters' Pre-Cut PET Mesh Tubes:

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • Convenient for insert molding
  • High productivity
  • PET mesh resistance to chemicals and acids
  • PET mesh excellent dimensional stability

Polyester Filter Mesh Specifications For Washing Machine Filter


Mesh count Thread
No. mesh/cm mesh/inch micron micron % micron g/m2
PES 375/46 18T 46 180 375 46 330 150
PES 375/51 19T 48 150 375 51 260 110
PES 420/71 20S 50 80 420 71 140 33
PES 400/64 20S 50 110 400 64 180 51
PES 350/49 20T 50 150 350 49 260 115
PES 325/47 21T 53 150 325 47 270 121
PES 340/67 24S 61 120 340 67 220 88
PES 270/42 24T 61 150 270 42 280 138
PES 250/46 27T 68 120 250 46 230 100
PES 280/62 28S 71 80 280 62 150 46
PES 240/45 28T 71 120 240 45 230 103
PES 225/43 29T 74 120 225 43 230 107
PES 215/42 30T 76 120 215 42 230 111
PES 230/54 32S 80 80 230 54 150 52
PES 210/45 32T 80 100 210 45 180 82
PES 215/53 34S 86 80 215 53 150 56
PES 195/44 34T 86 100 195 44 180 87
PES 180/42 36T 91 100 180 42 180 92
PES 200/61 39S 99 55 200 61 95 30
PES 190/55 39T 99 64 190 55 115 40
PES 150/36 40T 102 100 150 36 190 103
PES 150/42 43T 110 80 150 42 155 71
PES 160/57 47S 120 55 160 57 96 36
PES 150/50 47T 120 64 150 50 120 48
PES 140/43 47HD 120 71 140 43 130 59
PES 140/47 49S 125 64 140 47 120 50

This just a part of specifications which common used.


Share Filter Other Fabricated Filter Mesh Parts


filter mesh ribbon nylon filter mesh discs Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 4 polyester mesh tube Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 6


Why Work With Us ?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.


We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed in house.


filter mesh weaving

Precise Filter Mesh Weaving


The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.



Woven Filter Mesh Slitted in Narrow Ribbons

Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.
      Filter mesh slitted to be ribbons



Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 9

Filter Mesh Cutting Pieces and Shapes

Share Filters cutting method include Laser cutting, Cold cutting, Heatt cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs



Ultrasonic Cutting and Welding Tubes


With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 10


  Ultrasonic Welded Mesh Bag   Sewn Mesh Bag

Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 11

sewn filter mesh bag



Standard Filter Bags

Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

      Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 13


Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 14

Custom Mesh Insert Injection Moulded Plastic Filters


Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


Application of Share Filters Products

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


injector filter BIOPSY BAG Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 17 coffee filter Micron 149 183 209 294 PET Filter Mesh Tube Cuts For Washing Machine Filter 19 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool


Contact Us


Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!
