Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter

Minimum Order Quantity : 200pcs Price : USD0.04-USD1.20/pc
Packaging Details : Caron, Polybag Delivery Time : 3-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS, RoHS Model Number: Micron 300 350 Polyester Mesh Filter Tube

Detail Information

Product Name: Micron 300 350 Polyester Mesh Filter Tube Keywords: Polyester Mesh Filter Tube
Material Option: Polyester Filter Mesh, Polypropylene Filter Mesh Micron Rating: 300μm-350μm
Thread Diameter: 120μm-180μm Size: Any Custom Size Or Diameter
Application: Dishwasher Filter, Other Appliant Filters
High Light:

Dishwasher PET Filter Tube

,

Polyester Mesh Filter Tube

,

Micron 300 Polyester Mesh Filter

Product Description

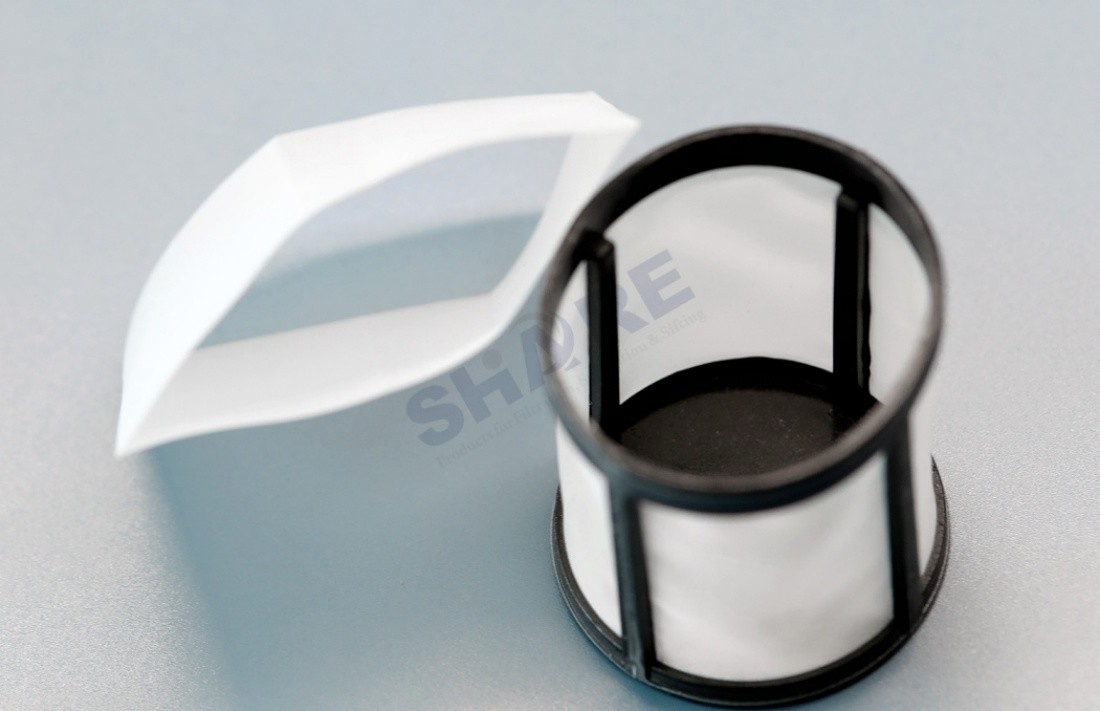

Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter



Share Filters not only offers a wide range of polyester filter mesh in rolls, we also convert the filter mesh into all kinds of filter components. Thanks to the advanced process equipments and many years of experience, Share Filters' filter mesh tubes tailored to any shape or dimension.



With our heatt and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. Heat-slit tubes are specified by having a defined inner diameter. Diameters range down to 6 mm. Ultrasonic welded tubes have one overlapping weld.



The dishwasher filter is an essential component of a dishwasher that helps to trap and remove food particles, debris, and other residues from the water during the washing cycle. Its primary function is to prevent these contaminants from circulating back onto the dishes and utensils, ensuring a thorough and hygienic cleaning process.



Share Filters' Filter Mesh Tubes Used for Dishwasher Filter Options

Material Options: Monofilament woven polyester mesh, nylon mesh
Mesh Opening: From 300 micron to 350 micron
Thread Diameter: From 120 micron to 180 micron
Open Area: From 46% to 71%
Weave Type: Plain Weave
Seam Type: one side, two sides, one overlapping seam
Dimension: Can be tailored to  any shape or dimension
Colour: White, or customize



Product Details

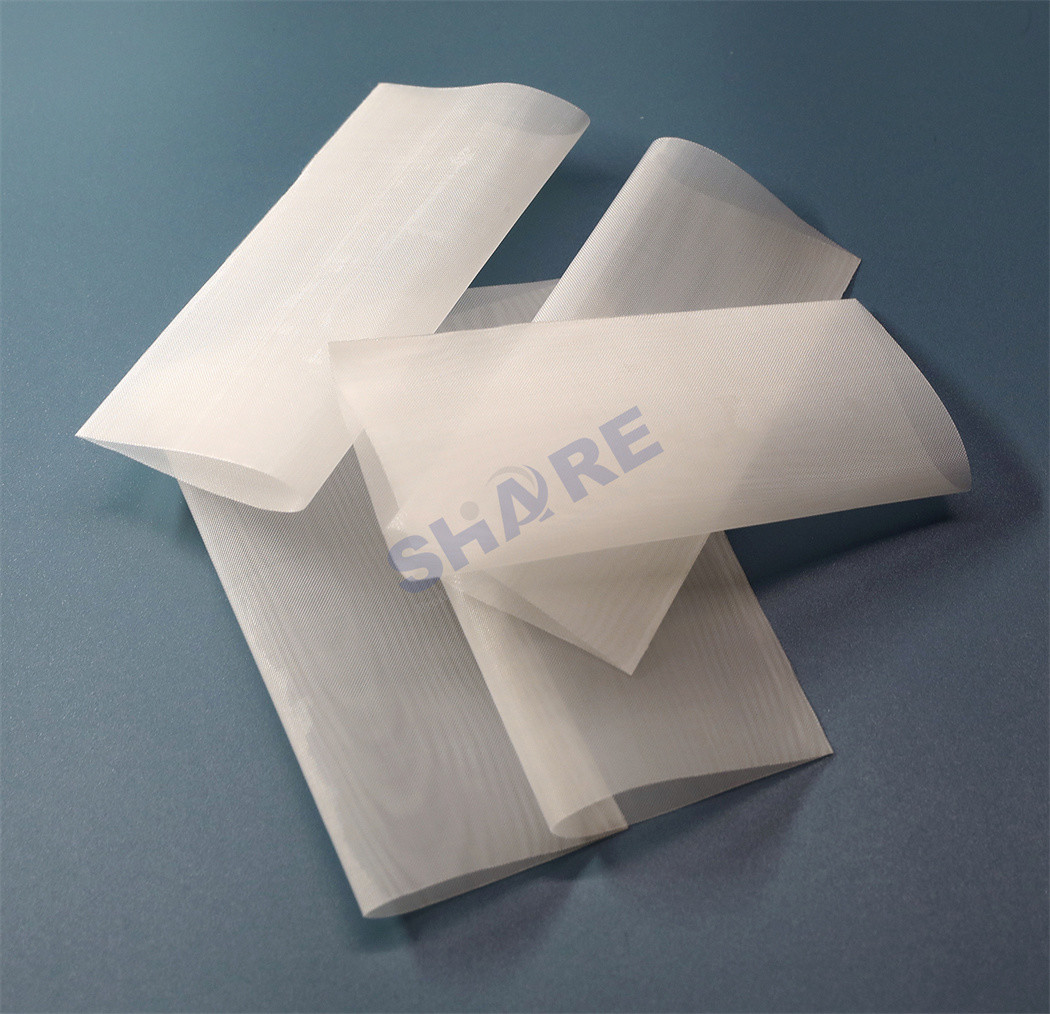

filter mesh tube double seamless
  • Two welded seams. Welding strength is low, but productivity is high and even small-sized parts can be welded. Convenient for insert moulding.



filter mesh tube two seams


  • One functional seam. Welding strength is low, but productivity is high and even small-sized parts can be welded. Convenient for insert moulding

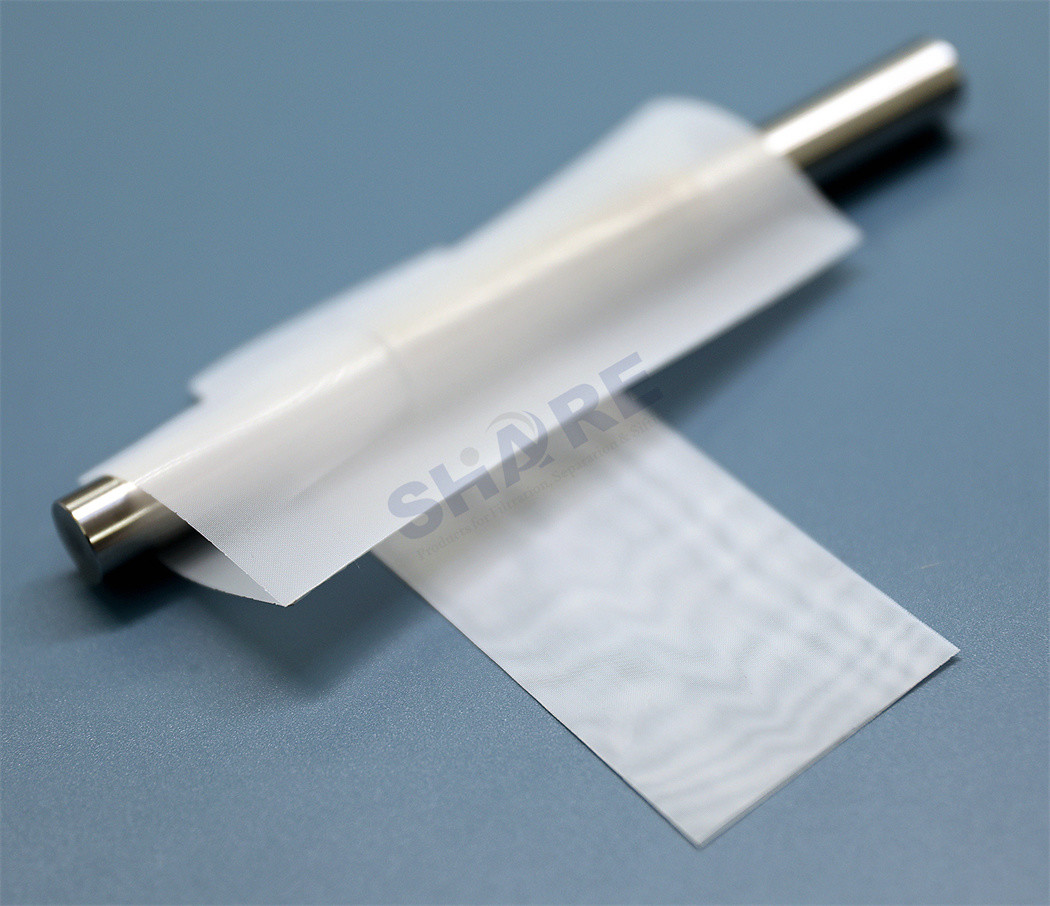

filter mesh tube overlapping seam
  • Ultrasonic welded tubes have one overlapping weld. High welding strength.



The Benefits from Share Filters' Pre-Cut Polyester Mesh Tubes:

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • Various of pore size and thread diameter for options
  • Convenient for insert molding
  • Polyester mesh resistant to chemical, acid
  • Polyester mesh features with stable dimension



Polyester Filter Mesh Specification for Dishwasher Filter



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
surface
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
PES 375/46 18T 46 180 375 46 330 150
PES 375/51 19T 48 150 375 51 260 110
PES 420/71 20S 50 80 420 71 140 33
PES 400/64 20S 50 110 400 64 180 51
PES 350/49 20T 50 150 350 49 260 115
PES 325/47 21T 53 150 325 47 270 121
PES 340/67 24S 61 120 340 67 220 88
PES 270/42 24T 61 150 270 42 280 138
PES 250/46 27T 68 120 250 46 230 100
PES 280/62 28S 71 80 280 62 150 46
PES 240/45 28T 71 120 240 45 230 103
PES 225/43 29T 74 120 225 43 230 107
PES 215/42 30T 76 120 215 42 230 111
PES 230/54 32S 80 80 230 54 150 52
PES 210/45 32T 80 100 210 45 180 82
PES 215/53 34S 86 80 215 53 150 56
PES 195/44 34T 86 100 195 44 180 87
PES 180/42 36T 91 100 180 42 180 92
PES 200/61 39S 99 55 200 61 95 30
PES 190/55 39T 99 64 190 55 115 40
PES 150/36 40T 102 100 150 36 190 103
PES 150/42 43T 110 80 150 42 155 71
PES 160/57 47S 120 55 160 57 96 36
PES 150/50 47T 120 64 150 50 120 48
PES 140/43 47HD 120 71 140 43 130 59
PES 140/47 49S 125 64 140 47 120 50

This just a part of specifications which common used.



What We Do


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the few suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



filter mesh weaving

Filter Mesh Weaving



The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.





Filter Mesh Slitted in Narrow Ribbons


Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.
      Filter mesh slitted to be ribbons





Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter 5

Filter Mesh Cutting Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heatt cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs






Ultrasonic Cutting and Welding Tubes



With our heatt and ultrasonic cutting technologies, we can create tubes down to a minimum diameter of 5 mm. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter 6




Ultrasonic Welded Mesh Bag Sewn Mesh Bag

Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter 7

sewn filter mesh bag





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

      Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter 9




Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter 10

Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.




Application of Share Filters Products

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



fuel filter blood filter air purifier filter Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter 14 Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter 15
Fuel filter Blood filter Air purifier filter Coffee filter Drip irrigation filter
Automotive Healthcare Appliance Food & Beverage Agriculture Garden





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us so we can learn more about your application and design specifications!




Packing
Micron 300 350 Polyester Mesh Filter Tube For Dishwasher PET Screen Filter 16
