Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter

Minimum Order Quantity : 200pcs Price : USD0.04-USD1.20/pc
Packaging Details : Caron, Polybag Delivery Time : 3-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS, RoHS Model Number: Micron 100 150 200 250 300 Polypropylene Mesh Pieces

Detail Information

Product Name: Micron 100 150 200 250 300 μm Polypropylene Mesh Pieces Keywords: Polypropylene Mesh Filter Pieces
Material Option: Polypropylene Filter Mesh, Polyester Filter Mesh, Micron Rating: 100μm-300μm
Thread Diameter: 55μm-150μm Size: Any Custom Size Or Diameter
Application: Tumble Filter, Other Appliant Filters
High Light:

Fabricated Filter Mesh Pieces

,

Tumble Dryers Filter Polypropylene Mesh Pieces

,

Micron 300 Polypropylene Mesh Pieces

Product Description



PET Micron 100 150 200 250 300 Polyester Mesh Shapes For Tumble Dryers Filter



Share Filters not only offers a wide range of polyester filter mesh in rolls, we also convert the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh discs and shapes can be tailored to any shape or dimension.



Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh shapes can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality.



A tumble dryer lint filter is a crucial component of a clothes dryer. Its purpose is to capture lint, fibers, and other debris that are released from the clothes during the drying process. The filter prevents these particles from circulating in the dryer and potentially causing blockages or damage to the appliance.



Share Filters' Filter Mesh Shapes Used for Tumble Dryers Filters Options

Material Options: Monofilament woven polypropylene, polyester mesh
Mesh Opening: From 100 micron to 300 micron
Thread Diameter: From 55 micron to 150 micron
Open Area: From 10% to 77.5%
Weave Type: Plain Weave
After Treatment Options: Calendaring, Water-repellent, etc
Dimension: Can be tailored to  any shape or dimension
Colour: White, or customize



Product Details

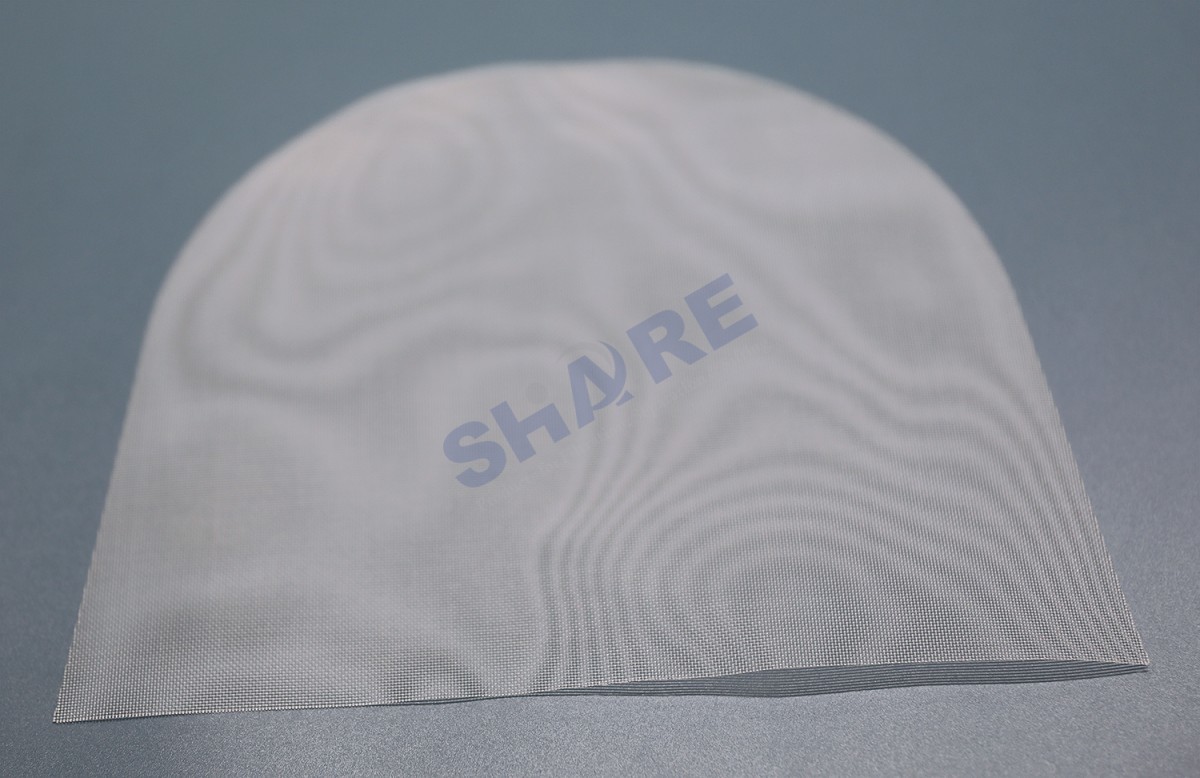

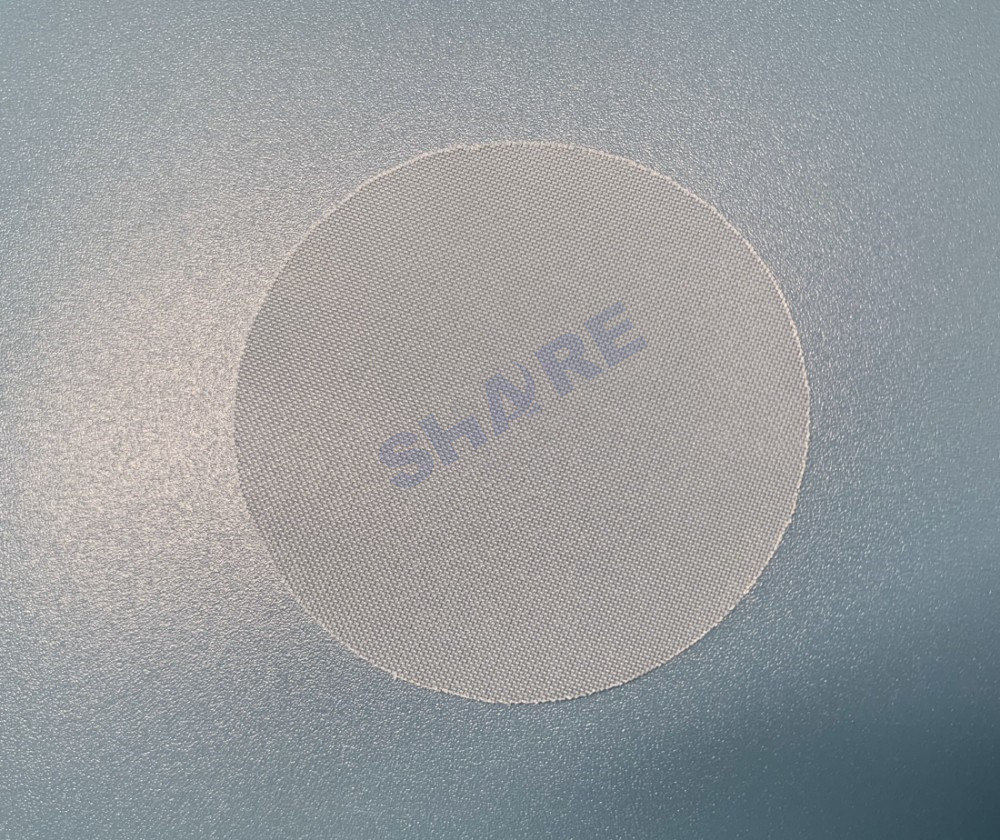

Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 0 Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 1



The Benefits from Share Filters' Pre-Cut Polypropylene Mesh Shapes:

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • Various of pore size and thread diameter
  • Convenient for insert molding
  • PP mesh resistant to chemical, acid and alkline



What We Do


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the few suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

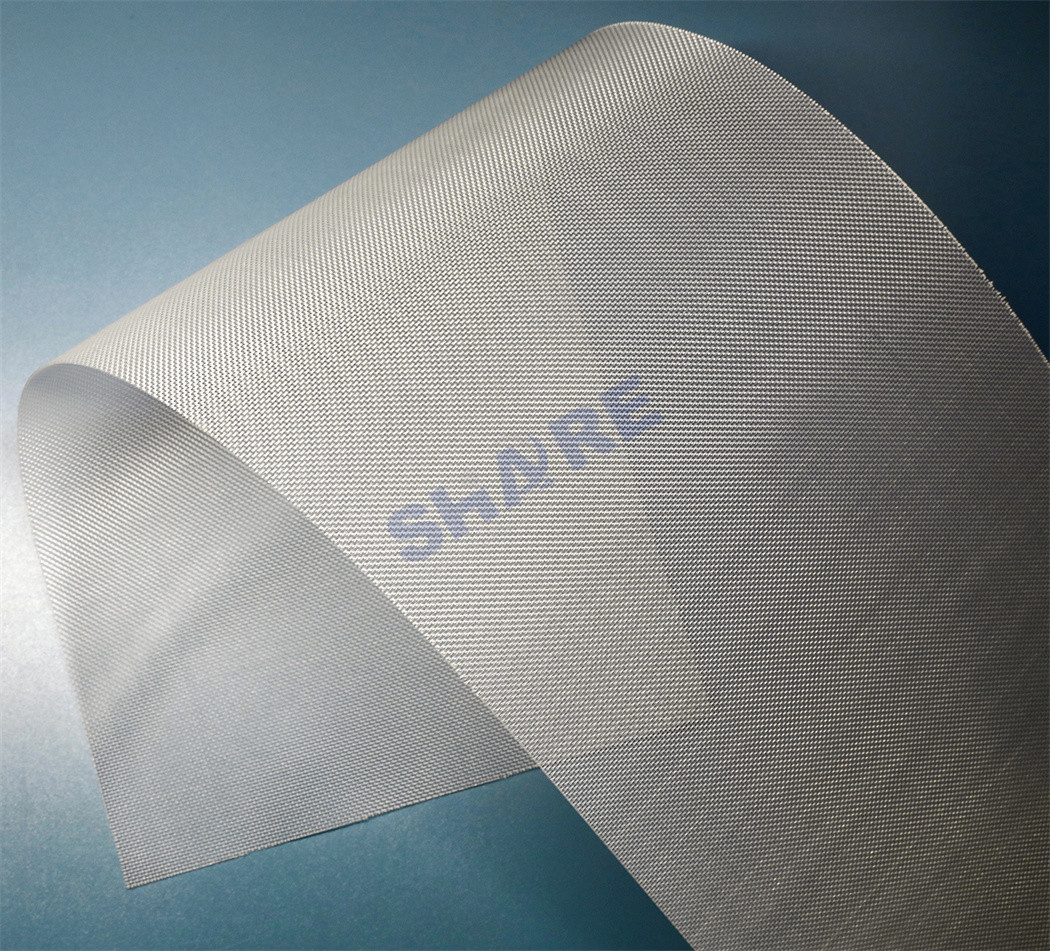

filter mesh weaving

Filter Mesh Weaving



The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.





Filter Mesh Slitted in Narrow Ribbons


Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.
      Filter mesh slitted to be ribbons





Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 4

Filter Mesh Cutting Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.






Ultrasonic Cutting and Welding Tubes



With our heatt and ultrasonic cutting technologies, we can create tubes down to a minimum diameter of 5 mm. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 5




Ultrasonic Welded Mesh Bag Sewn Mesh Bag

Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 6

sewn filter mesh bag





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

      Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 8




Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 9

Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.




Application of Share Filters Products

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



fuel filter blood filter air purifier filter Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 13 Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 14
Fuel filter Blood filter Air purifier filter Coffee filter Drip irrigation filter
Automotive Healthcare Appliance Food & Beverage Agriculture Garden





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us so we can learn more about your application and design specifications!




Packing
Micron 100 150 200 250 300 Polypropylene Mesh Pieces For Tumble Dryers Filter 15
