Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 200pcs | Price : | USD0.04-USD1.20/pc |
---|---|---|---|
Packaging Details : | Caron, Polybag | Delivery Time : | 3-7 days |
Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 50000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | SGS, RoHS | Model Number: | Micron 100 150 200 250 300 Polyester Mesh Shapes |
Detail Information |
|||
Product Name: | Micron 100 150 200 250 300 μm Polyester Mesh Shapes | Keywords: | Polyester Mesh Filter Shape |
---|---|---|---|
Material Option: | Polyester Filter Mesh, PP Filter Mesh | Micron Rating: | 100μm-300μm |
Thread Diameter: | 55μm-150μm | Size: | Any Custom Size Or Diameter |
Application: | Tumble Filter | ||
Highlight: | Tumble Dryers Fabricated Filters,Micron 100 PET Polyester Mesh,PET Polyester Mesh Disc |
Product Description

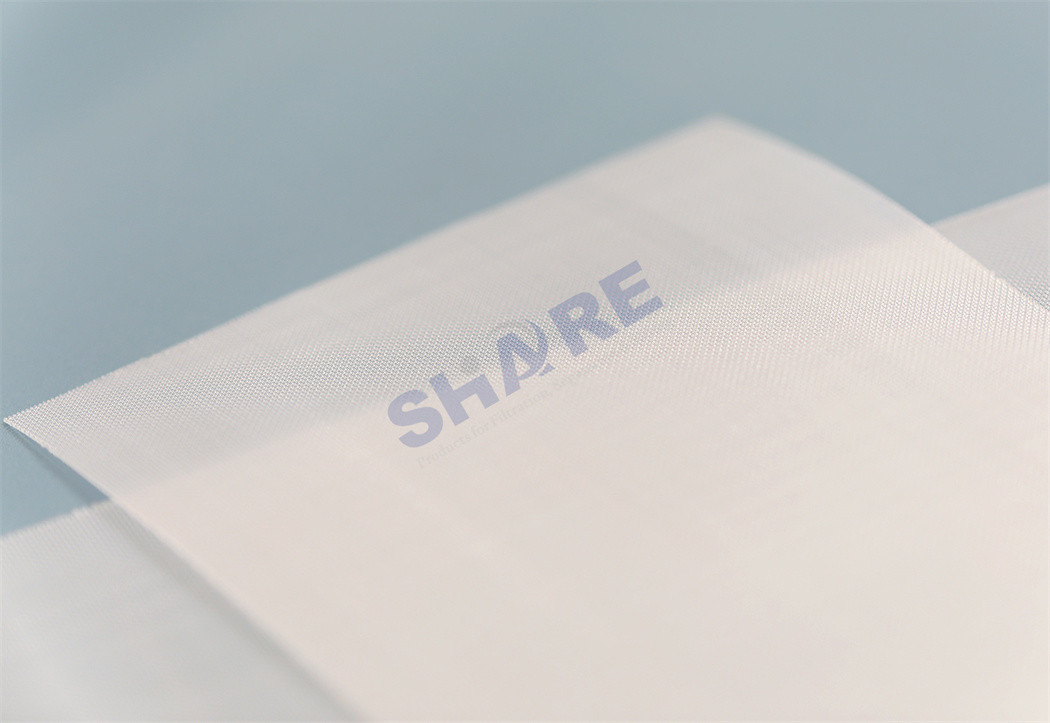

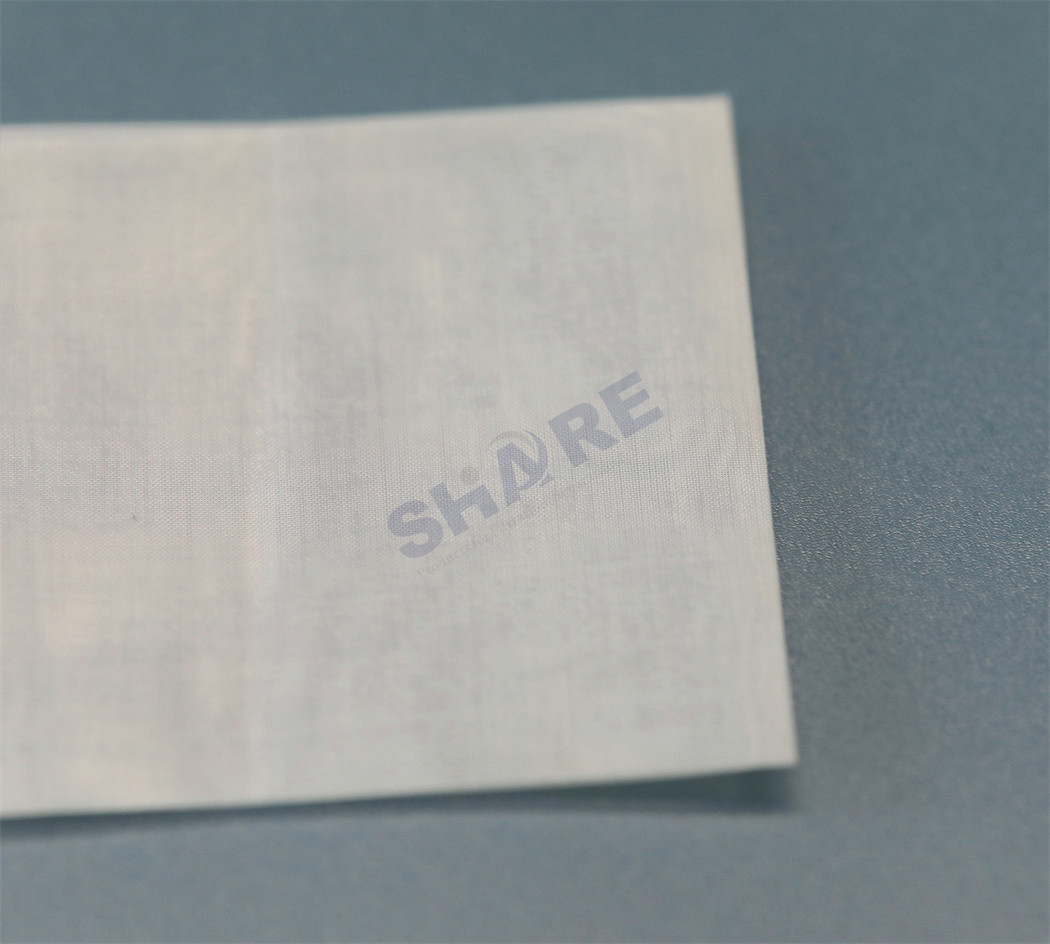

PET Micron 100 150 200 250 300 Polyester Mesh Shapes For Tumble Dryers Filter

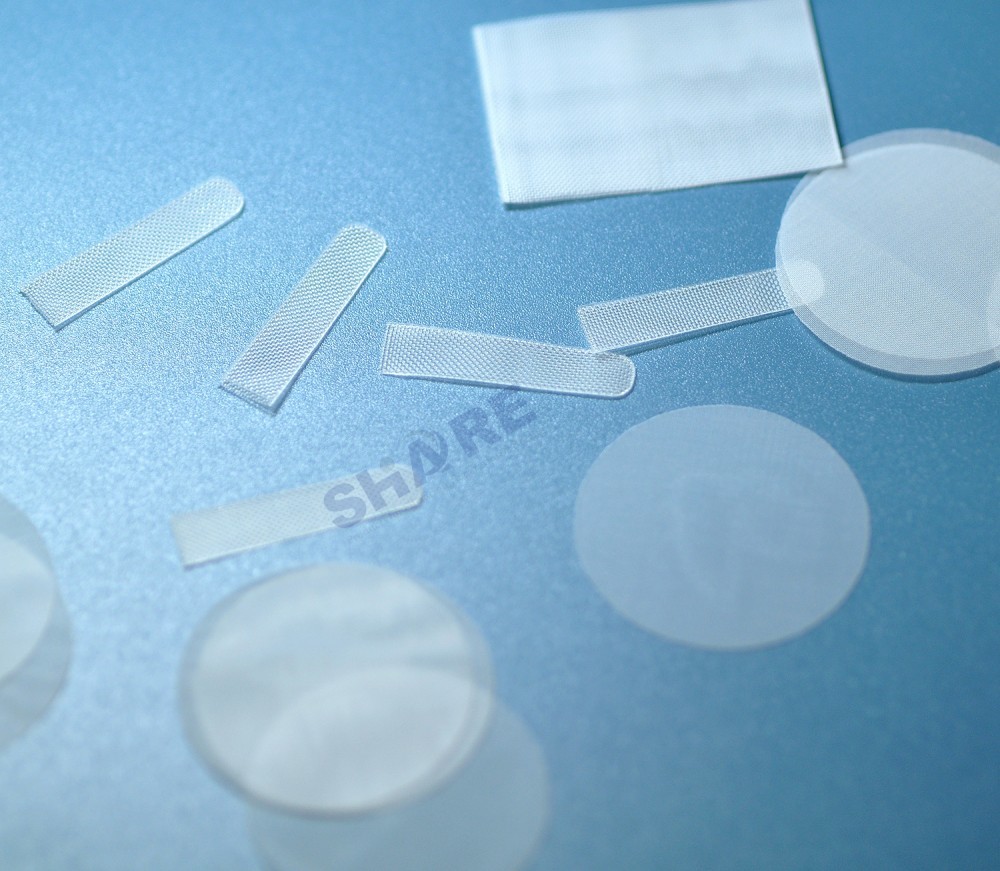

Share Filters not only offers a wide range of polyester filter mesh in rolls, we also convert the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh discs and shapes can be tailored to any shape or dimension.
Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh shapes can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality.
A tumble dryer lint filter is a crucial component of a clothes dryer. Its purpose is to capture lint, fibers, and other debris that are released from the clothes during the drying process. The filter prevents these particles from circulating in the dryer and potentially causing blockages or damage to the appliance.
Share Filters' Filter Mesh Shapes Used for Tumble Dryers Filters Options
Material Options: | Monofilament Woven polyester mesh, PP mesh |
Mesh Opening: | From 100 micron to 300 micron |
Thread Diameter: | From 55 micron to 150 micron |
Open Area: | From 10% to 77.5% |
Weave Type: | Plain Weave |
After Treatment Options: | Calendaring, Water-repellent, etc |
Dimension: | Can be tailored to any shape or dimension |
Colour: | White, or customize |
Product Details
The Benefits from Share Filters' Pre-Cut PET Mesh Shapes:
Polyester Filter Mesh Specifications
Fabric number |
Mesh count | Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
PES 350/49 | 20T | 50 | 150 | 350 | 49 | 260 | 115 |
PES 325/47 | 21T | 53 | 150 | 325 | 47 | 270 | 121 |
PES 340/67 | 24S | 61 | 120 | 340 | 67 | 220 | 88 |
PES 270/42 | 24T | 61 | 150 | 270 | 42 | 280 | 138 |
PES 250/46 | 27T | 68 | 120 | 250 | 46 | 230 | 100 |
PES 280/62 | 28S | 71 | 80 | 280 | 62 | 150 | 46 |
PES 240/45 | 28T | 71 | 120 | 240 | 45 | 230 | 103 |
PES 225/43 | 29T | 74 | 120 | 225 | 43 | 230 | 107 |
PES 215/42 | 30T | 76 | 120 | 215 | 42 | 230 | 111 |
PES 230/54 | 32S | 80 | 80 | 230 | 54 | 150 | 52 |
PES 210/45 | 32T | 80 | 100 | 210 | 45 | 180 | 82 |
PES 215/53 | 34S | 86 | 80 | 215 | 53 | 150 | 56 |
PES 195/44 | 34T | 86 | 100 | 195 | 44 | 180 | 87 |
PES 180/42 | 36T | 91 | 100 | 180 | 42 | 180 | 92 |
PES 200/61 | 39S | 99 | 55 | 200 | 61 | 95 | 30 |
PES 190/55 | 39T | 99 | 64 | 190 | 55 | 115 | 40 |
PES 150/36 | 40T | 102 | 100 | 150 | 36 | 190 | 103 |
PES 150/42 | 43T | 110 | 80 | 150 | 42 | 155 | 71 |
PES 160/57 | 47S | 120 | 55 | 160 | 57 | 96 | 36 |
PES 150/50 | 47T | 120 | 64 | 150 | 50 | 120 | 48 |
PES 140/43 | 47HD | 120 | 71 | 140 | 43 | 130 | 59 |
PES 140/47 | 49S | 125 | 64 | 140 | 47 | 120 | 50 |
PES 135/44 | 49T | 125 | 71 | 135 | 44 | 130 | 62 |
PES 144/55 | 53S | 135 | 45 | 144 | 55 | 76 | 27 |
PES 135/51 | 53S | 135 | 55 | 135 | 51 | 97 | 40 |
PES 125/44 | 53T | 135 | 64 | 125 | 44 | 122 | 54 |
PES 117/39 | 53T | 135 | 71 | 117 | 39 | 132 | 67 |
PES 115/46 | 59S | 150 | 55 | 115 | 46 | 99 | 45 |
PES 105/38 | 59T | 150 | 64 | 105 | 38 | 123 | 61 |
PES 100/41 | 64S | 160 | 55 | 100 | 41 | 100 | 48 |
PES 90/33 | 64T | 160 | 64 | 90 | 33 | 125 | 66 |
This just a part of specifications which common used.
What We Do
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.
We're the few suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.
![]() |
Filter Mesh Weaving
The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length. |
Filter Mesh Slitted in Narrow Ribbons Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.
|
![]() |
![]() |
Filter Mesh Cutting Pieces and Shapes Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.
|
Ultrasonic Cutting and Welding Tubes
With our heatt and ultrasonic cutting technologies, we can create tubes down to a minimum diameter of 5 mm. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength. |
![]() |
Ultrasonic Welded Mesh Bag | Sewn Mesh Bag |
|
![]() |
Standard Filter Bags Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.
Top design: plastic collar, metallic ring |
![]() |
![]() |
Mesh Insert Injection Moulded Plastic Filters
Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens. |
Application of Share Filters Products
Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
![]() |
![]() |
![]() |
![]() |
![]() |
Fuel filter | Blood filter | Air purifier filter | Coffee filter | Drip irrigation filter |
Automotive | Healthcare | Appliance | Food & Beverage | Agriculture |
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.
Please connect with us so we can learn more about your application and design specifications!
