Drinking Fountain Inline Filter Part Custom Order Mesh Insert Plastic Molded Filters
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 200pcs | Price : | USD0.060-USD1.50/pc |
---|---|---|---|
Packaging Details : | Caron, Polybag | Delivery Time : | 7-20 days |
Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 10000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | SGS, RoHS | Model Number: | Injector Basket Fuel Filter 6×3×10mm |
Detail Information |
|||
Product Name: | Fuel Injector Filter Basket 6×3×10mm | Keywords: | Fuel Injector Micro Filter |
---|---|---|---|
Frame Material: | PA, PE, PP, ABS, Brass, Etc. | Filter Media: | Nylon Mesh, PET Mesh, PP Mesh, Metallic Mesh |
Micron Rating: | 8μm-300μm | Size: | A Wide Range Of Sizes And Models Available |
Highlight: | Fuel Injector Insert Molding Filters,Top Feed Injector Micro Filter Basket,Inlet Fuel Filter Basket |
Product Description

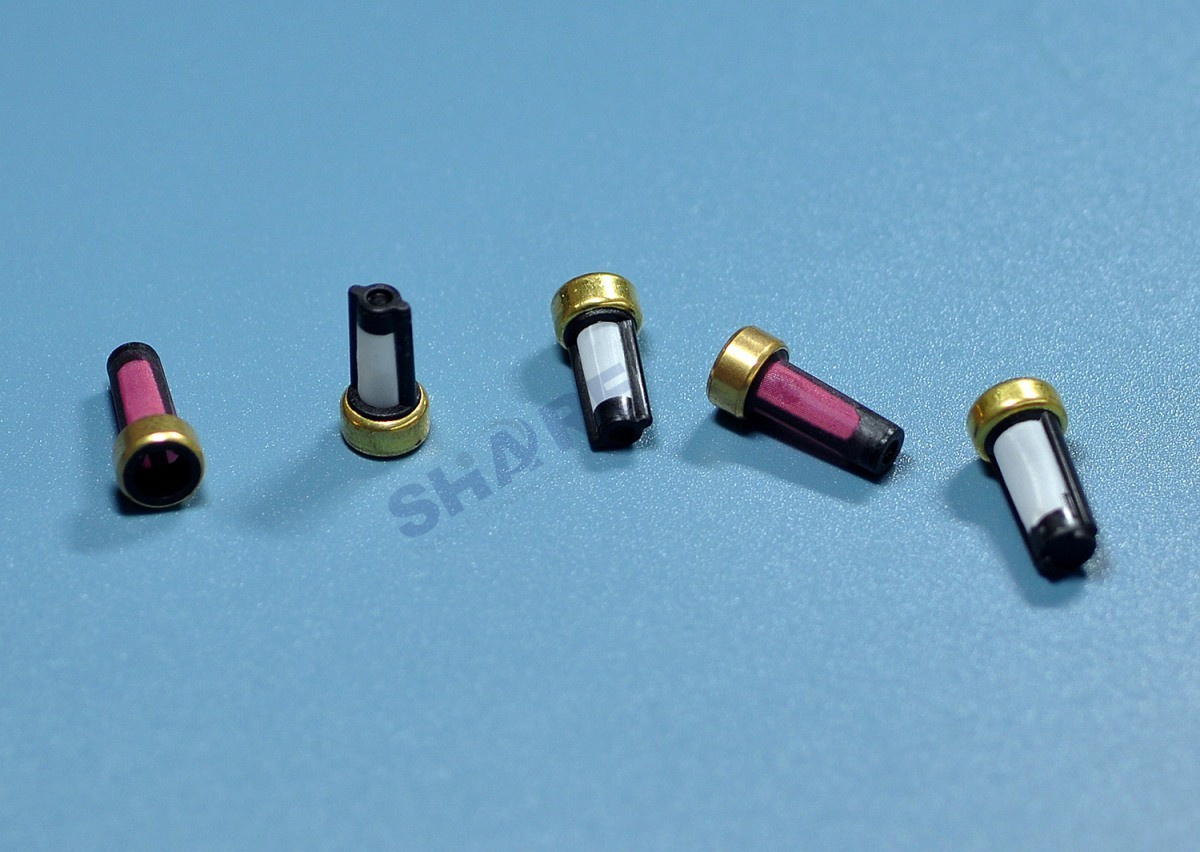

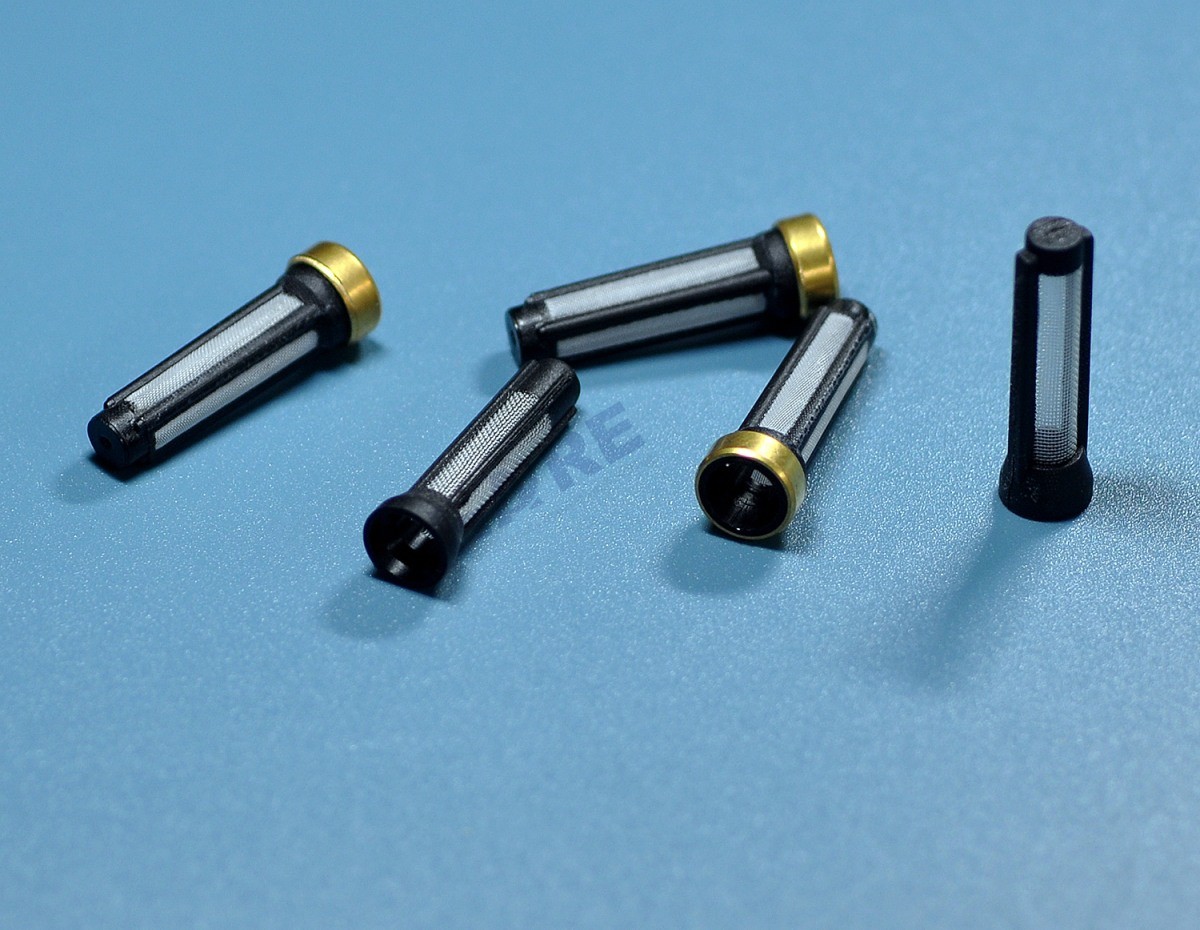

Inlet Fuel Top Feed Injector Micro Filter Basket Size 6×3×10mm
The fuel injector filter is a component in fuel injection systems of internal combustion engines. Its function is to prevent contaminants and debris from entering the fuel injector and clogging it. The injector filter is typically a small mesh screen or filter element that is situated at the inlet of the fuel injector. Share Filters injector filter protects the injection valves from damage and malfunction and ensures reliable operation of the injection system. Fine woven fabrics and a clamping ring ensure reliable particle protection and optimum fixation.
Share Filters' injector filters consist of a nylon or polyester filter mesh held in a polymer or brass frame by insert moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way.
Share Filtes Injector Filters Materials Options
![]() |
Support rim material | PA6, PA66, PET, PP, ABS, brass, and other High-Performance Thermoplastics |
Filter media | Nylon mesh, polyester mesh, PP mesh, metallic mesh | |
Micron rating | 8μm - 500μm | |
![]() |
Mesh parts fabrication | Laser cutting, sonic cutting, sonic stamping |
Process | Injection moulding | |
Specification | ø6*7, 6*10, 6*12, 6*14, 5.5*8.5mm, ect. | |
Colour | Custom |
Product Details
The Feature of Share Filters Fuel Injector Filters

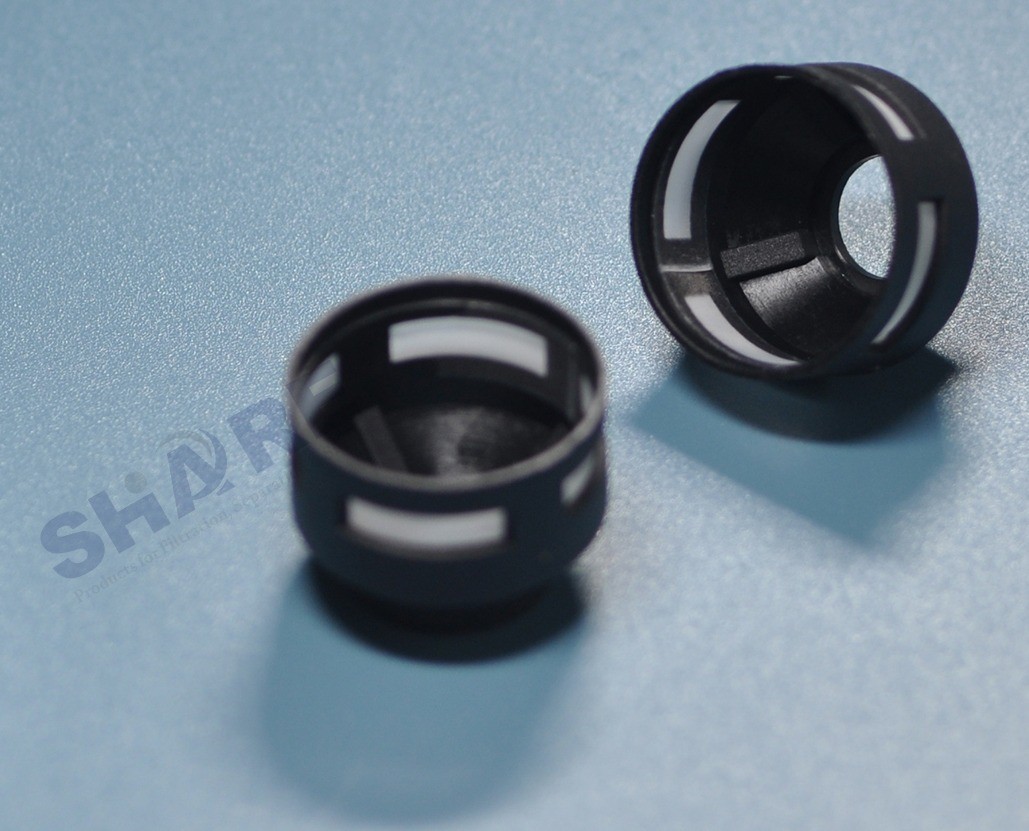

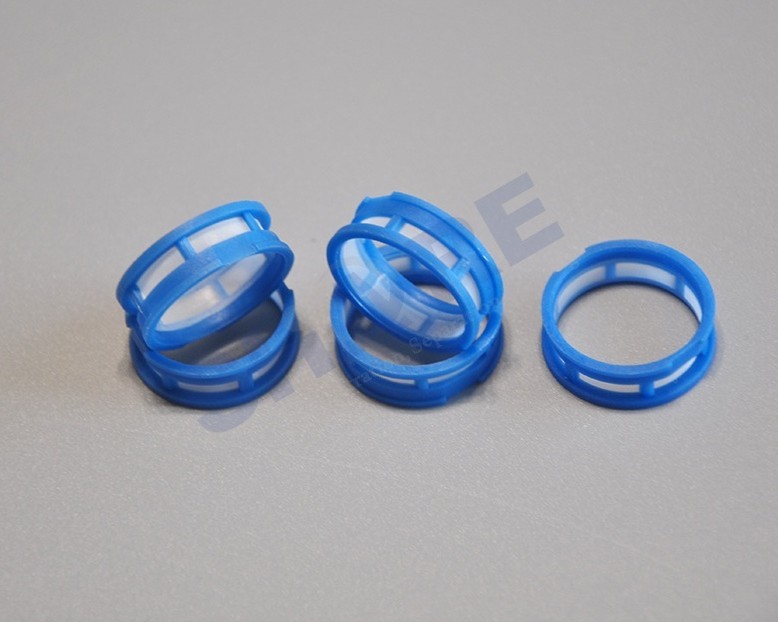

Other Fuel Injector Filters
Properties of Polymer
Material | PA6 | PA66 | PET | PP | PEEK |
Specific gravity (g/mm²) | 1.14 | 1.14 | 1.38 | 0.91 | 1.30 |
Tensile strength(daN/mm²) | 41-67 | 41-67 | 45-75 | 35-62 | 33-75 |
Relative strength at wet conditions(%) | 89-90 | 85-90 | 100 | 100 | 100 |
Elongation at break (%) | 20-35 | 20-35 | 15-30 | 20-50 | 20-40 |
Moisture absorption at 20°C / 65% r.h. (%) | 3.5-4 | 3.5-4 | 0.4 | 0 | 0.1 |
Melting point (°C) | 210-220 | 260-268 | 250-260 | 165-175 | 334 |
Softening point (°C) | - | - | 220-240 | 140-155 | 300 |
Working temperature dry (°C) | - | - | -75 to +150 | -30 to +90 | up to 250 |
Stability to light | poor | poor | poor | poor | good |
Atmospheric influence | - | - | none | none | none |
Abrasion resistance | good | good | limited | limited | good |
Acid resistance | limited-poor | limited-poor | good | good | good |
Alkaline resistance | good | good | limited | good | good |
Stability to solvents | limited | limited | good | good | good |
Hydrolysis resistance | good | good | limited | good | good |
How To Select The Right Filter Mesh? You Can Follow These Points
|
![]() |
PA(nylon) Filter Mesh Specification
Ref. No. | Mesh Count | Thread Diam. | Mesh Opening | Opening Area | |
mesh/cm | mesh/inch | µm | µm | % | |
JPP12 | 12 | 30 | 250 | 583 | 49 |
JPP12 | 12 | 30 | 300 | 533 | 41 |
JPP14 | 14 | 35 | 300 | 414 | 34 |
JPP16 | 16 | 40 | 200 | 425 | 46 |
JPP16 | 16 | 40 | 250 | 375 | 36 |
JPP20 | 20 | 50 | 150 | 350 | 49 |
JPP20 | 20 | 50 | 200 | 300 | 36 |
JPP24 | 24 | 60 | 150 | 267 | 41 |
JPP28 | 28 | 70 | 120 | 237 | 44 |
JPP30 | 30 | 76 | 120 | 213 | 41 |
JPP32 | 32 | 80 | 100 | 213 | 46 |
JPP36 | 36 | 90 | 100 | 178 | 41 |
JPP40 | 40 | 100 | 100 | 150 | 36 |
JPP43 | 43 | 110 | 80 | 152 | 43 |
JPP48 | 48 | 120 | 80 | 130 | 38 |
JPP56 | 56 | 140 | 60 | 120 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 |
JPP64 | 64 | 160 | 60 | 100 | 37 |
JPP72 | 72 | 180 | 50 | 90 | 41 |
JPP80 | 80 | 200 | 50 | 75 | 36 |
JPP100 | 100 | 250 | 40 | 60 | 36 |
JPP120 | 120 | 305 | 40 | 43 | 25 |
JPP130 | 130 | 330 | 40 | 37 | 23 |
JPP140 | 140 | 355 | 30 | 38 | 33.7 |
JPP150 | 150 | 381 | 30 | 34 | 30.25 |
JPP165 | 165 | 420 | 30 | 28 | 20.7 |
JPP180 | 180 | 460 | 30 | 25 | 19.5 |
JPP200 | 200 | 510 | 30 | 20 | 10.2 |
This data sheet just include our common specification, please contact us if you have other custom specification
About Us
Share Filters has over 20 years of experience developing and manufacturing filter mesh and solutions for our customer's screen and filtration needs. Our monofilament filter mesh includes nylon mesh, polyester mesh, polypropylene mesh, stainless steel mesh. Thanks to the advanced processing equipments and extensive experience, Share Filters has the capability to convert these filter media into all kinds of mesh shapes, discs, ribbons, tubes, bags and plastic moulded filters.
Many of our custom filter products are moulded from mesh and plastic, utilizing our insert injection molding or pot molding capabilities. These processes allow for flexibility in design and material selection. They also offer significant advantages in cost and ease of manufacture over other potential solutions.
Factory Capabilities
![]() |
![]() |
![]() |
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. | Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge. | Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials. |
![]() |
![]() |
![]() |
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. | Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. | Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory. |
Share Filters Products Applications
![]() |
![]() |
![]() |
![]() |
![]() |
Automotive | Appliance | Health care | Food & Beverage | Chemical |
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.
