20uM Nylon Filter Mesh Sheets Discs Precise Cut In Custom Design Size

Minimum Order Quantity : 200pcs Price : USD0.03-USD1.00/pcs
Packaging Details : Carton, polybag Delivery Time : 3-7 day
Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPal Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: 20 μm Nylon Filter Mesh Sheet Disc

Detail Information

Product Name: 20 μm Nylon Filter Mesh Sheet Disc Keyword: Nylon Mesh Disc Filter
Dimension: According To Customer' Design Micron Rating: 3μm-3233μm
Material Options: Nylon Mesh, Polyester Mesh, PP Mesh, Metallic Mesh Processing: Slitting, Cutting, Punching
Sample: Test Sample Provided
High Light:

20um Filter Mesh Sheets

,

Nylon Filter Mesh Disc

,

Fabricated Filter Mesh Disc

Product Description



30 μm Nylon Filter Mesh Discs Shapes For Laboratory Syringe Filter



Share Filters has grouped under the term precision woven filter fabrics mesh, all the fabrics made from extruded monofilament and woven in square mesh from nylon (polyamide), polyester, polyethylene, etc. The mesh openings can vary from 3 micron to 3233 microns, giving these mesh filter mesh the versatility to be used in many different liquid-solid separation processes and in the process of air filtration.



Thanks to advanced processing equipments and more than 20 years experience, Share Filters has the facility to convert these precise filter meshes to high quality custom fabricated components, such as mesh discs in any diameters, mesh shapes cutted in polygons or irregular, mesh sheets in single or double layers. We'll assist you to choose the right fabrication technology according the filter media.





Share Filtes' Filter Mesh Pre-cut Discs, Shapes Options



20uM Nylon Filter Mesh Sheets Discs Precise Cut In Custom Design Size 0 Filter media options Nylon mesh, polyester mesh, PP mesh, stainless steel mesh
Micron rating 3μm - 3233μm
Mesh fabrication Slitting, laser cutting, ultrasonic cutting, punching
Dimension Custom design

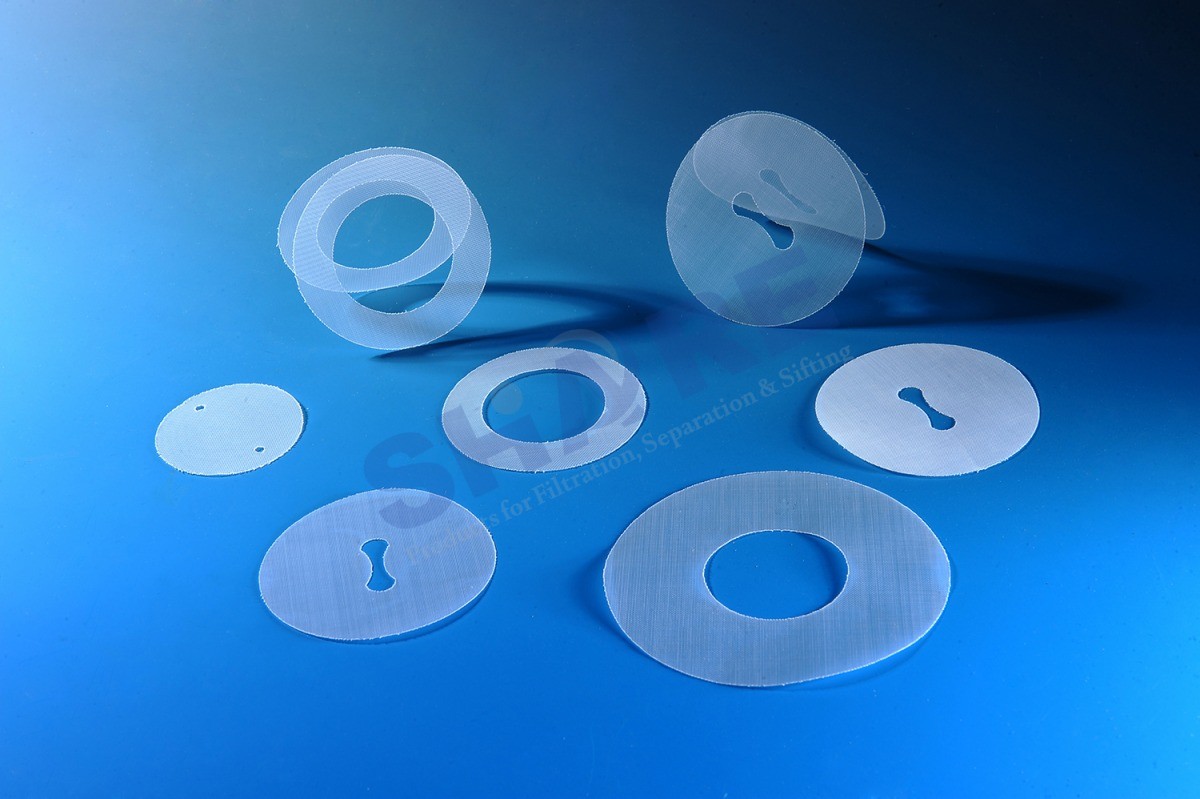

filter mesh cutted shapes

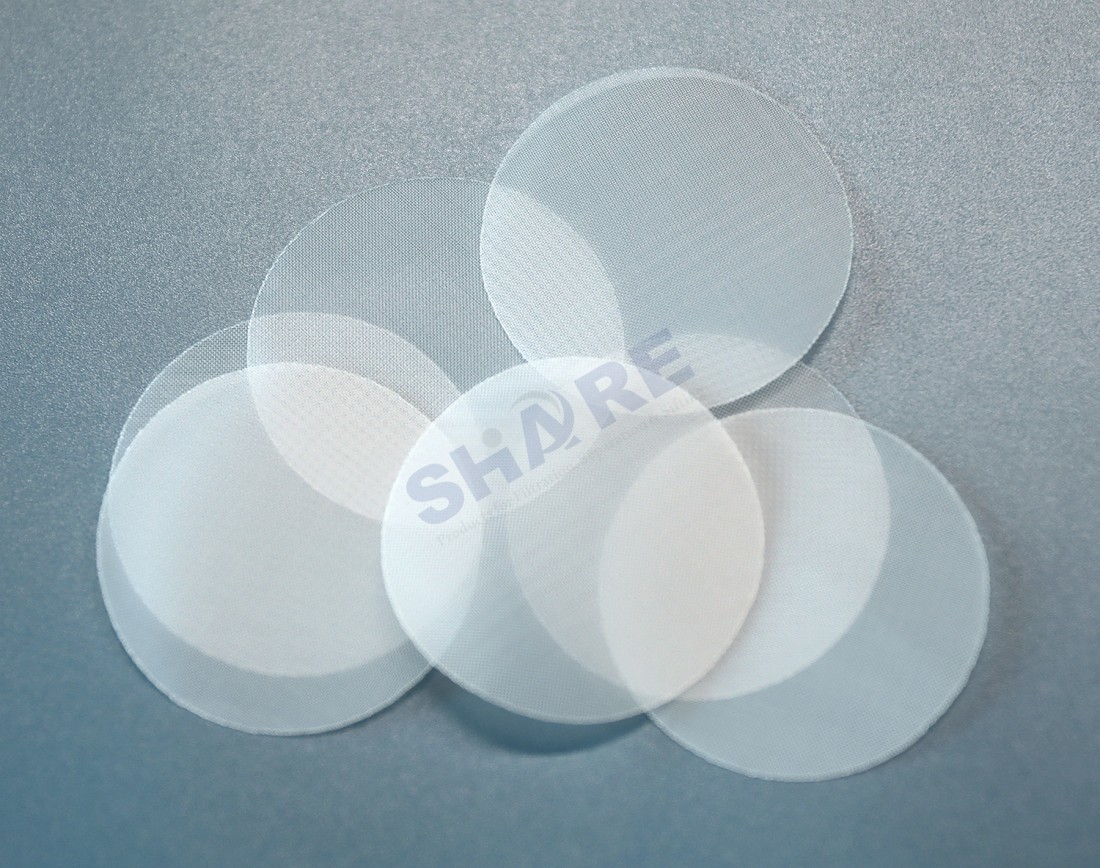

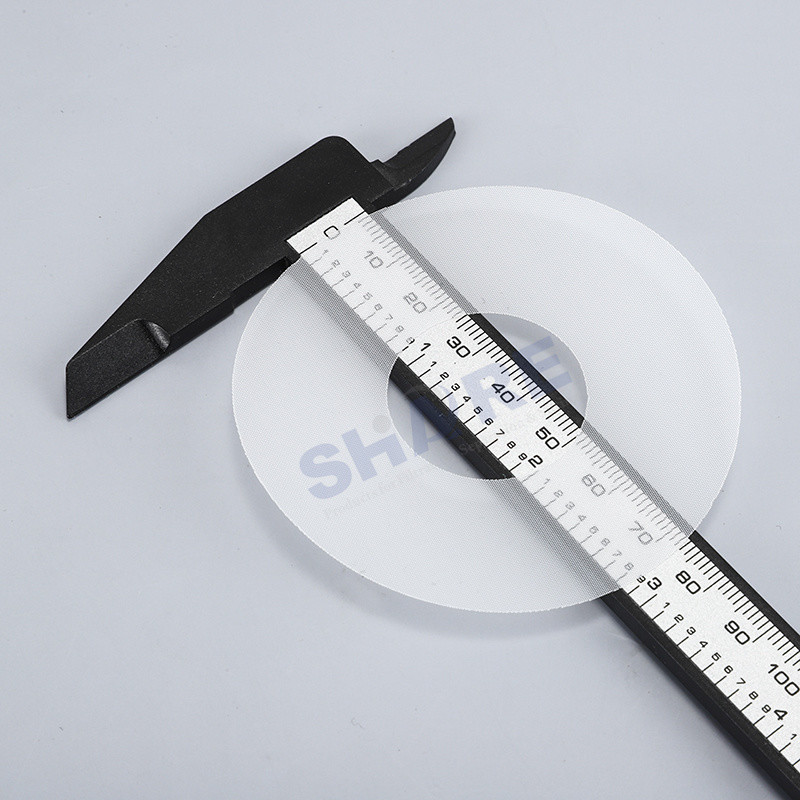

filter mesh disc with closed edge

20uM Nylon Filter Mesh Sheets Discs Precise Cut In Custom Design Size 3     20uM Nylon Filter Mesh Sheets Discs Precise Cut In Custom Design Size 4





Benifits from Share Filters Nylon Mesh Pre-Cutting Shapes and Sheets:

  • Cut in any size, shapes based on customers' design, specification, or samples.
  • Various kinds of filter media and specifications available, such as nylon filter mesh, polyester filter mesh, polypropylene filter mesh, metallic filter mesh as well as needle punched filter felts.
  • With advanced process machines make slitting, laser cutting and ultrasonic cutting or punching ensures the mesh edges from fraying and tight tolerance.



Examples of Filter Mesh Shapes Used for Plastic Moulded Filter



 proofer cup  Air purifier filter  filter caps

steering filter oil filter disc filter cover fuel filter





The Properties of Filter Media



Material

PA6

PA66

PET

PP

PEEK

Specific gravity (g/mm²)

1.14

1.14

1.38

0.91

1.3

Tensile strength(daN/mm²)

41-67

41-67

45-75

35-62

33-75

Relative strength at wet conditions(%)

89-90

85-90

100

100

100

Elongation at break (%)

20-35

20-35

15-30

20-50

20-40

Moisture absorption at 20°C / 65% r.h. (%)

3.5-4

3.5-4

0.4

0

0.1

Melting point (°C)

210-220

260-268

250-260

165-175

334

Softening point (°C)

-

-

220-240

140-155

300

Working temperature dry (°C)

-

-

-75 to +150

-30 to +90

up to 250

Stability to light

poor

poor

poor

poor

good

Atmospheric influence

-

-

none

none

none

Abrasion resistance

good

good

limited

limited

good

Acid resistance

limited-poor

limited-poor

good

good

good

Alkaline resistance

good

good

limited

good

good

Stability to solvents

limited

limited

good

good

good

Hydrolysis resistance

good

good

limited

good

good




How To Select the Right Filter Mesh? You Can Follow These Points

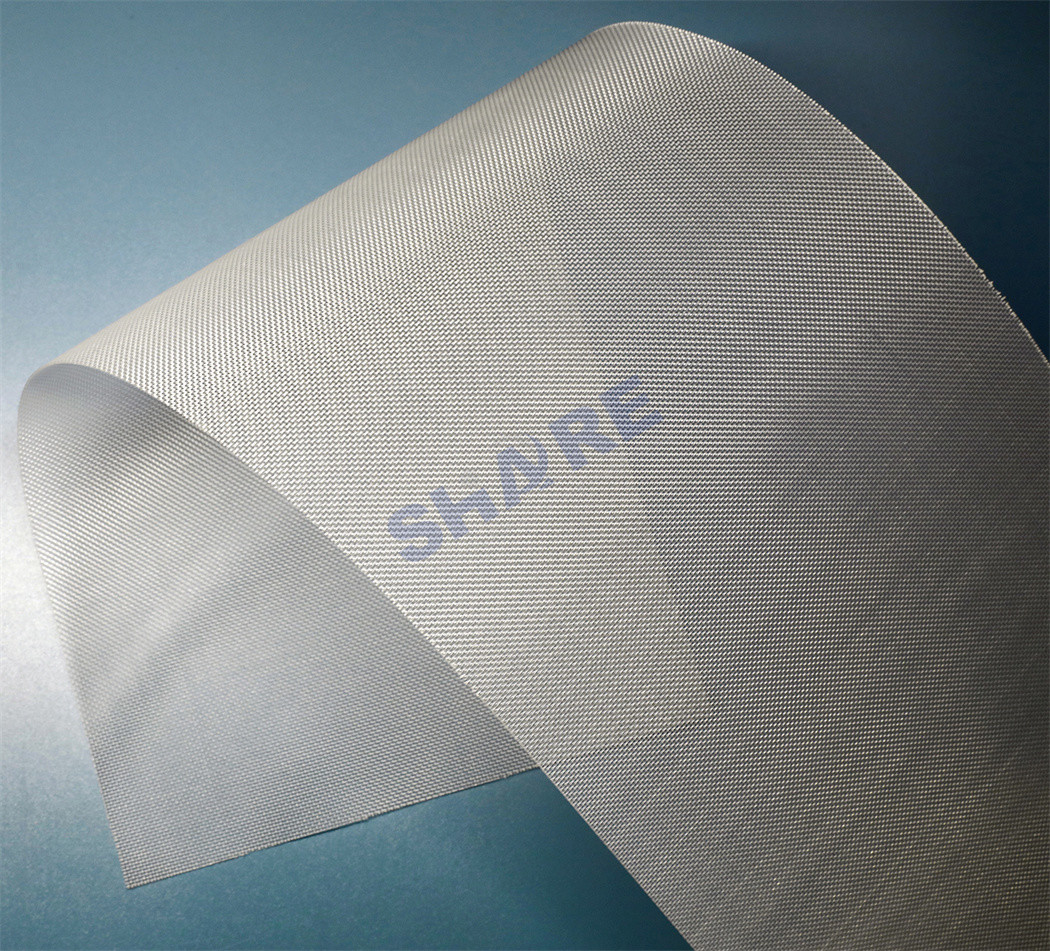

woven filter mesh
  • Mesh size or the size of the particle you need to filter
  • Mesh material (consider the working conditions)
  • Mesh thread diameter, mesh thickness
  • Opening area





Nylon Filter Mesh Specification



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
area
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
JPP2 2.3 6 1000 3233 58.3 1900 412
JPP3 3.1 8 900 2300 51.3 1700 450
JPP4 4 10 550 1950 61 950 262
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
JPP12 12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 42 60 36 65 35
JPP120 120 305 30 55 42 52 20
JPP120 120 305 35 45 29 60 28
JPP120 120 305 38 42 25 67 35
JPP120 120 305 42 42 25 75 42
JPP130 130 330 30 47 37 55 22
JPP130 130 330 35 42 30 62 30
JPP130 130 330 38 40 26 74 36
JPP140 140 355 30 38 28 53 25
JPP140 140 355 35 37 26 65 33
JPP140 140 355 38 32 20 68 36
JPP145 145 368 38 30 19 64 40
JPP150 150 380 30 34 26 50 26
JPP150 150 380 38 31 21 68 40
JPP165 165 420 30 30 25 59 28
JPP165 165 420 38 25 15 75 42
JPP180 180 460 30 25 21 60 31
JPP200 200 508 30 20 16 65 34

This is just the part of frequently used specifications



About Us


Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and Laboratory, Electronical as well as  general engineering, giving us a wealth of experience in many areas.



Factory Capabilities



Filter mesh weaving, slitting, cutting, punching, welding, sewing and iinsert injection moulding

20uM Nylon Filter Mesh Sheets Discs Precise Cut In Custom Design Size 13 filter mesh slitting filter mesh cutting
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge. Our cutting method include Laser cutting, Cold cutting, Heatt cutting, Stamping. Professional process using custom-made tools that will not damage the materials.
filter mesh welding filter mesh sewing 20uM Nylon Filter Mesh Sheets Discs Precise Cut In Custom Design Size 18
Sonic welding are accurate, clean. Precision rosin bag for rosin press and sleeves and bags for blood filtration, are examples of applications that benefit from this technology. Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. Custom plastic moulded filter combine precise filter mesh with polymer. Industries serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.




Share Filters' Workshops
Share Filters workshops


Application of Share Filters Products



injector fuel filter biopsy bag 20uM Nylon Filter Mesh Sheets Discs Precise Cut In Custom Design Size 22 20uM Nylon Filter Mesh Sheets Discs Precise Cut In Custom Design Size 23 drip irrigation spray filter
Fuel filter Biopsy bag Dispenser filter Coffee filter Drip irrigation filter
Automotive Healthcare Appliance Food & Beverage Agriculture
