Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 200pcs | Price : | USD0.03-USD1.00/pcs |
---|---|---|---|
Packaging Details : | Carton, polybag | Delivery Time : | 3-7 day |
Payment Terms : | T/T, L/C, Western Union, MoneyGram, PayPal | Supply Ability : | 50000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | SGS | Model Number: | 30 μm Nylon Filter Mesh Discs |
Detail Information |
|||
Product Name: | 30 μm Nylon Filter Mesh Discs | Keyword: | Nylon Mesh Disc Filter |
---|---|---|---|
Dimension: | According To Customer' Design | Micron Rating: | 3μm-3233μm |
Material Options: | Nylon Mesh, Polyester Mesh, PP Mesh, Metallic Mesh | Processing: | Slitting, Cutting, Punching |
Sample: | Test Sample Provided | ||
High Light: | Nylon Filter Mesh Disc Sheets,Medical Cell Strainer Filter Mesh Disc,Fabricated Nylon Filter Disc |
Product Description

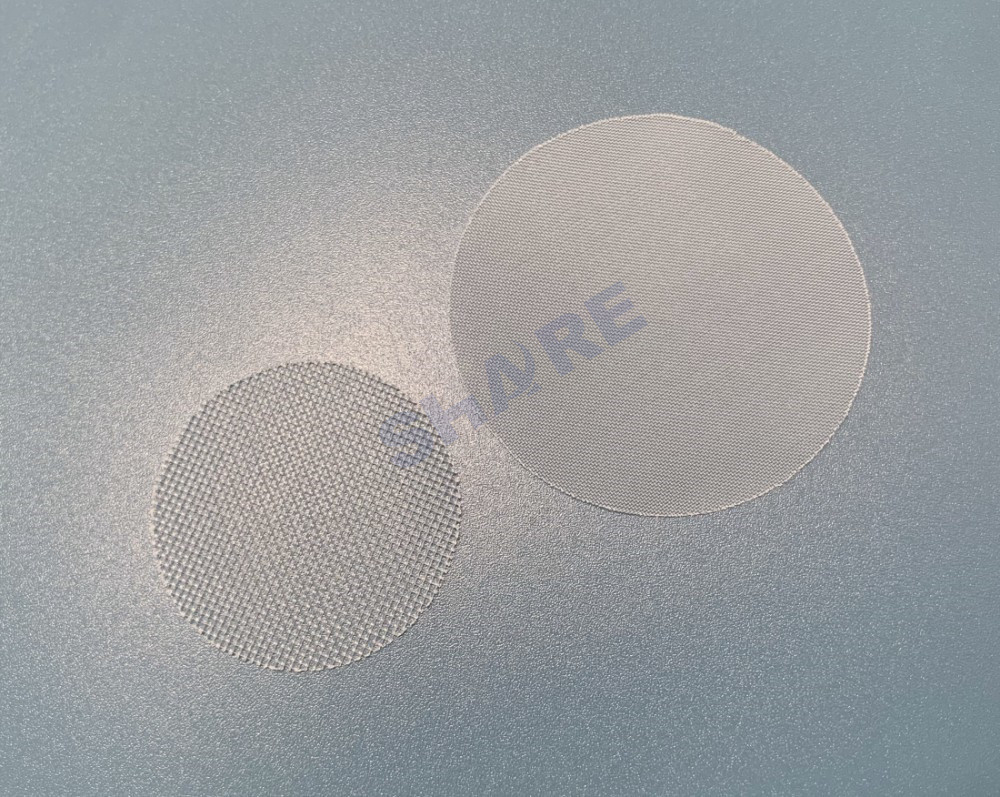

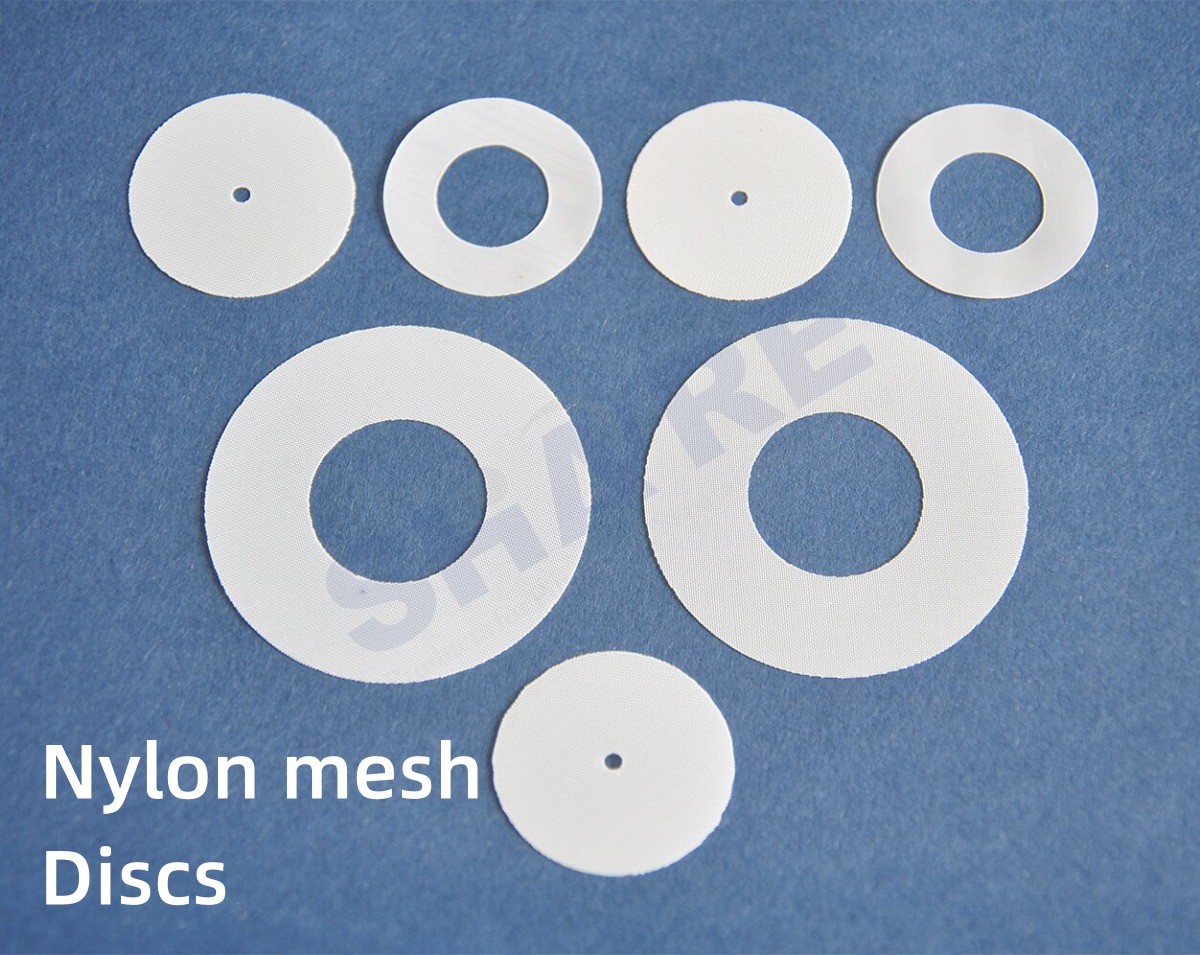

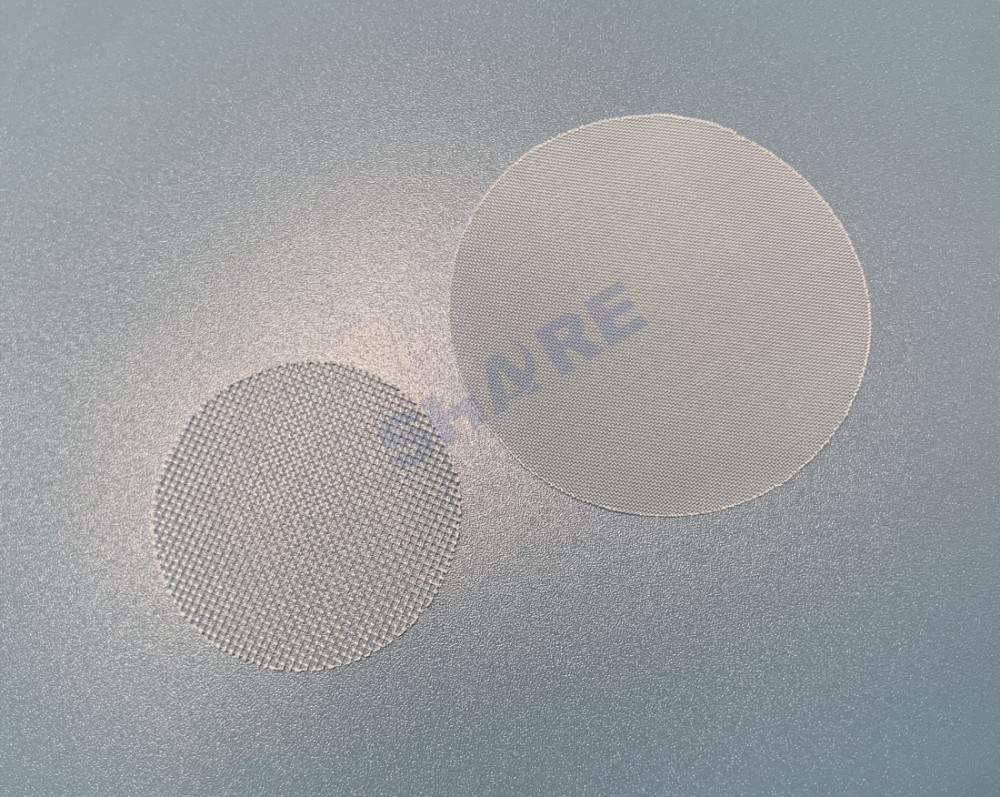

30 μm Nylon Filter Mesh Discs Shapes Sheets for Medical Cell Strainer
Share Filters' manufactured of nylon 6 filter mesh is available in a variety of specifications that take into consideration the mesh opening (µ), open area, mesh count (threads per inch) and thread diameter. Other specifications such as weight (kg/m²), thickness (µ), and air permeability are available upon request.
Thanks to advanced processing equipments and rich experience, Share Filters can provide filter meshes cut to size, lot-to-lot consistency and high quality custom fabricated components, such as mesh discs in any diameters, mesh sheets in single or double layers, mesh shapes cutted in polygons or irregular. We'll assist you to choose the best fabrication technology according the filter media. |
Share Filtes' Filter Mesh Pre-cut Discs, Shapes Options
Filter media | Nylon mesh, polyester mesh, PP mesh, stainless steel mesh | |
Micron rating | 3μm - 3233μm | |
Mesh fabrication | Slitting, laser cutting, ultrasonic cutting, punching | |
Specification | Custom design |
Benifits of Share Filters Nylon Mesh Pre-Cutting Sheets and Shapes:
|

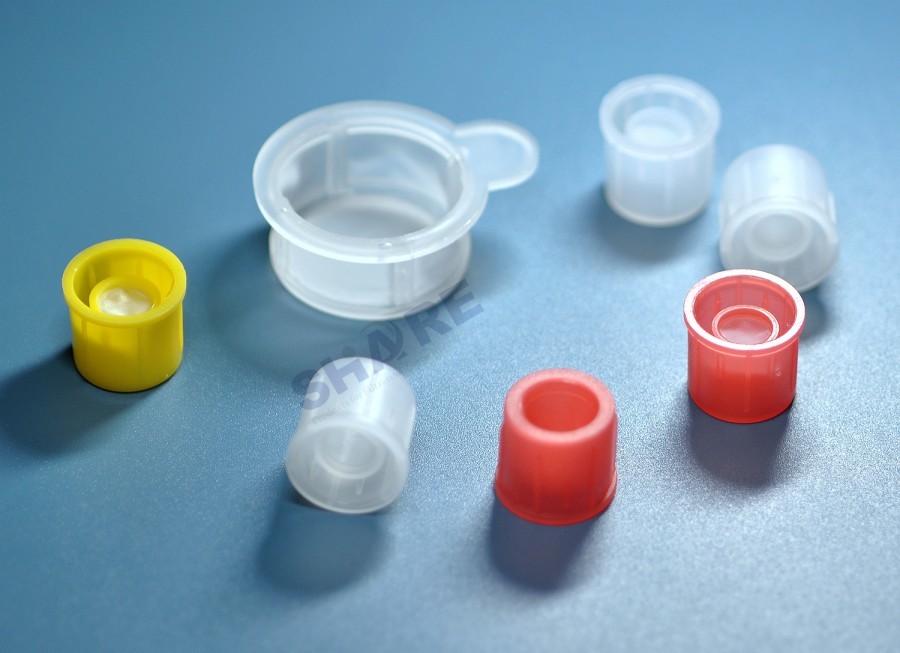

Examples of Filter Mesh Shapes Used for Plastic Moulded Filter
Nylon Filter Mesh Often compared with polyester, nylon mesh has higher water absorption rate, unrivaled strength resistant to cyclic deformation, is robust against friction and bending, and is highly elastic and wrinkle-resistant as it's characteristics. It also features resistance to chemicals and oils, as well as being resistance to alkalis.
Polyester Filter Mesh Polyester is one of the strongest fibers and remains resistant even if it gets wet and exposed to friction. Its low moisture absorbency prevents it from expanding, contracting, becoming wrinkled, and it also features resistance to chemicals, as well as being dimension stability.
Polypropylene Filter Mesh Polypropylene mesh is chemical resistant and non-absorbent, with good weather, acid and alkaline resistance
Stainless Steel Filter Mesh Stainless steel filter mesh is with the following benefits: corrosion resistance, strength and durability, high temperature resistance, versatility, easy maintenance and cleanliness, environmental friendliness |
How To Select the Right Filter Mesh? You Can Follow These Points.
|
Nylon Filter Mesh Specification
Fabric number |
Mesh count | Thread diameter |
Mesh opening |
Open area |
Fabric thickness |
Weight | |
No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
JPP2 | 2.3 | 6 | 1000 | 3233 | 58.3 | 1900 | 412 |
JPP3 | 3.1 | 8 | 900 | 2300 | 51.3 | 1700 | 450 |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
JPP12 | 12 | 30 | 300 | 533 | 41 | 585 | 234 |
JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
JPP16 | 16 | 40 | 250 | 375 | 36 | 485 | 217 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 42 | 60 | 36 | 65 | 35 |
JPP120 | 120 | 305 | 30 | 55 | 42 | 52 | 20 |
JPP120 | 120 | 305 | 35 | 45 | 29 | 60 | 28 |
JPP120 | 120 | 305 | 38 | 42 | 25 | 67 | 35 |
JPP120 | 120 | 305 | 42 | 42 | 25 | 75 | 42 |
JPP130 | 130 | 330 | 30 | 47 | 37 | 55 | 22 |
JPP130 | 130 | 330 | 35 | 42 | 30 | 62 | 30 |
JPP130 | 130 | 330 | 38 | 40 | 26 | 74 | 36 |
JPP140 | 140 | 355 | 30 | 38 | 28 | 53 | 25 |
JPP140 | 140 | 355 | 35 | 37 | 26 | 65 | 33 |
JPP140 | 140 | 355 | 38 | 32 | 20 | 68 | 36 |
JPP145 | 145 | 368 | 38 | 30 | 19 | 64 | 40 |
JPP150 | 150 | 380 | 30 | 34 | 26 | 50 | 26 |
JPP150 | 150 | 380 | 38 | 31 | 21 | 68 | 40 |
JPP165 | 165 | 420 | 30 | 30 | 25 | 59 | 28 |
JPP165 | 165 | 420 | 38 | 25 | 15 | 75 | 42 |
JPP180 | 180 | 460 | 30 | 25 | 21 | 60 | 31 |
JPP200 | 200 | 508 | 30 | 20 | 16 | 65 | 34 |
About Us Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas. |
Factory Capabilities
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. | Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge. | Our cutting method include Laser cutting, Cold cutting, Heatt cutting, Stamping. Professional cutting using custom made tools that will not damage the materials. |
Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. | Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. | Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory. |
Share Filters Workshops
Application of Share Filters Products
Fuel filter | Biopsy bag | Dispenser filter | Coffee filter | Drip irrigation filter |
Automotive | Healthcare | Appliance | Food & Beverage | Agriculture |
