40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters
40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters 40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters 40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters
Contact Now

40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters

Minimum Order Quantity : 200pcs Price : USD0.02-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 1-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: 40 Micron Nylon Mesh Screen Cutted Disc Shapes

Detail Information
Product Name: 40 Micron Nylon Mesh Screen Disc Shapes Keywords: 40 Micron Nylon Mesh Shapes
Material: Nylon Filter Mesh, Polyester Filter Mesh, PP Filter Mesh Micron Rating: 3μm-3233μm
Thread Diameter: 30μm-1000μm Application: Liquid, Air Filtration In Various Of Industries
High Light:

40 Micron Nylon Mesh Screen

,

Injection Moulding Filter Mesh Disc

,

Fabricated Nylon Mesh Screen Disc

Product Description



40 Micron Nylon Mesh Screen Cutted Disc Shapes For Injection Moulding Filters



Share Filters' stock of nylon 6 filter mesh is available in a variety of specifications that take into consideration the mesh opening (µ), open area, mesh count (threads per inch) and thread diameter. Other specifications such as weight (kg/m²), thickness (µ), and air permeability are available upon request.


Share Filters also has the facility to process these meshes into all kinds of filter components, like mesh discs, shapes, tubes, ribbons, bags and moulded  filters. The filter mesh discs can be cut in any diametter, and the mesh shapes can be tailored to virtually any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs and is characterized by closed edge quality.



Share Filters  Filter Mesh Options for Cutting Shapes



Material Nylon mesh, polyester mesh, PP mesh, stainless steel mesh
Mesh Opening From 20 micron to 3233 micron
Thread Diameter From 30 micron to 1000 micron
Open Area From 16% to 61%
Mesh Weave Type Plain Weave
After Treatment Washing, Heat-setting, Calendaring, Water-repellent, etc
Diameter Cut in custom diameter in tight tolerance
Colour White, or customize

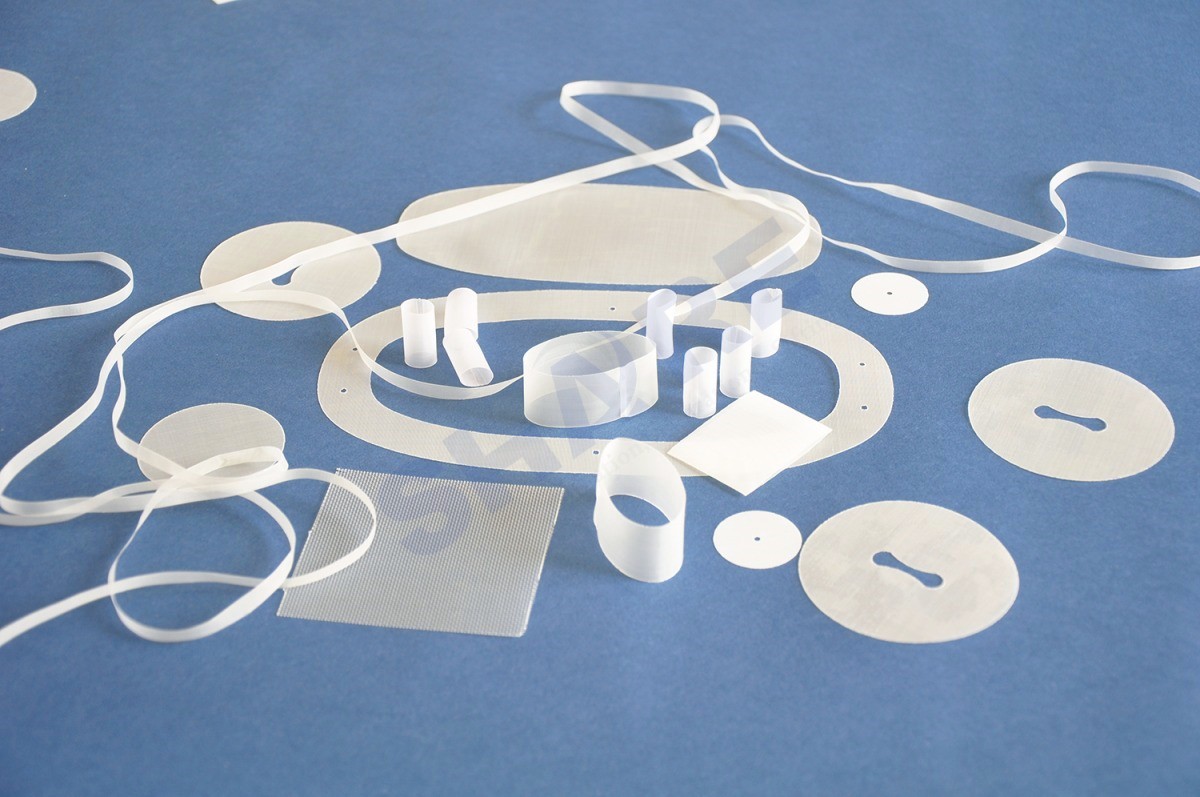

40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters 0

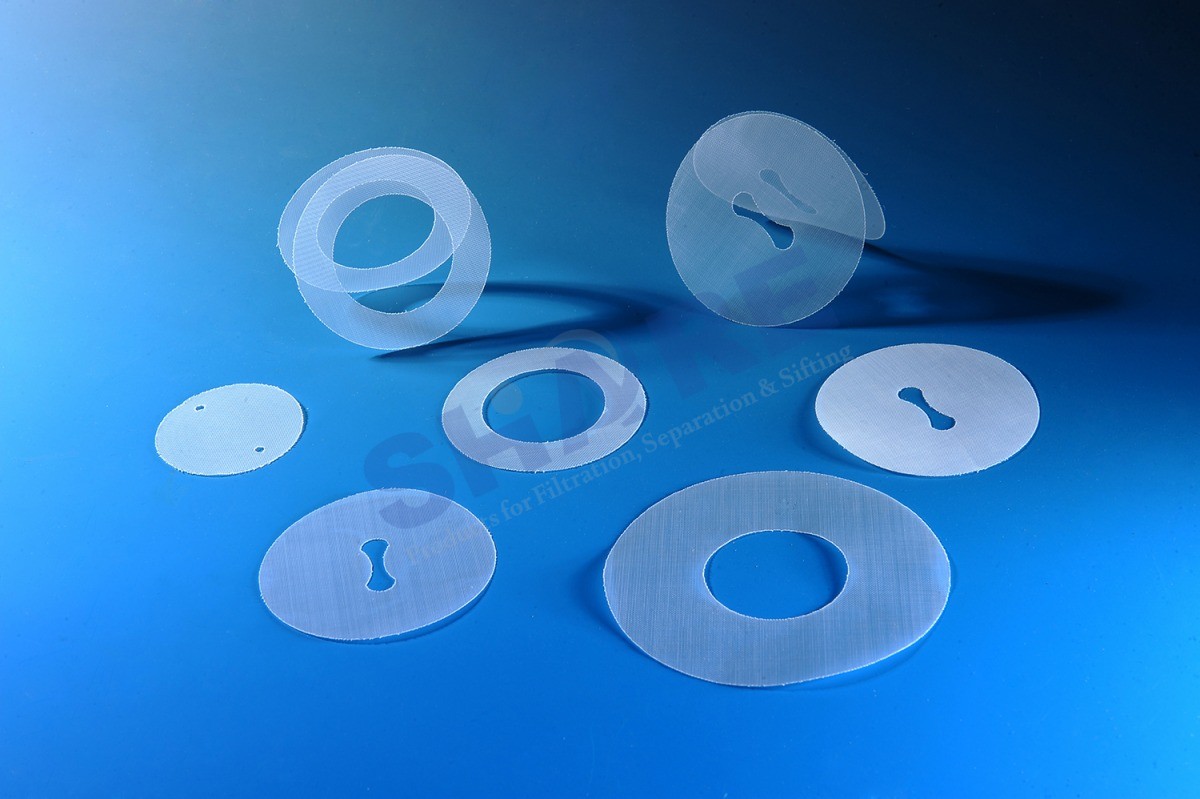

40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters 1




The Benefits of Nylon Filter Mesh Discs:

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • Convenient for insert molding
  • High precision opening, uniform thread diameter
  • Available in singe layer or double layers, disc, polygon, irregular and other special shapes
  • Compliance with food grade


Nylon Filter Mesh Cutted Shapes for Injection Moulded

proofer cup Cell Strainer Snap Cap moulded cap
Disc filter cover cap (6) filter mesh for injection moulded filter mesh cutted shapes for air purifier filter



Share Filters' Nylon Filter Mesh Can Be Cutted Tailored To Virtually any Shape or Dimension.

  • Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cut parts can be also produced in multiple layers. The high-precision laser cut parts are characterized by closed edge quality.
  • Ultrasonic stamping is available for fabrics having mesh openings < 400 µm. It ensures tight tolerances and provides high-quality sealed edges which do not fray.
  • Cold cutting combines a roller cutter with the traditional scissors for cutting fabrics that can’t be cut with other methods.
filter mesh laser cut filter mesh ultrasonic cut woven filter mesh cold cut
Laser cutting Ultrasonic cutting Cold cutting




Nylon Filter Mesh Specification


Fabric
number

Mesh count

Thread
diameter

Mesh
opening

Open
area

Fabric
thickness

Weight

No.

mesh/cm

mesh/inch

micron

micron

%

micron

g/m2

JPP2

2.3

6

1000

3233

58.3

1900

412

JPP3

3.1

8

900

2300

51.3

1700

450

JPP4

4

10

550

1950

61

950

262

JPP5

5

12

500

1500

56

850

271

JPP6

6

16

400

1267

58

780

208

JPP7

7

18

350

1079

57

675

186

JPP8

8

20

350

900

52

685

212

JPP9

9

24

250

860

60

455

145

JPP10

10

25

300

700

49

576

195

JPP12

12

30

250

583

49

470

162

JPP12

12

30

300

533

41

585

234

JPP14

14

35

300

414

34

595

273

JPP16

16

40

200

425

46

370

139

JPP16

16

40

250

375

36

485

217

JPP20

20

50

150

350

49

375

98

JPP20

20

50

200

300

36

385

173

JPP24

24

60

150

267

41

285

117

JPP28

28

70

120

237

44

215

87

JPP30

30

76

120

213

41

225

94

JPP32

32

80

100

213

46

165

69

JPP36

36

90

100

178

41

178

78

JPP40

40

100

100

150

36

190

87

JPP43

43

110

80

152

43

135

60

JPP48

48

120

80

130

38

145

62

JPP56

56

140

60

120

44

85

44

JPP59

59

150

60

110

42

98

46

JPP64

64

160

60

100

37

105

50

JPP72

72

180

50

90

41

82

39

JPP80

80

200

50

75

36

90

43

JPP100

100

250

42

60

36

65

35

JPP120

120

305

30

55

42

52

20

JPP120

120

305

35

45

29

60

28

JPP120

120

305

38

42

25

67

35

JPP120

120

305

42

42

25

75

42

JPP130

130

330

30

47

37

55

22

JPP130

130

330

35

42

30

62

30

JPP130

130

330

38

40

26

74

36

JPP140

140

355

30

38

28

53

25

JPP140

140

355

35

37

26

65

33

JPP140

140

355

38

32

20

68

36

JPP145

145

368

38

30

19

64

40

JPP150

150

380

30

34

26

50

26

JPP150

150

380

38

31

21

68

40

JPP165

165

420

30

30

25

59

28

JPP165

165

420

38

25

15

75

42

JPP180

180

460

30

25

21

60

31

JPP200

200

508

30

20

16

65

34

This just a part of specifications which common used.



What We do



Share Filters is engaged in manufacturing and processing of woven precision meshes for screen and filter technology. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like filter mesh screens and bags to highly complex devices like custom plastic filters. Our customers typically work in the fields of automotive spares, food technology, motor equipment, water treatment, acoustics, semiconductor technology, medical device. We also supply institutes, laboratory facilities or private end customers.





Application of Share Filters Products



40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters 11 transfusion appliance filter coffee maker filter drip irrigation spray filter
Fuel filter Tranfusion filter Air purifier filter Coffee filter Drip irrigation filter
Automotive Healthcare Appliance Food & Beverage Agriculture





Factory Capabilities



Filter Mesh Weaving

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.


woven filter mesh
filter mesh rolls





Filter Mesh Slitted in Narrow Ribbons

Our filter mesh ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.


nylon mesh slitting
slitted filter mesh ribbon





Laser Cutting Filter Mesh Shapes

Share Filters cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting using custom made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.


filter mesh laser cutting
nylon filter mesh shapes





Ultrasonic Cutting and Welding

Ultrasonic cutting and welding are accurate, clean. The tubes are equipped with one or two functional seams, which provide the necessary seam strength.


40 Micron Nylon Mesh Screen Cutted Shapes Disc For Injection Moulding Filters 22
welding mesh filter elements





Custom Sewn Mesh Filter Bag
Share Filters sewn products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.
sewing filter mesh bag





Mesh Insert Plastic Injection Molded Filters

Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use.


injection mould
share filters's plastic moulded filters




Contact Us

Share Filters provides some information for possible applications for mesh filters, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for your specific projects.



Please connect with us so we can learn more about your application and design specifications!
