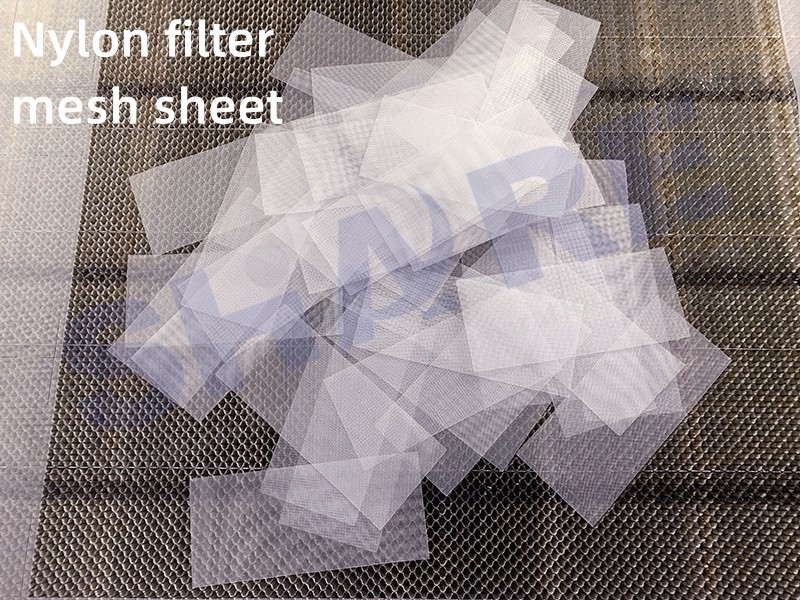

55 Micron Nylon Filter Mesh Sheets Discs Shapes Cut In Tight Tolerance

Minimum Order Quantity : 200pcs Price : USD0.03-USD1.00/pcs
Packaging Details : Carton, polybag Delivery Time : 3-7 day
Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPal Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: 55 Micron Nylon Filter Mesh Cut Discs Sheets

Detail Information

Product Name: 55 Micron Nylon Filter Mesh Cut Discs Sheets Keyword: Nylon Filter Mesh Sheet
Dimension: Single Or Double Layers Pieces In Any Shape And Size Micron Rating: 3μm-3233μm
Material Options: Nylon Mesh, Polyester Mesh, PP Mesh, Metallic Mesh Processing: Slitting, Cutting, Punching
Sample: Test Sample Provided
High Light:

Double Layers Nylon Filter Mesh Disc

,

55 Micron Nylon Filter Mesh

,

Nylon Filter Mesh Disc Sheet

Product Description

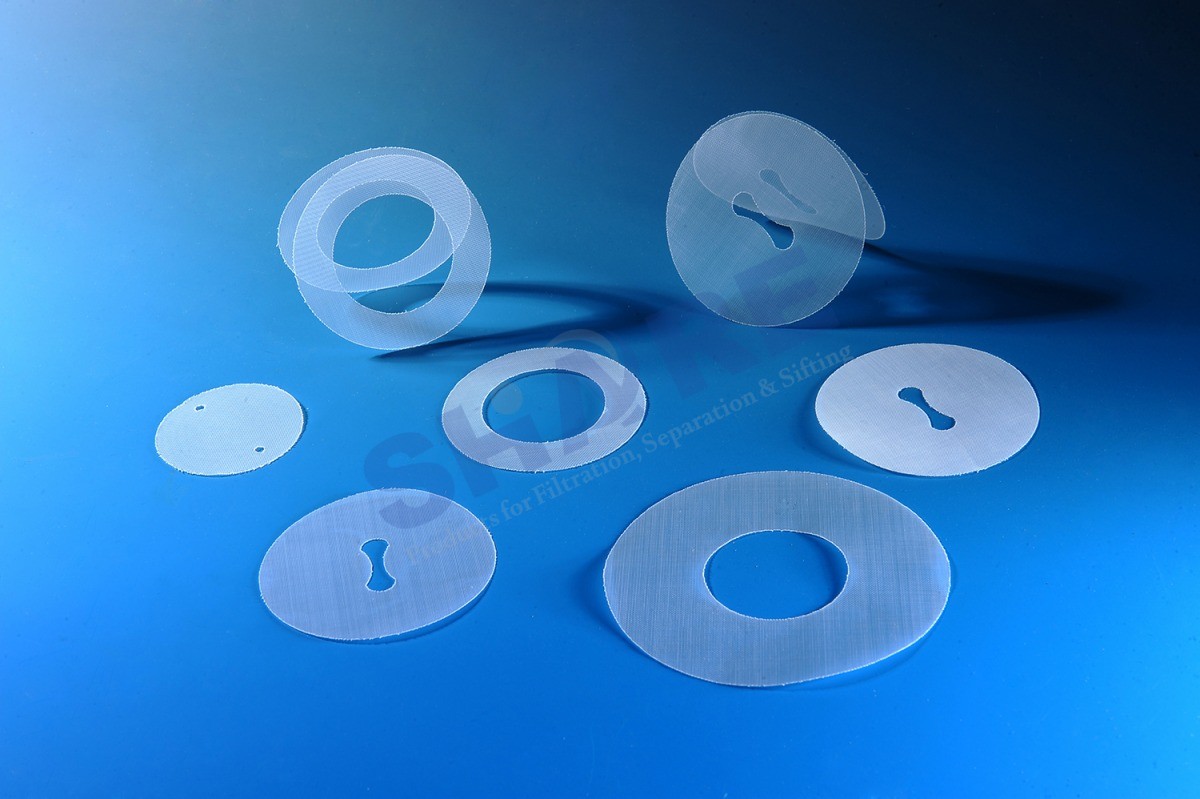

55 Micron Nylon Filter Mesh Cut Discs Shapes Sheets In Tight Tolerance



Share Filters is a Chinese primary supplier in the development, production and sale of high precision monofilament filter meshes and mesh filter components for variety of industrial applications. The main filter meshes include in polyamide mesh, polyester mesh, polypropylene mesh and stainless steel. Primary Treatments includes Dyeing, Resin Coating, Corona Treatment, Calendering, Sputtering are optional procedures that chemically enhance the performance of the mesh or manipulate its appearance in various ways.



Thanks to advanced processing equipments and rich experience, Share Filters can provide filter meshes cut to size, lot-to-lot consistency and high quality custom fabricated components, like filter mesh sheets in single or double layers, shapes are cut polygons or irregular. We'll assist you to choose the best fabrication technology according the filter media.





55 Micron Nylon Filter Mesh Sheets Discs Shapes Cut In Tight Tolerance 0

punching filter mesh shapes


Benifits of Share Filters Nylon Mesh Pre-Cutting Sheets and Shapes:

  • Cut in any size, shapes based on customers' design, specification, or samples.
  • Various kinds of filter media and specifications available, such as nylon filter mesh, polyester filter mesh, polypropylene filter mesh, metallic filter mesh as well as needle punched filter felts.
  • Slitting, laser cutting and ultrasonic cutting or punching ensures the mesh edges from fraying and provide tight tolerance.

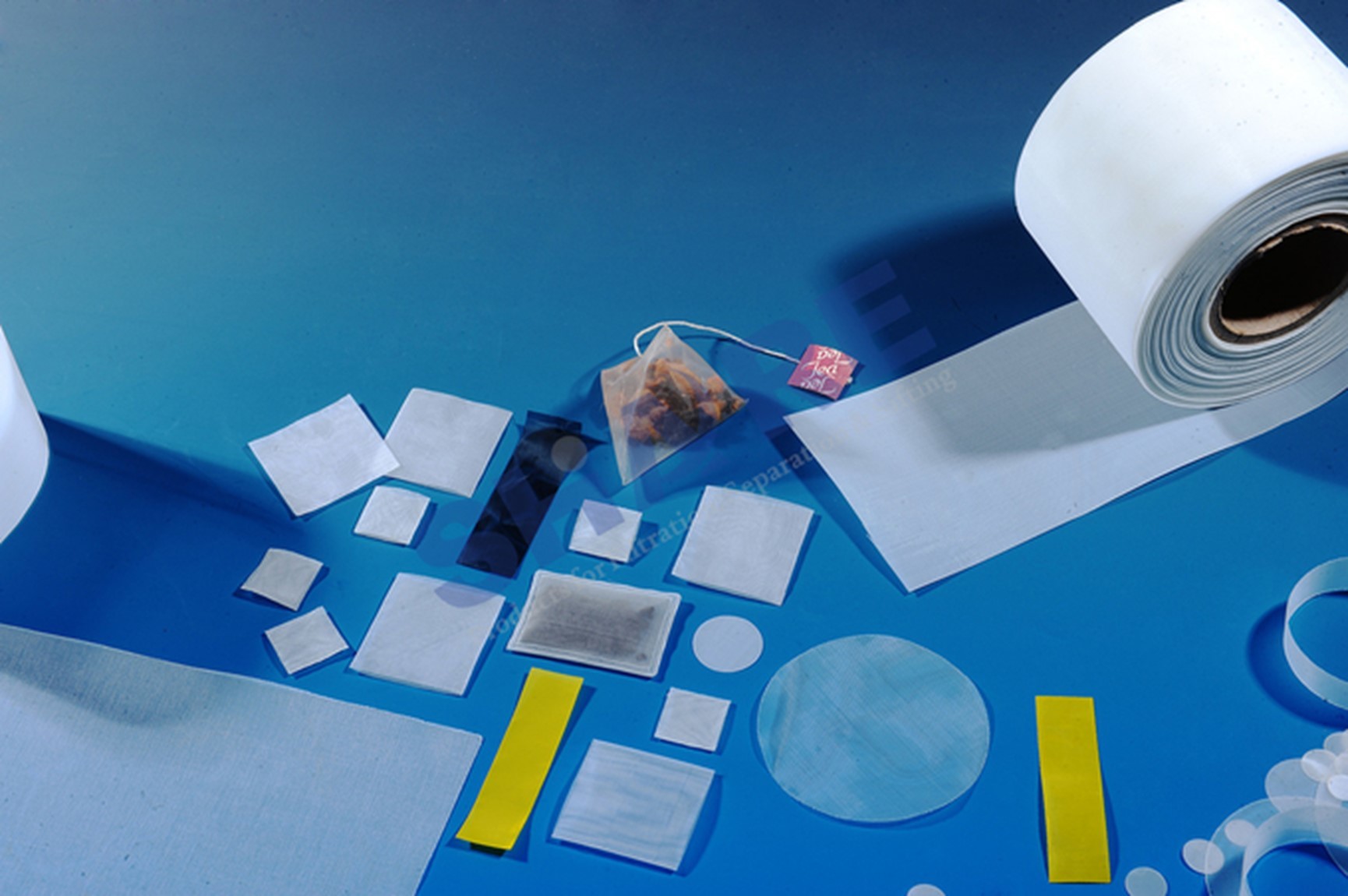

Share Filtes' Filter Mesh Pre-cut Sheets and Shapes Options



55 Micron Nylon Filter Mesh Sheets Discs Shapes Cut In Tight Tolerance 2 Filter media Nylon mesh, polyester mesh, PP mesh, stainless steel mesh
Micron rating 3μm - 3233μm
Mesh fabrication Slitting, laser cutting, ultrasonic cutting, punching
Specification Custom design





Nylon Filter Mesh

Often compared with polyester, nylon mesh has higher water absorption rate, unrivaled strength resistant to cyclic deformation, is robust against friction and bending, and is highly elastic and wrinkle-resistant as it's characteristics. It also features resistance to chemicals and oils, as well as being resistance to alkalis.



Polyester Filter Mesh

Polyester is one of the strongest fibers and remains resistant even if it gets wet and exposed to friction. Its low moisture absorbency prevents it from expanding, contracting, becoming wrinkled, and it also features resistance to chemicals, as well as being dimension stability.



Polypropylene Filter Mesh

Polypropylene mesh is chemical resistant and non-absorbent, with good weather, acid and alkaline resistance



Stainless Steel Filter Mesh

Stainless steel filter mesh is with the following benefits: corrosion resistance, strength and durability, high temperature resistance, versatility, easy maintenance and cleanliness, environmental friendliness


How To Select the Right Filter Mesh? You Can Follow These Points.


filter mesh
  • Mesh size or the size of the particle you need to filter
  • Mesh material (consider the working condition)
  • Mesh thread diameter, mesh thickness
  • Opening area





Nylon Filter Mesh Specification



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
area
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
JPP2 2.3 6 1000 3233 58.3 1900 412
JPP3 3.1 8 900 2300 51.3 1700 450
JPP4 4 10 550 1950 61 950 262
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
JPP12 12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 42 60 36 65 35
JPP120 120 305 30 55 42 52 20
JPP120 120 305 35 45 29 60 28
JPP120 120 305 38 42 25 67 35
JPP120 120 305 42 42 25 75 42
JPP130 130 330 30 47 37 55 22
JPP130 130 330 35 42 30 62 30
JPP130 130 330 38 40 26 74 36
JPP140 140 355 30 38 28 53 25
JPP140 140 355 35 37 26 65 33
JPP140 140 355 38 32 20 68 36
JPP145 145 368 38 30 19 64 40
JPP150 150 380 30 34 26 50 26
JPP150 150 380 38 31 21 68 40
JPP165 165 420 30 30 25 59 28
JPP165 165 420 38 25 15 75 42
JPP180 180 460 30 25 21 60 31
JPP200 200 508 30 20 16 65 34





What Share Filters Do

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the woven filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filter components in any shape or configuration – from simple, traditional components like filter mesh piecess and filter bags to highly complex elements like mesh insert injection moulding plastic filters.



Factory Capabilities



55 Micron Nylon Filter Mesh Sheets Discs Shapes Cut In Tight Tolerance 4 filter mesh slitting filter mesh cutting
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge. Our cutting method include Laser cutting, Cold cutting, Heatt cutting, Stamping. Professional cutting using custom made tools that will not damage the materials.
filter mesh welding filter mesh sewing 55 Micron Nylon Filter Mesh Sheets Discs Shapes Cut In Tight Tolerance 9
Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.




Share Filters Workshops
Share Filters workshops


Application of Share Filters Products



AUTOMOTIVE FILTER biopsy bag 55 Micron Nylon Filter Mesh Sheets Discs Shapes Cut In Tight Tolerance 13 55 Micron Nylon Filter Mesh Sheets Discs Shapes Cut In Tight Tolerance 14 drip irrigation spray filter
Fuel filter Biopsy bag Dispenser filter Coffee filter Drip irrigation filter
Automotive Healthcare Appliance Food & Beverage Agriculture
