45 Micron Nylon Mesh Disc Filters Precise Even Openings Cut Shapes Sheets

Minimum Order Quantity : 200pcs Price : USD0.03-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 3-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Nylon Mesh Disc Filters 45 Micron

Detail Information

Product Name: Nylon Mesh Disc Filters 45 Micron Keywords: Nylon Mesh Disc Filter
Material Option: Nylon Mesh, Polyester Mesh, PP Mesh, Stainless Steel Mesh Micron Rating: 3μm-3233μm
Thread Diameter: 30μm-1000μm Application: Liquid Filtration, Air Vent
High Light:

Fabricated Nylon Mesh Disc Filters

,

Nylon Mesh Filter Disc Sheets

,

Nylon Mesh Disc Filters 45 Micron

Product Description



Nylon Mesh Disc Filters 45 Micron Precise Even Openings Cut Shapes Sheets



Share Filters specializes in manufactuer filter mesh including nylon mesh, polyester mesh, popypropylene mesh and stainless steel mesh. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like filter mesh discs and filter bags to highly complex elements like custom plastic filters.



Share Filters' filter mesh discs can be tailored to virtually any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cut parts can be also produced in multiple layers. The high-precision laser cut parts are characterized by closed edge quality without fray. Another method ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality.



Benifits From Share Filters' Nylon Mesh Cutted Shapes:

  • Cut or punch in any sizes and shapes based on customers' design, drawing, or samples.
  • Various kinds of filter medias and specifications available, such as polyester filter mesh, nylon filter mesh, polypropylene filter mesh, metallic-fiber filter mesh as well as needle punched filter felts.
  • Slitting, laser cutting and ultrasonic cutting by custom-made tools ensures the mesh edges from fraying.

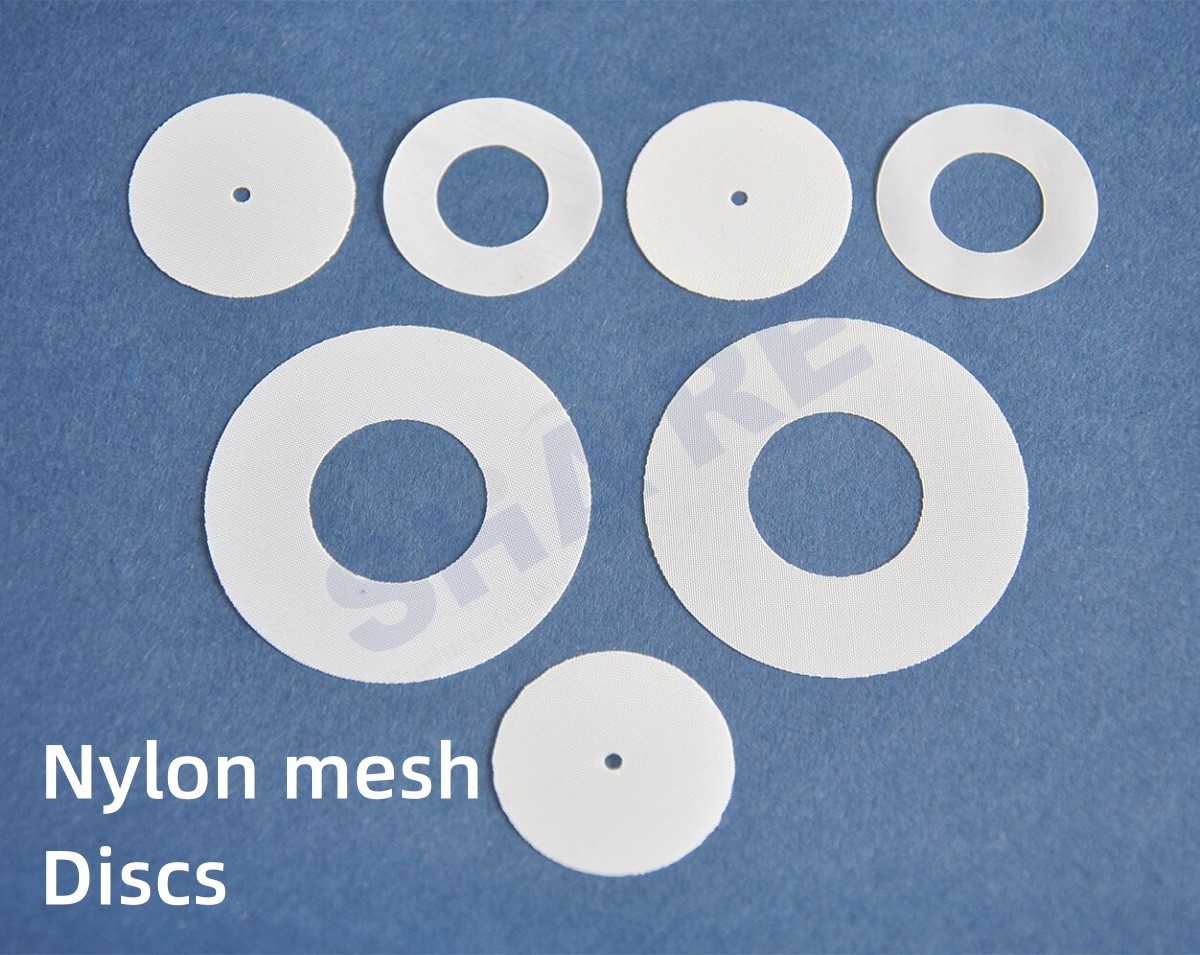

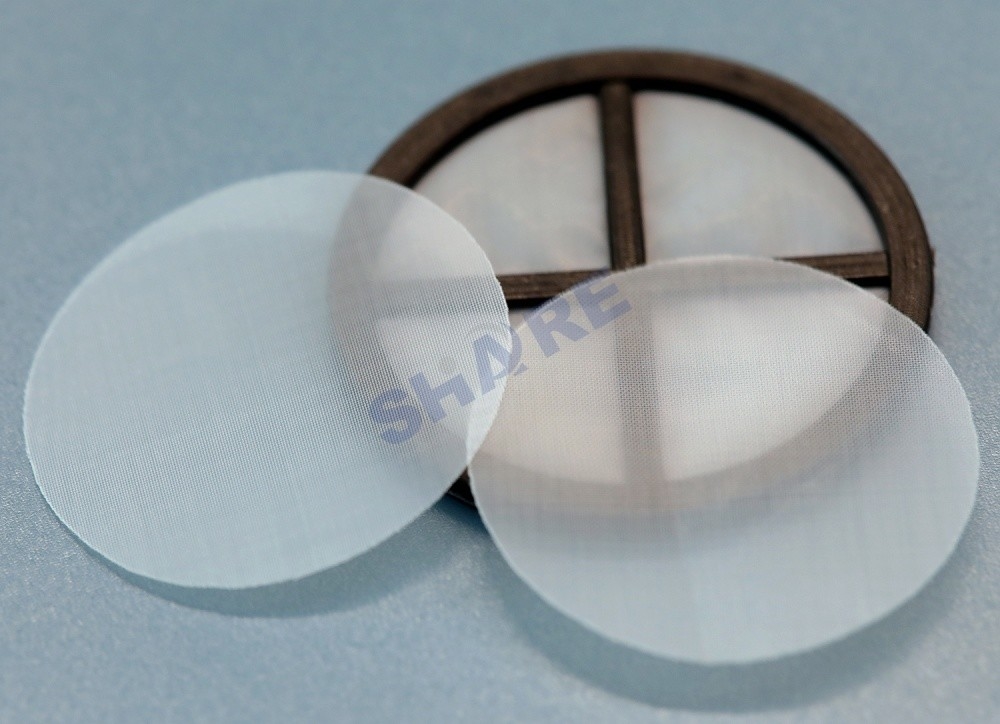

nylon filter mesh disc

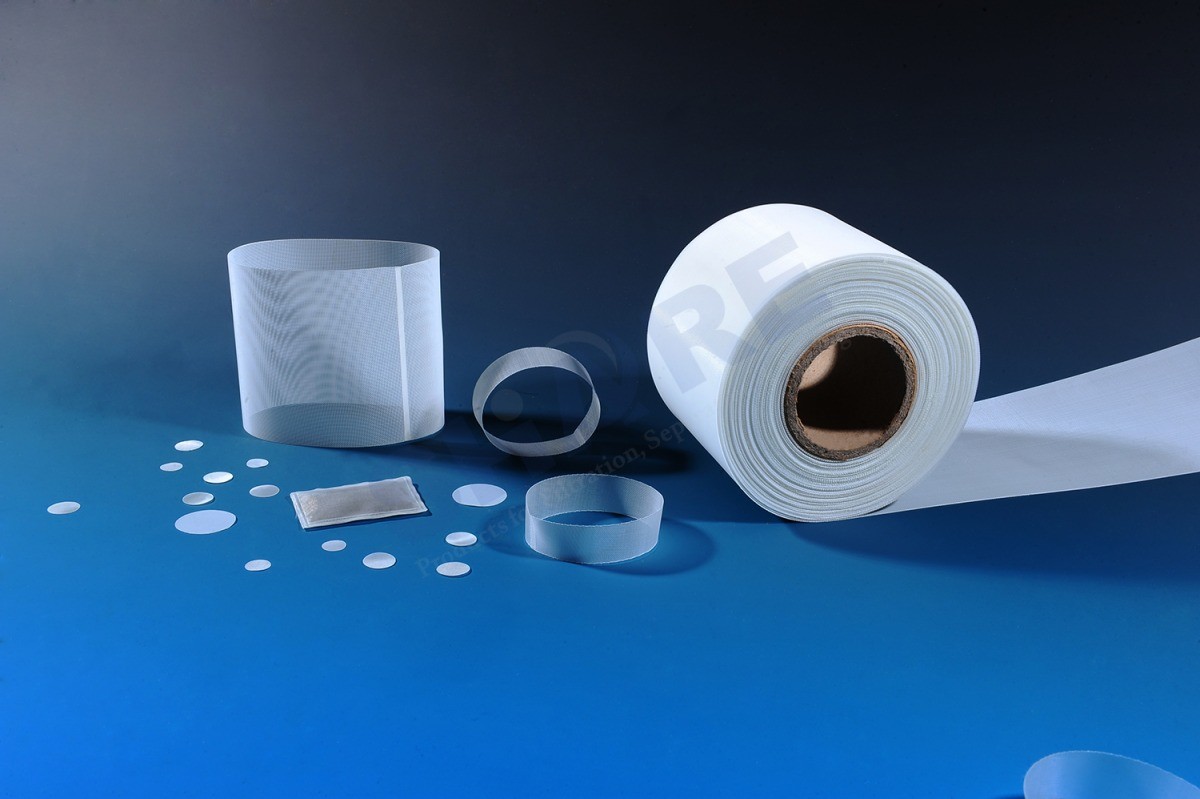

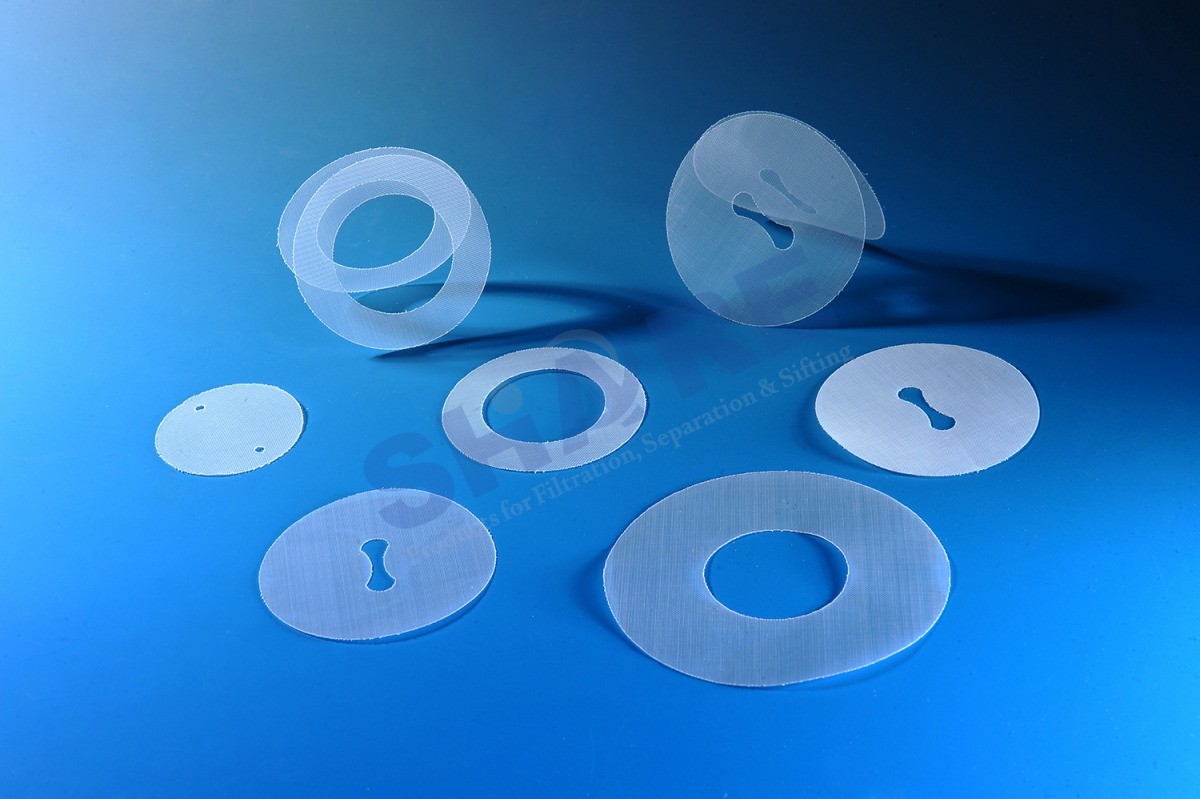

filter mesh shapes


Share Filters Specification Options for Cutting Discs and Shapes



Material Option Nylon mesh, polyester mesh, PP mesh, stainless steel mesh
Mesh Opening From 3 micron to 3233 micron
Thread Diameter From 30 micron to 1000 micron
Open Area From 3% to 60%
Weave Type Plain Weave
Primary Treatment Dyeing, Calendaring, Sputtering, etc
Dimension Can be tailored to virtually any shape or dimension
Colour White, or customize



Share Filters' nylon filter mesh shapes can be tailored to virtually any shape or dimension.

  • Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The high-precision laser cut parts are characterized by closed edge quality. Laser cut parts can be also produced in multiple layers.
  • Ultrasonic stamping is available for fabrics having mesh openings < 400 µm. It ensures tight tolerances and provides high-quality sealed edges which do not fray.
  • Cold cutting combines a roller cutter with the traditional scissors for cutting fabrics that can’t be cut with other methods.

The edges by laser cutting, ultrasonic cutting and colding cutting.

filter mesh laser cut filter mesh ultrasonic cut woven filter mesh cold cut
Laser cutting Ultrasonic cutting Cold cutting




Nylon Filter Mesh Discs Specifications For Lab Solvents

Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
  n/cm n/inch μm μm % μm g/m2
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/43 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/42 59 150 60 110 41 98 46
PA 100/37 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/36 100 250 42 60 34 65 35
PA 42/25 120 305 42 42 24 75 42
PA 44/27 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/29 120 305 35 45 33 60 28
PA 55/42 120 305 30 55 40 52 20
PA 40/26 130 330 38 40 25 74 36
PA 42/30 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22
PA 32/20 140 355 38 32 21 68 36
PA 37/26 140 355 35 37 26 65 33
PA 38/28 140 355 30 38 33 53 25
PA 31/21 150 380 38 31 18 68 40
PA 35/27 150 380 30 35 29 57 26
PA 34/26 150 380 30 34 26 50 26
PA 30/25 165 420 30 30 25 59 28
PA 30/19 145 368 38 30 19 64 40
PA 25/21 180 460 30 25 21 60 31
PA 25/15 165 420 38 25 15 75 42
PA 20/16 200 508 30 20 16 65 34
PA 10/4.3 208 530 38 10 4.3 77 53

This just a part of specifications which common used.





Factory Capabilities



Share Filters sepcialize in manufacturing and supplying woven filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons, filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.



Filter Mesh Weaving

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.



woven filter mesh
filter mesh rolls





Filter Mesh Slitted in Narrow Ribbons

Our filter mesh ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.



nylon mesh slitting
slitted filter mesh ribbon





Laser Cutting Filter Mesh Shapes

Share Filters cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting using custom made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.



filter mesh laser cutting
nylon filter mesh shapes





Ultrasonic Cutting and Welding

Ultrasonic cutting and welding are accurate, clean. The tubes are equipped with one or two functional seams, which provide the necessary seam strength.



45 Micron Nylon Mesh Disc Filters Precise Even Openings Cut Shapes Sheets 11
welding mesh filter elements





Custom Sewn Mesh Filter Bag
Share Filters sewn products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.
sewing filter mesh bag





Mesh Insert Plastic Injection Molded Filters

Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use.



injection mould
share filters's plastic moulded filters





About Us
Share Filters has over 20 years of experience developing and manufacturing woven filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.





Application of Share Filters Products



AUTOMOTIVE FILTER biopsy bag appliance filter coffee maker filter drip irrigation spray filter
Fuel filter Biopsy bag Air purifier filter Coffee filter Drip irrigation filter
Automotive Healthcare Appliance Food & Beverage Agriculture





Contact Us

Share Filters provides some information for possible applications for mesh filters, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for your specific projects.
