Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 200pcs | Price : | USD0.02-USD1.00/pc |
|---|---|---|---|
| Packaging Details : | Caron, Polybag | Delivery Time : | 3-7 days |
| Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 50000pcs/day |
| Place of Origin: | China | Brand Name: | Share Filters |
|---|---|---|---|
| Certification: | SGS | Model Number: | 250 Micron Nylon Filter Mesh Disc Shape |
|
Detail Information |
|||
| Product Name: | 250 Micron Nylon Filter Mesh Disc Shape | Keyword: | 250 Micron Mesh Disc Shape |
|---|---|---|---|
| Material Options: | Nylon Mesh, Polyester Mesh, PP Mesh, Metallic Mesh | Micron Rating: | 100μm-500μm |
| Thread Diameter: | 30μm-1000μm | Application: | Water Filtration |
| High Light: | Water Filtration Nylon Filter Cloth Mesh,250 Micron Nylon Filter,Nylon Filter Cutted Mesh Discs |
||
Product Description
70 Mesh 250 Micron Nylon Filter Cutted Mesh Shapes Discs For Water Filtration
Share Filters manufactured nylon filter mesh is available in a variety of specifications that take into consideration the mesh opening (µ), open area, mesh count (threads per inch) and thread diameter. Other specifications such as weight (kg/m²), thickness (µ), and air permeability are available upon request. Share Filters' monofilament woven mesh material is nylon PA6 and PA66 and feature with effective abrasion and alkali resistance.
Share Filters Filter Mesh Options for Cutted Shapes
| Material | Nylon mesh, polyester mesh, PP mesh, stainless steel mesh |
| Mesh Pore | From 3 micron to 3233 micron |
| Thread Diameter | From 30 micron to 1000 micron |
| Open Area | From 3% to 58.3% |
| Weave Type | Plain Weave |
| After Treatment | Washing, Heat-setting, Calendaring, Water-repellent, etc |
| Dimension | Can cut in custom size and shape |
| Colour | White, or customize |
The Benefits From Share Filters Mesh Shapes:
Nylon Filter Mesh Can Be Used for Filtering Water
Nylon is highly resistant to solvents and hydrophilic, which makes it viable for filtering water along with organic solvents. The material's larger pores make it useful for isolating single-celled or certain multicellular organisms such as bacteria and roundworms
Nylon Filter Mesh Specification
| Fabric number |
Mesh count | Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
| No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
| JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
| JPP12 | 12 | 30 | 300 | 533 | 41 | 585 | 234 |
| JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 |
| JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
| JPP16 | 16 | 40 | 250 | 375 | 36 | 485 | 217 |
| JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
| JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
| JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
| JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
| JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
| JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
| JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
| JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
| JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
| JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
| JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
| JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
| JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
This just a part of specifications which common used.
Manufacture Process of Filter Mesh
Factory Capabilities
Share Filters sepcializes in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also have the advance machines to convert these filter meshes to filter mesh shapes, discs, ribbons, filter mesh tubes, mesh bags and mesh insert plastic moulded filters to meet customs' filtration demands in different industries.
| Filter Mesh Woven |
|
The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.
|
|
|

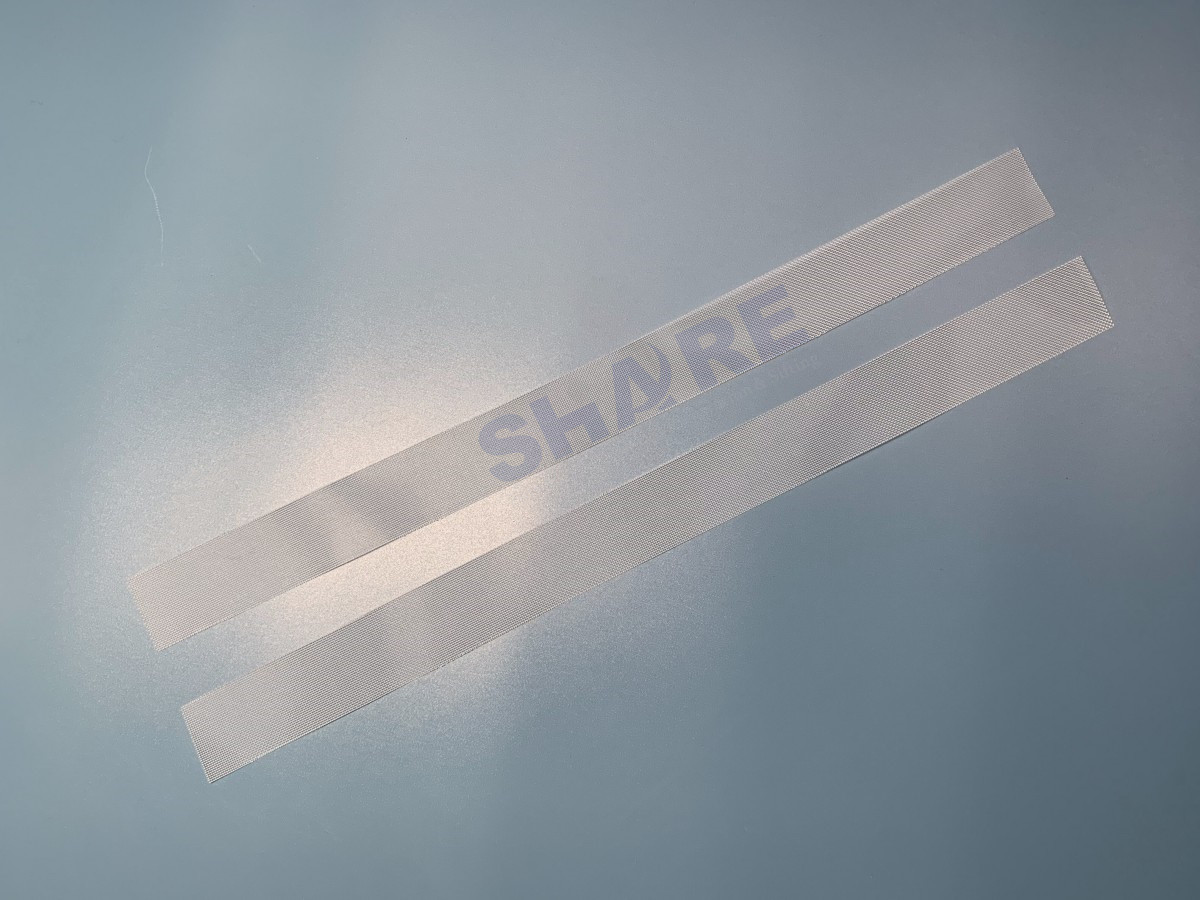

| Filter Mesh Slitted in Narrow Ribbons |
|
Our filter mesh ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.
|
|
|

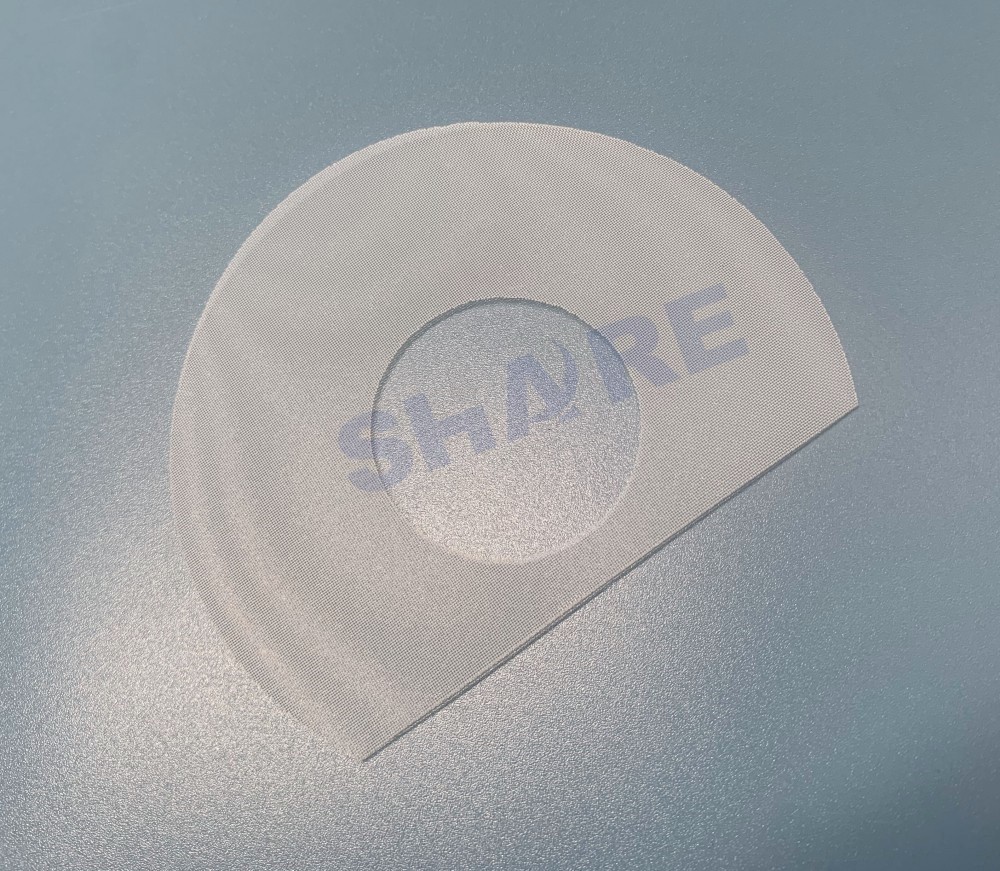

| Laser Cutting Filter Mesh Shapes |
|
Share Filters cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting using custom made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.
|
|
|
| Ultrasonic Cutting and Welding |
|
Ultrasonic cutting and welding are accurate, clean. The tubes are equipped with one or two functional seams, which provide the necessary seam strength.
|
|
|
| Custom Sewn Mesh Filter Bag |
|
Share Filters sewn products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.
|
|
| Standard Mesh Filter Bags |
|
Share Filters produces high quality liquid filter bags to fit standard size filter housing, as well as custom designed products where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.
|
|

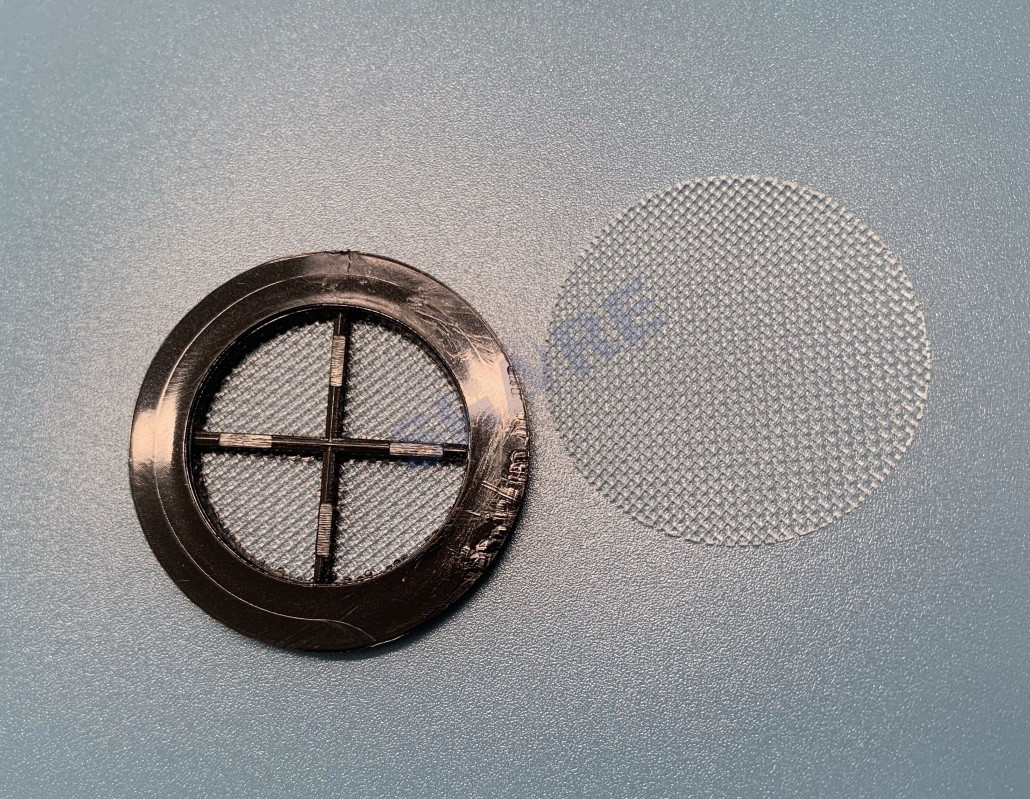

| Mesh Insert Plastic Injection Molded Filters |
|
Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use.
|
|
|
About Us
Share Filters has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh inrolls and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries– Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
Application of Share Filters Products
|
|
|
|
|
| Fuel filter | Cell strainer | Air purifier filter | Coffee filter | Drip irrigation filter |
| Automotive | Healthcare | Appliance | Food & Beverage | Agriculture |
Contact Us
Share Filters provides some information for possible applications of filter mesh, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for their specific projects.
