Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 200pcs | Price : | USD0.03-USD1.50/pc |
|---|---|---|---|
| Packaging Details : | Caron, Polybag | Delivery Time : | 1-7 days |
| Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 50000pcs/day |
| Place of Origin: | China | Brand Name: | Share Filters |
|---|---|---|---|
| Certification: | SGS | Model Number: | Nylon Mesh Disc Filters for Lab Solvents |
|
Detail Information |
|||
| Product Name: | Nylon Mesh Disc Filters For Lab Solvents | Keywords: | Nylon Mesh Disc Filter |
|---|---|---|---|
| Material Option: | Nylon Mesh, Polyester Mesh, PP Mesh | Micron Rating: | 10μm-180μm |
| Thread Diameter: | 30μm-100μm | Application: | Laboratory Solvents Filtration |
| High Light: | Nylon Mesh Disc Filters,Nylon Mesh Filter 180 Micron |
||
Product Description

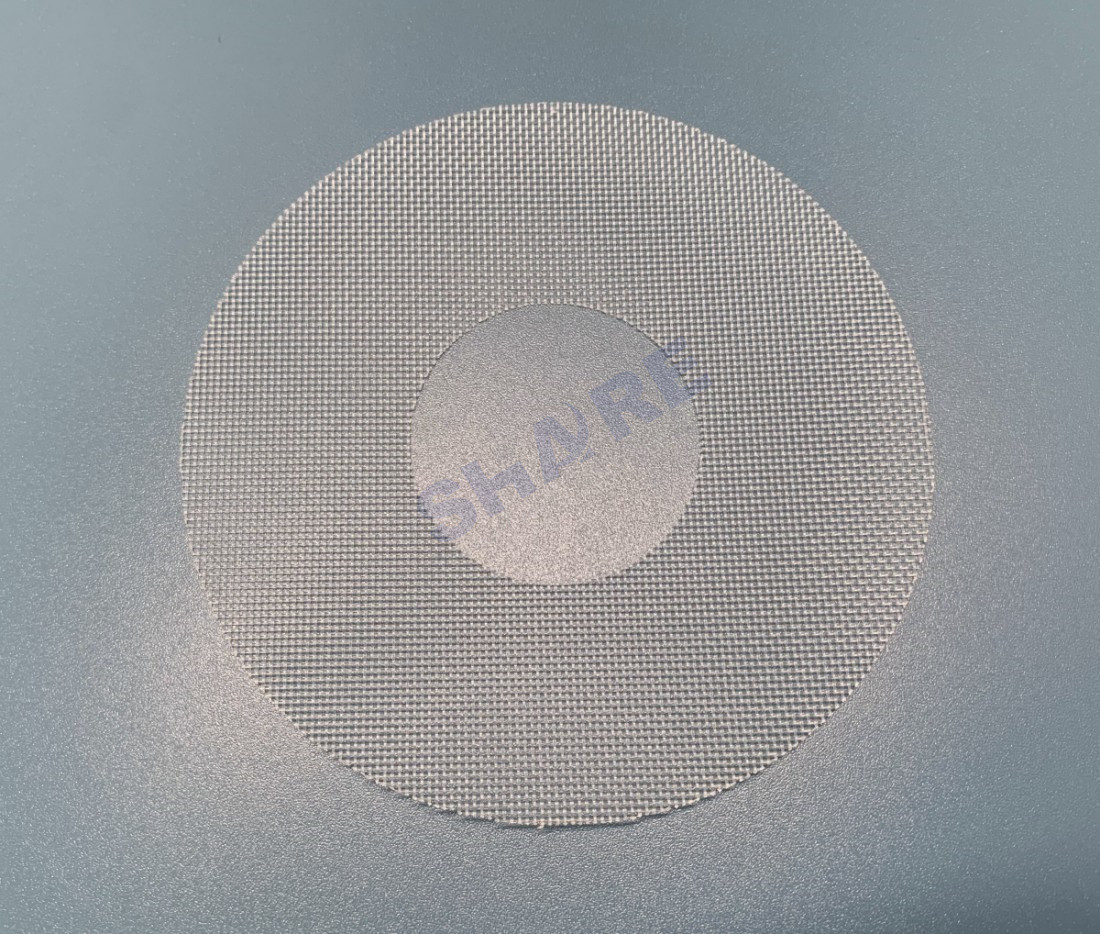

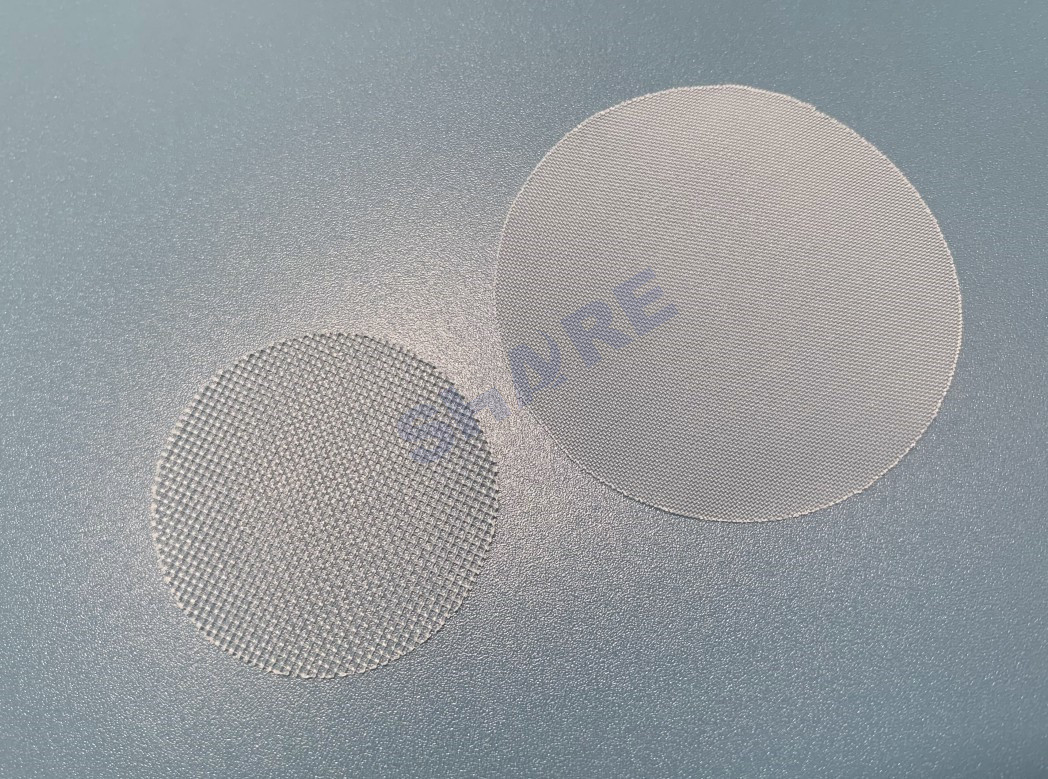

Nylon Mesh Disc Filters Openings Of 10-180 Micron Compatible With Lab Solvents
Share Filters provides precision filter meshes for liquid filtration, separation and sifting. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like filter mesh discs and filter bags to highly complex devices like custom plastic filters.
Share Filters' filter mesh discs can be tailored to virtually any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cut parts can be also produced in multiple layers. The high-precision laser cut parts are characterized by closed edge quality. Another method Ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality.
Share Filters Filter Mesh Options for Cutting Discs Options
| Material | Nylon mesh, polyester mesh, PP mesh, stainless steel mesh |
| Mesh Opening | From 3 micron to 3233 micron |
| Thread Diameter | From 30 micron to 1000 micron |
| Open Area | From 3% to 60% |
| Weave Type | Plain Weave |
| After Treatment | Washing, Heat-setting, Calendaring, Water-repellent, etc |
| Dimension | Can be tailored to virtually any shape or dimension |
| Colour | White, or customize |
The Benefits Share Filters' Mesh Discs:
Nylon Filter Mesh Discs Specifications For Lab Solvents
| Fabric Number | Mesh Count | Thread Diameter | Mesh Opening | Open Area | Mesh Thickness | Weight | |
| n/cm | n/inch | μm | μm | % | μm | g/m2 | |
| PA 213/41 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
| PA 213/46 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
| PA 178/41 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
| PA 150/36 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
| PA 152/43 | 43 | 110 | 80 | 152 | 42 | 135 | 60 |
| PA 130/38 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
| PA 120/44 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
| PA 110/42 | 59 | 150 | 60 | 110 | 41 | 98 | 46 |
| PA 100/37 | 64 | 160 | 60 | 100 | 38 | 105 | 50 |
| PA 90/41 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
| PA 75/36 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
| PA 60/36 | 100 | 250 | 42 | 60 | 34 | 65 | 35 |
| PA 42/25 | 120 | 305 | 42 | 42 | 24 | 75 | 42 |
| PA 44/27 | 120 | 305 | 38 | 44 | 29 | 72 | 35 |
| PA 42/25 | 120 | 305 | 38 | 42 | 25 | 67 | 35 |
| PA 45/29 | 120 | 305 | 35 | 45 | 33 | 60 | 28 |
| PA 55/42 | 120 | 305 | 30 | 55 | 40 | 52 | 20 |
| PA 40/26 | 130 | 330 | 38 | 40 | 25 | 74 | 36 |
| PA 42/30 | 130 | 330 | 35 | 42 | 29 | 62 | 30 |
| PA 47/37 | 130 | 330 | 30 | 47 | 37 | 55 | 22 |
| PA 32/20 | 140 | 355 | 38 | 32 | 21 | 68 | 36 |
| PA 37/26 | 140 | 355 | 35 | 37 | 26 | 65 | 33 |
| PA 38/28 | 140 | 355 | 30 | 38 | 33 | 53 | 25 |
| PA 31/21 | 150 | 380 | 38 | 31 | 18 | 68 | 40 |
| PA 35/27 | 150 | 380 | 30 | 35 | 29 | 57 | 26 |
| PA 34/26 | 150 | 380 | 30 | 34 | 26 | 50 | 26 |
| PA 30/25 | 165 | 420 | 30 | 30 | 25 | 59 | 28 |
| PA 30/19 | 145 | 368 | 38 | 30 | 19 | 64 | 40 |
| PA 25/21 | 180 | 460 | 30 | 25 | 21 | 60 | 31 |
| PA 25/15 | 165 | 420 | 38 | 25 | 15 | 75 | 42 |
| PA 20/16 | 200 | 508 | 30 | 20 | 16 | 65 | 34 |
| PA 10/4.3 | 208 | 530 | 38 | 10 | 4.3 | 77 | 53 |
This just a part of specifications which common used.
Factory Capabilities
Share Filters sepcialize in manufacturing and supplying woven filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons, filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.
Filter Mesh Weaving
The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.
Filter Mesh Slitted in Narrow Ribbons
Ultrasonic welded tubes have one overlapping weld, the material passes over an anvil that emits a high frequency to bond the material together into a tube. Dual-layer slit tubes have two edges on the side of the tube. These edges or wings allow for the tube to be placed into a molding device and can be held on both sides of it. The individual cutting of the tubes results in the so-called Tubes Cuts, which are also available in conical form.

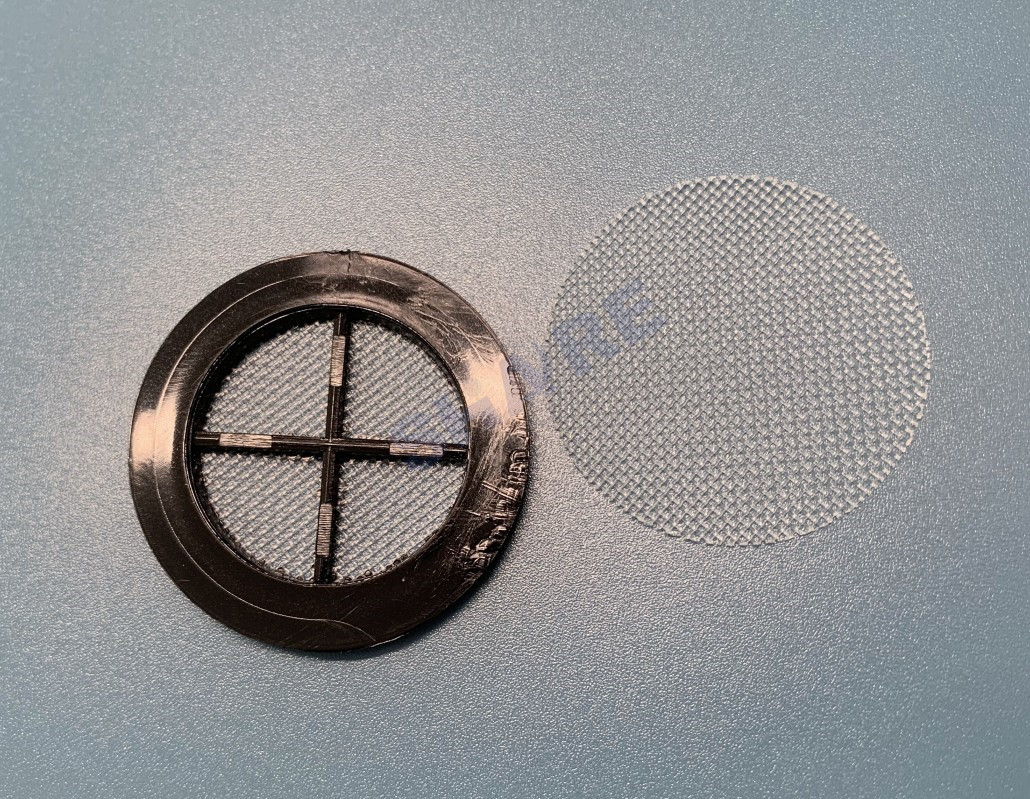

Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame. Injection moulding will drop hot polymer plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.
About Us
Share Filters has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
Application of Share Filters Products
|
|
|
|
|
| Fuel filter | Biopsy bag | Air purifier filter | Coffee filter | Drip irrigation filter |
| Automotive | Healthcare | Appliance | Food & Beverage | Agriculture |
Contact Us
Share Filters provides some information for possible applications for mesh filters, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for your specific projects.
