Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 200pcs | Price : | USD0.04-USD1.10/pc |
---|---|---|---|
Packaging Details : | Caron, Polybag | Delivery Time : | 3-7 days |
Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 50000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | SGS | Model Number: | 110 Micron Nylon Mesh In Custom Designed Shapes Discs |
Detail Information |
|||
Product Name: | 110 Micron Nylon Filter Mesh Cut Shapes Discs | Keywords: | Nylon Mesh Shapes |
---|---|---|---|
Material Options: | Nylon Filter Mesh, Polyester Filter Mesh, PP Filter Mesh | Micron Rating: | 3μm-3233μm |
Thread Diameter: | 30μm-1000μm | Open Area: | 16% - 60% |
Highlight: | 110 Micron Nylon Filter Mesh,Nylon Mesh Screens 30um,Custom Nylon Filter Mesh |
Product Description

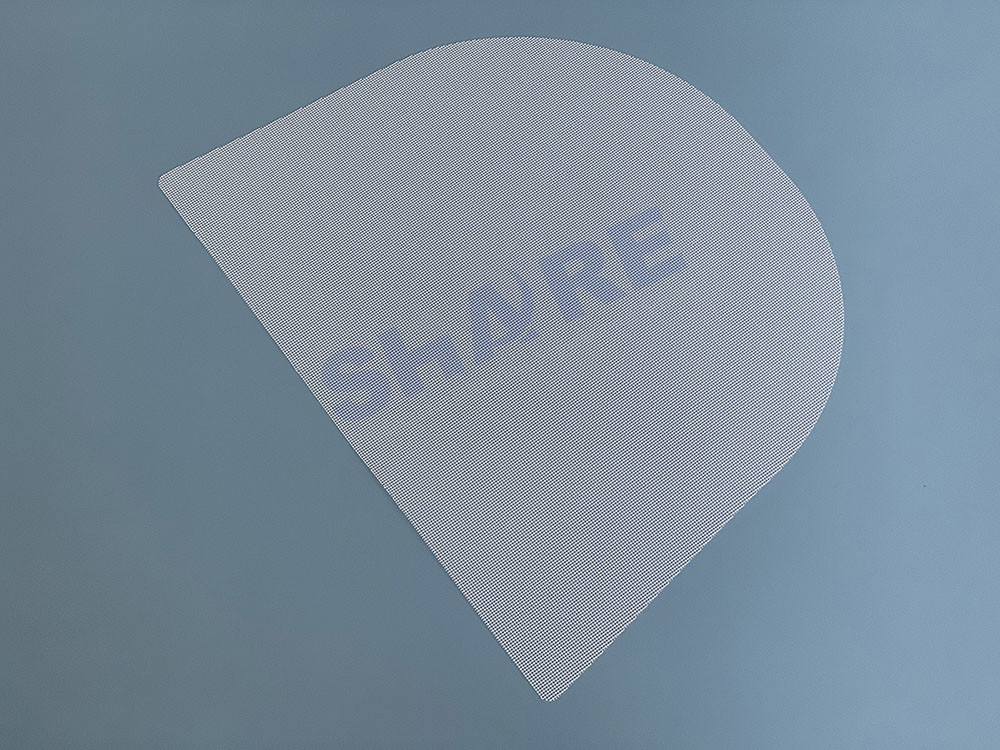

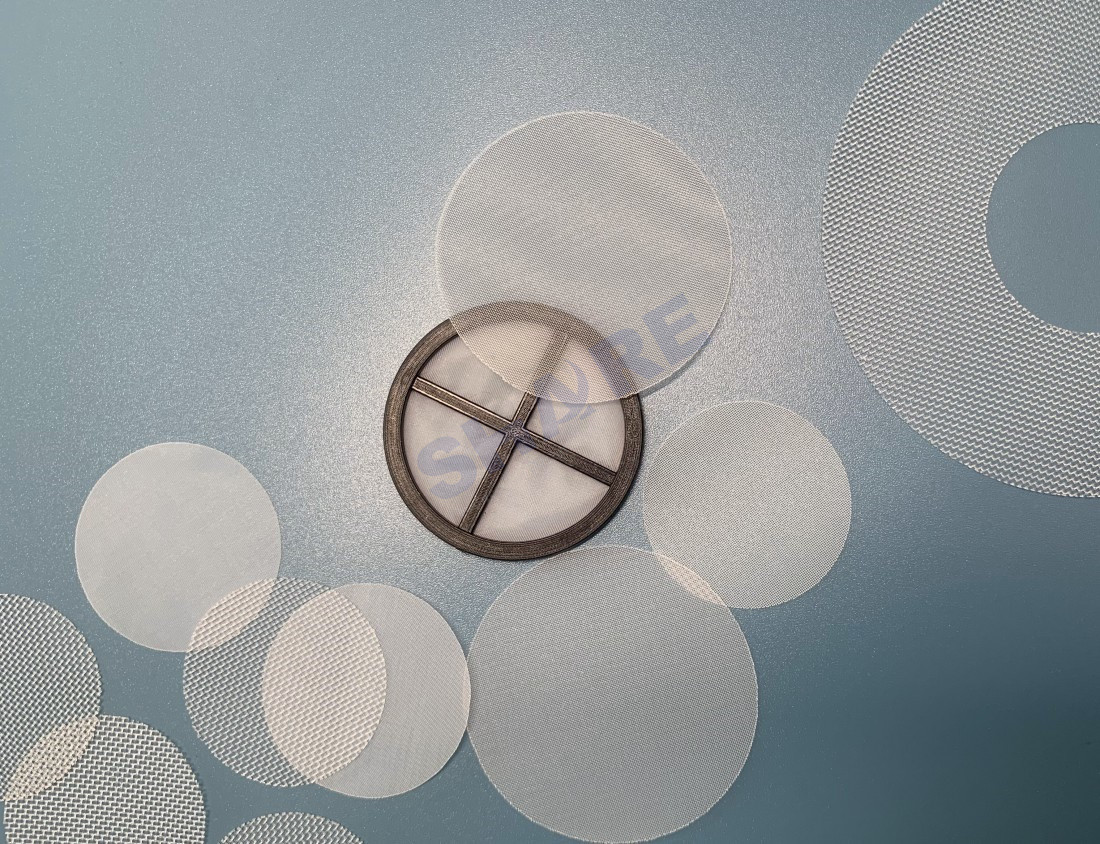

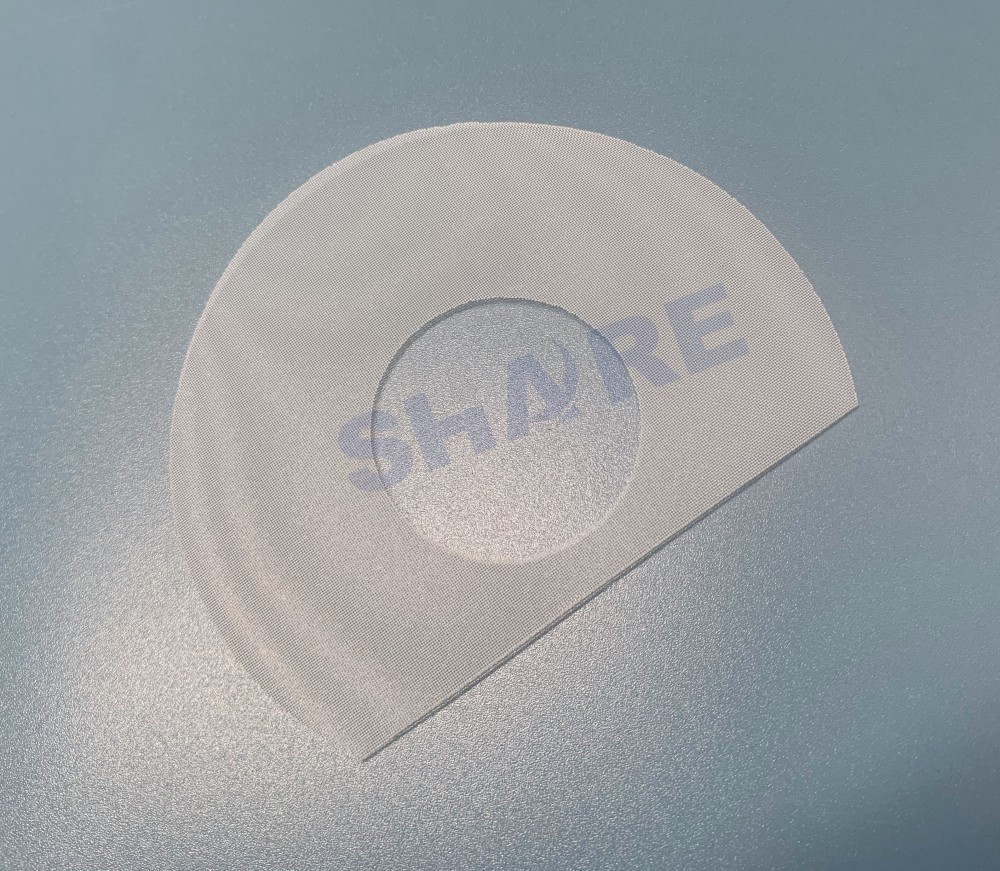

150 Mesh 110 Micron Nylon Filter Mesh Cut In Custom Specific Shapes Discs
Share Filters supplies a variety of different specifications of filter meshes. These materials range include nylon mesh, polyester mesh, polypropylene, filter felt and stainless mesh. These fabrics can be made to order and supplied in the form of rolls and ribbons, pre-cut shapes, molded parts, filter bags, tape and dispenser products.
The Benefits of Nylon Filter Mesh Cutted Shapes From Share Filters
Share Filters' Filter Mesh Options for Custom Pre-cut Shapes
Material | Nylon mesh, polyester mesh, PP mesh, stainless steel mesh |
Mesh Opening | From 3 micron to 3233 micron |
Thread Diameter | From 30 micron to 1000 micron |
Open Area | From 3% to 60% |
Weave Type | Plain Weave |
After Treatment | Washing, Heat-setting, Calendaring, Water-repellent, etc |
Dimension | Can cut in custom specific dimension and shape |
Colour | White, or customize |
Filter Meshes Cut To Size
When you need meshes to be handled with care, you need a professional company that will provide the high standard and efficiency to get the pre-cut products within your time frame as well as providing the level of quality you would expect. Share Filters can provide a great range of cutting methods and a wealth of experience in the industry, which makes them the only choice when you want these things to be fulfilled.
We can cut any size filter mesh to any other size, whilst precisely cutting the filter mesh to meet any requirements or design you may have. You can also consult us regarding the design and we can help you decided the most efficient way and the best methods of cutting to make sure you get the high quality filter mesh parts.
Fabric number |
Mesh count | Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
JPP2 | 2.3 | 6 | 1000 | 3233 | 58.3 | 1900 | 412 |
JPP3 | 3.1 | 8 | 900 | 2300 | 51.3 | 1700 | 450 |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
JPP12 | 12 | 30 | 300 | 533 | 41 | 585 | 234 |
JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
JPP16 | 16 | 40 | 250 | 375 | 36 | 485 | 217 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 42 | 60 | 36 | 65 | 35 |
JPP120 | 120 | 305 | 30 | 55 | 42 | 52 | 20 |
JPP120 | 120 | 305 | 35 | 45 | 29 | 60 | 28 |
JPP120 | 120 | 305 | 38 | 42 | 25 | 67 | 35 |
JPP120 | 120 | 305 | 42 | 42 | 25 | 75 | 42 |
JPP130 | 130 | 330 | 30 | 47 | 37 | 55 | 22 |
JPP130 | 130 | 330 | 35 | 42 | 30 | 62 | 30 |
JPP130 | 130 | 330 | 38 | 40 | 26 | 74 | 36 |
JPP140 | 140 | 355 | 30 | 38 | 28 | 53 | 25 |
JPP140 | 140 | 355 | 35 | 37 | 26 | 65 | 33 |
JPP140 | 140 | 355 | 38 | 32 | 20 | 68 | 36 |
JPP145 | 145 | 368 | 38 | 30 | 19 | 64 | 40 |
JPP150 | 150 | 380 | 30 | 34 | 26 | 50 | 26 |
JPP150 | 150 | 380 | 38 | 31 | 21 | 68 | 40 |
JPP165 | 165 | 420 | 30 | 30 | 25 | 59 | 28 |
JPP165 | 165 | 420 | 38 | 25 | 15 | 75 | 42 |
JPP180 | 180 | 460 | 30 | 25 | 21 | 60 | 31 |
JPP200 | 200 | 508 | 30 | 20 | 16 | 65 | 34 |
This is just a part of specification that common used.
What We Do
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the woven filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like mesh shapes and bags to highly complex devices like custom plastic filters.
Application of Share Filters Products
![]() |
![]() |
![]() |
![]() |
![]() |
Fuel filter | Cell strainer | Air purifier filter | Coffee filter | Drip irrigation filter |
Automotive | Healthcare | Appliance | Food & Beverage | Agriculture |
Share Filters Workshops
Factory Capabilities
Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons, filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' Filtration demands.
Woven Filter Mesh
The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.
Filter Mesh Slitted in Narrow Ribbons
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for their specific projects.
