Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 200pcs | Price : | USD0.04-USD1.50/pc |
---|---|---|---|
Packaging Details : | Caron, Polybag | Delivery Time : | 1-7 days |
Payment Terms : | T/T, L/C, D/P, Western Union, PayPay | Supply Ability : | 50000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | SGS | Model Number: | 24 Mesh 860 Micron Nylon Filter Mesh Piece Discs |
Detail Information |
|||
Product Name: | 24 Mesh 860 Micron Nylon Filter Mesh Piece Discs | Keywords: | Nylon Mesh Filter Piece |
---|---|---|---|
Material: | Nylon Filter Mesh, Polyester Filter Mesh, PP Filter Mesh | Micron Rating: | 3μm-3233μm |
Thread Diameter: | 30μm-1000μm | Application: | Dough Proofer Pocket |
High Light: | Nylon Filter Mesh Piece Disc,Pocket Inlay Nylon Filter Mesh |
Product Description

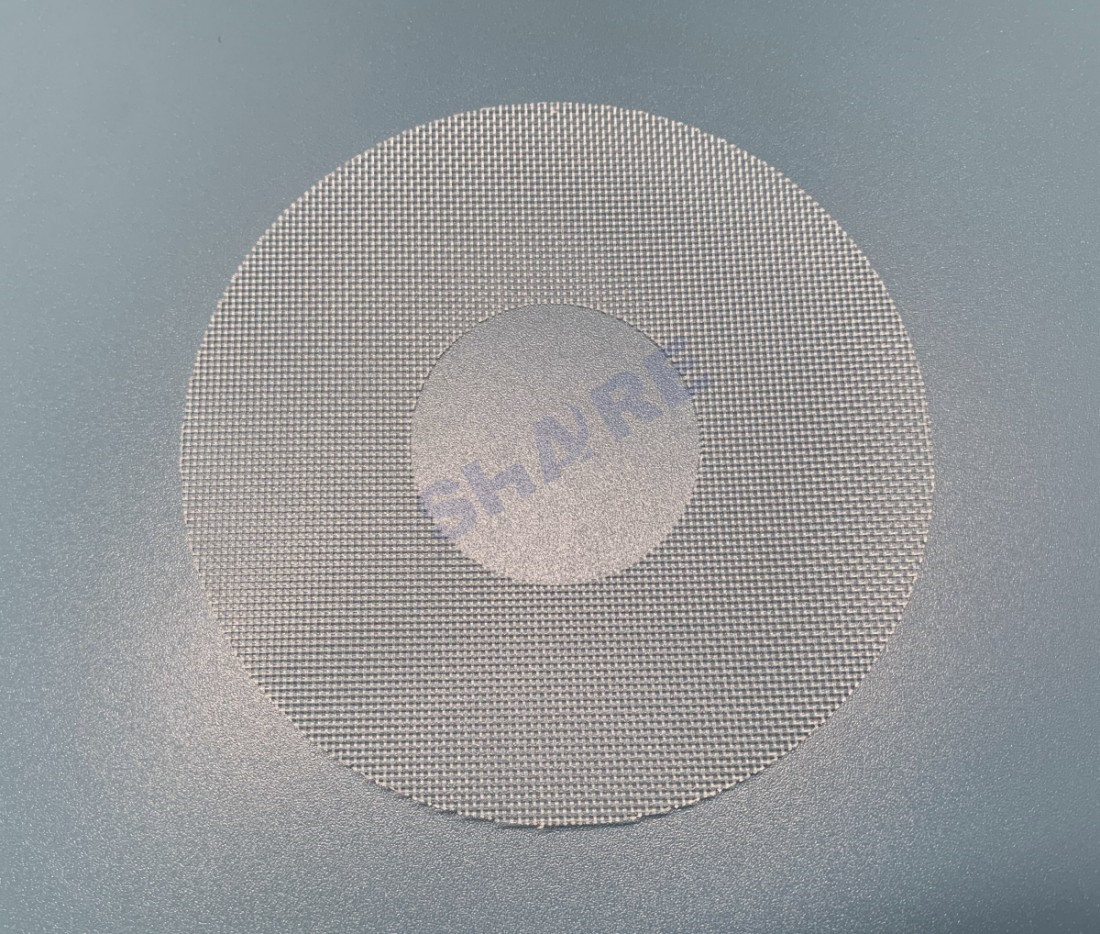

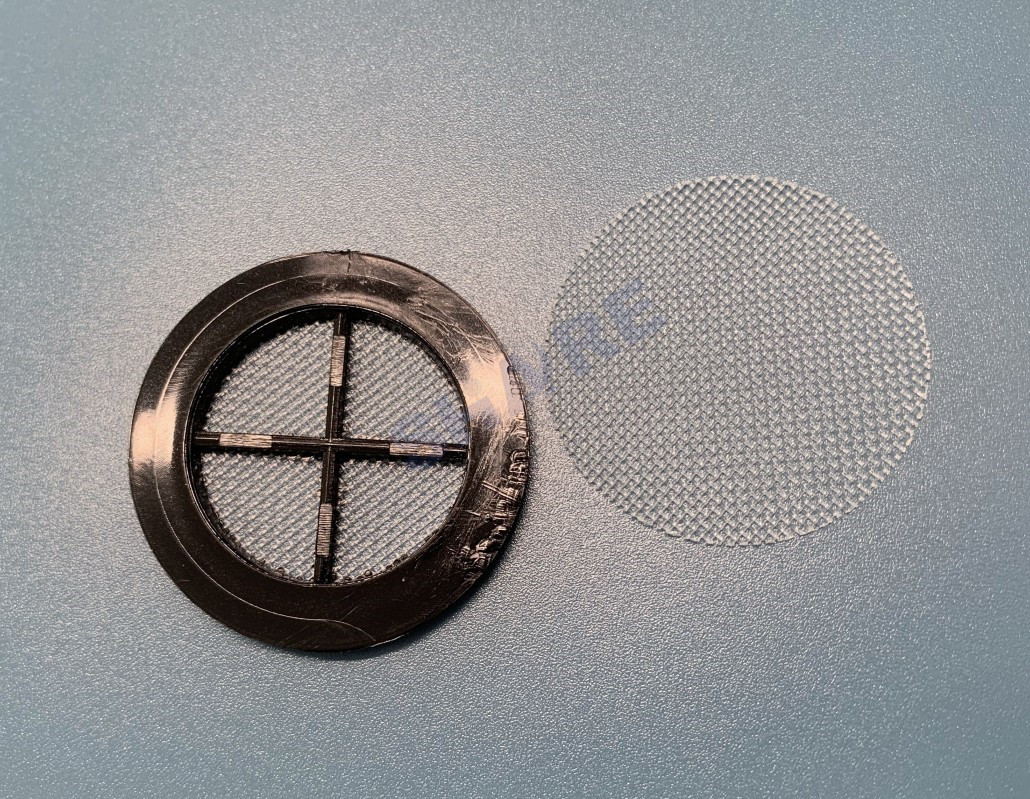

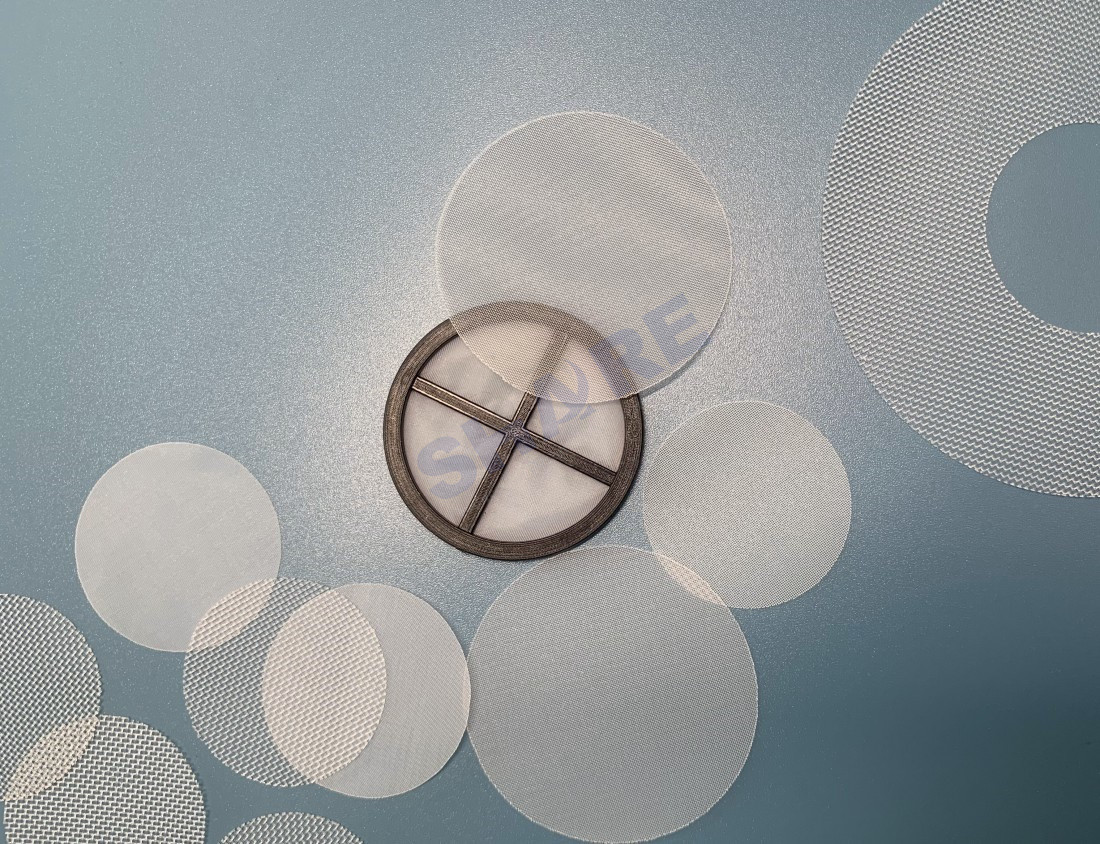

24 Mesh 860 Micron Nylon Filter Mesh Piece Discs For Dough Proofer Pocket Inlay
Share Filters provides precision filter meshes for liquid filtration, separation and sifting, with custom special-made processing machines and equipment, Share Filters is capable of heat-sealing, heat-slitting, laser cutting, cold-stamping and ultrasonic cutting filter mesh into different custom pieces shapes.
Share Filters' filter mesh pieces can be tailored to virtually any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cut parts can be also produced in multiple layers. The high-precision laser cut parts are characterized by closed edge quality. Ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality.
Share Filters Filter Mesh Options for Cutting Pieces Options
Material | Nylon mesh, polyester mesh, PP mesh, stainless steel mesh |
Mesh Opening | From 3 micron to 3233 micron |
Thread Diameter | From 30 micron to 1000 micron |
Open Area | From 3% to 58.3% |
Weave Type | Plain Weave |
After Treatment | Washing, Heat-setting, Calendaring, Water-repellent, etc |
Dimension | Can be tailored to virtually any shape or dimension |
Colour | White, or customize |
The Benefits Share Filters' Mesh Pieces:
Nylon Filter Mesh Specifications
Fabric number |
Mest count | Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
JPP2 | 2.3 | 6 | 1000 | 3233 | 58.3 | 1900 | 412 |
JPP3 | 3.1 | 8 | 900 | 2300 | 51.3 | 1700 | 450 |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
JPP12 | 12 | 30 | 300 | 533 | 41 | 585 | 234 |
JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
JPP16 | 16 | 40 | 250 | 375 | 36 | 485 | 217 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 42 | 60 | 36 | 65 | 35 |
JPP120 | 120 | 305 | 30 | 55 | 42 | 52 | 20 |
JPP120 | 120 | 305 | 35 | 45 | 29 | 60 | 28 |
JPP120 | 120 | 305 | 38 | 42 | 25 | 67 | 35 |
JPP120 | 120 | 305 | 42 | 42 | 25 | 75 | 42 |
JPP130 | 130 | 330 | 30 | 47 | 37 | 55 | 22 |
JPP130 | 130 | 330 | 35 | 42 | 30 | 62 | 30 |
JPP130 | 130 | 330 | 38 | 40 | 26 | 74 | 36 |
JPP140 | 140 | 355 | 30 | 38 | 28 | 53 | 25 |
JPP140 | 140 | 355 | 35 | 37 | 26 | 65 | 33 |
JPP140 | 140 | 355 | 38 | 32 | 20 | 68 | 36 |
JPP145 | 145 | 368 | 38 | 30 | 19 | 64 | 40 |
JPP150 | 150 | 380 | 30 | 34 | 26 | 50 | 26 |
JPP150 | 150 | 380 | 38 | 31 | 21 | 68 | 40 |
JPP165 | 165 | 420 | 30 | 30 | 25 | 59 | 28 |
JPP165 | 165 | 420 | 38 | 25 | 15 | 75 | 42 |
JPP180 | 180 | 460 | 30 | 25 | 21 | 60 | 31 |
JPP200 | 200 | 508 | 30 | 20 | 16 | 65 | 34 |
This just a part of specifications which common used.
Factory Capabilities
Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons, filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' Filtration demands.
Filter Mesh Weaving
The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.
Filter Mesh Slitted in Narrow Ribbons
Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame. Injection moulding will drop hot polymer plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.
What We Do
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like mesh pieces to highly complex devices like custom plastic filters.
Application of Share Filters Products
Fuel filter | Cell strainer | Air purifier filter | Coffee filter | Drip irrigation filter |
Automotive | Healthcare | Appliance | Food & Beverage | Agriculture |
