FDA 600 400 200 100 Micron Nylon Filter Mesh For Vegetable Oil Coarse Filtering

Minimum Order Quantity : 100m Price : USD0.20-USD4.50/meter
Packaging Details : Caron, Polybag Delivery Time : 5-30 days Depends on Qty
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 1000meters/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: FDA Nylon Filter Mesh

Detail Information

Product Name: Nylon Filter Mesh Keywords: Nylon Filter Mesh For Vegetable Oil Coarse Filtering
Material: Polyamide Monofilament Yarns Micron Rating: 100μm-600μm
Supply Type: In Rolls, Sheet, Cut Shapes, Weld Bags, Sewn Bags Dimension: Custom Made
High Light:

Nylon Filter Mesh Rolls


100 Micron Nylon Filter Mesh


Vegetable Oil Coarse Filtering Nylon Mesh

Product Description

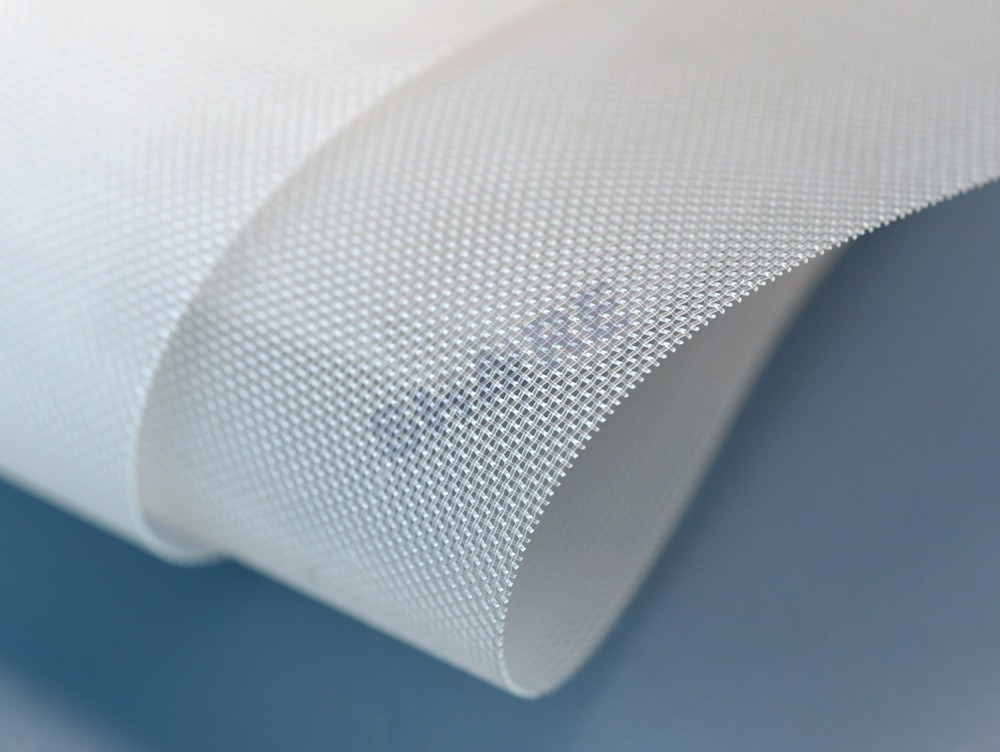

FDA 600 400 200 100 Micron Nylon Filter Mesh For Vegetable Oil Coarse Filtering


Share Filters Nylon filter mesh is commonly applied in various industries, including the food industry filtration. When it comes to vegetable oil production, nylon filter mesh can be utilized for filtering and straining the oil during different stages of processing especiallly the coarse filtering.

Nylon filter mesh offers several advantages for vegetable oil filtration:


Food Grade: Nylon filter mesh is FDA certificate that safe to directly contact with food.


Efficient Filtration: Nylon mesh has a fine and uniform pore size, allowing it to effectively remove impurities, particles, and sediments from the vegetable oil. It helps achieve a clear and clean final product.


Compatibility: Nylon is compatible with vegetable oil and does not react with the oil, altering its taste or quality. It provides a neutral filtration medium, allowing the oil's natural properties to remain intact.


Durability: Nylon is a strong and durable material, resistant to chemicals and oils. It can withstand the pressure and stress of the filtration process without breaking or deforming easily.


Easy Cleaning: Nylon filter mesh can be easily cleaned and reused, making it a cost-effective option for continuous filtration operations. Proper cleaning and maintenance ensure optimal performance and longevity.


nylon filter mesh


nylon filter mesh for vegetable oil filtration


FDA 600 400 200 100 Micron Nylon Filter Mesh For Vegetable Oil Coarse Filtering 2



Nylon Filter Mesh Specification Options for Vegetable Oil Filtration


Yarn Monofilament (Single Filament)
Yarn Diameter From 60 micron to 300 micron
Mesh Opening From 100 micron to 600 micron
Open Area From 37% to 49%
Weave Type Plain Weave, Twill Weave and Satin Weave
Treatment Washing, Heat-setting, Calendaring, Water-repellent, ect
Size Can slit or cut in custom dimension
Colour White, or customize



Nylon Filter Mesh Construction


FDA 600 400 200 100 Micron Nylon Filter Mesh For Vegetable Oil Coarse Filtering 3


Mesh count (n/cm), (n/in)

The mesh count stands for the number of openings per inch.


Mesh opening (w), (μm)

The mesh opening w is the distance between two adjacent warp or weft thread.


Thread diameter (d),( μm)

The thread diameter is measured on the thread before weaving.


Open area (%)

The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area





Production Process of Filter Mesh

filter mesh production process



Factory Capabilities


Share Filters can offer the filter mesh in different materials including nylon mesh, polyester mesh, pp mesh,

metallic mesh, and we can convert these filter meshes to filter mesh ribbons, shapes, filter mesh tubes,

filter mesh bags and mesh insert plastic molded filters to meet customs' Filtration demands.



Filter Mesh in Rolls

filter mesh

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or

other custom width.

Length can be 30m, 50m, 70m, or other custom length.



Filter Mesh in Ribbons

nylon filter mesh narrow strip
Share Filters ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with
very little material build up at the edge.
Filter Mesh in Cut Shapes.
filter mesh disc
Our cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting
using custom made tools that will not damage the materials. Custom size.
Filter Mesh Welded In Tubes
filter mesh tube
filter mesh tube
Sonic welding are accurate, clean. Lapping welding strength to some degree.
Custom Filter Mesh Bags
mesh filter bag
felt filter bag
For liquid processing filtration operations, Share Filters has standard filter bags with galvanized steel
or plastic rings, which are sewn or welded, made of regenerable monofilament filter cloth from 3 micron to
2000 microns or felt from 0.5 microns to 200 microns. Custom bag is also accepted.
Mesh Insert Plastic Injection Molded Filters
FDA 600 400 200 100 Micron Nylon Filter Mesh For Vegetable Oil Coarse Filtering 12
Our injection moulded filters products consist of a synthetic filter mesh held in a polymer plastic frame,
allowing for a more robust part/product giving more reliability and longevity in its use.

About Us

Share Filters has over 20 years of experience developing and manufacturing filter mesh and custom product solutions

for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including

slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries

– Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory,  Electronical

as well as more general engineering, giving us a wealth of experience in many areas.



Share Filters Products Application


automotive filter healthcare filter appliance filter food beverage filter environment filter
Automotive Healthcare Appliance Food & Beverage Environment
