25 100 Micron Washable Nylon Filter Mesh Inbuilt In Drinking Water Sediment Filter

Minimum Order Quantity : 50m Price : USD0.20-USD3.5/meter
Packaging Details : Caron, Polybag Delivery Time : 5-30 days Depends on Qty
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 1000meters/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Nylon Filter Mesh

Detail Information

Product Name: Nylon Filter Mesh Keywords: Nylon Filter Mesh For Drinking Water Sediment Filter
Material: Polyamide Monofilament Yarns Micron Rating: 25μm-100μm
Type: In Rolls, Sheet, Cut Shapes, Weld Bags, Sewn Bags, Mesh Insert Injection Size: Custom Size
High Light:

Drinking Water Sediment Nylon Filter Mesh

,

Washable Nylon Filter Mesh

,

100 Micron Nylon Filter Cloth Mesh

Product Description



Washable Nylon Filter Mesh 25 100 Micron Inbuilt In Drinking Water Sediment Filter



The washable net water filter cartridge fitting standard water filter housings is manufactured using 100% pure non toxic polypropylene with inbuilt washable nylon filter mesh. The reusable Nylon filter mesh can filter visible particles such as sand, rust, mud, suspended solids and any other floating particles from the water up to 100 micron.



Nylon Filter Mesh Specification Options for Drinking Water Pre-filtration



Yarn Monofilament (Single Filament), Multi-filament
Yarn Diameter From 30 micron to 600 micron
Mesh Opening From 3 micron to 2000 micron
Open Area From 10% to 60%
Weave Type Plain Weave, Twill Weave and Satin Weave
Treatment Washing, Heat-setting, Calendaring, Water-repellent
Size Can slit or cut in custom dimension
Colour

White, or customize

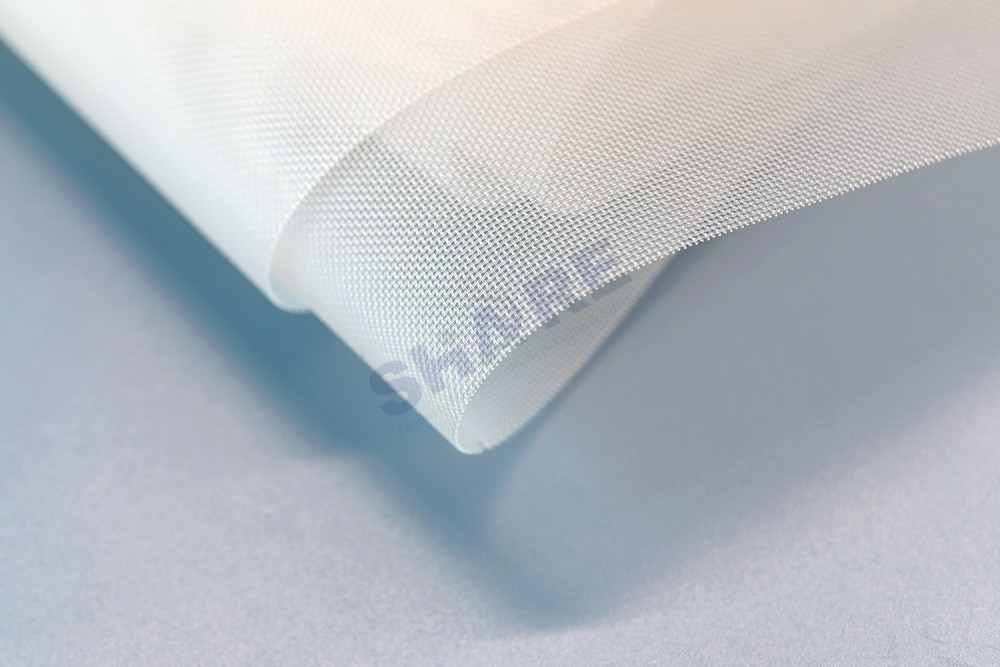

nylon filter mesh nylon filter mesh inbuilt in sediment filter





The Benefit Features of Nylon Filter Mesh:

High tensile strength
Precise and even mesh opening
Light weight
Elasticity and flexibility
Good resistance to alkalis
Temperatures up to 100°C
Hydrophilic
Soft, smooth feeling
Easy cutting, dyeing, and cleaning

25 100 Micron Washable Nylon Filter Mesh Inbuilt In Drinking Water Sediment Filter 2


Nylon Filter Mesh Product Datasheet for Drinking Water Filtration

Ref. No. Mesh Count Thread Diam. Mesh Opening Opening Area
  mesh/cm mesh/inch µm µm %
JPP30 30 76 120 213 41
JPP32 32 80 100 213 46
JPP36 36 90 100 178 41
JPP40 40 100 100 150 36
JPP43 43 110 80 152 43
JPP48 48 120 80 130 38
JPP56 56 140 60 120 44
JPP59 59 150 60 110 42
JPP64 64 160 60 100 37
JPP72 72 180 50 90 41
JPP80 80 200 50 75 36
JPP100 100 250 40 60 36
JPP120 120 305 40 43 25
JPP130 130 330 40 37 23
JPP140 140 355 30 38 33.7
JPP150 150 381 30 34 30.25
JPP165 165 420 30 28 20.7
JPP180 180 460 30 25 19.5


How to select the filter mesh?

The nylon mesh, polyester mesh, pp mesh have unique properties and costs, directly related to their performance. It is important to define the conditions in which the filter mesh will be used and its expected performance to best meet the environmental and economic demands of your specific industrial filtration application. You can follow these points.
  • Mesh size or the size of the particle you need to filter
  • Mesh material (consider the working condition)
  • Mesh thread diameter, Mesh thickness
  • Opening area



Factory Capabilities



 Our in-house capabilities include enhanced processing such as slitting, punching, cutting, tubing, dyeing, injection molding

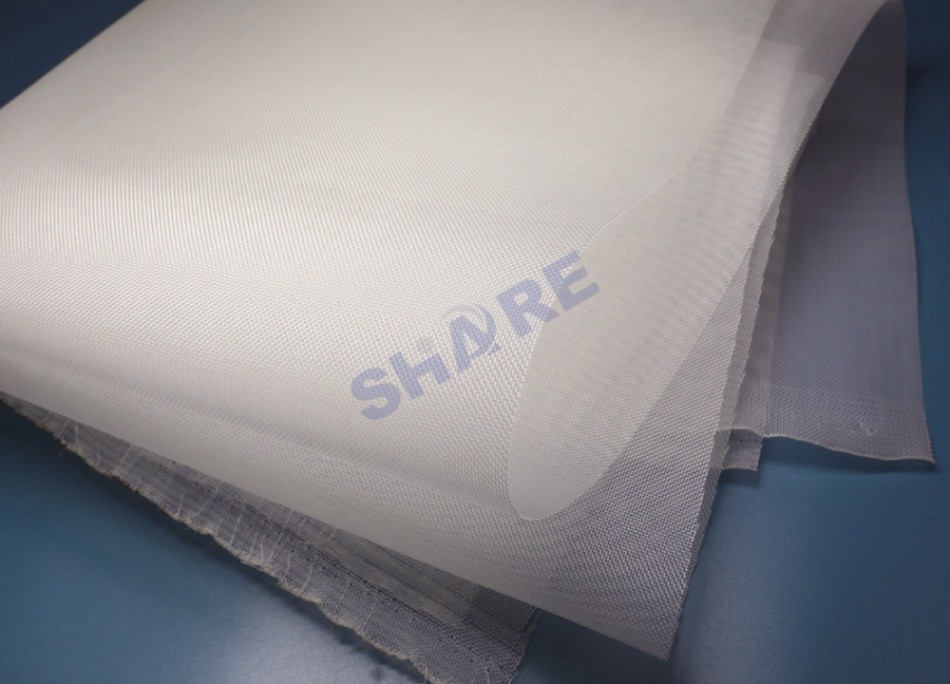

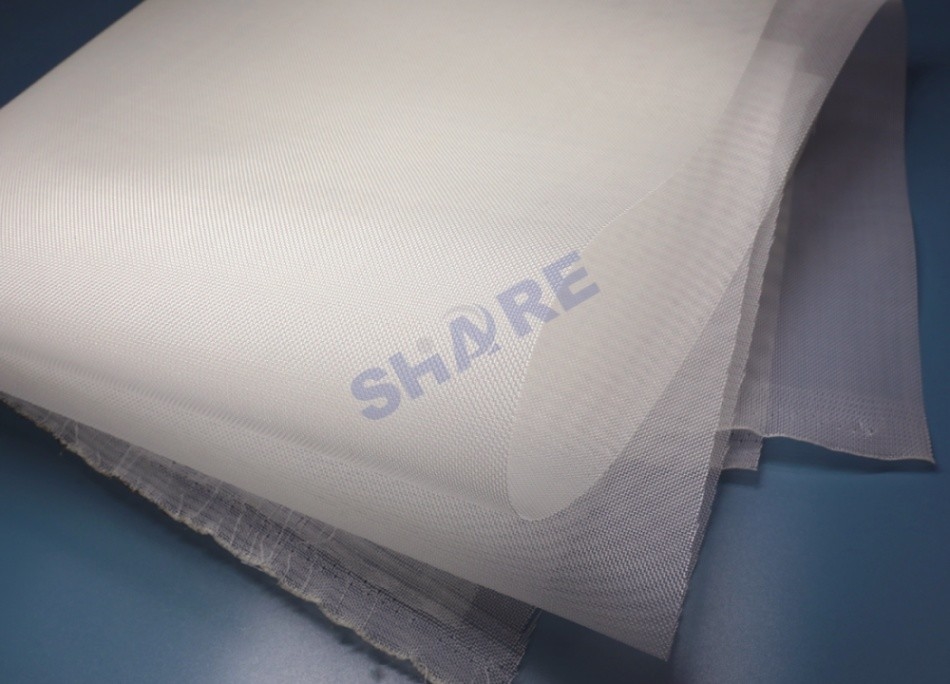

filter mesh filter mesh ribbon mesh cut shapes
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shapes. Ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge. Our cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Stamping. Professional cutting using custom made tools that will not damage the materials.

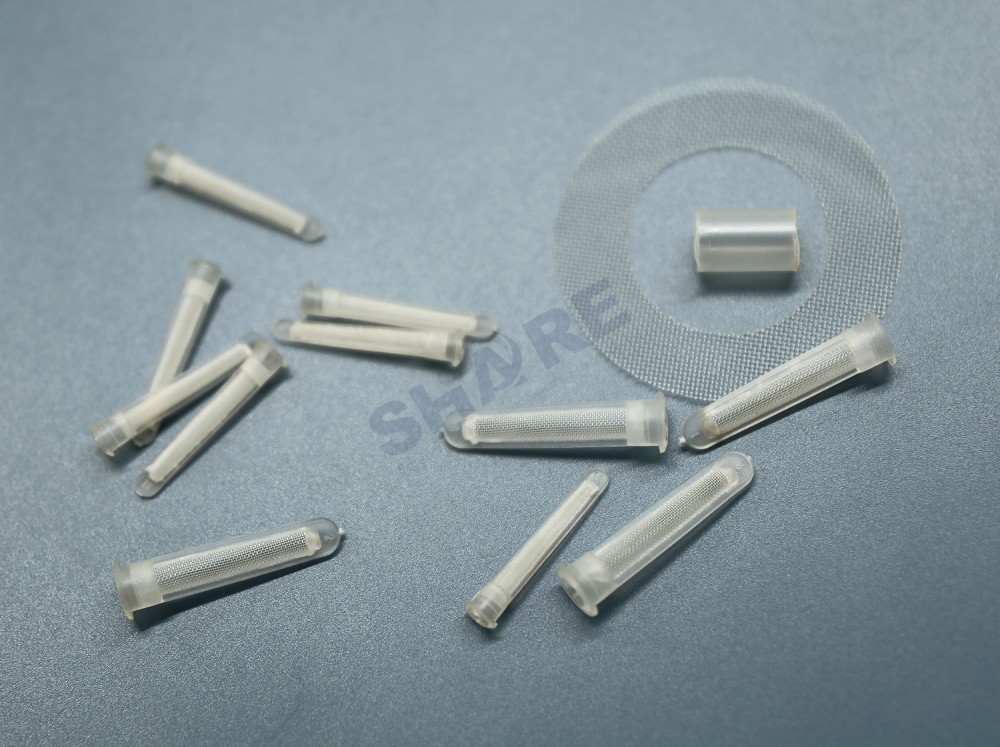

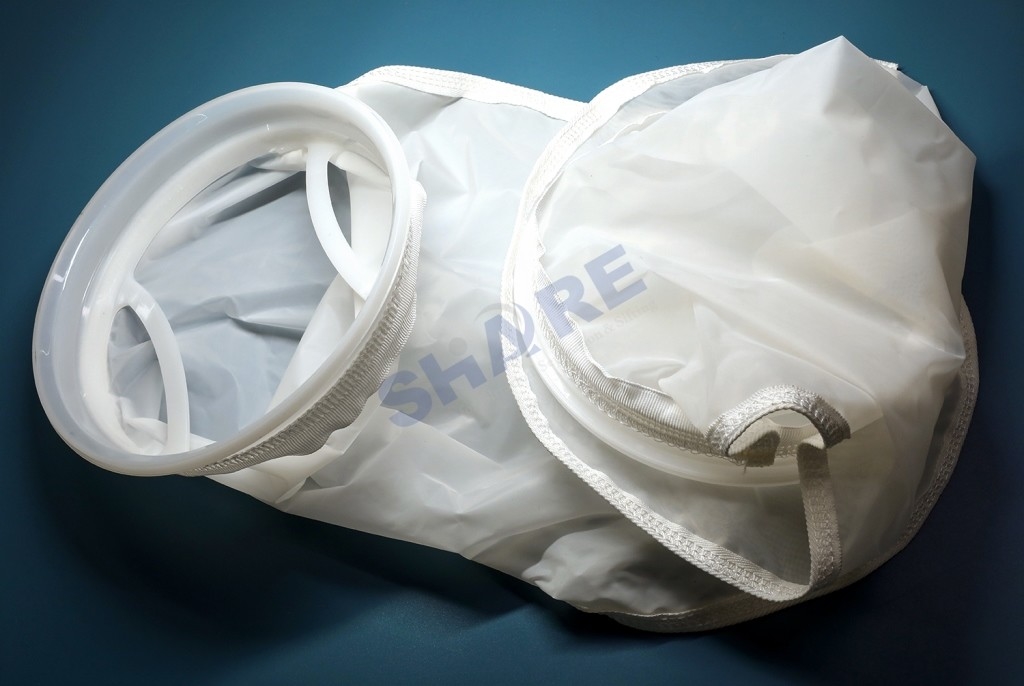

sonic welding filter mesh sewn filter mesh bag plastic molded filter
Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.





Why Choose Share Filters ?



Selecting the right filter media and opening aperture for separation, purification, filtration, screening and sieving is a vital processing stage and the key to success. Share Filters' customer base comes from a wide variety of industries including Automotive, Home appliances, Food and beverage, Chemicals,  Milling, Medical, Life Science and laboratory, as well as Electronical, giving us a wealth of filtration experience in many areas.





Industry Service



25 100 Micron Washable Nylon Filter Mesh Inbuilt In Drinking Water Sediment Filter 9 25 100 Micron Washable Nylon Filter Mesh Inbuilt In Drinking Water Sediment Filter 10 25 100 Micron Washable Nylon Filter Mesh Inbuilt In Drinking Water Sediment Filter 11 25 100 Micron Washable Nylon Filter Mesh Inbuilt In Drinking Water Sediment Filter 12 25 100 Micron Washable Nylon Filter Mesh Inbuilt In Drinking Water Sediment Filter 13 25 100 Micron Washable Nylon Filter Mesh Inbuilt In Drinking Water Sediment Filter 14
Automotive Appliance Medical Food & Beverage Chemical Environmental
