120 Micron Nylon Filter Mesh For Grape Wine Filtration Food Grade Fabric

Minimum Order Quantity : 50m Price : USD0.20-USD3.5/meter
Packaging Details : Caron, Polybag Delivery Time : 5-30 days Depends on Qty
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 1000meters/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Nylon Filter Mesh

Detail Information

Product Name: Nylon Filter Mesh Keywords: Nylon Filter Mesh For Grape Wine Filtration
Material: Polyamide Monofilament Yarns Micron Rating: 3μm-1500μm
Supply Type: In Rolls, Sheet, Cut Shapes, Weld Bags, Sewn Bags Size: Custom
High Light:

Monofilament Nylon Filter Mesh


120 Micron Nylon Filter Mesh


Food Grade Nylon Mesh Filter Fabric

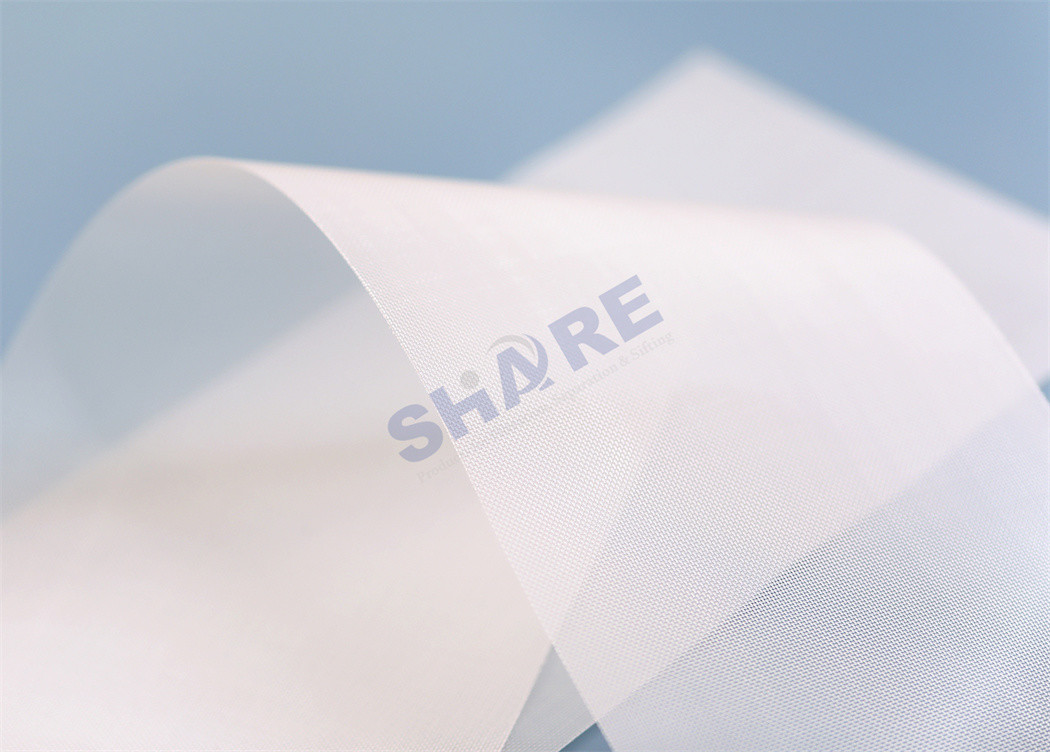

Product Description


120 Micron Nylon Filter Mesh For Grape Wine Filtration Food Grade Fabric


Share Filters' fine nylon filter mesh is made from strong PA6 yarn, it is ideal for pulping grapes and straining off the seeds and stems. It is abrasion resistance and it’s material will not be torn or absorb too much juice. Made of synthetic yarn means that it dries faster. It's safe for food contact as the nylon is food grade. The abrasion resistance make It is reusable.




Nylon Mesh Construction


120 Micron Nylon Filter Mesh For Grape Wine Filtration Food Grade Fabric 0


Mesh count (n/cm), (n/in)

The mesh count stands for the number of openings per inch.


Mesh opening (w), (μm)

The mesh opening w is the distance between two adjacent warp or weft thread.


Thread diameter (d),( μm)

The thread diameter is measured on the thread before weaving.


Open area (%)

The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area



nylon filter mesh



Nylon Filter Mesh Specification Options


Yarn Monofilament (Single Filament), Multi-filament
Yarn Diameter From 30 micron to 600 micron
Mesh Opening From 3 micron to 2000 micron
Open Area From 10% to 60%
Weave Type Plain Weave, Twill Weave and Satin Weave
Treatment Washing, Heat-setting, Calendaring, Water-repellent
Size Can slit or cut in custom dimension
Colour White, or customize



The Benefit Features of Nylon Filter Mesh:
120 Micron Nylon Filter Mesh For Grape Wine Filtration Food Grade Fabric 2
High tensile strength
Precise and even mesh opening
Food grade
Elasticity and flexibility
Good resistance to alkalis
Temperatures up to 100°C


Soft, smooth feeling
Easy cutting, dyeing, and cleaning



Factory Capabilities


We're a trusted manufacturer of precision filter mesh, filter mesh components and mesh insert injection-molded

 filters. There are many ways to make a filtration product. Share Filter can offer the filter mesh in different

materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can convert the filter

mesh to filter mesh ribbons, filter mesh tubes, filter mesh bags and mesh insert plastic molded filters

 to meet customs' wine Filtration demands.

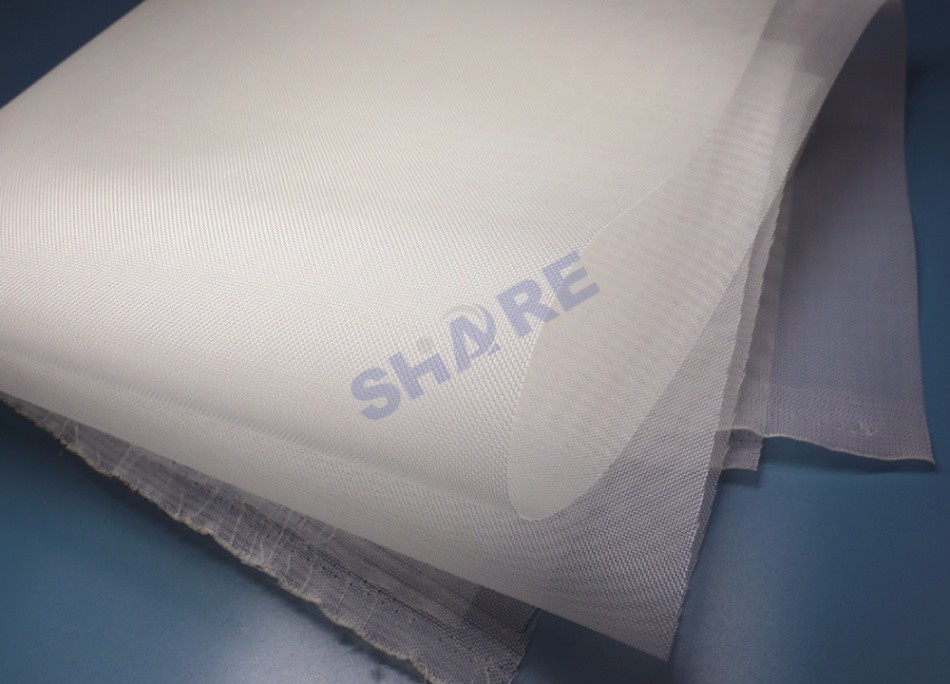

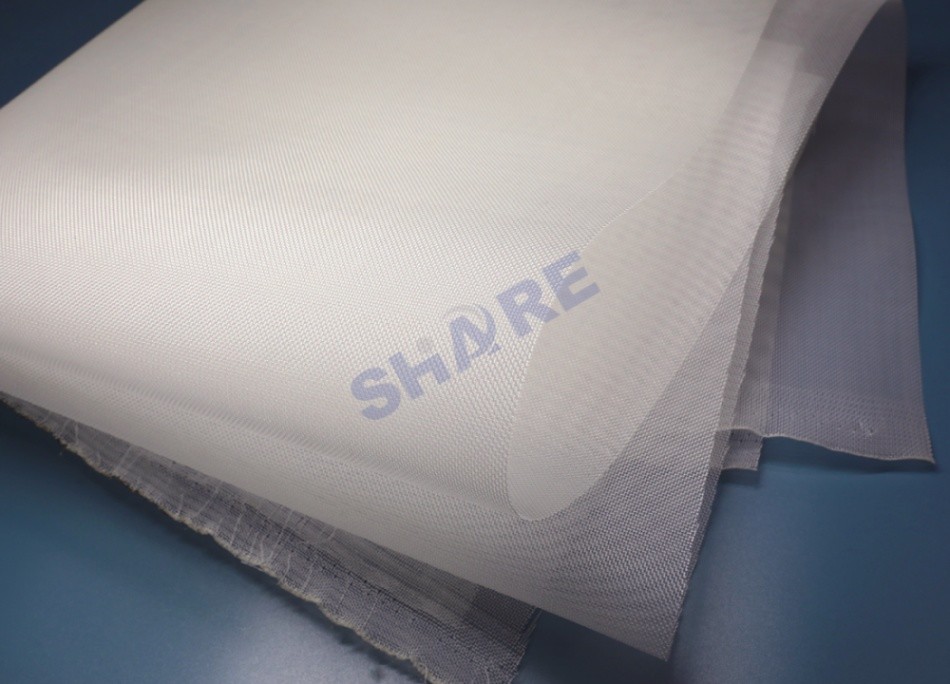

Filter Mesh in Rolls

nylon filter mesh

The width of nylon filter mesh rolls can be in 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or

other custom width.

Length can be 30m, 50m, 70m, or other custom length.



Filter Mesh in Narrow Strips

nylon filter mesh narrow strip
Share Filters ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with
very little material build up at the edge.
Filter Mesh in Cut Shapes.
nylon filter mesh shapes
Our cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting
using custom made tools that will not damage the materials.
Filter Mesh In Tubes
120 Micron Nylon Filter Mesh For Grape Wine Filtration Food Grade Fabric 6
filter mesh tube
Sonic welding are accurate, clean. Lapping welding strength to some degree.

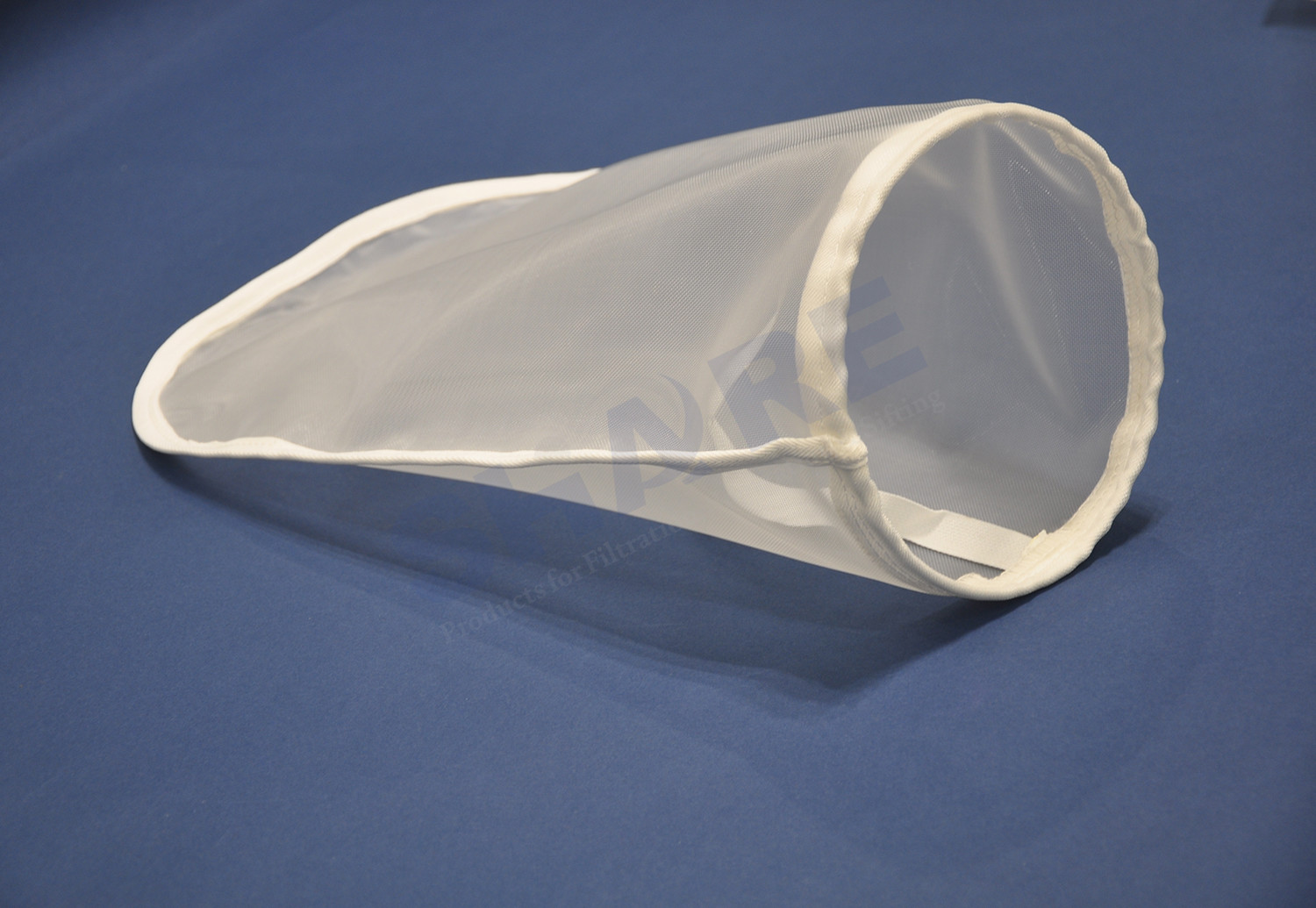

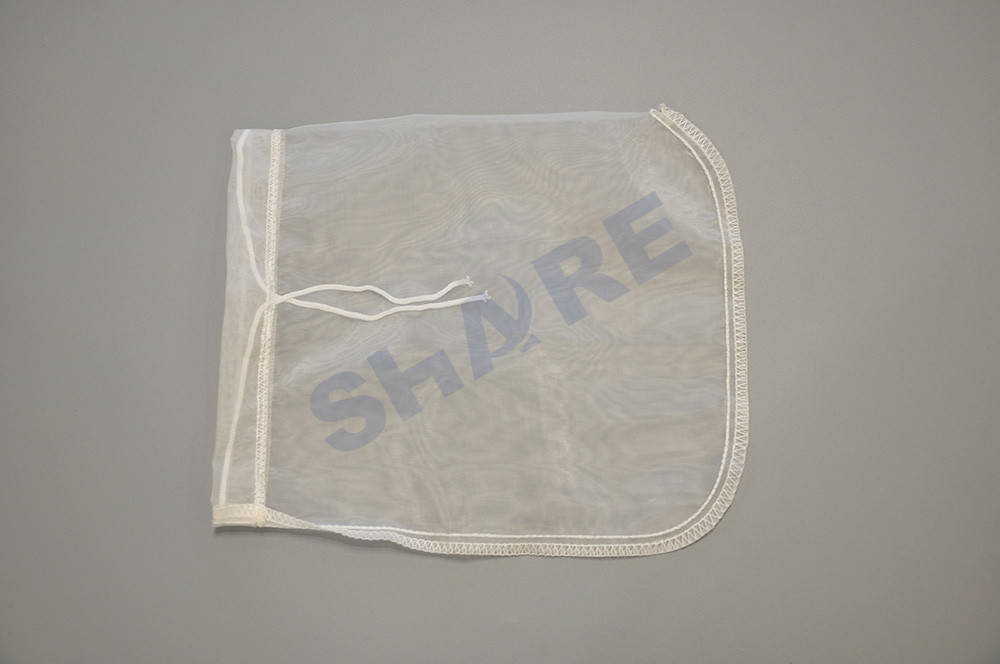

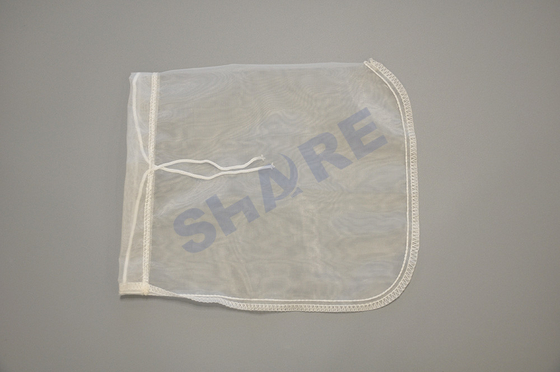

Custom Filter Mesh Bags
mesh filter bag
For liquid food processing filtration operations, Share Filters has standard filter bags with galvanized steel
or plastic rings, which are sewn or welded, made of regenerable monofilament filter cloth from 3 micron to
2000 microns or felt from 0.5 microns to 200 microns.
Mesh Insert Plastic Injection Molded Filters
120 Micron Nylon Filter Mesh For Grape Wine Filtration Food Grade Fabric 9
Our injection moulded filters products consist of a synthetic filter mesh held in a polymer plastic frame,
allowing for a more robust part/product giving more reliability and longevity in its use.

About Us

Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions

for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including

slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries

including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory,

Electronical as well as more general engineering, giving us a wealth of experience in many areas.


filter mesh production process



Share Filters Products Application


automotive filter healthcare filter appliance filter food beverage filter environment filter Chemical filter
Automotive Healthcare Appliance Food & Beverage Environment Chemical
