FDA Nylon Filter Mesh For Food Processing Filtration Eliminating Particles

Minimum Order Quantity : 50m Price : USD0.20-USD3.5/meter
Packaging Details : Caron, Polybag Delivery Time : 5-30 days Depends on Qty
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 1000meters/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Nylon Filter Mesh

Detail Information

Product Name: Nylon Filter Mesh Keywords: Nylon Filter Mesh For Food Processing Filtration
Material: Polyamide Monofilament Yarns Micron Rating: 3μm-1500μm
Type: In Rolls, Sheet, Cut Shapes, Weld Bags, Sewn Bags Size: Custom
High Light:

FDA Nylon Filter Mesh


Eliminating Particles Nylon Filter Mesh


Food Filtration Micron Nylon Mesh

Product Description


FDA Nylon Filter Mesh For Food Processing Filtration Eliminating Particles


Share Filters' nylon filter meshes are widely used in the agri-food industry. Filtration plays a vital role in maintaining food processing equipment that involves the use of specialized filters to ensure the quality and longevity of food and beverages. It encompasses the removal of unwanted particles from various liquid substances, ranging from thin liquids like water to thicker substances like honey, dough, sauces, chocolate, compotes, jams, and surimi.


This filtration procedure is a vital and intricate operation that requires careful handling due to the varying viscosities of different food products. Its objective is to maintain the purity, freshness, and extended shelf life of these consumables, contributing significantly to the overall maintenance of food processing equipment.



nylon filter mesh
The Benefit Features of Nylon Filter Mesh:
High tensile strength
Precise and even mesh opening
Light weight
Elasticity and flexibility
Good resistance to alkalis
Temperatures up to 100°C
Soft, smooth feeling
Easy cutting, dyeing, and cleaning



Nylon Filter Mesh Specification Options


Yarn Monofilament (Single Filament), Multi-filament
Yarn Diameter From 38 micron to 600 micron
Mesh Opening From 3 micron to 2000 micron
Open Area From 10% to 60%
Weave Type Plain Weave, Twill Weave and Satin Weave

Washing, Heat-setting, Calendaring, Water-repellent

Size  Can slit or cut in custom dimension



We're a trusted provider of precision filter mesh, filter mesh components and mesh insert injection-molded filters

for critical practices. There are many ways to make a filtration product. Share Filter Can Offer the Nylon Filter

Mesh in Different Types to meet customs' Food Processing Filtration demands.


Nylon Filter Mesh in Rolls

nylon filter mesh

The width of nylon filter mesh rolls can be in 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or

other custom width.

Length can be 30m, 50m, 70m, or other custom length.



Nylon Filter Mesh in Narrow Strips

nylon filter mesh narrow strip
Share Filters ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with
very little material build up at the edge.
Nylon Filter Mesh in Cutted Shapes.
nylon filter mesh shapes
Our cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting
using custom made tools that will not damage the materials.
Nylon Filter Mesh In Tubes
FDA Nylon Filter Mesh For Food Processing Filtration Eliminating Particles 4
filter mesh tube
Sonic welding are accurate, clean. Lapping welding strength to some degree.

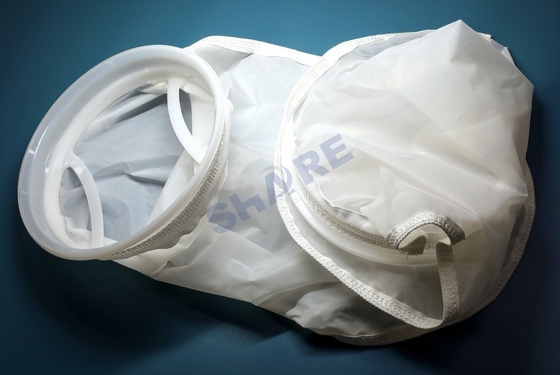

Custom Nylon Filter Mesh Bags
mesh filter bag
For liquid food processing filtration operations, Share Filters has standard filter bags with galvanized steel
or plastic rings, which are sewn or welded, made of regenerable monofilament filter cloth from 3 micron to
2000 microns or felt from 0.5 microns to 200 microns.
Mesh Insert Plastic Injection Molded Filters
paint spray filter
Our injection moulded filters products consist of a synthetic filter mesh held in a polymer plastic frame,
allowing for a more robust part/product giving more reliability and longevity in its use.

About Us

Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions

for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including

slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries

including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory,

Electronical as well as more general engineering, giving us a wealth of experience in many areas.


nylon mesh production process
