Name: Micron Rated Liquid Mesh Filter Bags Industrial Process Technologies
Brand: Share Group Limited
Price: 249.05 USD
Availability: InStock

Contact Person : Eric Xiang

Phone Number : +86-18658318635

WhatsApp : +8613968584834

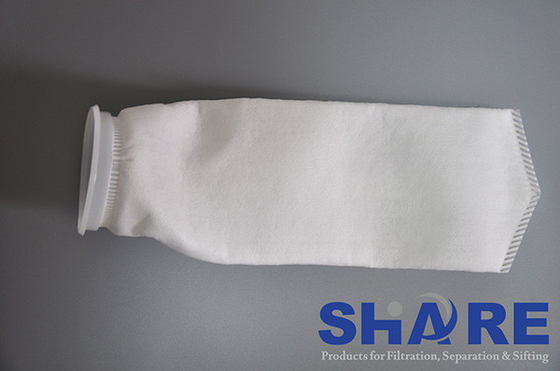

Micron Rated Liquid Mesh Filter Bags Industrial Process Technologies

Contact Now

Detail Information
Usage:	Liquid Filter	Type:	Filter Elements
Width:	Customize Size	Feature:	Corrosion Resistance
Technique:	Sintering	Business Type:	Manufacturer-18 Yeas
Highlight:	Polyester Liquid Filter Bags , 1um Liquid Mesh Filter Bags , Micron Rated Liquid Filtration Bags

Product Description

Introduction:

Micron-rated Filter Media: SHARE manufactures micron-rated filtration media in rolls for making micron-rated liquid filter bags. By using the state-of-the-art punching technique and years of producing experience, SHARE is capable of providing micron-rated filter felts from 1um to 200um at 72inches or 182cm, material available in polyester and polypropylene. After treatment: Singed or Glazed.

SHARE can also slit down the micron-rated filter felts to any widths clients might need and can punch the filter felts to different shapes. Other than slitting service, SHARE is able to product standard or non-standard liquid filter bags (see Liquid Filter Bag Page) to our clients.

Datasheet:

Item	Weight (gsm)	Thickness(mm)	Air-Perm.(m3/m2.min)	Elongation (%)
				Weft	Warp
PE-1	550	3.5	10	50	50
PE-5	400	2.5	22	60	60
PE-10	400	2.2	24	70	60
PE-25	400	2.8	35	70	70
PE-50	400	3.5	70	80	100
PE-75	400	3.5	80	80	100
PE-100	400	3.5	100	100	100
PE-200	400	3.8	100	100	110

PP-1	550	3.5	10	50	50
PP-5	400	2.5	20	60	60
PP-10	400	2.2	24	80	80
PP-25	400	3.0	35	85	85
PP-50	320	3.5	100	80	100
PP-75	320	3.5	130	80	100
PP-100	350	3.8	100	100	100
PP-200	400	3.8	130	100	110
PE-XX, XX stands for micron rating, PP-XX, XX stands for micron rating. PE is for Polyester, PP for Polypropylene.
