100 Micron Nylon Mesh Filter Bag For Water Treatment 4" Plastic Ring

Minimum Order Quantity : 100pcs Price : USD1.00 - USD6.50
Packaging Details : Caron, poly bag Delivery Time : 5-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 1000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Standard Nylon Mesh Filter Bag

Detail Information

Product Name: Standard Nylon Mesh Filter Bag For Water Treatment Keywords: Nylon Mesh Filter Bag
Top Style: Plastic Flange, Steel Ring Micron Rating: 15μm-1000μm
Seam Style: Stitching, Welding Application: Water Treatment System
High Light:

4" Plastic Ring Nylon Filter Bag

,

100 Micron Nylon Mesh Filter Bag

,

Water Treatment Nylon Mesh Filter Bag

Product Description

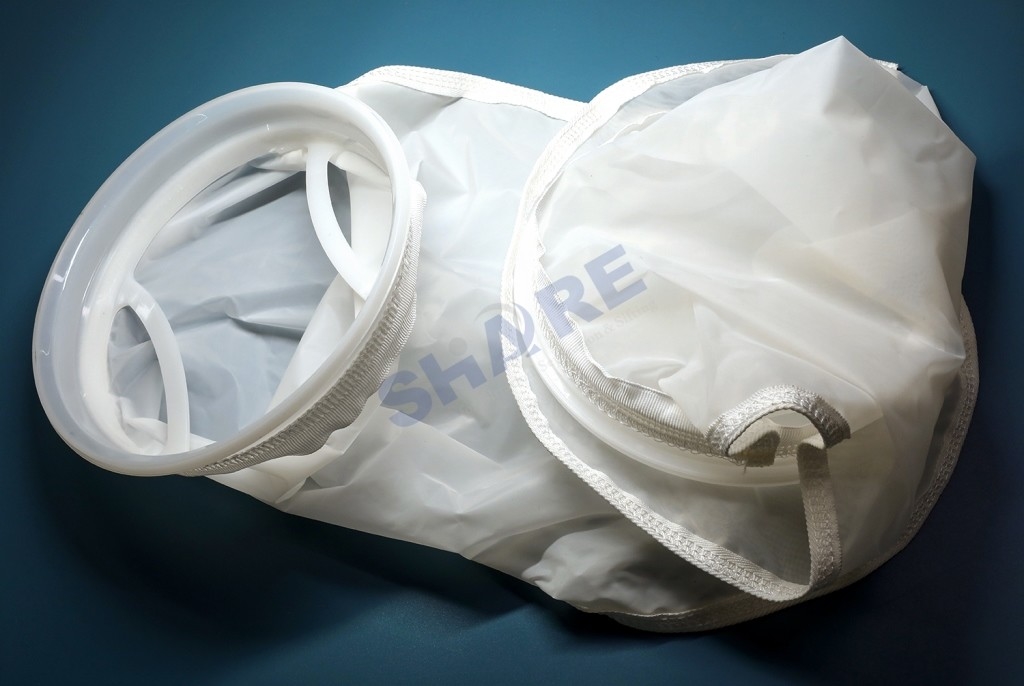

100 Micron Nylon Mesh Filter Bag For Water Treatment 4" Plastic Ring



Share Filters' Nylon Mesh filter bags are woven with monofilament nylon mesh with great precision and regular apertures, so the mesh openings are uniform and can give exact filtration. Ideal for straining, sieving or filtering most liquids, powders or sludges. The product is silicon free and the nylon material is compliant with the food filtration regulations. Our Monofilament Nylon Mesh filter bags are used in filter housing in many industries. Nylon Mesh Filter Bags come in a variety of micron ratings and efficiencies and are resistant with alkalis while sensitive to strong acids.



Nylon Mesh Filter Bag For Water Treatment

A nylon filter mesh bag can be a useful tool for water treatment and filtration applications. Nylon is known for its durability, chemical resistance, and ability to withstand high temperatures, making it suitable for various water treatment processes.



nylon mesh filter bag

nylon mesh filter bag

nylon mesh filter bag





Micron Rating Options



Product name Nylon filter mesh bags
Micron rating 16, 25, 50, 100, 150, 200, 250, 400, 600, 800,1500 micron
Continous working temperature

Max. temperature 110°C





Nylon Mesh Filter Bags Feature with:

  • Smooth Surface along with Excellent Filtration Efficiency
  • Wide chemical compatibility
  • Nylon mesh is abrasion-resistant, Great Strength and Elastic
  • Non-fiber shedding
  • Heat Setting and other finishing treatments can be chosen
  • Available in a wide variety of sizes, micron ratings (16-1500), top and bottom configurations



Size and Flow Rate



Share Filters nylon filter bags can be made in industry standard sized or custom sized to fit your filtration system. Other configurable options include seam style, handle, reverse collar, ring style such as galvanized steel, stainless steel, polypropylene, and more.



Filter Bag Dimensions Maximum Flow Rate
Size Dimension gpm m³/h
1 7 Ø x 16.5 in 178 Ø x 419 mm 80 18
2 7 Ø x 32 in 178 Ø x 813 mm 150 34
3 4 Ø x 8 in 102 Ø x 203 mm 25 6
4 4 Ø x 14 in 102 Ø x 355 mm 50 12
5 Other customer size
Maximum Operating Temperature
Monofilament Nylon 239 F° 115 C°
Monofilament Polypropylene 194 F° 100 C°
Recommended change out at a maximum differential
pressure of 25 psi / 1.72 bar





nylon mesh filter bag





The Universal Applications of Nylon Filter Mesh Bag Include:

  • Water Treatment
  • Food & Beverage
  • Agriculture
  • Petrochemical
  • Oil & Gas
  • Waste Treatment
  • Automotive
  • Processing industry
  • Chemical
  • Dyes and Resin



Nylon Filter Mesh Specification



Ref. No. Mesh Count Thread Diam. Mesh Opening Opening Area
  mesh/cm mesh/inch µm µm %
JPP5 5 12 500 1500 56
JPP6 6 16 400 1267 58
JPP7 7 18 350 1079 57
JPP8 8 20 350 900 52
JPP9 9 24 250 860 60
JPP10 10 25 300 700 49
JPP12 12 30 250 583 49
JPP12 12 30 300 533 41
JPP14 14 35 300 414 34
JPP16 16 40 200 425 46
JPP16 16 40 250 375 36
JPP20 20 50 150 350 49
JPP20 20 50 200 300 36
JPP24 24 60 150 267 41
JPP28 28 70 120 237 44
JPP30 30 76 120 213 41
JPP32 32 80 100 213 46
JPP36 36 90 100 178 41
JPP40 40 100 100 150 36
JPP43 43 110 80 152 43
JPP48 48 120 80 130 38
JPP56 56 140 60 120 44
JPP59 59 150 60 110 42
JPP64 64 160 60 100 37
JPP72 72 180 50 90 41
JPP80 80 200 50 75 36
JPP100 100 250 40 60 36
JPP120 120 305 40 43 25
JPP130 130 330 40 37 23
JPP140 140 355 30 38 33.7
JPP150 150 381 30 34 30.25
JPP165 165 420 30 28 20.7
JPP180 180 460 30 25 19.5
JPP200 200 510 30 16 10.2
