Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating

Minimum Order Quantity : 50m Price : USD5.0 - USD11.00/meter
Packaging Details : Caron, Polybag Delivery Time : 5-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 3000meter/ week
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Wowen Filter Mesh for Paint And Coating

Detail Information

Product Name: Woven Filter Mesh For Paint And Coating Material: Nylon Mesh, PET Mesh, PP Mesh, Stainless Steel
Opening Size: From 3 Micron To 4400 Micron Product Style: Mesh In Rolls, Mesh Pieces, Mesh Bags
Application: Automotive, Industrial Painting And Coating Customization: Accept
Sample: 1 Meter Of Free Sample
High Light:

Automotive Manufacturing Woven Filter Mesh

,

Coatings Woven Filter Mesh

,

Woven Filter Mesh Fabric

Product Description



Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating





There are a lot of liquid filtration processes that need to be performed, during the manufacturing of automotive, such as cars, buses or trucks. This focuses, more specifically, on the industrial filtration of process fluids. For example, coolant filtration, paint and coating filtration and waster water treatment. In the world of liquid industrial filtration and filtration technologies for the automotive sector,



Automotive paints and coatings need filtration to remove oversize pigment particles and skins of polymeric material. Share Filters not only offer nylon mesh, polyester mesh, PP mesh in rolls, but can convert these woven filter mesh in mesh ribbons, sheets, shapes, tubes, filter bags and moulded filters that cover the full range required from coarse to fine removal.





Technical Data



Product name: Woven filter mesh Material: Nylon mesh, polyester mesh, PP mesh
Application: Automotive paint and coating Micron rating: From 3 μm to 4400 μm
Dimension: Customized Open area: 1% - 77%
Supply type: Mesh in rolls, in pieces, tubes, bags Color: Customize
HS code: 5911200090 Package: Plastic bag





Product Pictures

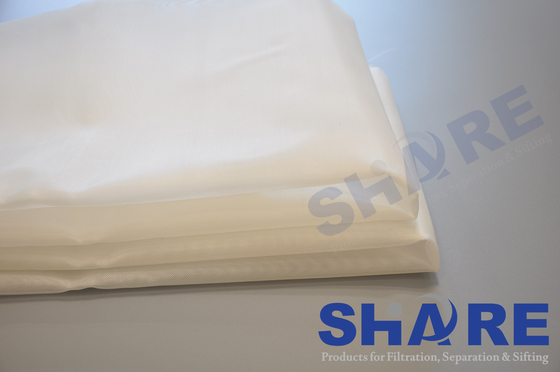

woven filter mesh nylon mesh filter bag

mesh shapes filter mesh tube moulded filter





Nylon Filter Mesh Datasheet for Paint and Coating



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
surface
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
JPP12 12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 42 60 36 65 35
JPP120 120 305 30 55 42 52 20
JPP120 120 305 35 45 29 60 28
JPP120 120 305 38 42 25 67 35
JPP120 120 305 42 42 25 75 42
JPP130 130 330 30 47 37 55 22
JPP130 130 330 35 42 30 62 30
JPP130 130 330 38 40 26 74 36



Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating 6

Mesh count (n/cm), (n/in)

The mesh count stands for the number of openings per inch.



Mesh opening (μm)

The mesh opening w is the distance between two adjacent warp or weft thread.



Thread diameter (μm)

The thread diameter is measured on the thread before weaving.



Open area (%)

The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area






What Share Filters Do?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating 7



Factory Capabilities



weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,



Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons



Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

Filter mesh slitted to be ribbons





Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating 10

Filter Mesh Pre Cut Pieces and Shapes



Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.







Filter Mesh Tubes and Tubular Ribbon



Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

nylon filter mesh weld tube ribbon




mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing



Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.


Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

    mesh filter bag




custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.



Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.






Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Automotive Laboratory Healthcare Appliance Beverage Agriculture
Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating 15 Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating 16 Transfusion filter Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating 18 Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating 19 water strainer
Fuel filter Biopsy bag Blood filter Dryer filter Coffee filter Water strainer





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!




Photos of Factory


Share Filter workshops
Warping Weaving Inspection
Multiple Ratings Woven Filter Mesh For Automotive Paint And Coating 22
Whashing Heat setting Injection moulding





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.



What's Your Payment Term ?

T/T and LC and more.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
