Plain Weave High Tension polyester screen mesh Wrinkle Resistance 30m Length

Name: Plain Weave High Tension polyester screen mesh Wrinkle Resistance 30m Length
Brand: SHARE
SKU: 33-420Mesh/Inch
Rating: 5 (120 reviews)

Minimum Order Quantity :	100M	Packaging Details :	Paper tube inside then waterproof paper packing outside, then in the pallet or wooden case or carton box
Delivery Time :	2 days to 30 days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5000m/day

Place of Origin:	Zhejiang, China	Brand Name:	SHARE
Certification:	ISO9001 SGS ROHS	Model Number:	33-420Mesh/Inch

Detail Information
Features:	Non-toxic, Odorless, Strong Wrinkle Resistance, Good Elasticity, Dimensional Stability Under Tension, Not Easily Deformed, Resistant To Sunlight, Abrasion Resistance	Certification:	SGS,ROHS,FDA,ISO
Color:	White,yellow,black,Customized Color	Weave:	Plain
Material:	100% Polyester	Width:	127cm, 165cm, 220cm, 260cm Up To 390cm
Length:	30m,50m,30-70m Per Roll, Customized	Elasticity:	Low
Tention:	High	Application:	Textile Printing, Electronic Printing, PCN, CDS, Ceramic,advertising, Plastic
High Light:	High Tension Polyester Screen Mesh , Plain Weave Polyester Screen Mesh , 30m Length Polyester Screen Mesh

Product Description

Polyester Filaments Screen Mesh Accurate Mesh High Tension Mesh

Polyester Filaments Screen Mesh is a kind of woven wire mesh that adopts different weaving methods by textile machine. Polyester screen mesh is one of the best materials for screen printing, drying and filtration in the world. Polyester mesh has high strength, corrosion resistance, good abrasion resistance, and long life.

Polyester Accurate Screen Mesh / Bolting cloth

1. Material: 100% polyester

2. Type: 6T - 165T

3. Mesh count: 15mesh to 420mesh ( Holes per inch)

4. Width: 0.6m-3.68m

5. Length: standard 30m, 50m, or cut as per your request.

6. Color: Yellow, white

Normal specifications

SHARE Monofilament Polyester Printing Mesh (Bolting Cloth)
model	mesh count	APERTURE	THREAD DIAMETER	OPENING	thickness	INK THROUGH VOLUME THEORETICALLY
model	mesh/inch	micron	micron	%	micron	cm 3 /m 2
6-400	15	1300	400	65	780-810	560
10-250	25	700	250	49	508-518	355
12-250	30	610	250	53	495-505	305
15-250	38	467	250	49	489-501	213
18-150	45	410	150	53	255-275	138
21-150	55	330	150	46	260-280	123
24-100	60	316	100	57	136-145	109
24-120	60	302	120	51	230-240	104
30-120	75	213	120	41	235-345	102
32-100	80	212	100	46	145-155	69
36-90	90	183	90	44	160-165	65
39-55	100	195	55	56	88-96	55.0
39-80	100	166	80	43	125-130	59.0
43-80	110	147	80	40.8	127-132	53
48-70	120	135	70	41	108-120	45.5
54-55	135	118	55	47	88-96	44.5
54-64	135	115	64	38.5	95-105	38.9
54-70	135	108	70	34	108-120	40
58-55	145	118	55	38	89-94	39.5
61-64	155	105	64	42	98-107	33
64-45	160	105	48	43	73-82	36.5
64-55	160	98	55	38	85-95	36.1
64-64	160	88	64	30	95-105	30.7
68-55	175	85	55	34	85-90	29
72-48	180	90	48	36	75-84	33.1
77-55	190	81	55	30	88-97	26.6
80-45	200	75	45	36	65-74	27.7
80-48	200	72	48	33	75-84	28.7
90-48	230	56	48	25	77-85	23.5
100-40	250	58	40	33	62-71	21.3
110-40	280	48	40	27	65-71	18.4
110-34	280	54	34	35.5	52-57	20.2
120-34	305	45	34	30.5	52-57	18.4
140-34	355	31	34	19.5	56-62	14.4
150-31	380	36	31	29	43-47	13.1
150-34	380	30	34	20.5	56-62	14.9
165-31	420	31	31	23	52-58	12.88
D (DENIER) =MICRON 9D=31MICRON, 12D=34MICRON, 16D=40MICRON, 22D=48MICRON, 30D=55MICRON; 40D=64MICRON, 50D=70MICRON, 60D=80MICRON, 80D=90MICRON, 100D=100MICRON Notice: Other abnormal specification can be produced if the quantity more than 3000sqm

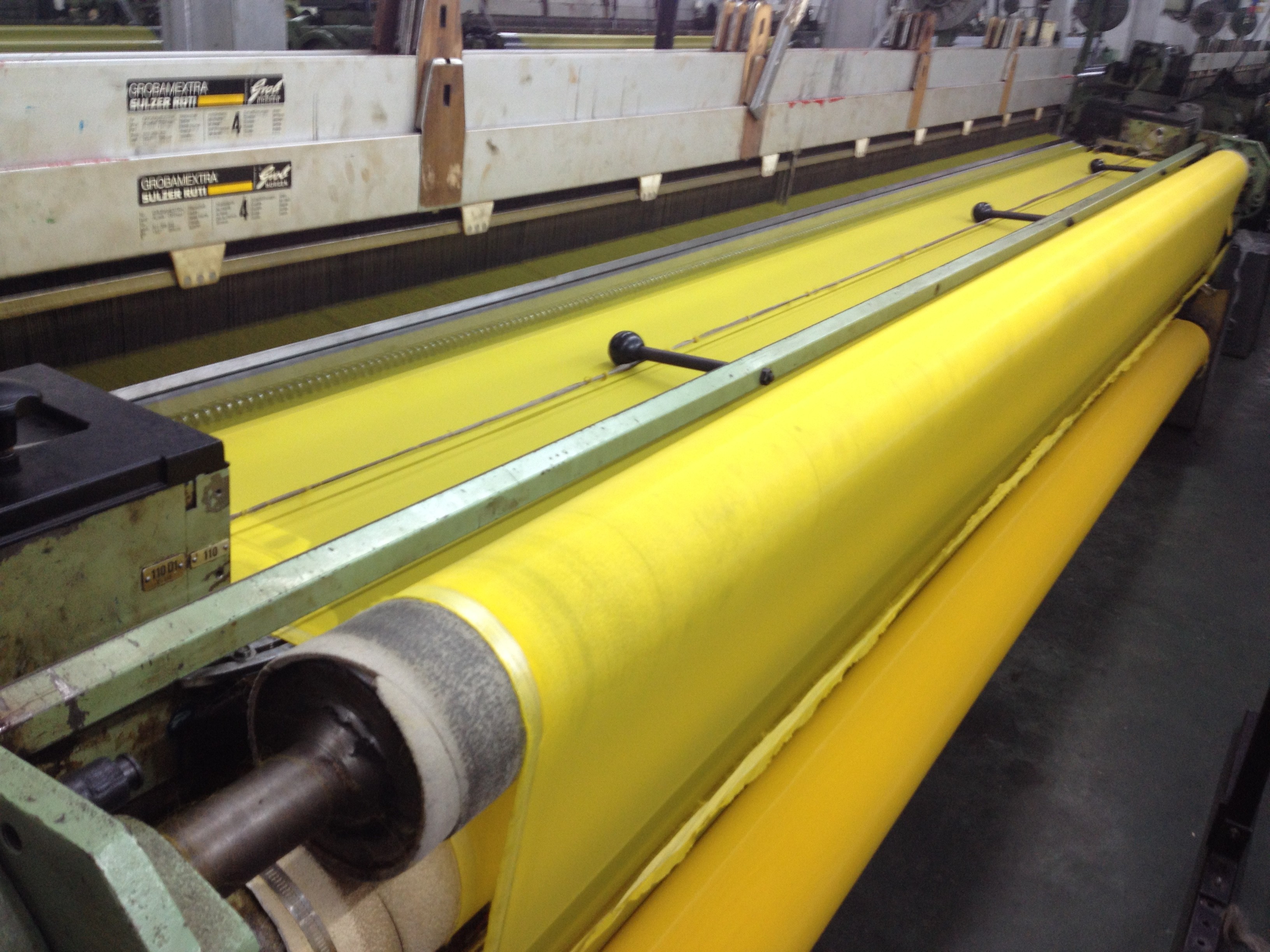

The production process for High Tension Low Elongation Polyester Screen Printing Mesh

Material yarn from Jintong, Switzerland and Japan, we inspect those yarn arrived (tolerance, tensile strength, physics test etc.).

During production, first, we put the warp wires on the beam, drawing the warp wires into heddle and reed. Then our experienced weaver will start weaving mesh according to orders.

The initial survey is taken during and after weaving. Then the heat setting treatment and physical properties inspection will be done before we get tentative finished rolls (normally 60-500 meters rolls).

In the end, after the final inspection, we will cut the mesh into small rolls (20m-50m) according to customer orders.

Plain Weave High Tension polyester screen mesh Wrinkle Resistance 30m Length 1

Detailed Description of Our Policy

1) Export

SHARE has more than 30 years of export experience.
we have exported to more than 90 countries and 95% repeat orders.

2) Technology

The machinery and apparatus used in production process fully based on the high computer technology.
So it is accepted as the only company capable of having TSE (Chinese Standard Institution ) certificate.

3) Our service

1. Customized service is also available for us.
We can customize products according to your requirements.
2. Including design and drawing.
3. Choose the cheapest and safest shipping company.
4. Track the order until you get the goods.
5. Please feel free to contact us.

4) FAQ

Q:Can we get samples before buying?
A:Yes, we're pleased to offer you samples for your testing freely 2m each sizes. MeshFiltration trust our quality can be satisfied.

Q:I am a small wholesaler, do you accept small order?
A: Small order is no problem, we'd like to grow up with you together.

Q: How can you guarantee for quality and delivery time?
A: For delivery time, we usually have stocks from 500-10000m for common size. So, we can ship the goods in time to our customers.

We can guarantee our customers if the mesh has problems, they can return back to us; We'll ship replacement mesh free cost with next orders.

5) Guarantee

1.We guarantee our customers will get the right material and sizes, enough weight,on-time delivery at our best service and price.
2.Quick delivery time as we have in stocks(normal size).
3.The goods can be returned or compensated if the quality is not ok.
