120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width
120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width
Contact Now

120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width

Minimum Order Quantity : 50meter Price : USD6.00-USD10.00/meter
Packaging Details : Caron, Polybag Delivery Time : 3-7days
Payment Terms : T/T, L/C, D/P, Western Union, PayPal Supply Ability : 20000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: RoHS Model Number: 120T/300 Polyester Printing Mesh

Detail Information
Product Name: 120T /300 Polyester Printing Mesh Keywords: 120T /300 Polyester Printing Mesh
Material: 100% Polyester Yarn Mesh Count: From 80 To 420 Mesh
Thread Diameter: From 27μm-80μm Product Type: In Rolls
High Light:

Polyester Yarn Printing Mesh

,

165cm Polyester Printing Mesh

,

300 Mesh Polyester Printing Mesh

Product Description



120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width High Quality Image



Screen print solutions can be found in an almost various number of objects that are printed, which around our lives every day: furnitures, glass, wooden decorations, labes, smartphones, electronics, billboards, textiles, packaging, ceramics and tiles, and many more. Polyester printing mesh is the popular mesh for virtually every screen printing application from large batch to small batch.



Selecting the high-quality monofilament polyester thread with high tenacity, high tension and low elongation characteristics, Share Filters weaves polyester printing mesh with Sulzer P7100 looms. More than 20 years of production experience enables us to weave polyester printing mesh with precise and uniform mesh holes. Share Filters supplies white, yellow and other dyed colour printing meshes, with wide range of precise monofilament thread and mesh count. Yellow mesh absorbs more light compared to white mesh, and stops light scattering, therefore helping expose intricate details. Yellow mesh can also be known as dyed mesh, it is normally found on mesh counts over 90t, as these are the screens used for finer detailed prints.





The Properties of Polyester Printing Mesh:



  • Low-elongation fabric polyester
  • Plain weave design for improved strength
  • Higher and faster tension stabilization in silk mesh screens
  • Better durability in screen life and stretch ability
  • Faster tension and stabilization in the frame
  • Resistance to abrasion and harsh chemicals
  • High durability with the best tensity



screen printing



Technical Data



Product name: 120 /300 31 34 39Y polyester printing mesh Mesh count: 120T /300 mesh
Material: 100% monofilament woven polyester mesh Thread diam: 31 34 39μm
Weave type: Plain weave Open Area: 44 33 28%
Application: Screen printing Apertures: 52 48 44μm
HS code: 5911200090 Package: PP bag, plastic woven bag

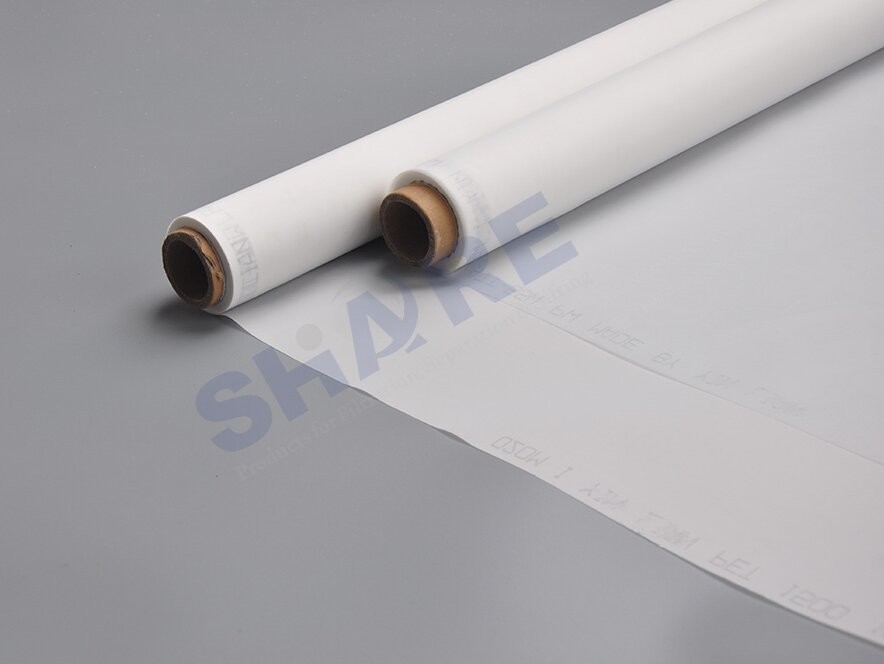

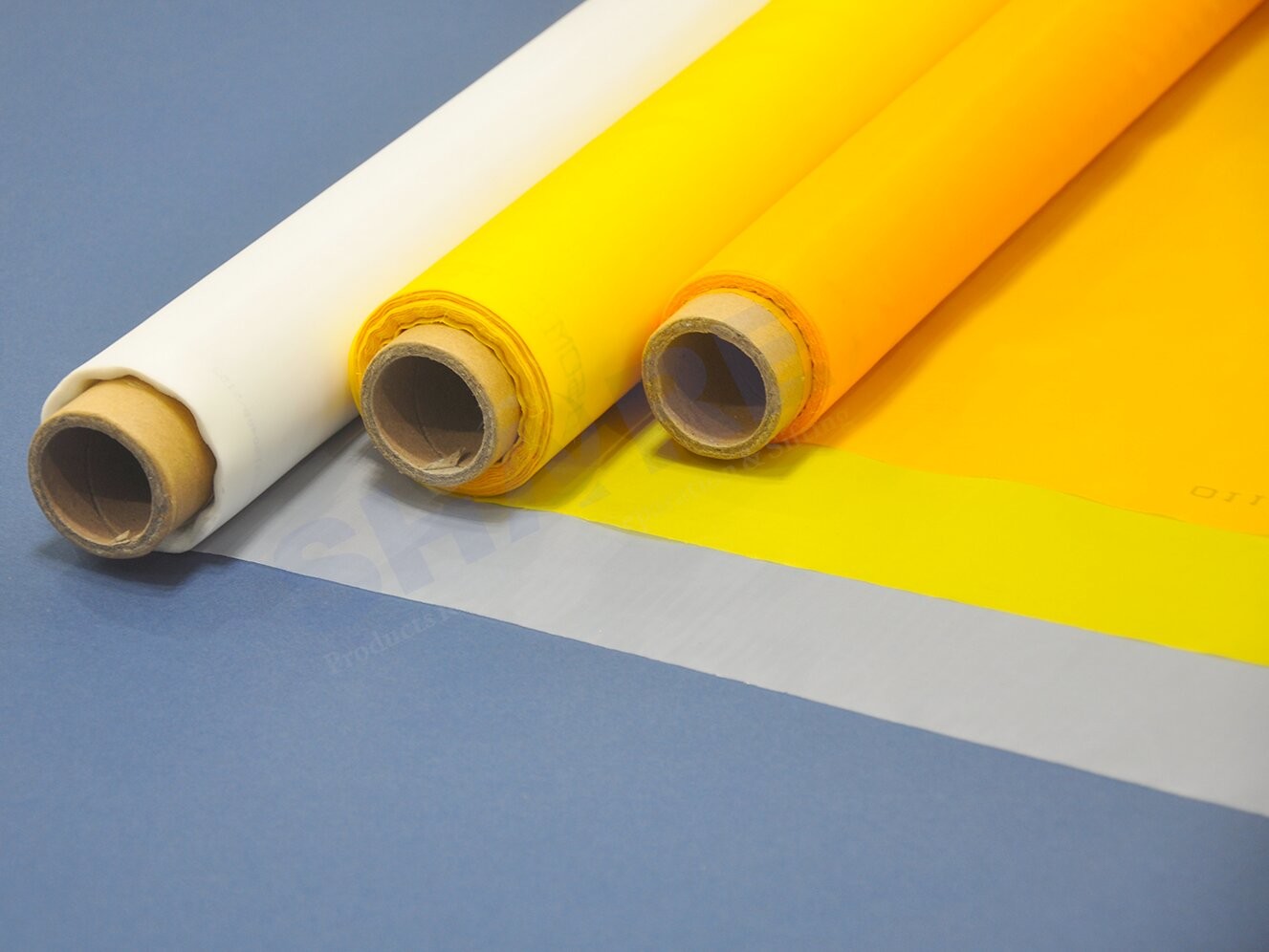

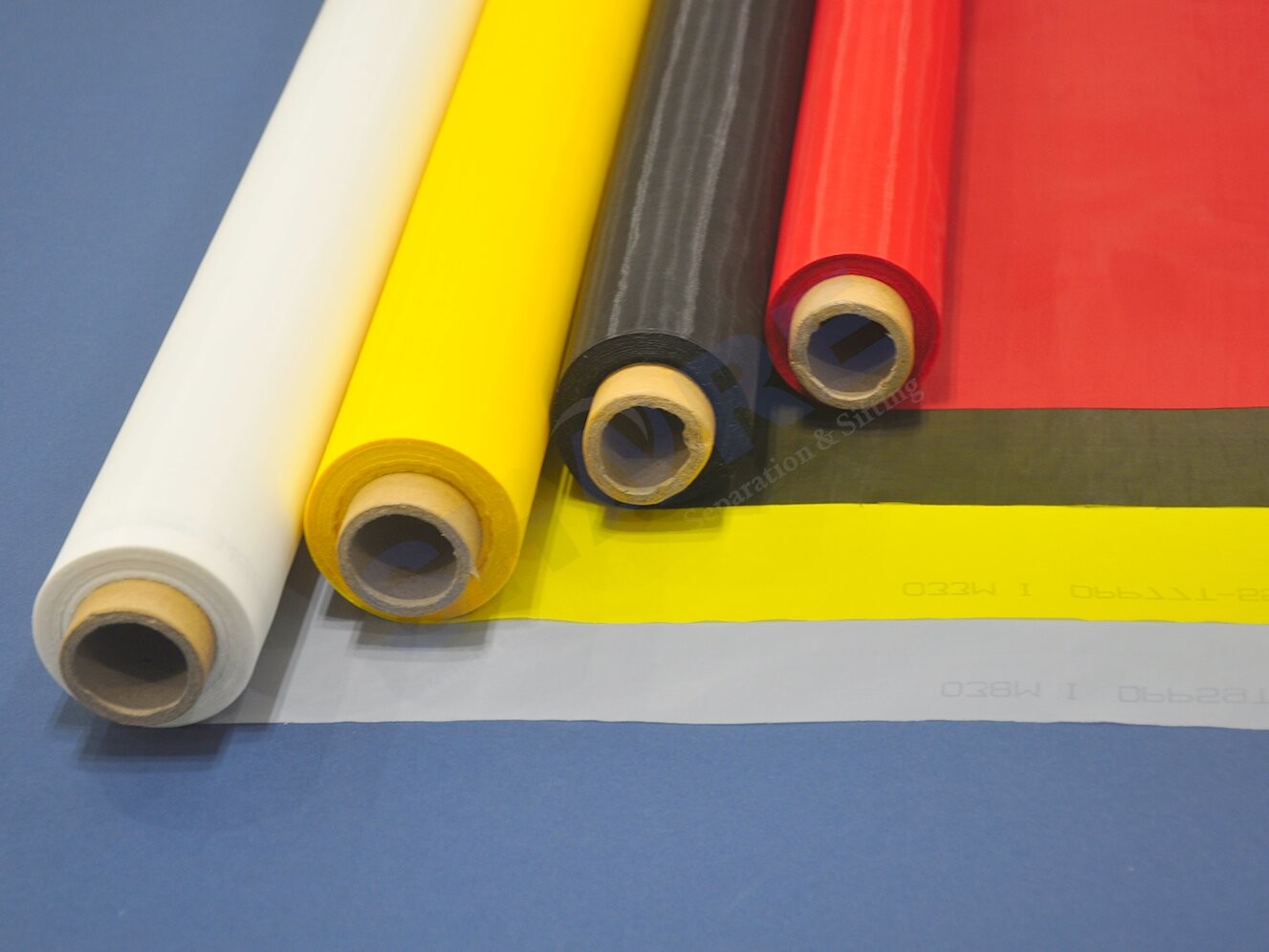

Product Pictures



 120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 1  Polyester printing mesh  120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 3





Application of Polyester Screen Printing Mesh



Share Filter polyester printing mesh impresses with its performance in a wide variety of applications, ranging from graphic screen printing in small and large sizes, such as:

  • Posters, displays, and signage;
  • Printing on plastics such as sporting goods, thermoformed parts, etc.;
  • Printing on the decoration of ceramic, directly or indirectly;
  • Printing on up to textile printing;
  • aother industrial printing tasks.



Polyester screen printing mesh application
Textile Ceramic Wooden decoration Electronic Glass





Ployester Printing Mesh Specifications



Fabric
number		 Mesh count Thread
diameter		 Mesh
opening		 Open
surface		 Fabric
thickness		 Weight
NO. mesh/cm mesh/inch micron micron % micron g/m2
DPP32 32S 80 80 230 54 150 52
DPP32 32T 80 100 210 45 180 82
DPP34 34S 86 80 215 53 150 56
DPP34 34T 86 100 195 44 180 87
DPP36 36T 91 100 180 42 180 92
DPP39 39S 99 55 200 61 95 30
DPP39 39T 99 64 190 55 115 40
DPP40 40T 102 100 150 36 190 103
DPP43 43T 110 80 150 42 155 71
DPP47 47S 120 55 160 57 96 36
DPP47 47T 120 64 150 50 120 48
DPP47 47HD 120 71 140 43 130 59
DPP49 49S 125 64 140 47 120 50
DPP49 49T 125 71 135 44 130 62
DPP53 53S 135 45 144 55 76 27
DPP53 53S 135 55 135 51 97 40
DPP53 53T 135 64 125 44 122 54
DPP53 53T 135 71 117 39 132 67
DPP59 59S 150 55 115 46 99 45
DPP59 59T 150 64 105 38 123 61
DPP64 64S 160 55 100 41 100 48
DPP64 64T 160 64 90 33 125 66
DPP72 72S 180 45 95 47 78 37
DPP72 72T 180 55 85 38 102 55
DPP77 77T 195 55 75 33 105 58
DPP80 80S 200 45 80 41 80 41
DPP80 80T 200 48 85 44 86 44
DPP90 90S 230 39 70 40 68 34
DPP90 90 230 45 68 34 80 46
DPP90 90T 230 48 65 33 82 49
DPP100 100T 250 39 60 36 69 38
DPP110 110T 280 34 56 38 62 34
DPP110 110HD 280 39 52 33 70 42
DPP120 120S 300 31 52 40 48 32
DPP120 120T 300 34 48 33 63 37
DPP120 120HD 300 39 44 28 72 46
DPP130 130S 330 31 47 37 50 35
DPP130 130T 330 34 42 30 58 40
DPP140 140S 350 31 43 34 50 37
DPP140 140T 350 34 36 25 62 43
DPP150 150S 380 31 37 30 50 40
DPP150 150 380 34 32 24 56 43
DPP165 165S 420 27 33 31 40 26
DPP165 165T 420 31 32 23 50 36
DPP165 165 420 34 25 16 66 49

This just a part of specifications which common used.



Mesh Specification Values



  • Mesh count: number of pores per cm/ inch



  • Mesh Specification Values: diameter of a thread(㎛)



  • Mesh opening: distance between threads(㎛)



  • Open area: open area percentage (%)



  • Mesh thickness: thickness of finished mesh(㎛)



 120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 5



120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 6





What Share Filters Do?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.





Factory Capabilities



weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,



Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of  filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons



Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

       Filter mesh slitted to be ribbons





120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 9

Filter Mesh Pre Cut Pieces and Shapes



Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.







 Filter Mesh Tubes and Tubular Ribbon



Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

 nylon filter mesh weld tube ribbon




mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing



Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.


Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

     mesh filter bag




custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.



Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.





Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG 120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 16 coffee filter 120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 18 120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 19

Fuel filter



Biopsy bag



Air purifier filter



Coffee filter



Irrigation filter



Mesh disc filter


Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!




Photos of Factory


Share Filter workshops
Warping Weaving Inspection
120T 300 Mesh Polyester Printing Mesh White Yellow 165cm Width 21
Whashing Heat setting Injection moulding





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.



What's Your Payment Term ?

T/T and LC and more.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
