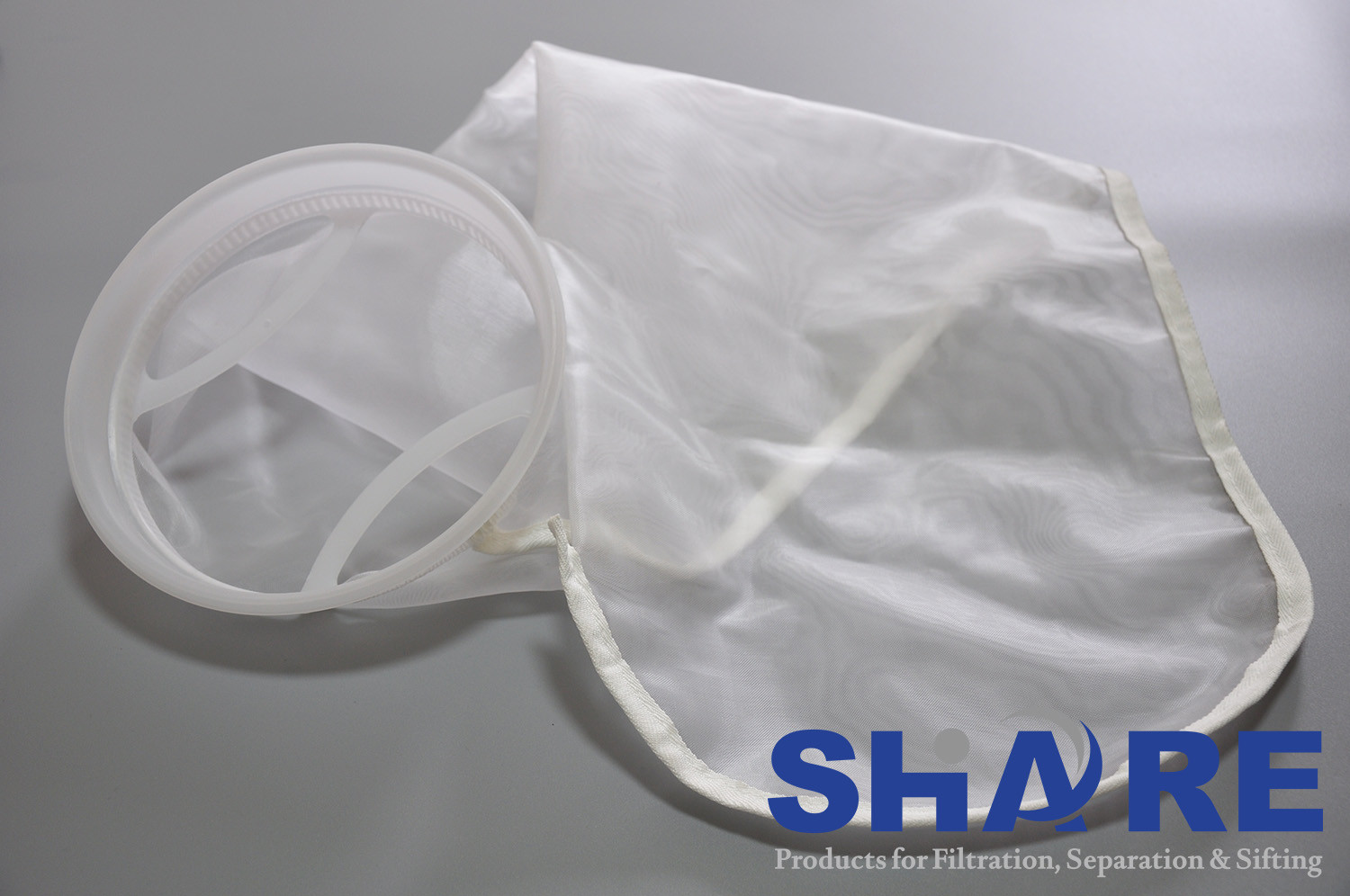

Food Industry 200 Micron Mesh Filter Bags Low Elongation Plain Weave Custom Size

Minimum Order Quantity : 100pcs Packaging Details : Cartons
Delivery Time : 5-30days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 100000
Place of Origin: CHINA Brand Name: SHARE
Certification: SGS Model Number: CUSTOM

Detail Information

Material: PA6.6 Mesh Filters Weave: Plain
Bag Style: Flat Size: Custom
Name: 200 Micron Filter Bag Course: Aperture 150 – 200 Microns
High Light:

dust filter bag

,

industrial filter bags

Product Description



Micron-rated Nylon Mesh Liquid Filter Bags for food industry



Various kinds of liquid filter bags

NUT MILK FILTER BAGS

Most dairies filter their incoming milk by means of a large tubular filter where bags are supported by perforated stainless steel baskets, (such as the LD filter). The filter bags are designed to filter out grass, grit and other extraneous matter.

The common material has been bleached cotton, which, because of its construction, has more cotton fibre than holes. It is also not very accurate in terms of filtration. The cotton bags, after use, are washed and dried, which is time consuming and not very cost effective.

A range of “once only” low cost disposable bags has been developed in four grades of “hygenic” polypropylene.

Course: aperture 150 – 200 microns
Medium: 125 – 150 microns
Medium Fine: 80 – 100 microns
Fine: 50 – 60 microns

Other bags and sleeves are avaialable in a similar range or can be tailored to suit a variety of applications.

MICRON – MESH BAGS

For liquids / air / dessicants / deodorising / deionising

The range of mesh bags in micron is rated from 5microns to 2000microns, they can be produced in any diameter and any length suitable for the application. Bespoke bags with attachments such as nozzles, draw strings etc. are welcome.

Liquid Filtration

Bags are suitable for any bag filter vessel on the market and are used for water, adhesives, paint, hot melt, insulation varnishes, acids, effluents etc. They are also supplied together with bulk bags, as a filter liner for larger volumes of flow and where the filtered solids could be bulky.

Air Filtration

Mesh bags can be supplied on a frame, or just as bags for the collection of lints or fibres often in the production of yarn, glass fibre, carpets, sawdust etc. They are also used for retaining paper trimmings and polystyrene beads..
many applications arise in the plastic moulding industry where air is separated from pellets in pneumatic convaying systems also in the pharmaceutical industry. Mesh tubes are used for air conditioning wher part of the tube is made impermeable, this allows air to be directed to specific areas at low pressure and even flows. Meshed frames with an overbag or adhesive are suitable for laminar air flow ceiling panels where a large area of low pressure clean air is required.

Dessicant Containers

Bags in all sizes with apertures to suit the dessicant particle size are available even for holding dessicant in large vessels to dry out hot gases in temperatures up to 300″°C.

Deodoriding…Ion Exchange…Water Treatment…Generally loading and unloading is made much easier using suitable mesh bags.

Production Procedure:

Food Industry 200 Micron Mesh Filter Bags Low Elongation Plain Weave Custom Size 0

Chemical Resistance of Major Fibers

Product Datasheet

Fabric Number

Mesh count

Thread Diameter

Mesh Opening

Open Area

Fabric Thickness

Weight

No.

cm mesh/inch

micron

micron

%

micron

g/m2

JPP5

5

12

500

1500

56

850

271

JPP6

6

16

400

1267

58

780

208

JPP7

7

18

350

1079

57

675

186

JPP8

8

20

350

900

52

685

212

JPP9

9

24

250

860

60

455

145

JPP10

10

25

300

700

49

576

195

JPP12

12

30

250

583

49

470

162

JPP12

12

35

300

533

41

585

234

JPP14

14

40

300

414

34

595

273

JPP16

16

40

200

425

46

370

139

JPP16

16

50

250

375

36

485

217

JPP20

20

50

150

350

49

375

98

JPP20

20

50

200

300

36

385

173

JPP24

24

60

150

267

41

285

117

JPP28

28

70

120

237

44

215

87

JPP30

30

76

120

213

41

225

94

JPP32

32

80

100

213

46

165

69

JPP36

36

90

100

178

41

178

78

JPP40

40

100

100

150

36

190

87

JPP43

43

110

80

152

43

135

60

JPP48

48

120

80

130

38

145

62

JPP56

56

140

60

120

44

85

44

JPP59

59

150

60

110

42

98

46

JPP64

64

160

60

100

37

105

50

JPP72

72

180

50

90

41

82

39

JPP80

80

200

50

75

36

90

43

JPP100

100

250

40

60

36

65

35

JPP120

120

305

40

43

25

70

29

JPP130

130

330

40

37

23

75

31

JPP140

140

355

30

38

33.7

60

33

JPP150

150

381

30

34

30.25

52

26

JPP165

165

420

30

28

20.7

51

29

JPP180

180

460

30

25

19.5

58

31

JPP200

200

510

30

16

10.2

58

35

SGS Certificate

Food Industry 200 Micron Mesh Filter Bags Low Elongation Plain Weave Custom Size 1

Food Industry 200 Micron Mesh Filter Bags Low Elongation Plain Weave Custom Size 2



Food Industry 200 Micron Mesh Filter Bags Low Elongation Plain Weave Custom Size 3

Food Industry 200 Micron Mesh Filter Bags Low Elongation Plain Weave Custom Size 4
