500UM Micron Rated Polyester Filter Fabric , Anti Mildew Polypropylene Filter Mesh

Minimum Order Quantity : 100meters Price : USD0.2-USD3.5/m
Packaging Details : Carton Delivery Time : 3-30days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1000meters/day
Place of Origin: CHINA Brand Name: SHARE
Certification: SGS Model Number: DPP14T-200

Detail Information

Material: 100% Monofilament Polyester Yarn Name: Polyester Filter Fabric
Thread Diameter: 200um Micron Rating: 500um
Width: 110cm-190cm Color: Natural White
Characteristics: High Tension, Low-Elongation, High Tenacity Application: Liquid Filtration, Oil/fuel Filtration
High Light:

monofilament polyester mesh

,

polyester mesh filter

Product Description

500um Micron-rated Liquid Filter Mesh made of Mono-filament Polyester Yarn



Monofilament Polyester Filter Mesh

Mesh Count: DPP14T or 36tpi (threads per inch)

Thread Diameter: 200um

Micron Rating: 500um

Width: 110cm-190cm

Introduction:

Selecting quality monofilament with high tenacity, high tension and low elongation characteristics monofilament polyester yarn, SHARE carefully weaves polyester filter mesh with Sulzer P7100 looms; More than 30 years of production experience enables us to weave polyester filter mesh with precise mesh holes and thanks to the after-production treatment of heat-setting, polyester filter mesh has stable yarn conection without yarn migration during use.

Advantages of Polyester Filter Mesh

High Tenacity, High Tension, Low-elongation, Anti-wrinkling, anti-mildew, good chemical characteristics

Application:

Liquid Filtration, Oil Filtration, Water Filtration, Petroleum Filtration

Product Datasheet

Mesh count

(per cm/inch)

Type of weave

(tw or pw)

Thread diameter (microns) Mesh opening (microns) Overall fabric thickness (microns) % Open area Theoretical
ink deposit (cm3/m2)
Mesh Weight (gsm)

8/20-300W PW 300 950 560 57.8 323.5 169
10/25-260W PW 260 739 498 54.6 272.0 158
12/30-140W PW 140 688 256 68.2 174.7 55
15/40-200W PW 200 465 353 48.6 171.5 141
18/45-180w PW 180 375 330 45.5 145.5 128
21/54-140W PW 140 333 250 49.0 122.5 96
24/60-120W PW 120 294 210 49.7 104.3 81

27/70-120W PW 120 249 210 45.3 95.0 91
30/76-120W PW 120 211 212 40.2 82.4 101
32/83-70W PW 70 240 117 58.7 68.7 37
32/83-100W PW 100 209 166 44.5 72.1 75
36/92-90W PW 90 183 147 43.3 64.9 68
36/92-100W PW 100 174 162 39.1 62.6 84

40/103-80W PW 80 166 133 44.1 58.6 60
43/110-80W PW 80 149 130 40.8 53.0 64
45/115-80W PW 80 138 130 38.7 50.3 67
48/123-80W PW 80 122 130 34.5 44.8 72
48/123-55W PW 55 151 90 52.8 47.5 34
51/131-70W PW 70 121 114 38.1 43.5 58
54/137-64W PW 64 115 103 38.7 39.8 51
61/156-64W PW 64 90 101 30.1 30.4 58
68/175-55W PW 55 85 87 33.5 28.4 48
68/175-64W PW 64 78 98 28.2 27.6 65
71/180-55W PW 55 79 90 31.5 28.4 51
77/195-48W PW 48 77 80 35.0 28.0 42

77/195-55W PW 55 67 87 26.5 23.3 55
82/206-48W PW 48 68 79 30.8 24.3 44
90/230-40W PW 40 68 65 37.6 24.4 33
90/230-48W PW 48 55 78 24.6 19.2 49
100/255-40W PW 40 57 64 32.5 21.1 37

110/280-34W PW 34 54 55 35.2 19.3 31
110/280-40W PW 40 47 65 26.6 17.3 40
120/305-34W PW 34 45 55 29.6 16.3 34
120/305-40W PW 40 37 64 20.1 13.0 44
130/330-34W PW 34 40 55 26.9 14.3 37
140/355-34W PW 34 31 55 19.4 10.6 39
150/380-34W PW 34 23 55 12.1 6.6 42
165/420-34W PW 34 23 62 13.9 8.6 46

Fabric number

The fabric number is composed of:

Mesh-count n 110-80W PW Thread ∅ dnom 110-80W PW Fabric colour 110-80W PW

(White = W; yellow = Y) Type of weave 110-80W PW (Plain Weave = PW)

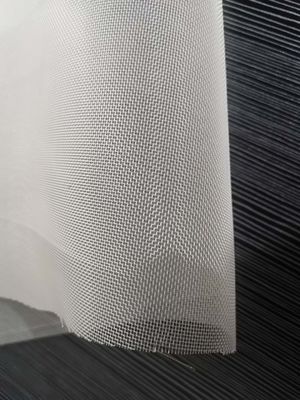

500UM Micron Rated Polyester Filter Fabric , Anti Mildew Polypropylene Filter Mesh 0

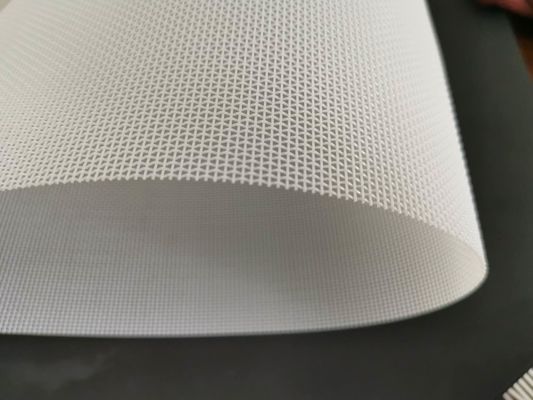

500UM Micron Rated Polyester Filter Fabric , Anti Mildew Polypropylene Filter Mesh 1

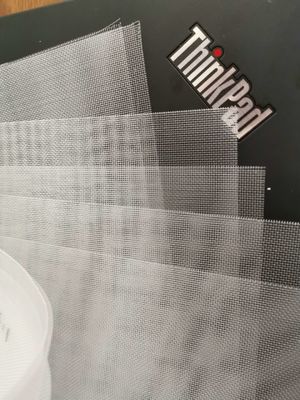

500UM Micron Rated Polyester Filter Fabric , Anti Mildew Polypropylene Filter Mesh 2
