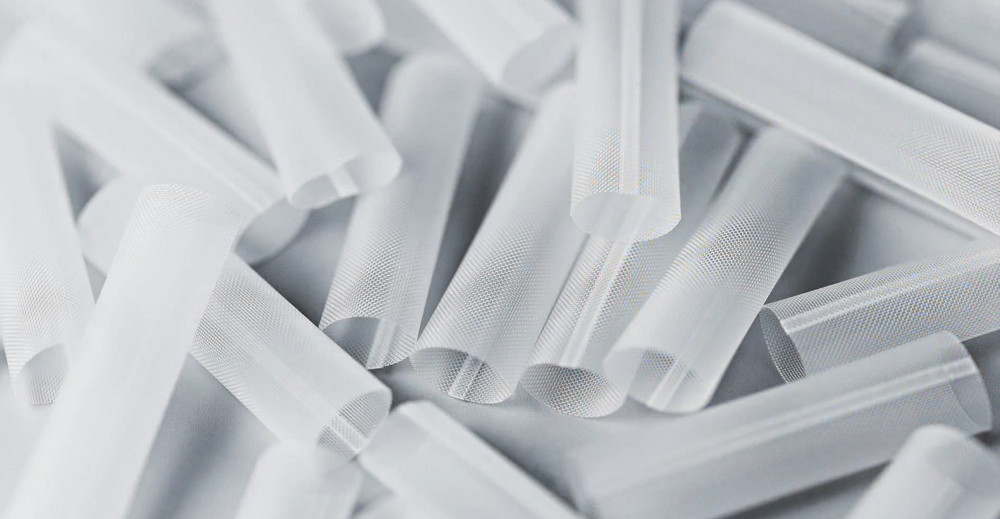

Biocompatible Medical Filtering Mesh or Blood Tube for Transfusion

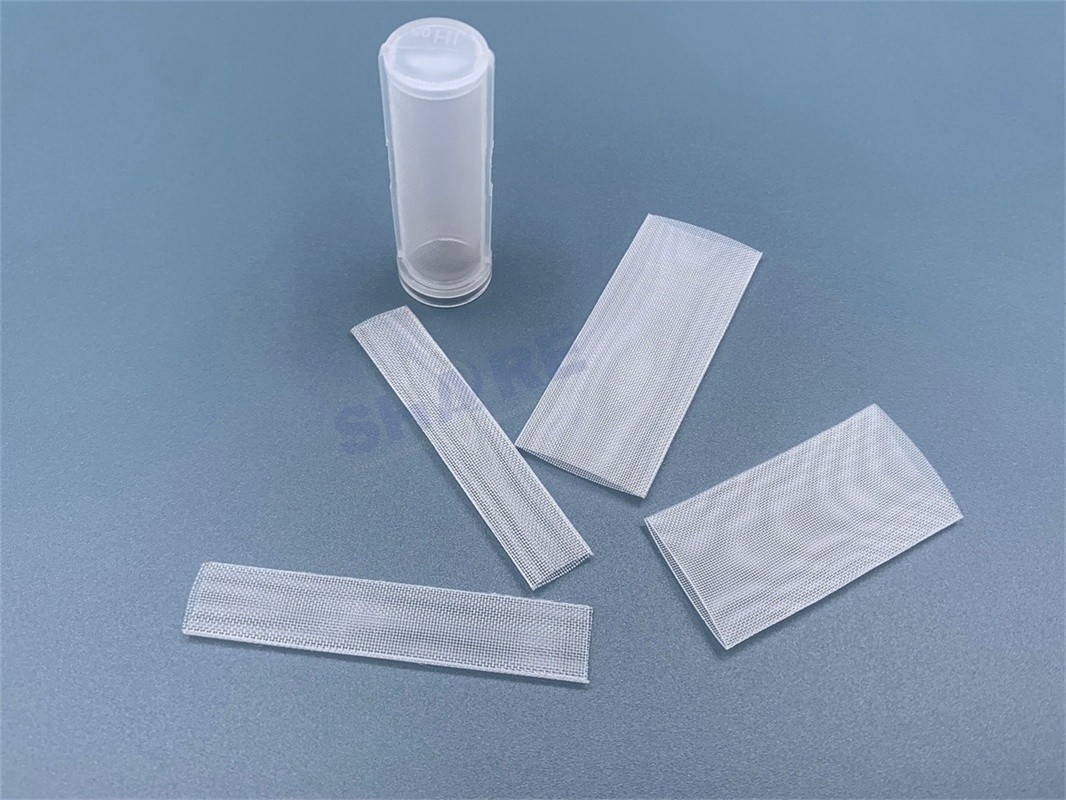

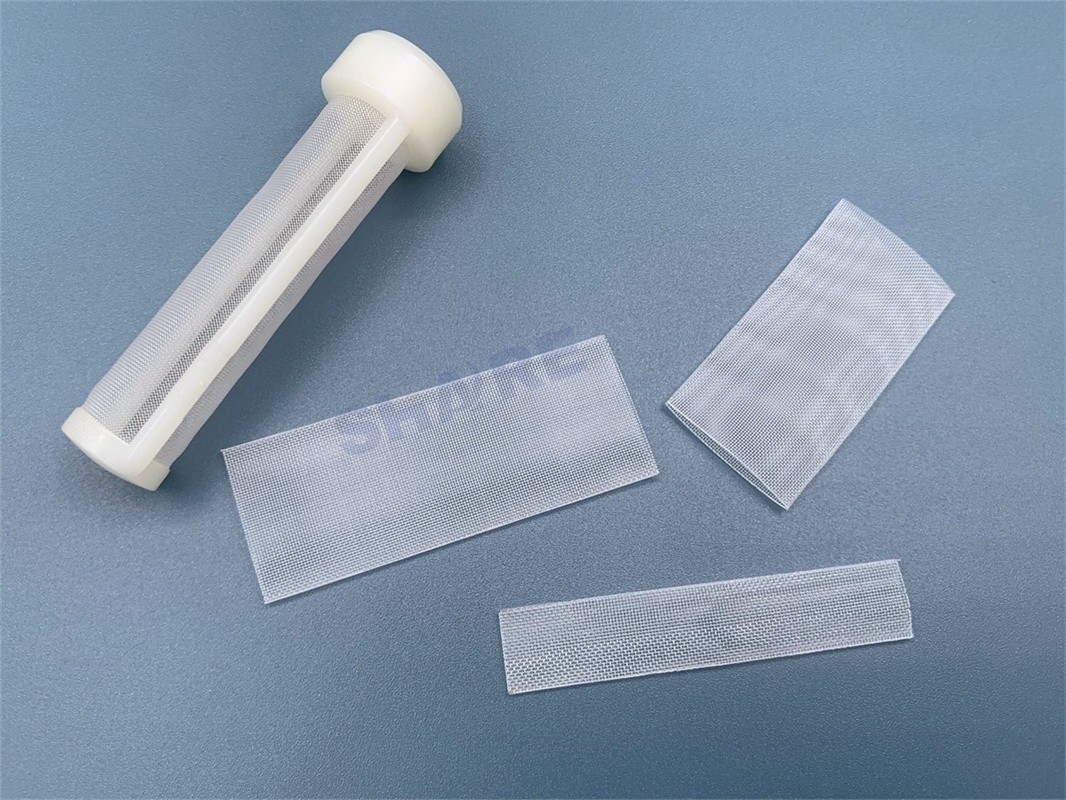

We offer monofilament Polyester (PET) and Nylon (PA) plain weave mesh fabrics or molded filters for medical applications. Our mesh fabrics can be customized into discs, pieces, or molded tubes for medical filtration and transfusion purposes.

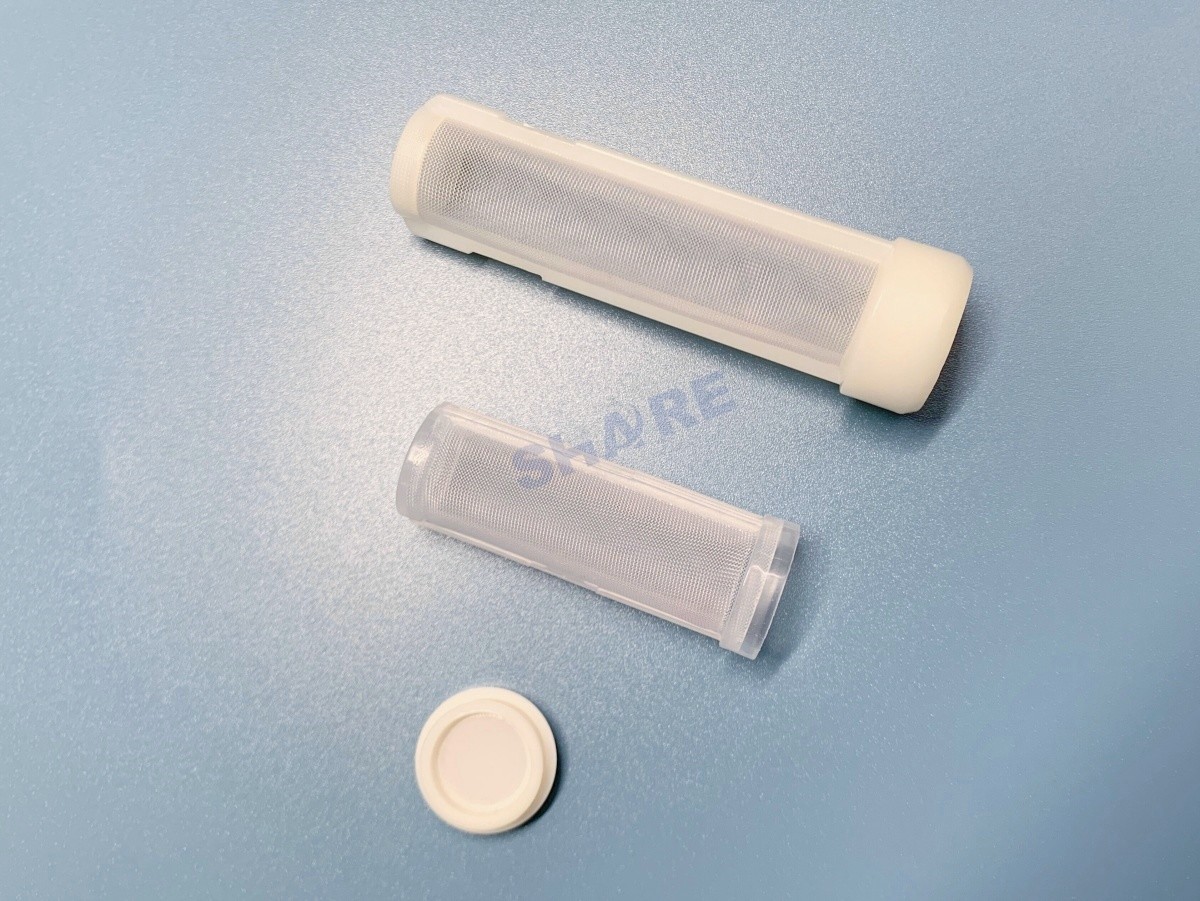

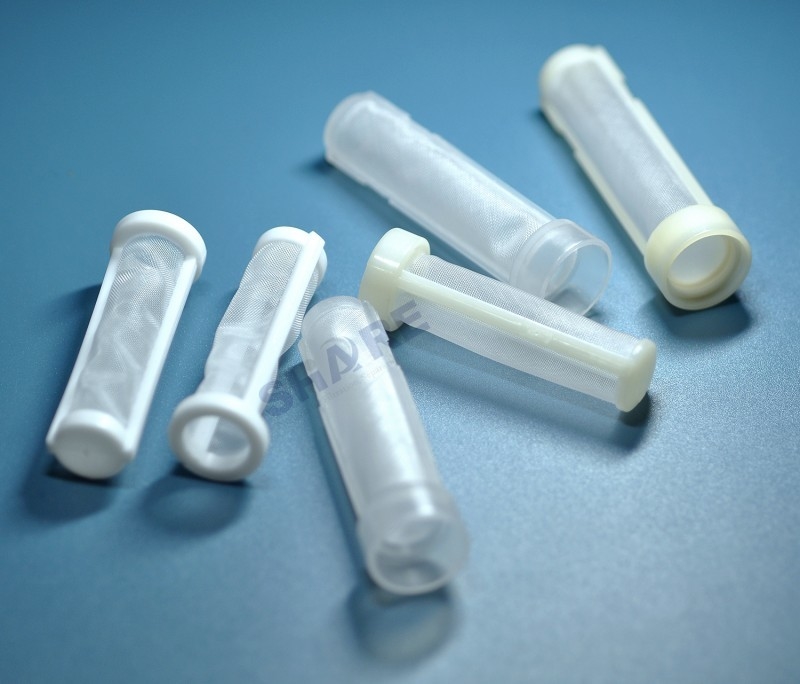

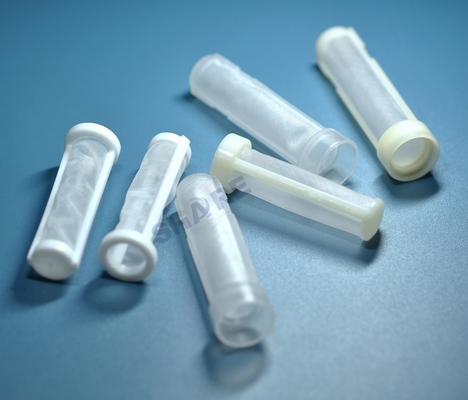

Our medical filters effectively prevent blood clots and particles from entering patients' bloodstream. The blood tubing transfusion filter features high throughput rates and precise mesh openings, ensuring optimal performance for transfusion sets.
Medical Applications
- Transfusion: Our PET and nylon mesh filters for blood tubes prevent clots and particles from entering the bloodstream, enhancing transfusion efficiency through high flow rates and precision filtration.
- Diagnostics: Our nylon and polyester fabrics improve diagnostic strip reliability and speed. The fabric design enhances flow and reduces wait time, optimizing strip functionality.
- Wound Care: Our nylon or polyester fabrics are ideal for low-pressure wound contact, skin graft support, or as a base for medications and creams. They feature a smooth, non-stick texture with precise pore sizes and are fiber-shed resistant.
Specifications
| Item Name |
Biocompatible Medical Filtering Mesh or Blood Tube for Transfusion |
| Manufacturer |
Taizhou Share Filters Co., Ltd |
| Brand |
SHARE FILTERS |
| Color |
Natural |
| Dimension and Size |
Customized |
| Mesh Size |
170 Micron to 260 Micron |
| Filter Materials |
PA PET |
| Features |
Highly precise and biocompatible
High throughput rates and excellent particle retention efficiency
Hydrophilic surfaces
High filtering efficiency for safe transfusion
Non-stick surface
Non-shedding performance
Compatible with various absorbers and nonwovens
Customizable to specific requirements
|
| Assembly Method |
Heat Cutting |
| Quality |
Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment |
| Scope of Applications |
Blood transfusion and diagnostic applications |
Custom Medical Mesh Filters
We provide custom-specific filter samples for healthcare and medical applications:
Biopsy Bag
Blood Tubular Filters Hemodialysis
Blood Tubular Filters Transfusion
Flow Cytometry Strainer Cap Filter
Cell Strainer
Infusion Filter / Vent Filter
Medical Filter Cylinder
Medical Filters
Technical Datasheet
Precision Nylon Filter Mesh Technical Data Sheet
| Fabric Number |
Mest Count |
Thread Diameter |
Mesh Opening |
Open Area |
Mesh Thickness |
Weight |
| No. |
n/cm |
n/inch |
μm |
μm |
% |
μm |
g/m2 |
| PA 3233/58.3 |
2.3 |
6 |
1000 |
3233 |
58.3 |
1900 |
412 |
The data are compiled to the best of our knowledge. Subject to change without notice. Current data are available on demand.
Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Production Process
Yarn
Monofilament
- Excellent diameter control for precise openings
- High flow rates and low pressure drops
- Filtration by surface particle capture
- Excellent surface particle release, easy to clean
- High degree of stiffness
Weave
Plain Weave
Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.
Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.
Product Procedure
Yarn → Raw yarn inspection → Warping arranging → Drawing in heddle → Drawing in reed → Weaving → Initial survey → Washing → Heat setting treatment → Physical properties inspection → Products inspection → Product → Fabricated mesh if needed → Plastic molded filters if needed
Mesh
SHARE precision filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise mesh opening from 3um to 4400um. These allow for the different sized filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.
SHARE can further process filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fulfill customers and markets' demanding filtration and screening needs.
Company Profile
Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics (nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.
Our products are categorized into three classes:
Monofilament Mesh Rolls
- 30 years of experience & capabilities
- PA, PET, PP, PE, PPS, PEEK etc.
- Characterized by precise mesh opening, open area and thickness
- Excellent converting capabilities from yarn over weaving to converted items
Discs, Tubes, Ribbons, Bags
- Cutting, calendering, welding, slitting, sewing, pleating, molding
- Discs, tubes, ribbons, bags etc.
- Various converting capabilities by stamping or slitting technology: cold, heat, laser, ultrasonic
- Clean, smooth & closed edge quality
- Maximum compatibility with injection molding process
Plastic Molded Filters
- Insert molding and over molding
- Mold design, modeling, prototyping, manufacturing and testing
- High efficiency, excellent particles holding capacity and low pressure drop
- High stability, repeatability and reliability
- Extensive material options and industry-best lead times
Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.
Contact SHARE today for additional information and how we can help you with your specific filtration requirements.
Packaging & Shipping
For mesh rolls:
- Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
- 2-8 rolls per standard export carton
- Put into PP woven bag to prevent damage during transportation
- Package belt strengthen
For fabricated & molded filters:
- Packed into sealed PE bags, 10m2 to 500m2/bag according to the actual size, double bagged and the product label is attached in the inner bag
- Put into bigger PE bag and then standard export carton
- Wrapped the outer carton with PE stretch film to prevent damage during transportation
- Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
|
Port to Port |
Door to Door |
| Express(DHL,UPS,FEDEX, EMS) |
|
1 - 5 days |
| Air Freight |
1 - 5 days |
4 - 10 days |
| Sea Freight(FCL) |
15 - 30 days |
20 - 35 days |
| Sea Freight(LCL) |
15 - 30 days |
22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ needs to be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
