Home ProductsPolypropylene Filter MeshPolypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area
Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area
Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area
Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area
Contact Now

Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area

Minimum Order Quantity : 200 m2 Price : $1 for 500 m2, $0.9 for 10,000 m2, $0.7 for 50, 000 m2
Packaging Details : PE bag and carton Delivery Time : 5 working days
Payment Terms : L/C,T/T,Paypal Supply Ability : 1, 0000 m2 / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, California Proposition 65 Model Number: SG-PPF-06

Detail Information
Material: Nylon(PA), Polyester(PET), Polypropylene(PP), Polyethylene(PE) Filter Mesh Form: Roll, Disc, Ribbon, Shapes
Micron Ratings: 3000 Micron Down To 10 Micron Processing Technologies: Ultrasonic, Laser, Heat Cut, Cold Cut
Edge Quality: Precise Clean Edge Feature: Great Precision Smooth Surface Abrasion Resistance
Highlight:

Electronic Fluid Filtration Woven Mesh Filters

,

Semi Conductor Woven Mesh Filters

,

Tank Venting Woven Mesh Filters

Product Description

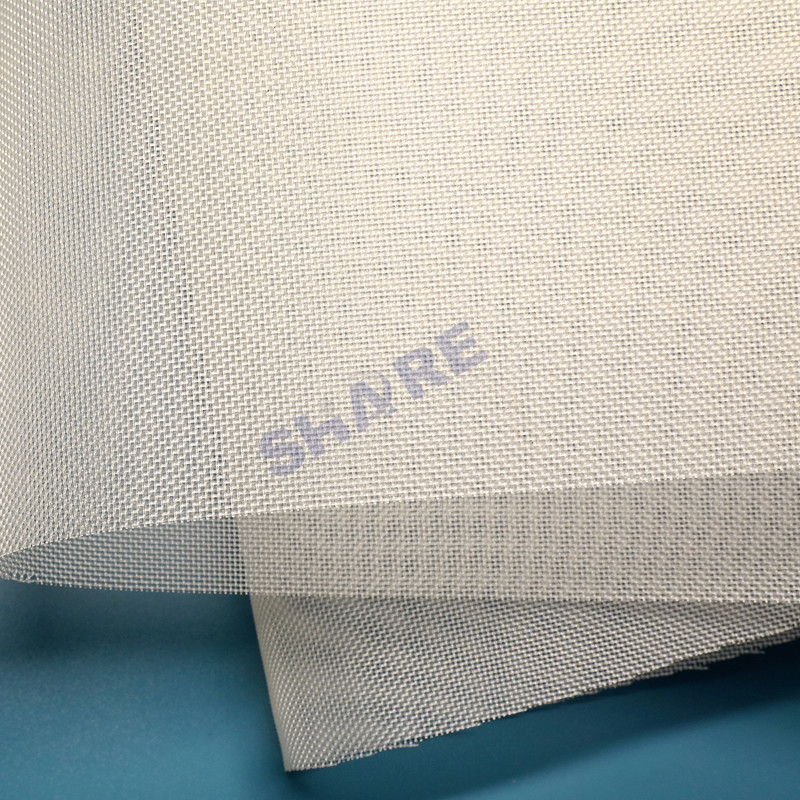

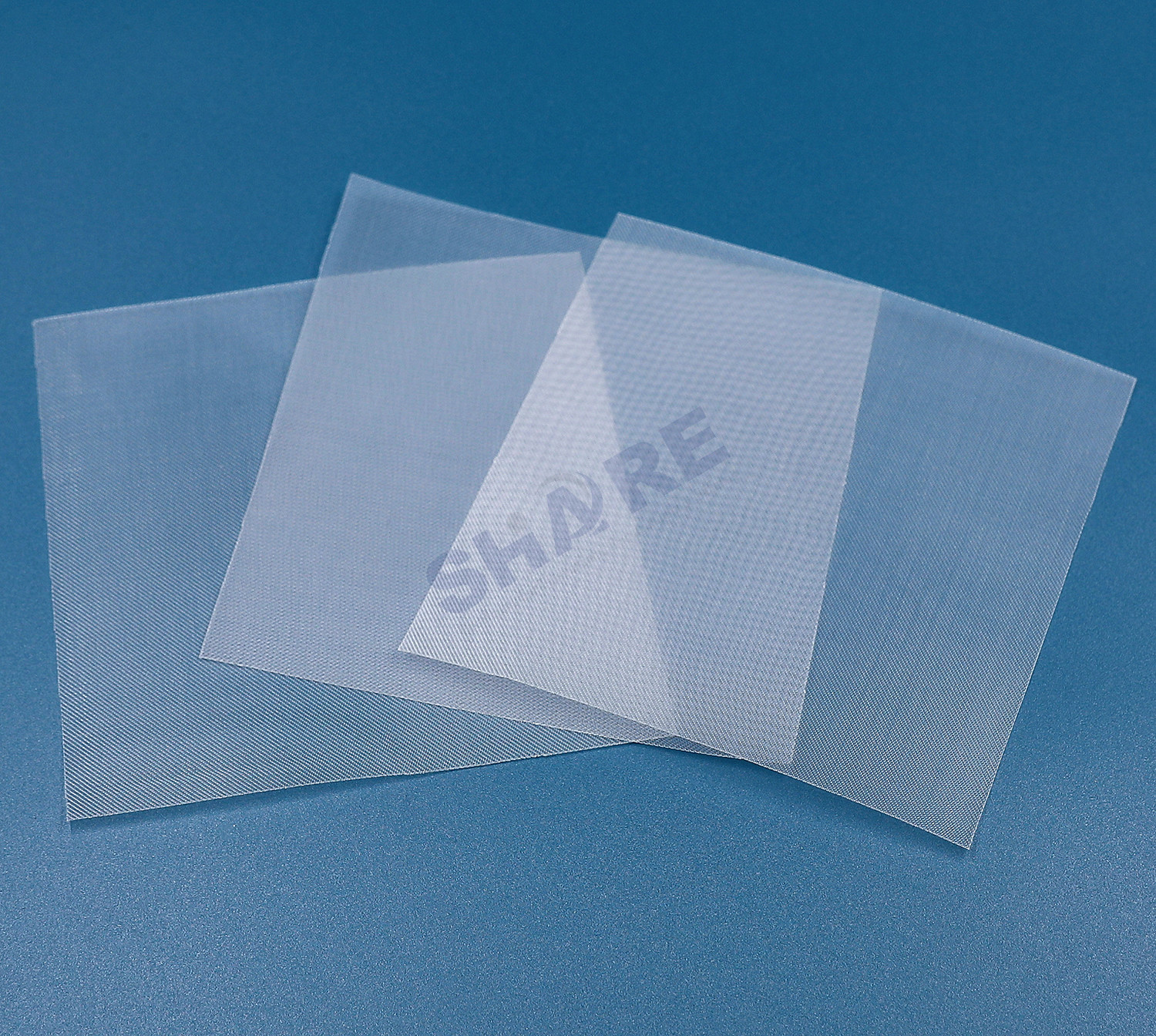

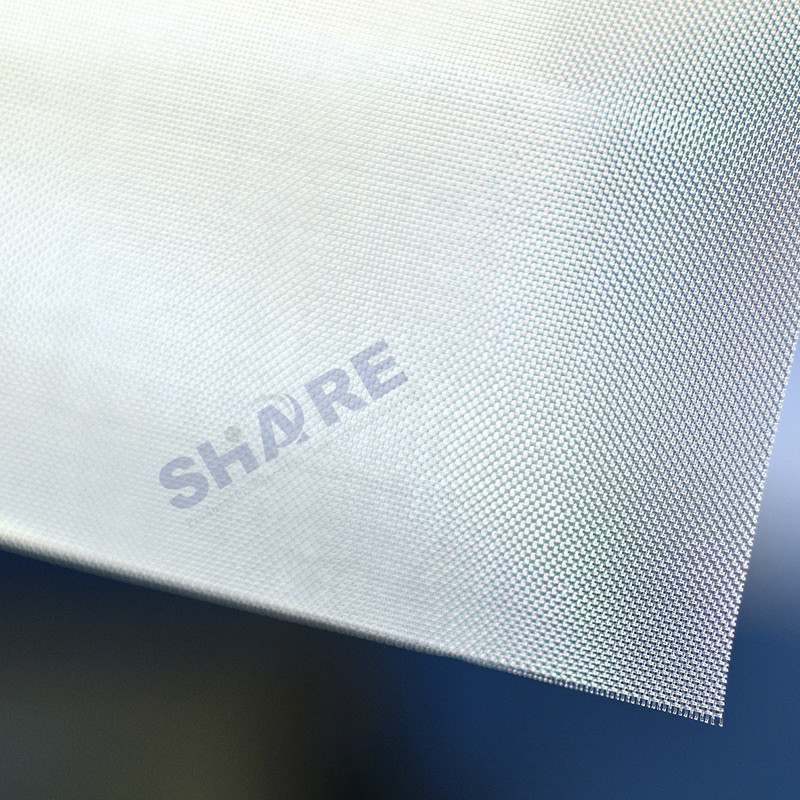

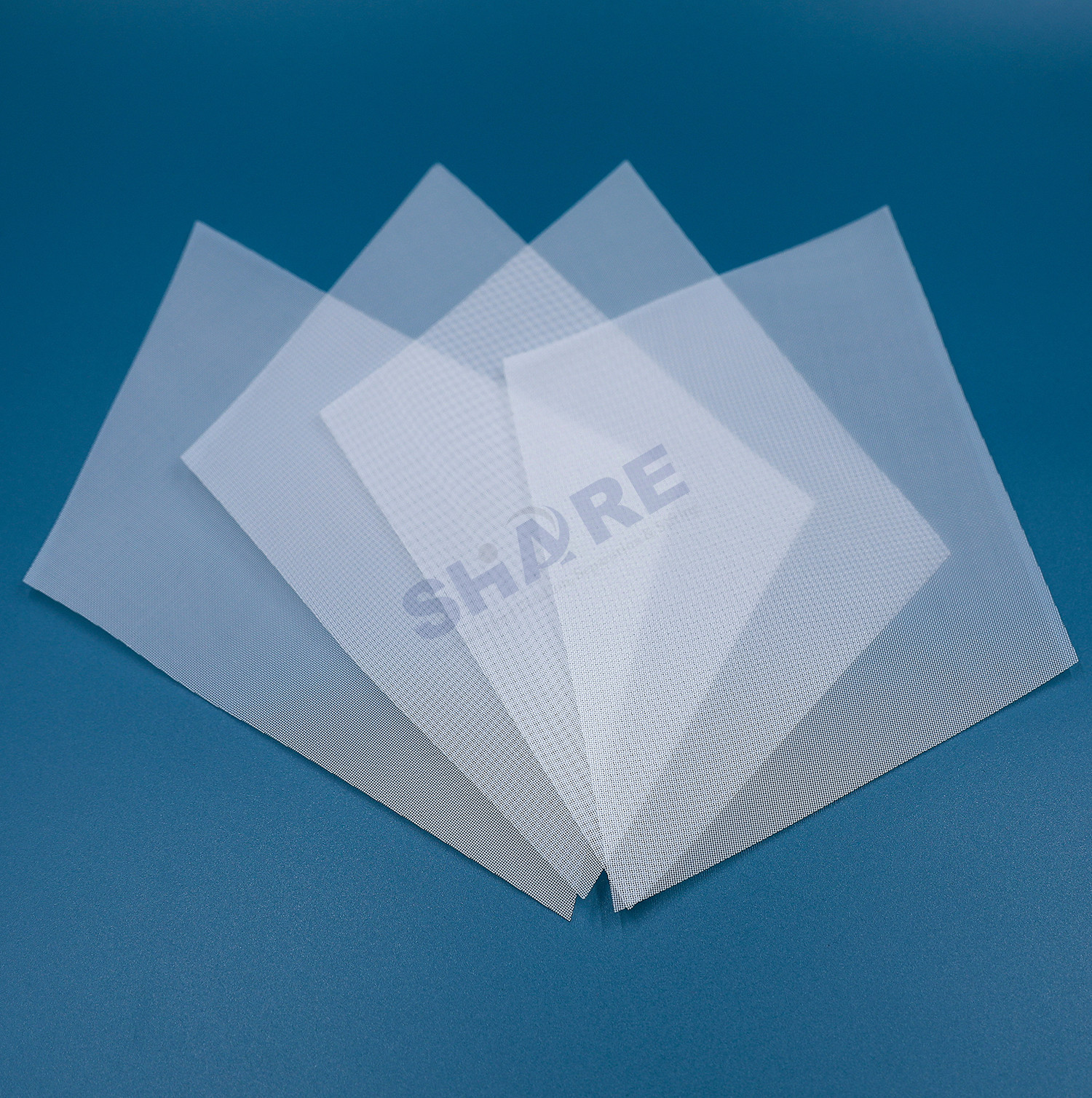

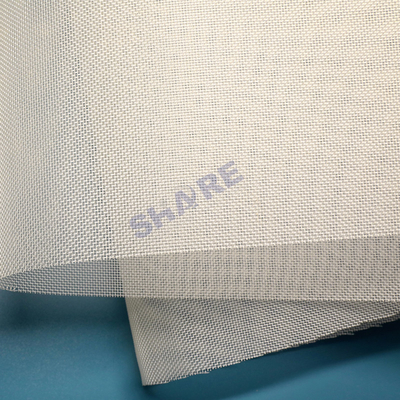

Polypropylene (PP) Woven Mesh Filters
SHARE polypropylene (PP) mesh filters offer high weldability, excellent hydrolysis resistance, and superior chemical resistance to biological, alkali, mineral acids, organic acids and oxidizing agents, with no moisture absorbency.
Key Applications
  • Photoresist/Semiconductor Manufacturing: Removes particulates and impurities from chemicals to ensure purity of photoresist materials.
  • Electronic Fluid Filtration: Traps particles in cooling systems or hydraulic circuits to protect sensitive electronic components.
  • Air Venting: Captures airborne particles in HVAC systems, industrial ventilation, and cleanroom environments.
  • Tank Venting: Prevents contaminant entry while allowing gas exchange during tank filling/emptying.
  • Pulp & Paper Production: Removes impurities from water or chemical solutions to improve paper quality.
  • Cosmetic Processing: Ensures ingredient purity and prevents unwanted particles in cosmetic products.
Specifications
Item Name Polypropylene (PP) Woven Mesh Filters for Photoresist/Semi-Conductor, Electronic Fluid Filtration, Air/Tank Venting
Manufacturer Taizhou Share Filters Co., Ltd.
Brand SHARE FILTERS
Material 100% PP monofilament mesh
Color Natural white
Weave type Plain woven, twill woven, dutch woven
Mesh opening 10-3360 microns (professional advice available)
Open area 1% to 67%
Thickness 50um to 1900um
Roll width 1cm to 390cm (standard widths available)
Roll length 30-100 meters or customized
Product type Roll, disc, ribbon, shapes, bag, pleated components in various forms
Processing technologies Colored, coated, thermal treated, sectioned, shaped, pleated, sewed or molded
Quality control Visual inspection, optical/pressure sensitive equipment, automated 3D image-inspection
Certificate ISO19001 SGS ROHS REACH
Gallery
Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 0 Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 1 Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 2 Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 3 Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 4 Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 5 Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 6 Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 7
Technical Datasheet
Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Fabric Thickness Weight
PP-3360/60 2.3 1000 3360 60 1800 340
The data are compiled to the best of our knowledge. Subject to change without notice.
Production Process
Our precision manufacturing process ensures consistent quality and performance:
  • Yarn: Monofilament with excellent diameter control for precise openings
  • Weaving: Plain, twill or dutch weave options for different requirements
  • Quality Control: Multiple inspection points throughout production
Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 8 Polypropylene Woven Mesh Filters with 3000 Micron Down to 10 Micron Range 10-3360 Microns and 1% to 67% Open Area 9
Company Profile
Established in 1983, Taizhou Share Filters Co., Ltd. specializes in woven monofilament filter mesh fabrics with micron ratings from 3um to 4mm.
Our Product Categories
Monofilament Mesh Rolls 30 years experience, precise mesh openings, excellent converting capabilities
Discs, Tubes, Ribbons, Bags Custom cutting, welding, slitting, sewing with clean edge quality
Plastic Molded Filters Insert/over molding with extensive material options and industry-best lead times
Packaging & Shipping
Mesh Rolls:
  • Rolled on paper core, 30-70m/roll in PE bags with product labels
  • 2-8 rolls per export carton with PP woven outer bag
Fabricated & Molded Filters:
  • Sealed PE bags (10-500pcs/bag) with double bagging
  • Standard export carton with PE stretch film protection
Shipping Options:
Method Port to Port Door to Door
Express (DHL, UPS, FEDEX, EMS) 1-5 days 1-5 days
Air Freight 1-5 days 4-10 days
Sea Freight (FCL) 15-30 days 20-35 days
Sea Freight (LCL) 15-30 days 22-37 days
FAQ
1. Where is your factory located?
We are in Taizhou city, Zhejiang province China, one hour from Hangzhou and two hours from Shanghai by train.
2. Can I get free samples?
Yes, we provide free samples delivered within 2 days for evaluation.
3. How long does a quotation take?
Typically within 2 days, or we'll notify you promptly if confirmation is needed.
4. What's your production lead time?
5-15 working days after order confirmation, depending on quantity.
5. What about quality control?
Self-inspections at every stage, plus spot and final inspections by QC team using advanced equipment.
6. What's your largest advantage?
30+ years of expertise in converting yarn to finished products with quality guarantee.
7. What payment terms do you accept?
T/T, LC and more options available.
