Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration

Minimum Order Quantity : 100 M2 Price : $0.5 for 100 M2, $0.45 for 1,000 M2, $0.4 for 10, 000 M2
Packaging Details : PE bag and carton Delivery Time : 5 to 20 working days
Payment Terms : L/C, T/T, Paypal Supply Ability : 5, 0000 pcs / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, US California Proposition 65 Model Number: SG-FS-22

Detail Information

Specification: Polypropylene Monofilament Filter Mesh Micron Opening: 20um To 3000um
Material: 100% Polypropylene Monofilament Yarn HS Code: 59112000
Sample: Available Color: Natural White
Forms: Rolls, Pieces, Discs, Ribbons, Tubes, Molded Filters Process Methods: Cutting, Stamping, Sewing, Welding, Molding
Benefits: Great Precision, Smooth Surface, Even Pore Size Thermal Stability: Up To 100ºC
Filtration Characteristic: Good Acid Resistance: Excellent
Alkaline Resistance: Excellent Stability To Solvents: Good
Hydrolysis Resistance: Good Abrasion Resistance: Good
Oxidation Resistance: Poor Water And Moisture Absorption: No Absorption
Port: Ningbo, Shanghai
High Light:

Liquid Bags Polypropylene Filter Mesh

,

Water Purifiers Polypropylene Filter Mesh

,

Air Purifiers Polypropylene Filter Mesh

Product Description

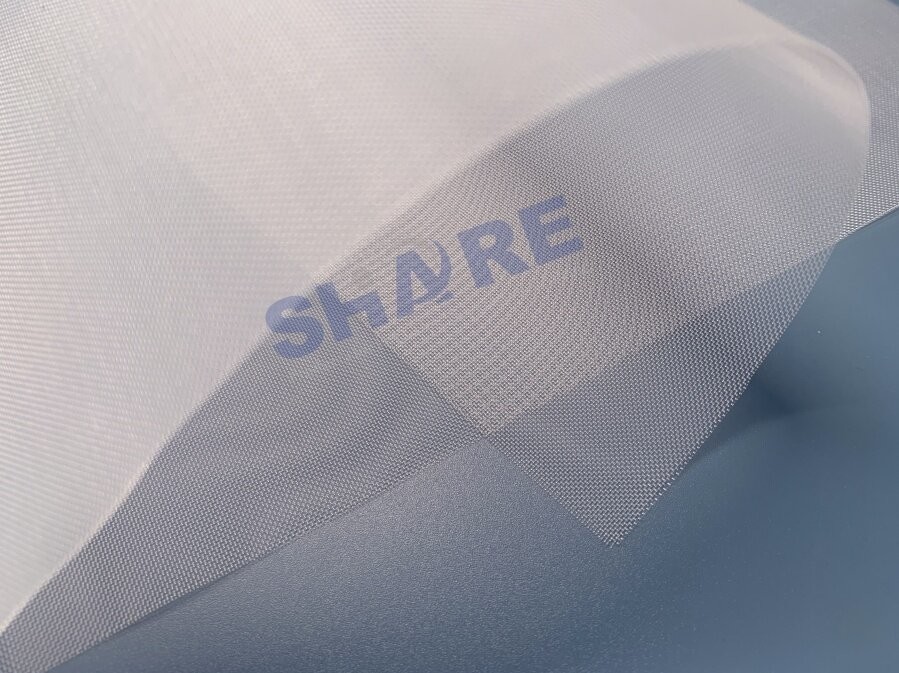

Polypropylene woven mesh filters can be used as sieve to filter, trap and capture debris, particles, pollutants and contaminants in aggresive filter environments, such as air purifiers, water purifiers, liquid filter bags, dust filtration screens, molded filters for automotive, chemical reagent filtration etc.

SHARE polypropylene woven mesh filters is made of monofilament single thread and woven with plain weave, so it provides precise even pore size, excellent air permeability and smooth surface. Woven mesh is surface filtration. For example, mesh filters with 30µm mesh opening (pore size) mesh will hold back all particles larger than 30µm and allow all particles smaller to pass.

SHARE provides a broad range of polypropylene monofilament woven mesh screen filters, characterized by precise mesh openings, percent open area and mesh thickness.

Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 0Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 1





























Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 2Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 3









































Specifications



Item Name Custom Size Acid Resistant Polypropylene Air Filter Mesh
Manufacturer Taizhou Share Filters Co. Ltd.
Brand SHARE FILTERS
Material 100% polypropylene monofilament yarn
Color Natural white
Weave type Plain woven, twill woven, dutch woven
Mesh opening 20um to 3000um
Open area 1% to 67%
Thickness 50um to 1900um
Roll width 1cm to 390cm are available. Commonly roll width 50cm, 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm.
Roll length 30-100 mester or customized
Product type Roll, disc, ribbon, shapes, bag, pleated components in round, square, rectangular, trapezoidal, circular, etc.
Processing technologies Colored, coated, thermal treated, sectioned, shaped, pleated, sewed or molded
Features High weldability, excellent hydrolysis resistance, excellent chemical resistance to biological, alkali, mineral acids, organic acids and oxidizing agents, no moisture absorbency
Quality control Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment
Certificate ISO19001 SGS ROHS REACH
Sample 2 meter free
Applications Air purifiers, water purifiers, liquid filter bags, dust filtration screens, molded filters for automotive, chemical reagent filtration etc.





Product Procedure



Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 4Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 5Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 6

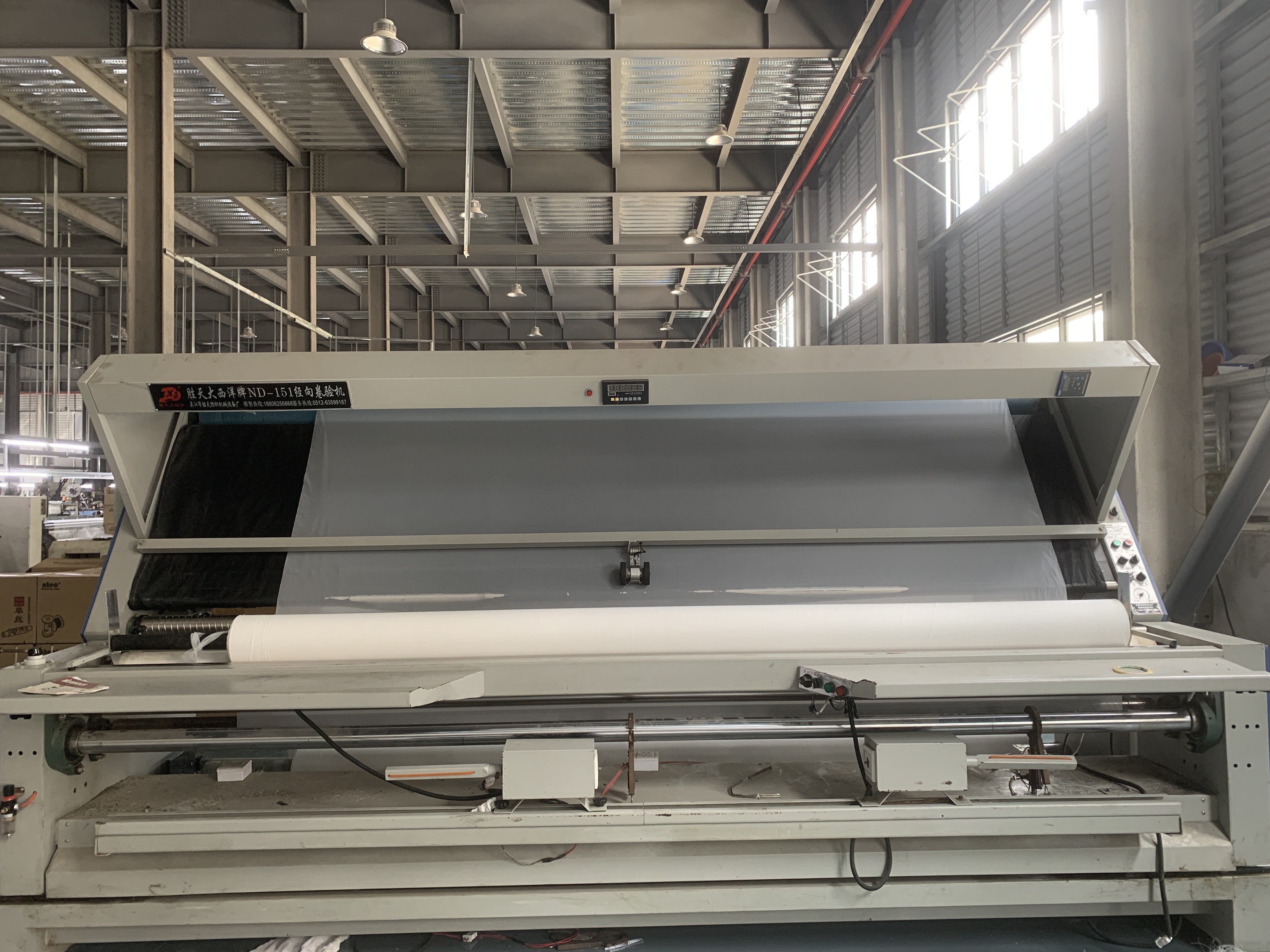

At Share, from yarn to product, every phase of production is carefully monitored, employing frequent in-house testing and rigorous inspection to ensure consistent quality at every step of production. Mesh thickness, open area, mesh count and air permeability are all subject to strict controls which result in high quality final products.

Each batch of our filter meshes undergoes a meticulous process involving at least twelve distinct steps, ensuring the ultimate production of high-quality filtering products. The steps of SHARE filter mesh production procedure are:



Yarn→Raw yarn inspection→Warping arranging→Drawing in heddle→Drawing in reed→Weaving→Initial survey→Washing→Heat setting treatment→Physical properties inspection→Products inspection→Product→Fabricated filter and screens if needed→Molded plastic filters if needed

Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 7

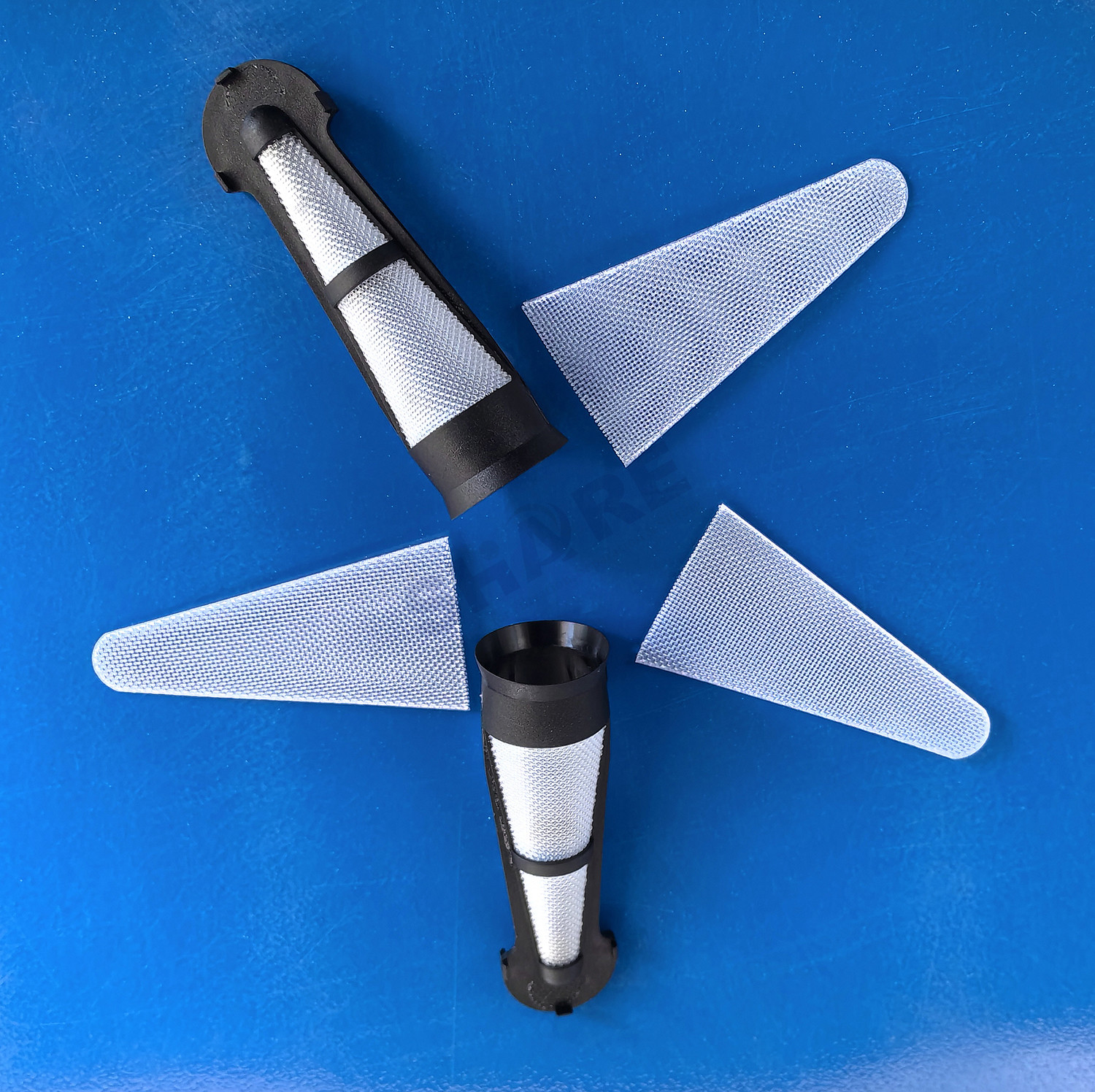

Based on customer drawings or requirements, SHARE filter mesh can be further processed into various types of cut-to-size filter stamped discs, pieces, shapes, ribbons, tubes, bags, injection molded filter etc.



Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 8



Technical Datasheet



SHARE Precision Polypropylene Filter Mesh Technical Data Sheet
Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Fabric
Thickness
Weight
No. mesh/cm um um % um g/m²
PP-3360/60 2.3 1000 3360 60 1800 340
PP-2400/50 2.9 1000 2400 50 1730 470
PP-2000/51 3.6 800 2000 51 1310 310
PP-1680/46 4 800 1680 46 1600 410
PP-1190/42 5.5 600 1190 42 1340 318
PP-1000/45 6.8 500 1000 45 1020 300
PP- 840/45 8 440 840 45 725 190
PP- 710/41 9 440 710 41 800 216
PP- 500/36 12.2 340 500 36 610 180
PP- 420/30 13.9 300 420 30 610 200
PP- 405/41 16.8 230 405 41 350 100
PP- 350/32 16.2 270 350 32 515 160
PP- 297/35 20 215 297 35 420 125
PP- 295/23 16.2 340 295 23 610 245
PP- 280/41 22.7 165 280 41 300 90
PP- 250/29 22.2 215 250 31 430 140
PP- 210/32 27 165 210 32 295 95
PP- 177/29 29 165 177 29 314 110
PP- 150/34 38.5 110 150 34 195 65
PP- 125/30 43.5 106 125 30 200 68
PP- 105/25 47.5 106 105 25 230 78
PP- 105/16 36,5 165 105 16 360 134
PP-3360/60 2.3 1000 3360 60 1800 340
PP-2400/50 2.9 1000 2400 50 1730 470
PP-2000/51 3.6 800 2000 51 1310 310
PP-1680/46 4 800 1680 46 1600 410
PP-1190/42 5.5 600 1190 42 1340 318
PP-1000/45 6.8 500 1000 45 1020 300
PP- 840/45 8 440 840 45 725 190
PP- 710/41 9 440 710 41 800 216
PP- 500/36 12.2 340 500 36 610 180
PP- 420/30 13.9 300 420 30 610 200
PP- 405/41 16.8 230 405 41 350 100
PP- 350/32 16.2 270 350 32 515 160
PP- 297/35 20 215 297 35 420 125
PP- 295/23 16.2 340 295 23 610 245
PP- 280/41 22.7 165 280 41 300 90
PP- 250/29 22.2 215 250 31 430 140
PP- 210/32 27 165 210 32 295 95
PP- 177/29 29 165 177 29 314 110
PP- 150/34 38.5 110 150 34 195 65
PP- 125/30 43.5 106 125 30 200 68
PP- 105/25 47.5 106 105 25 230 78
PP- 105/16 36,5 165 105 16 360 134

The data are compiled to the best of our knowledge, NOT a complete product range. Complete product range is available on request.

Subject to change without notice.



Chemical Resistant Polypropylene Filter Mesh For Air Purifiers, Water Purifiers, Liquid Filter Bags, Dust Filtration 9



Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE is here for you. Our specialist problem solving skills are ready to address any challenges you encounter.

By vertical integration of our global supply chain and expertise, our extensive manufacturing and production facilities, our experiences of filtration team, as well as our materials management, we take end-to-end control of all the steps in the manufacturing process, including weaving, fabrication, molding. Our ability to efficiently manufacture products not only ensures repeatable product quality, but also maintains a steady supply chain, reduces production costs and shortens lead times for our customers.

We aim to offer the most reliable and cost effective filter solutions for all filtration applications. SHARE application speciallists with decades of experiences will help you select the best filter solution for your application.

Contact SHARE today for additional information and how we can help you with your specific filtration requirements.





Packaging & Shipping

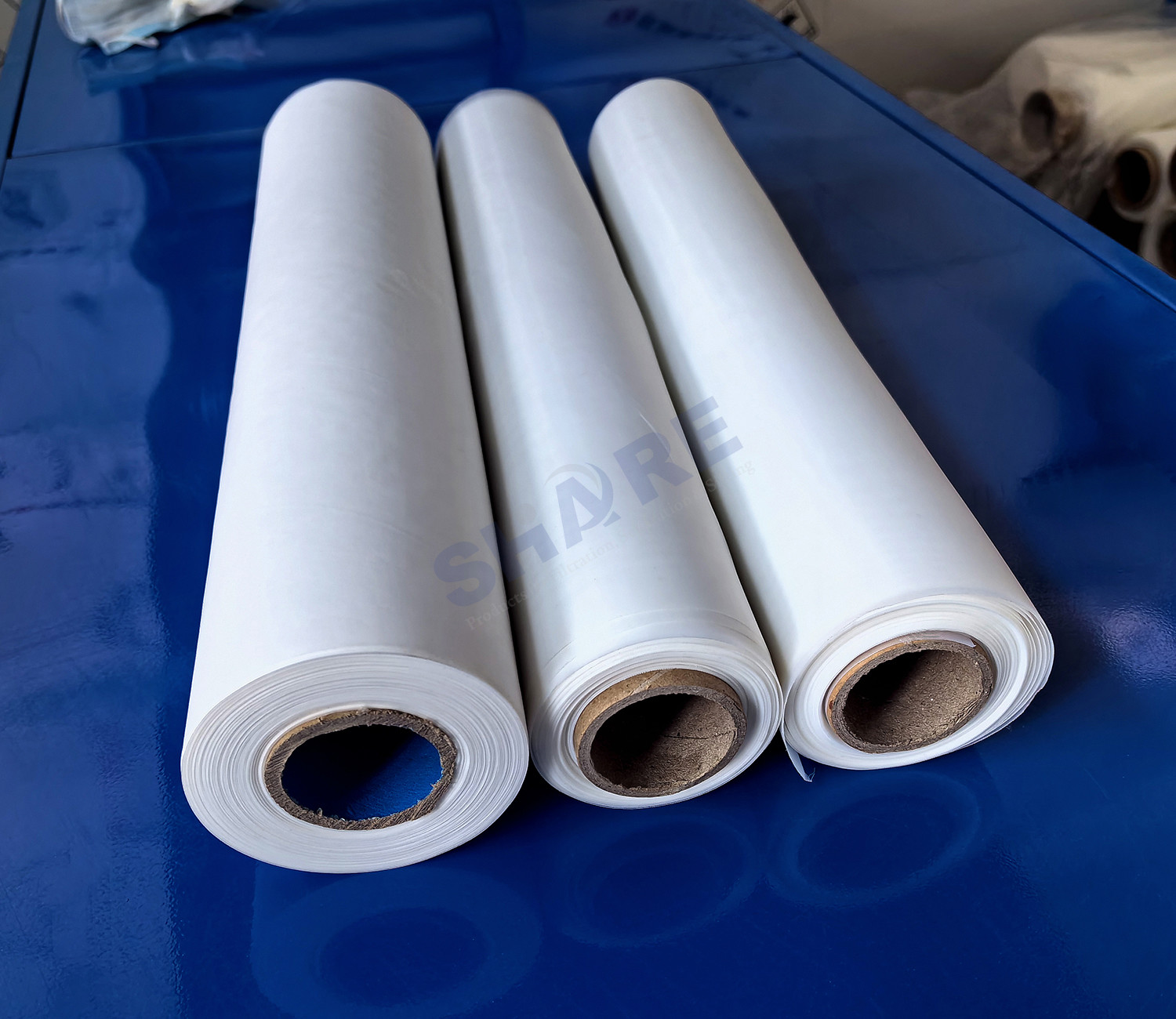

For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into b
igger PE bag and then standard export carton
3. W
rapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available


The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.



  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
