200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility

Minimum Order Quantity : 1000 PCS Price : $1 for 500 pcs, $0.9 for 10,000 pcs, $0.7 for 50, 000 pcs
Packaging Details : PE bag and carton Delivery Time : 5 working days
Payment Terms : L/C, T/T, Paypal Supply Ability : 5, 0000 pcs / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, California Proposition 65 Model Number: SG-IMF-28

Detail Information

Material: Polypropylene Color: Natural White
Micron Opening: 75 Um Forms: Rolls, Pieces, Discs, Ribbons, Tubes, Molded Filters
Process Methods: Cutting, Stamping, Sewing, Welding, Molding Filtration Characteristic: Good
Acid Resistance: Excellent Alkaline Resistance: Excellent
Stability To Solvents: Good Hydrolysis Resistance: Good
Abrasion Resistance: Good Oxidation Resistance: Poor
Water And Moisture Absorption: No Absorption
Highlight:

200 Mesh Polypropylene Filter Mesh

,

PP Filter Mesh 75 Um

,

Cutting Polypropylene Monofilament Filter Mesh

Product Description



SHARE provides a broad range of polypropylene monofilament woven filter mesh and component with mesh openings from 75um to 3360um. Polypropylene (PP for short) filters provides wide thermal & chemical compatibility and ideal for medical industry, liquid filtration, laboratory general clarifying and prefiltration including solvents, deionized water and bioburden reduction, food grade related filtration, paper, petroleum, chemical industries.



Features




•FDA approval monofilament polypropylene
•Excellent chemical resistance to biological, alkali, mineral acids and organic acids
•Excellent hydrolysis resistance
•No water and moisture absorbency
•High weldability
•Continuous working temperature 90ºC, maximum working temperature 100ºC



Specifications



•Micron rating from 75um to 3360um
•Open area from 16% to 60%
•Thread diameter from 30um to 1000um
•Thickness from 100um to 1800um
•Roll length: 30-100 meters or customized
•Roll width: commonly in 100cm, 127cm, 150cm, 170cm, 200cm, 300cm on stock. Customized widths upon demand
•Available in roll, disc, tube, ribbon, bag and plastic molded filters





Datasheet




Item Name Item Number Mesh Opening(um) Thread Diameter(um) Mesh Count
(mesh/inch)
Weave Applications
Precision Polypropylene
Open Mesh
PP-540 540 300 30 Plain
  • Water purifiers, liquid filter bags, dust filtration screens
  • Filters for tea strainers and plumbing products
  • Molded filters for automotive, laboratory analysis and filtration, chemical and petro-chemical filtration
  • Food Industry and industries with strong acids and alkalin
  • Food-grade related liquid filtration
PP-410 410 220 40 Plain
PP-270 270 150 60 Plain
PP-200 200 100 80 Twill
PP-150 150 100 100 Twill
PP-75 75 48 200 Twill



The data are compiled to the best of our knowledge, NOT a complete product range. Complete product range is available on request.
Subject to change without notice.





Polypropylene Related Products



200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility 0200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility 1

200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility 2200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility 3



SHARE produces high quality customized filter sieve and filter strainers for automotives, sanitary, packaging, painting, water treatment, medical and healthcare, chemical processing industries.



We manufacture flat plastic mesh as well as a wide variety of tubular mesh components by both horizontal and vertical machines, and we process the widest selection of advanced thermoplastics such as ABS, PP, HDPE, POM, PA66, PA6+GF, TPU, PBT. etc. with or without fiberglass reinforcement. Our plastic filters are designed for easy installation, assembly and maintenance.



Share’s sales and engineer team with many years of application expertise and manufacturing experience can help&support customers at every stage of development.

  1. Custom design

  2. Material selection

  3. Tight tolerance mold manufacture

  4. Rapid prototyping

  5. Validation testing and low or high volume manufacturing200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility 4



Customer Benefits




• Optimized part design with tight tolerances at a low cost per unit and mass production
• Extensive material options and industry-best lead times
• High stability, repeatability and reliability
• Expert advice on materials and colors selection according to customer-specific application
• Technical consultancy, rapid prototype tools and assembly & installation support


Request For Quotation

To get a quote for your project, here's what we need:

Material (Nylon, polyester, polypropylene, 304 & 316 stainless steel, etc.)
Specifications (Mesh opening, length, width, diameter)
Applications (for us to choose the best shaping technologies)


Contact SHARE today for additional information and how we can help you with your specific filtration requirements.



Company Profile




Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.


200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility 5
Monofilament Mesh Rolls

  • 30 years of experience & capabilities
  • PA, PET, PP, PE, PPS, PEEK etc.
  • Characterized by precise mesh opening, open area and thickness
  • Excellent converting capabilities from yarn over weaving to converted items
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility 6
Discs, Tubes, Ribbons, Bags

  • Cutting, calendering, welding, slitting, sewing, pleating, molding
  • Discs, tubes, ribbons, bags etc.
  • Various converting capabilities by stamping or slitting technology: cold, heat, laser, ultrasonic
  • Clean, smooth & closed edge quality
  • Maximum compatibility with injection molding process
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh With Wide Chemical Compatibility 7
Plastic Molded Filters

  • Insert molding and over molding
  • Mold design, modeling, prototyping, manufacturing and testing
  • High efficiency, excellent particles holding capacity and low pressure drop
  • High stability, repeatability and reliability
  • Extensive material options and industry-best lead times


Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.

Contact SHARE today for additional information and how we can help you with your specific filtration requirements.







Packaging & Shipping

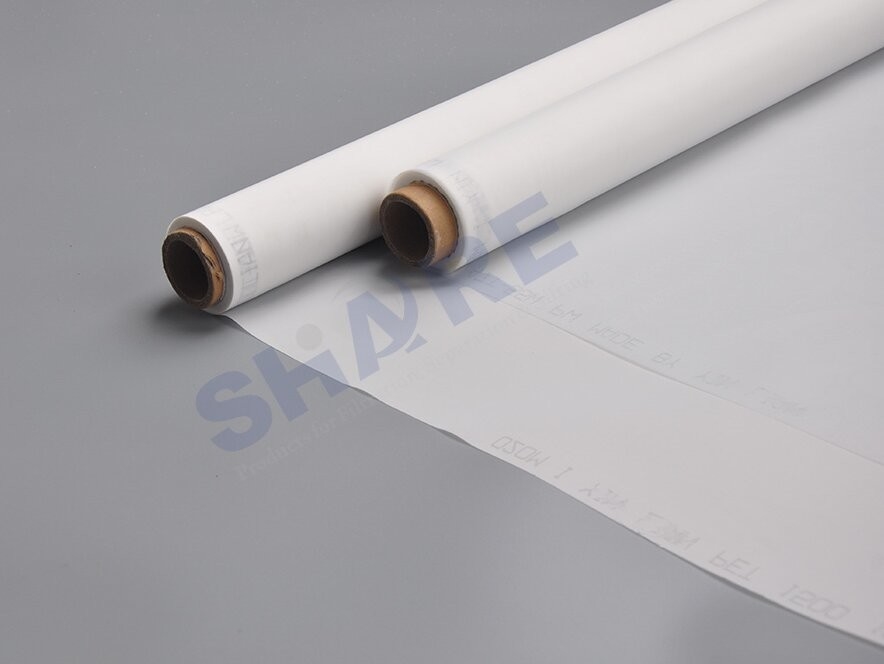

For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into b
igger PE bag and then standard export carton
3. W
rapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available


The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.



  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ




​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
