Monofilament Polypropylene Filter Mesh Chemical Resistant For Food Filtration
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 1000 PCS | Price : | $1 for 500 pcs, $0.9 for 10,000 pcs, $0.7 for 50, 000 pcs |
|---|---|---|---|
| Packaging Details : | PE bag and carton | Delivery Time : | 5 working days |
| Payment Terms : | L/C, T/T, Paypal | Supply Ability : | 5, 0000 pcs / day |
| Place of Origin: | Zhejiang, China | Brand Name: | SHARE FILTERS |
|---|---|---|---|
| Certification: | Reach Svhc, SGS RoHS, California Proposition 65 | Model Number: | SG-IMF-29 |
|
Detail Information |
|||
| Material: | Polypropylene | Color: | Natural White |
|---|---|---|---|
| Micron Opening: | 75 Um To 3360 Um | Forms: | Rolls, Pieces, Discs, Ribbons, Tubes, Molded Filters |
| Process Methods: | Cutting, Stamping, Sewing, Welding, Molding | Applications: | Automotive, Sanitary, Packaging, Painting |
| High Light: | High Efficiency Polypropylene PP Mesh Filters,75um PP Mesh Filters |
||
Product Description

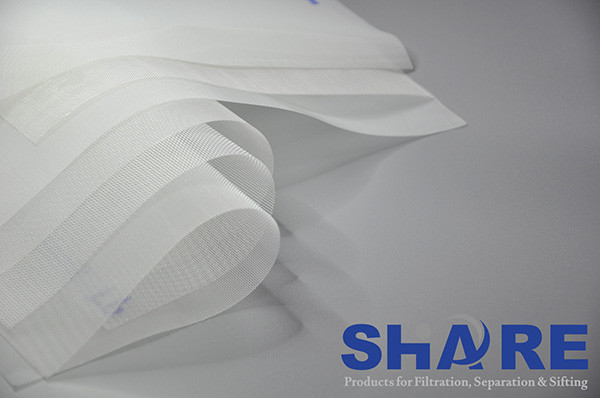

SHARE provides a broad range of polypropylene monofilament woven filter mesh and component with mesh openings from 75um to 3360um. Polypropylene (PP for short) filters provides wide thermal & chemical compatibility and ideal for medical industry, liquid filtration, laboratory general clarifying and prefiltration including solvents, deionized water and bioburden reduction, food grade related filtration, paper, petroleum, chemical industries.
PP Precision Open Mesh Speciications
| Item Name | Item Number | Mesh Opening(um) | Thread Diameter(um) | Mesh Count (mesh/inch) |
Weave | Applications |
| Precision Polypropylene Open Mesh |
PP-540 | 540 | 300 | 30 | Plain |
|
| PP-410 | 410 | 220 | 40 | Plain | ||
| PP-270 | 270 | 150 | 60 | Plain | ||
| PP-200 | 200 | 100 | 80 | Twill | ||
| PP-150 | 150 | 100 | 100 | Twill | ||
| PP-75 | 75 | 48 | 200 | Twill |
The data are compiled to the best of our knowledge, NOT a complete product range. Complete product range is available on request.
Subject to change without notice.
Polypropylene Related Products

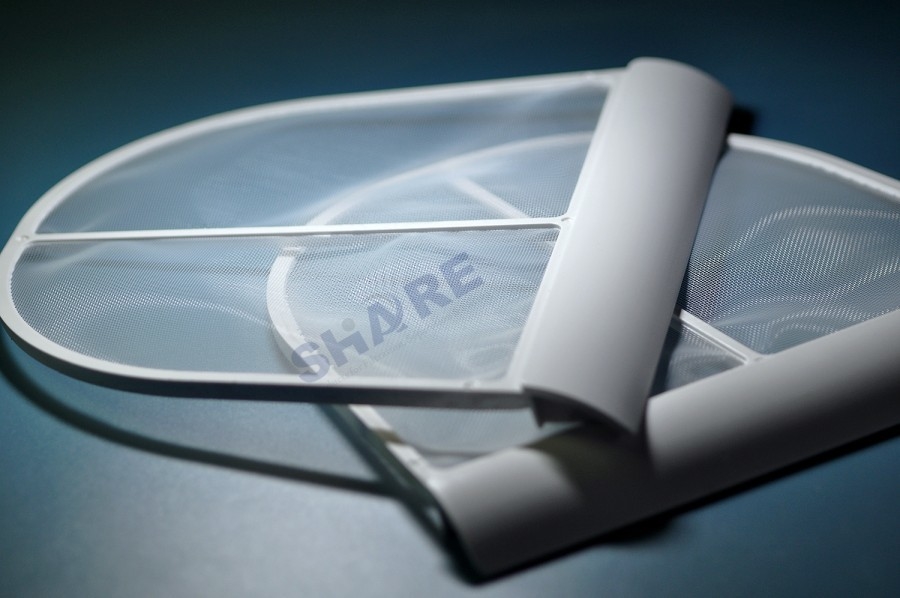

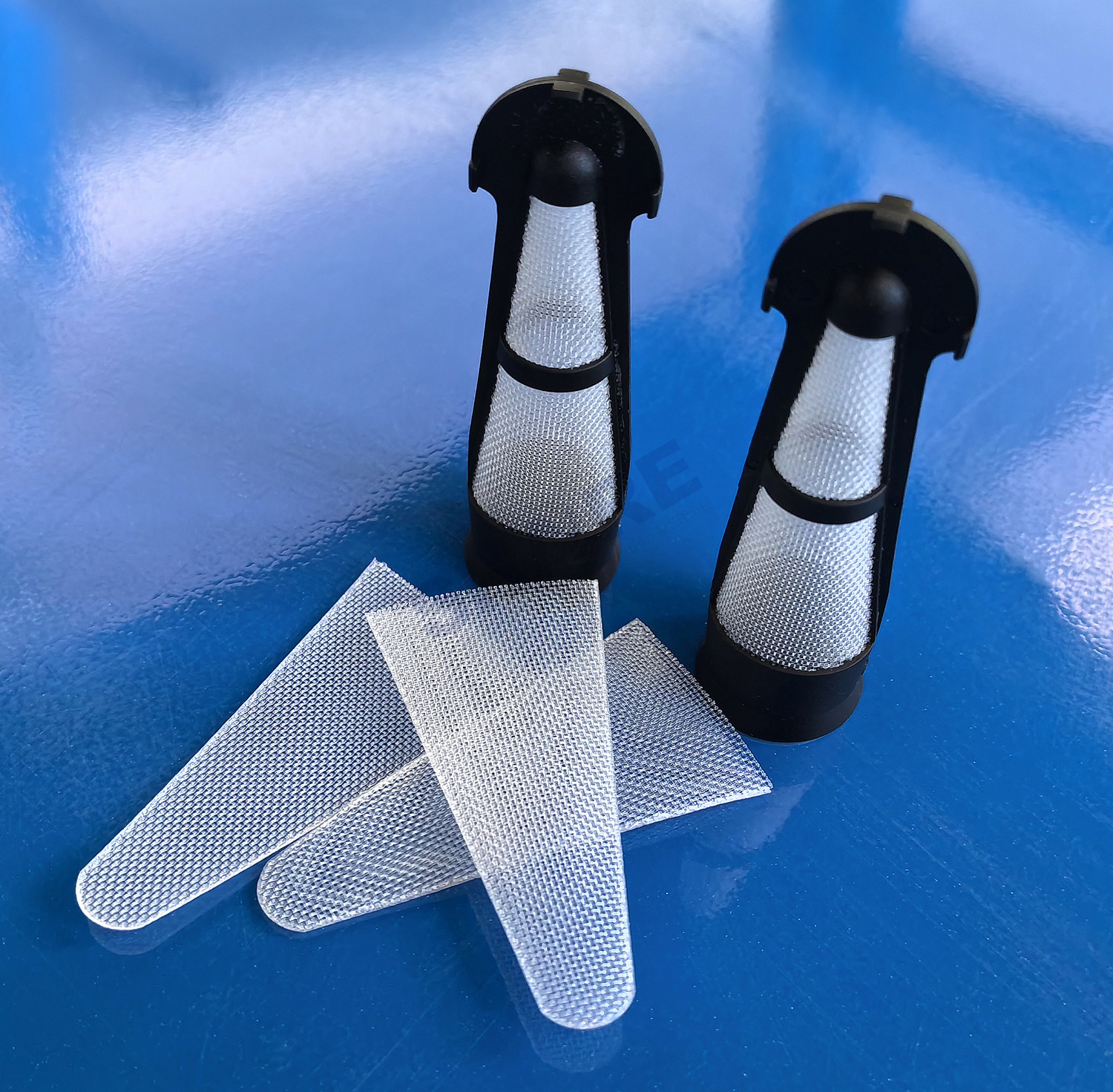

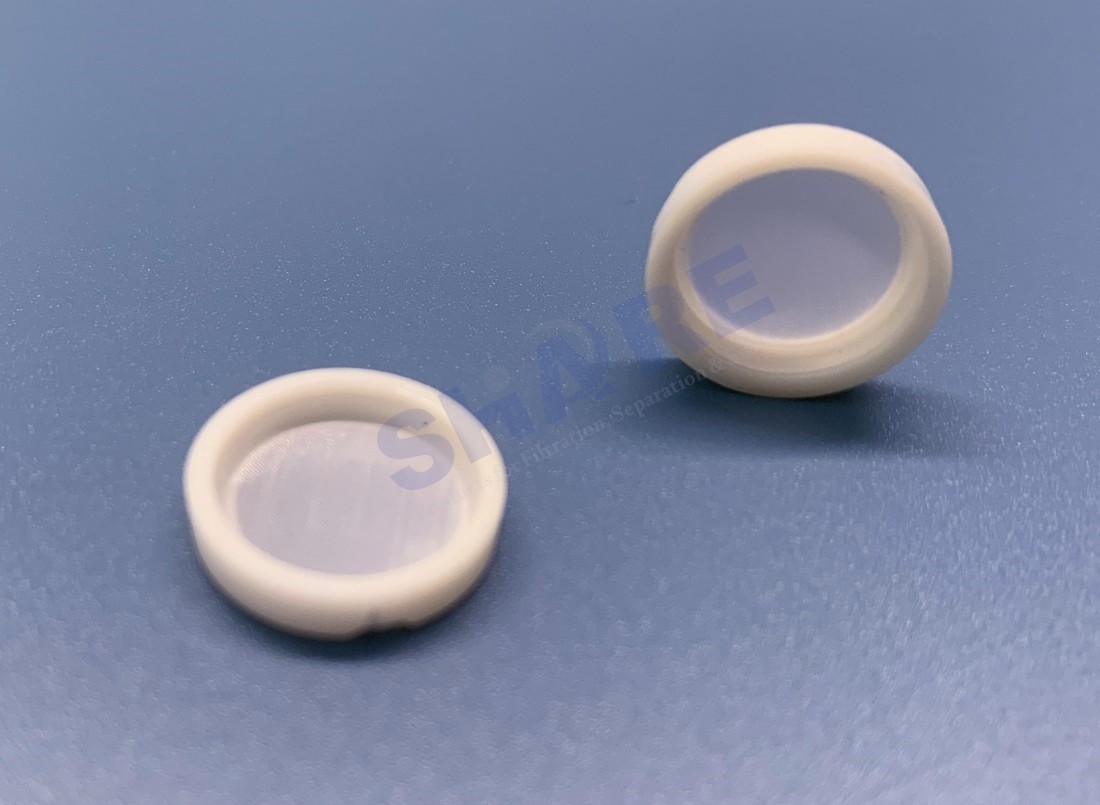

SHARE produces high quality customized filter sieve and filter strainers for automotives, sanitary, packaging, painting, water treatment, medical and healthcare, chemical processing industries.
We manufacture flat plastic mesh as well as a wide variety of tubular mesh components by both horizontal and vertical machines, and we process the widest selection of advanced thermoplastics such as ABS, PP, HDPE, POM, PA66, PA6+GF, TPU, PBT. etc. with or without fiberglass reinforcement. Our plastic filters are designed for easy installation, assembly and maintenance.
Share’s sales and engineer team with many years of application expertise and manufacturing experience can help&support customers at every stage of development.
Custom design
Material selection
Tight tolerance mold manufacture
Rapid prototyping
Validation testing and low or high volume manufacturing
Customer Benefits
Contact SHARE today for additional information and how we can help you with your specific filtration requirements.
Packaging & Shipping
For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
| Port to Port | Door to Door | |
| Express(DHL,UPS,FEDEX, EMS) | 1 - 5 days | |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
