60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable

Minimum Order Quantity : 100meter Price : USD1.00-USD10.00/meter
Packaging Details : Plastic bag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPal Supply Ability : 1000meter/day
Place of Origin: China Brand Name: Share Filters
Certification: RoHS Model Number: 270 Micron Polypropylene Woven Filter Mesh

Detail Information

Product Name: 270 Micron Polypropylene Woven Filter Mesh Keywords: Polypropylene Woven Filter Mesh
Material: 100% Polypropylene Yarn Micron Rating: 75μm-540μm
Thread Diameter: 48μm-300μm Application: Contact With Chemical Solvents, Food, Medical
High Light:

PP Woven Filter Mesh


270 Micron Polypropylene Woven Filter Mesh


Plain Weave Polypropylene Filter Mesh

Product Description

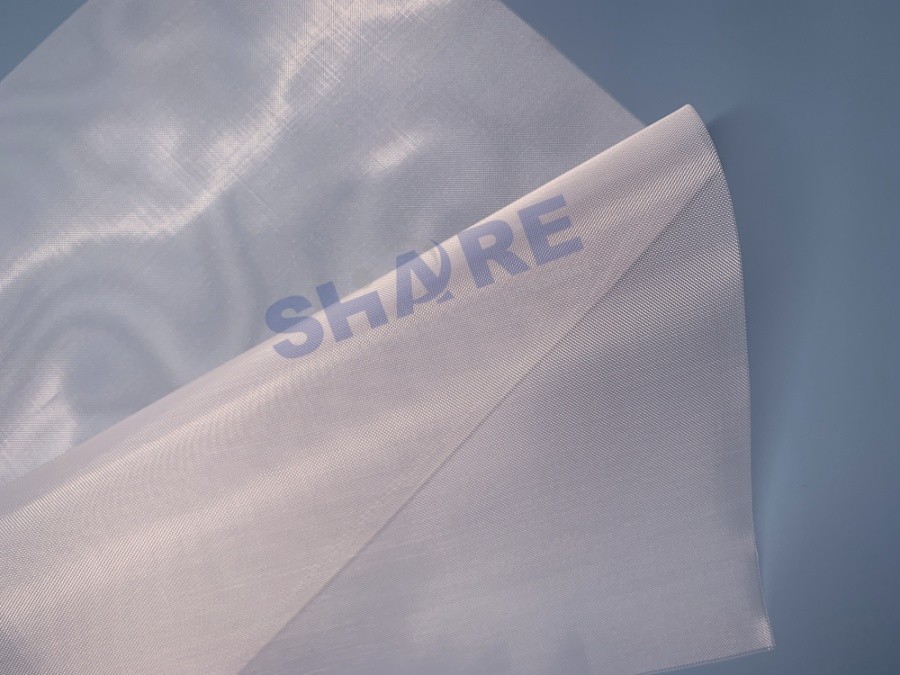

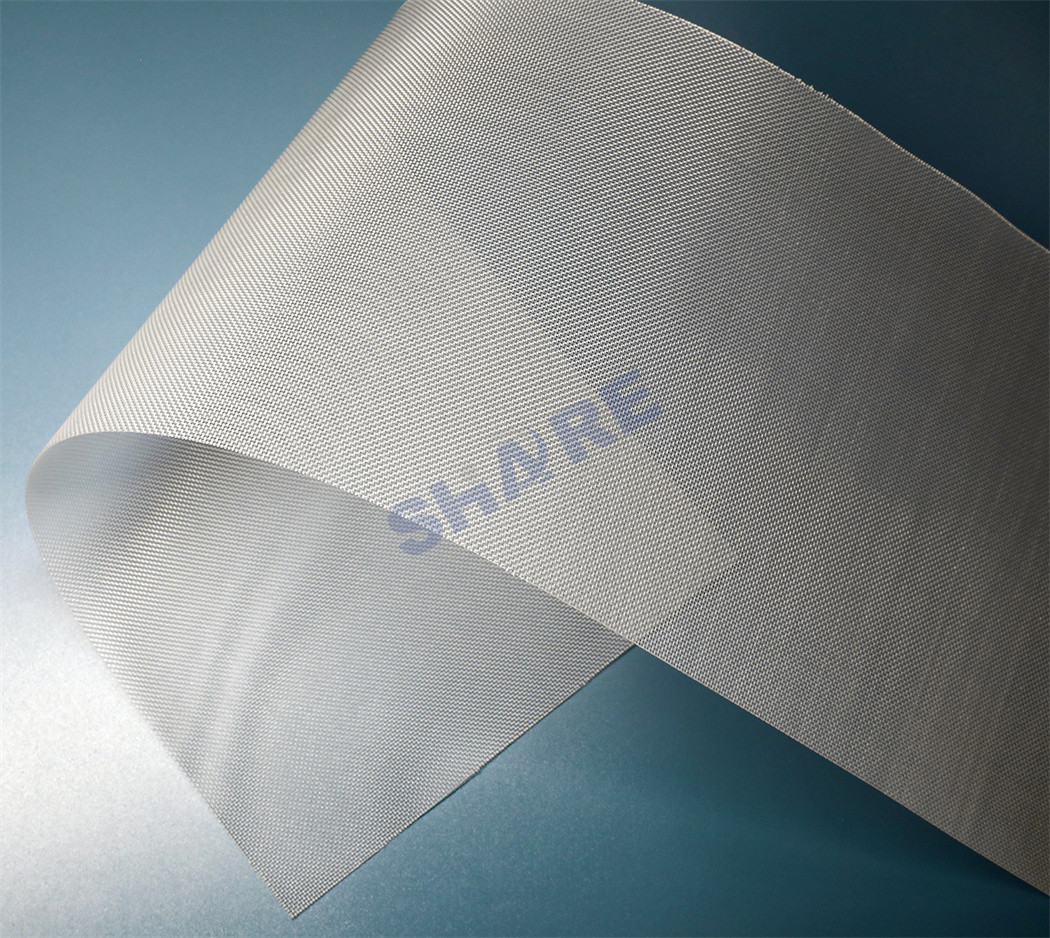

60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable


Polypropylene (PP) filter mesh is chosen for its excellent chemical resistance and high weldability. In industrial filtration, polypropylene filter mesh is often used in chemically aggressive applications like medical devices and containers. Compared to polyamide and polyester, it has a more limited range of mesh openings but can be adapted to mesh sizes from 75 microns to 540 microns. Most polypropylene mesh is natural in color (without additives) and complies with FDA regulations for food contact applications. Share Filters not only offers PP filter mesh in rolls, we also process the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters can convert the PP mesh into pieces, shapes, tubes, bags and moulded filters.



Technical Data


Product name: 270 micron PP woven mesh Mesh count: 60tpi
Material: Monofilament polypropylene yarn Pore size: 270μm
Weave type: Plain weave Thread diam: 150μm
Application: Food, medical and other filtration Colour: Nature


Product Details


PP filter mesh  60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable 1

PP mesh  PP filter mesh



The Feature of PP Filter Mesh


  • Monofilament polypropylene fiber
  • Square hole opening
  • Good resistance to wear
  • Very good resistance to alkalis and strong acids
  • Softening point of 152°C

The Benefits of Precut PP Mesh Pieces


  • Specific to the customer’s design needs
  • Special-made tool make size in tight tolerance
  • Non-fraying edges(depends on the technology)
  • Convenient for directly uasage and insert moulding
  • High productivity



PP Filter Mesh Specifications


PP30 30tpi 300um 540um Plain Weave
PP40 40tpi 220um 410um Plain Weave
PP60 60tpi 150um 270um Plain Weave
PP80 80tpi 100um 200um Twill Weave
PP100 100tpi 100um 150um Twill Weave
PP200 200tpi 48um 75um Twill Weave

This just a part of specifications which common used.



Mesh Filters for Food & Medical Industry


proofer cup  water bottle filter 60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable 6 60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable 7



Why Work With Share Filters ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.


We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

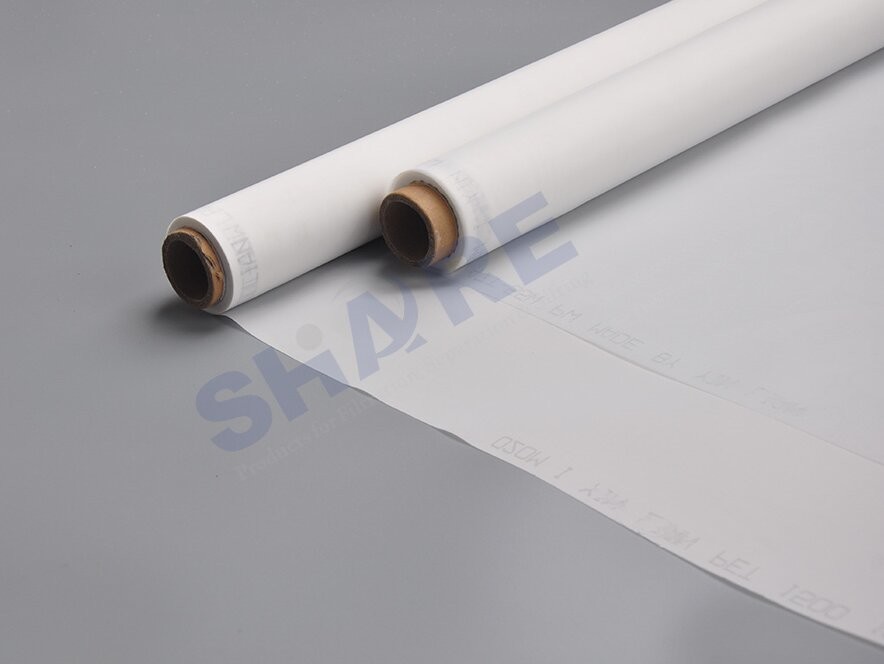

weaving filter mesh

Filter Mesh Weaving


The width of nylon and polyester filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.



Filter Mesh Slitted in Narrow Ribbons


Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

      Filter mesh slitted to be ribbons



60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable 10

Filter Mesh Pre Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.




 Filter Mesh Tubes and Tubular Ribbon


With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

nylon filter mesh weld tube ribbon


mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing


Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.



Standard Filter Bags

Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

Filter media: mesh, felt

      60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable 13


custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Plastic Filters


Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


Application of Share Filters Products


Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


injector filter BIOPSY BAG 60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable 17 coffee filter 60tpi 270 Micron Polypropylene Woven Filter Mesh Chemically Stable 19 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool



Contact Us


Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us so we can learn more about your application and design specifications!


Photos of Factory

Share Filter workshops
Warping Weaving Inspection
share filters work shop
Washing Heat setting Injection moulding





Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.


Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.


Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.


When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.


What's Your Payment Term ?

T/T and LC and more.


What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.


What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.


Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.


How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
