Monofilament Polypropylene Filter Mesh Chemical Resistant For Food Filtration
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 100meter | Price : | USD1.00-USD10.00/meter |
|---|---|---|---|
| Packaging Details : | Plastic bag | Delivery Time : | 7-20 days |
| Payment Terms : | T/T, L/C, D/P, Western Union, PayPal | Supply Ability : | 1000meter/day |
| Place of Origin: | China | Brand Name: | Share Filters |
|---|---|---|---|
| Certification: | RoHS | Model Number: | 540 Micron PP Woven Filter Mesh Chemically Stable |
|
Detail Information |
|||
| Product Name: | 540 Micron PP Woven Filter Mesh | Keywords: | PP Woven Filter Mesh |
|---|---|---|---|
| Material: | 100% Polypropylene Yarn | Micron Rating: | 75μm-540μm |
| Thread Diameter: | 48μm-300μm | Application: | Contact With Chemical Solvents, Food, Medical |
Product Description

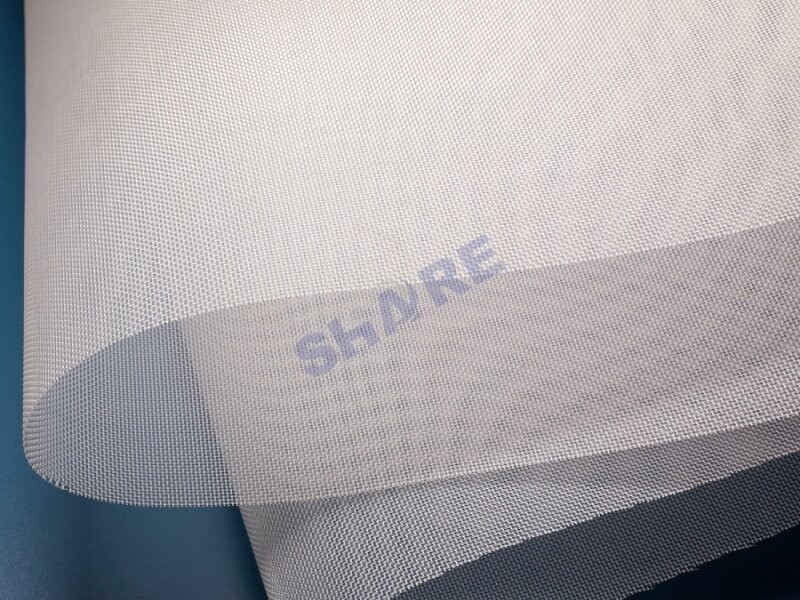

30tpi 540 Micron PP Woven Filter Mesh Chemically Stable Complies With FDA
Polypropylene (PP) is a thermoplastic polymer providing good chemical and heat resistance. Polypropylene is rugged and unusually resistant to many chemical solvents, bases and acids. PP is chemically stable and mostly used in food industry and medical devices. Most polypropylene mesh is natural in color (without additives) and complies with FDA regulations for food contact applications. Share Filters not only offers PP filter mesh in rolls, we also process the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters can convert the PP mesh into pieces, tubes, bags and moulded filter.
Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh shapes can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality. These mesh discs and shapes are convenient for directly usage or custom injection moulding.
Technical Data
| Product name: | 540 micron PP woven mesh | Mesh count: | 30tpi |
| Material: | Monofilament polypropylene yarn | Pore size: | 540μm |
| Weave type: | Plain weave | Thread diam: | 300μm |
| Application: | Food, medical and other filtration | Colour: | Nature |
Product Details
|
The Feature of PP Filter Mesh
|
The Benefits of Precut PP Mesh Pieces
|
PP Filter Mesh Specifications
| ITEM | MESH COUNT | THREAD DIAMETER | OPENING | WEAVIING TYPE |
| PP30 | 30tpi | 300um | 540um | Plain Weave |
| PP40 | 40tpi | 220um | 410um | Plain Weave |
| PP60 | 60tpi | 150um | 270um | Plain Weave |
| PP80 | 80tpi | 100um | 200um | Twill Weave |
| PP100 | 100tpi | 100um | 150um | Twill Weave |
| PP200 | 200tpi | 48um | 75um | Twill Weave |
This just a part of specifications which common used.
Why Work With Share Filters
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.
We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.
|
Filter Mesh Weaving
The width of nylon and polyester filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length. |
|
Filter Mesh Slitted in Narrow Ribbons Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. |
|
|
Filter Mesh Pre Cut Pieces and Shapes Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities. |
|
Filter Mesh Tubes and Tubular Ribbon
With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength. |
|
|
Custom Filter Mesh Bag by Welding and Sewing
Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days. |
|
Standard Filter Bags Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.
Top design: plastic collar, metallic ring Filter media: mesh, felt |
|
|
Mesh Insert Injection Moulded Plastic Filters
Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens. |
Application of Share Filters Products
Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
|
|
|
|
|
|
| Fuel filter | Biopsy bag | Air purifier filter | Coffee filter | Irrigation filter | Mesh disc filter |
| Automotive | Laboratory | Appliance | Food & Beverage | Agriculture | Power tool |
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.
Please connect with us so we can learn more about your application and design specifications!
Photos of Factory
|
||
| Warping | Weaving | Inspection |
|
||
| Washing | Heat setting | Injection moulding |
FAQ
Are You Factory or Trade Company ?
We're factory, and manufacture our products in-house.
Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.
Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.
When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.
What's Your Payment Term ?
T/T and LC and more.
What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.
What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.
Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.
How To Delivery the Order?
Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
