Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter

Minimum Order Quantity : 200pcs Price : USD0.02-USD1.20/pc
Packaging Details : Caron, Polybag Delivery Time : 3-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS, RoHS Model Number: Polypropylene Mesh Pieces for Washing Machine Filter

Detail Information

Product Name: Polypropylene Mesh Pieces For Washing Machine Filter Keywords: Micron Polyester Mesh Filter Shapes
Material Option: Polypropylene Mesh, Polyester Filter Mesh Micron Rating: 200μm-300μm
Thread Diameter: 55μm-150μm Size: Any Custom Size Or Shapes
Application: Washing Machine Filter, Other Appliance Filter
High Light:

200um Polypropylene Mesh Pieces

,

Washing Machine Filter Polypropylene Mesh Pieces

Product Description

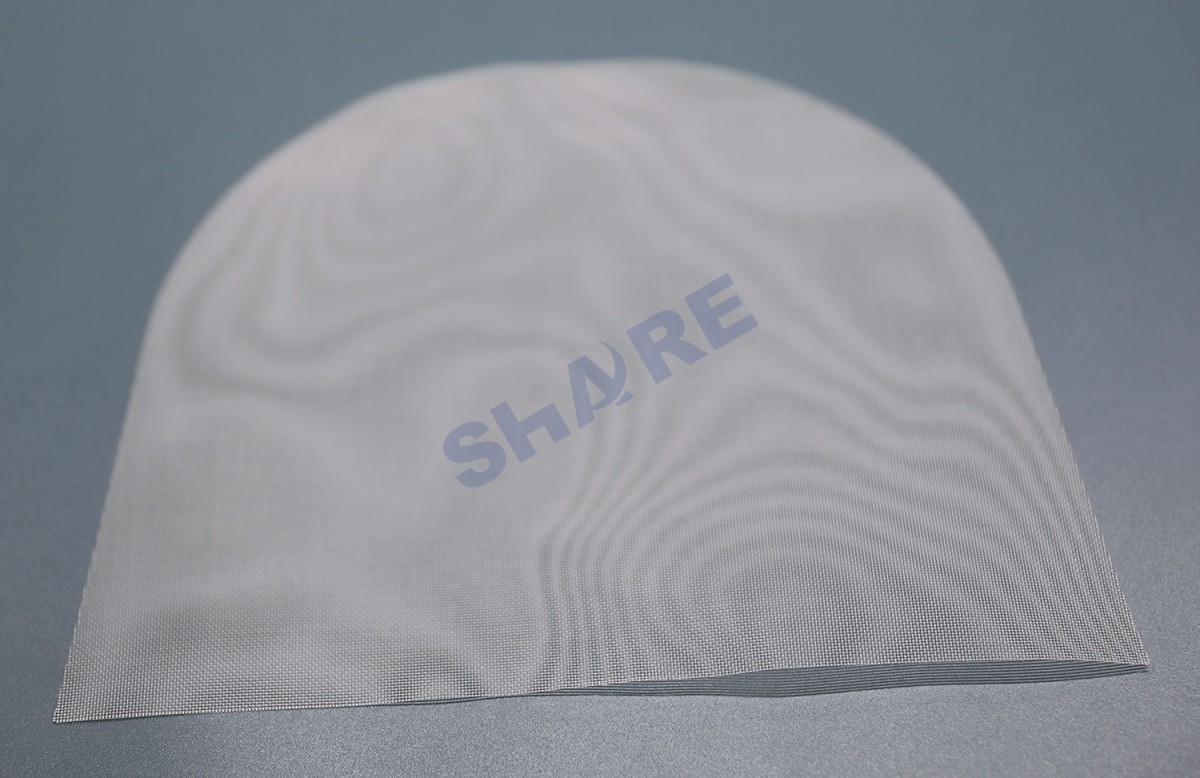

Micron 200 250 300 μm Polypropylene Mesh Pieces for Washing Machine Filter



Polypropylene Filter Mesh is chosen over other synthetic fiber woven filter meshes because polypropylene is excellent resistance to most acids, alkali, its lightness and strength, which polyester filter mesh, polyamide filter mesh cannot compare, good resistance to impact. Share Filters not only offers a wide range of polypropylene in rolls, we also convert the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh pieces and shapes can be tailored to any shape or dimension.

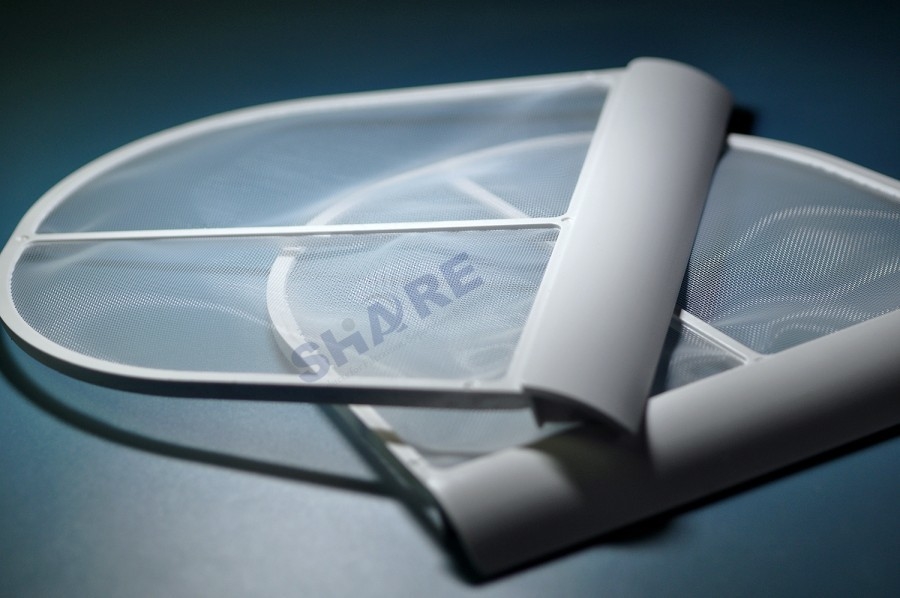

The washing machine filter, also known as the lint filter or debris filter, is an essential component of a washing machine. Its primary function is to trap lint, hair, fabric particles, and other debris that may be present in the laundry water. This helps prevent these materials from clogging the drain or circulating back into the washing machine.



Share Filters' pre-cutted filter mesh pieces can be customized to the design of whashing machine filters, and we also can provide the moulding service. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh Pieces can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, punching enables precisely defined openings to be made in filter mesh in the highest quality. These mesh pieces are convenient for custom injection moulding.



Share Filters' Filter Mesh Shapes Used for Washing Machine Filters Options



Material Options: Monofilament woven polypropylene mesh, polyester mesh
Mesh Opening: From 200 micron to 300 micron
Thread Diameter: From 55 micron to 150 micron
Open Area: From 42% to 67%
Weave Type: Plain weave
Fabricated Part:  Shapes, ribbons
Dimension: Can be tailored to any shape or dimension
Colour: White, or customize



Product Details

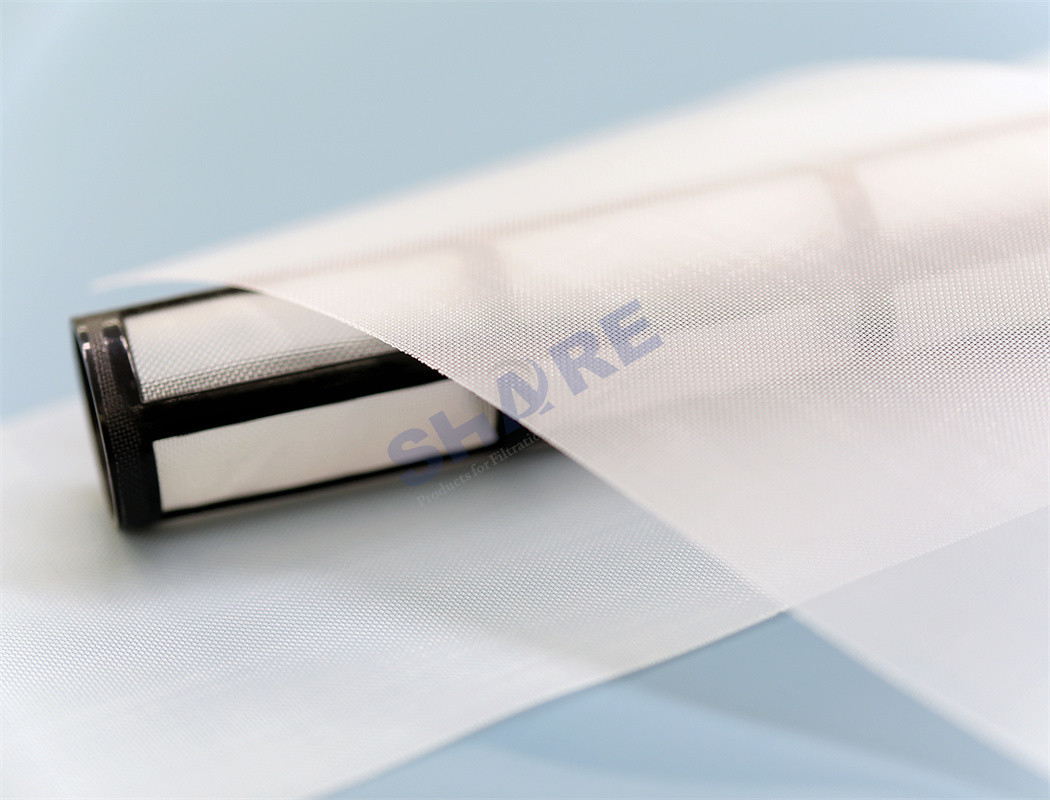

filter mesh shapes  filter mesh ribbon

moulded filter



The Benefits from Share Filters' Pre-Cut Filter Mesh Pieces:

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • Convenient for insert molding
  • High productivity



The Mesh Edge Quality Differs Depending On The Processing Technology



Processing Technologies Ultrasonic slitting & welding Heat cutting & slitting Laser cutting & slitting Cold cutting & punching
Fabrication Method Mesh are slitted while crushing the edge with ultrasonic vibration Mesh are slitted by heat treatment (temperature close to melting point) Almost all shapes and sizes can be processed with laser cutter Mesh are cut by cold slitting or punching
Edge Quality

Very clean cut edges





Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 3

Closed edge due to fabric melting



Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 4

Heat-sealed, non-fraying edges



Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 5

Non-sealed edge





Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 6

Advantage Small material build-up,
tight tolerances possible
Possible for most mesh fabrics High flexibility The most cost effective process, possible





Why Us ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex elements like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products with filter meshes are our primary business.



We're the few suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



filter mesh weaving

Filter Mesh Weaving



The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

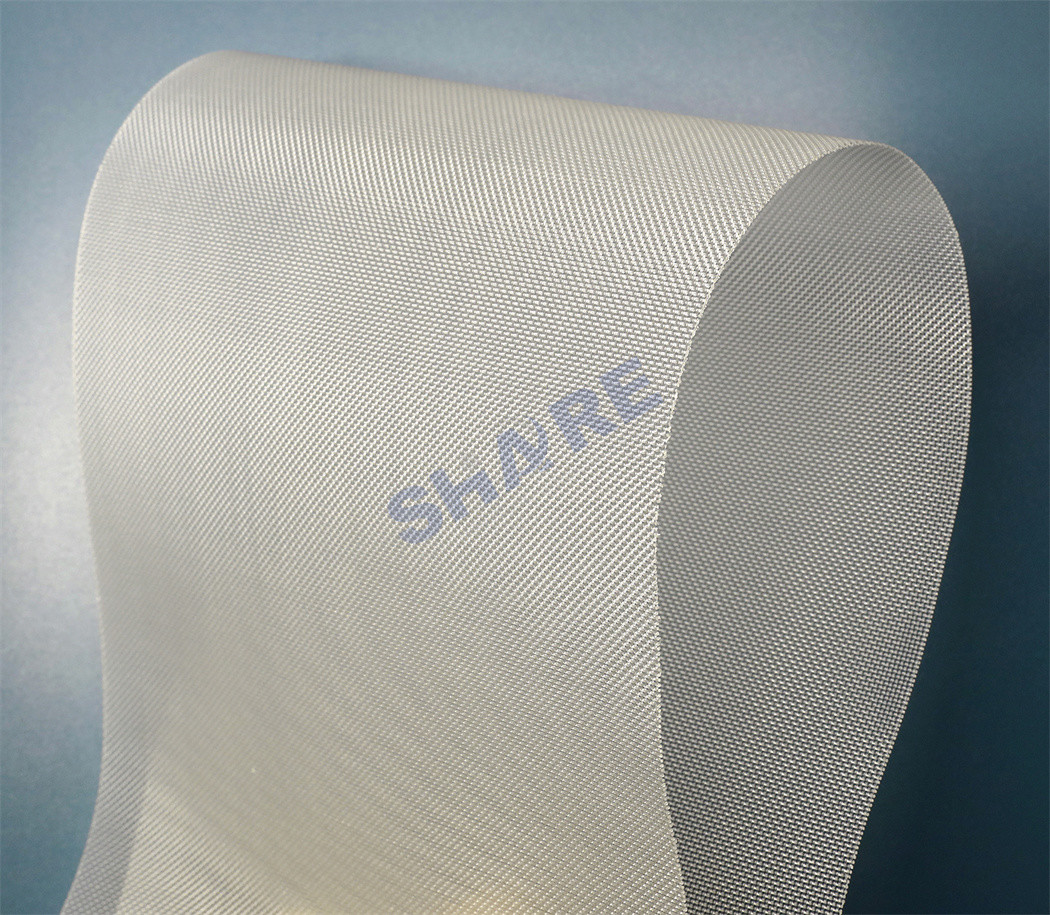

Filter Mesh Slitted in Narrow Ribbons


Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters heat and ultrasonic slitting is used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.
      Filter mesh slitted to be ribbons





Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 9

Filter Mesh Cutting Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs






Ultrasonic Cutting and Welding Tubes



With our heat and ultrasonic cutting technologies, we can create tubes down to a minimum diameter of 5 mm. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 10




Ultrasonic Welded Mesh Bag Sewn Mesh Bag

Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 11

sewn filter mesh bag





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

      Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 13




Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 14

Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.




Application of Share Filters Products

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 17 coffee filter Micron 200 250 300um Polypropylene Mesh Pieces For Washing Machine Filter 19 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us so we can learn more about your application and design specifications!




Packing & Transportation


packing  delivery
