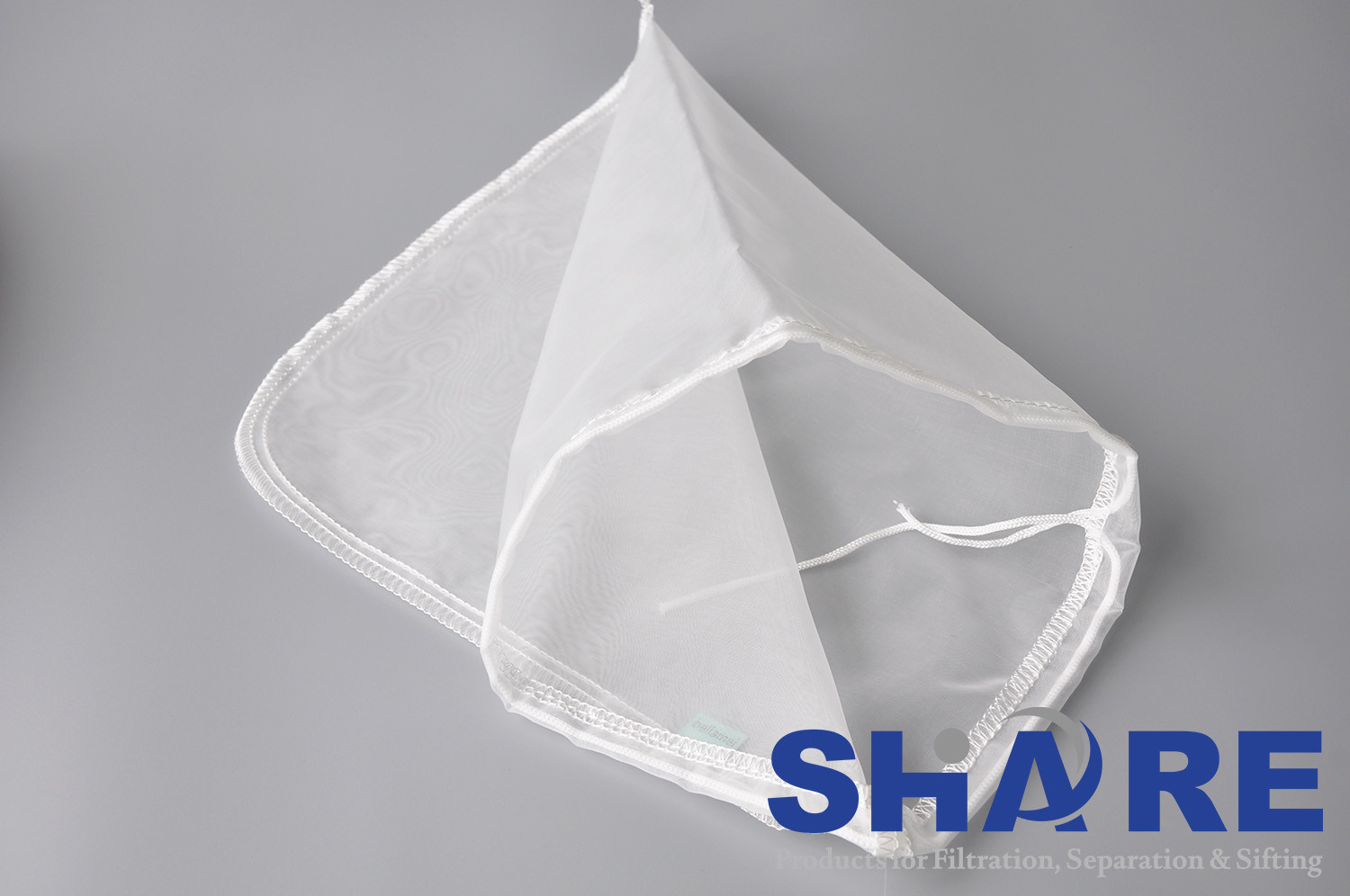

Monofilament Mesh Liquid Filter Bags Sewn Sealed For Industry Filtration

Minimum Order Quantity : 500pcs Price : USD0.2-USD3.5/pc
Packaging Details : Caron Delivery Time : 5-15 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 1000pcs/day
Place of Origin: CHINA Brand Name: SHARE
Certification: SGS Model Number: Customized

Detail Information

Material: Mesh, Felt Dimention: #1, 2, 3, 4 Sized Filter Bags, Customized
Top Collar: Metal Ring, Plastic Collar, Drawstring, Plain Seam Style: Sewn, Welded, Both
Rating: 1um~1500um Application: Food, Chemical, Home, Industry, Agricultural Filtration
High Light:

Monofilament Liquid Filter Bags

,

Mesh Liquid Filter Bags

,

Sewn Sealed Mesh Liquid Filter Bag

Product Description

SHARE is able to supply a full range of standard filter bags and non-standard filter bags for liquid filtration for most of the filter housing on the market, and SHARE is also capable of customizing the filter bags according to clients' requirements.



Material Options:









2. Mono-filament Filter Mesh BagsMono-filament Mesh

is an extremely strong material with precise weaving to ensure consistent aperture/pore sizes. It is reusable in many applications. Nylon is the most widely used material. Mono-filament Mesh Bags are available in micron ratings from 8 to 1500 microns.

Monofilament Mesh Liquid Filter Bags Sewn Sealed For Industry Filtration 0



3. Multi-filament Filter Mesh BagsMulti-filament Mesh  is a low cost, disposable filter media. Multi-filament mesh is available in polyester and nylon. Multi-filament Mesh Bags are available in micron ratings from 75 to 1500 microns.



Bag Design:
Top Sealing--- Standard bags are available with an array of sealing options: A Ring Top (Galvanized steel, stainless steel), Plastic Flange (Collar) Top with handles molded in, Drawstring or "tie-on" Top. Ring Bags can have optional handles or pull tabs sewn in to ease filter bags take-off. Both Ring and Flange Top Bags fit a wide range of filter bag housings.

Monofilament Mesh Liquid Filter Bags Sewn Sealed For Industry Filtration 1

  For more filter bags, you can also refer our offical Website: http://www.sharefilters.com/products/fabricated-filters/liquid-filter-bags.html





Sealing Style: Welded, Sewn,or Both.

Tie-on and Blank Top Bags are used in filtration system without filter housings and are available in an enormous variety of shapes and sizes.





Filter bag sizes :

Size Diam. Length
1 7.06" (180mm) 16.5" (420mm)
2 7.06" (180mm) 32.0" (810mm)
3 4.12" (102mm) 8.0" (200mm)
4 4.12" (102mm) 14.0" (380mm)



Customized size
