Honey Straining Cloth, Nylon Strainer Mesh Bag Made of Polyamide 950 Microns 425 Microns 363 Microns 315 Microns

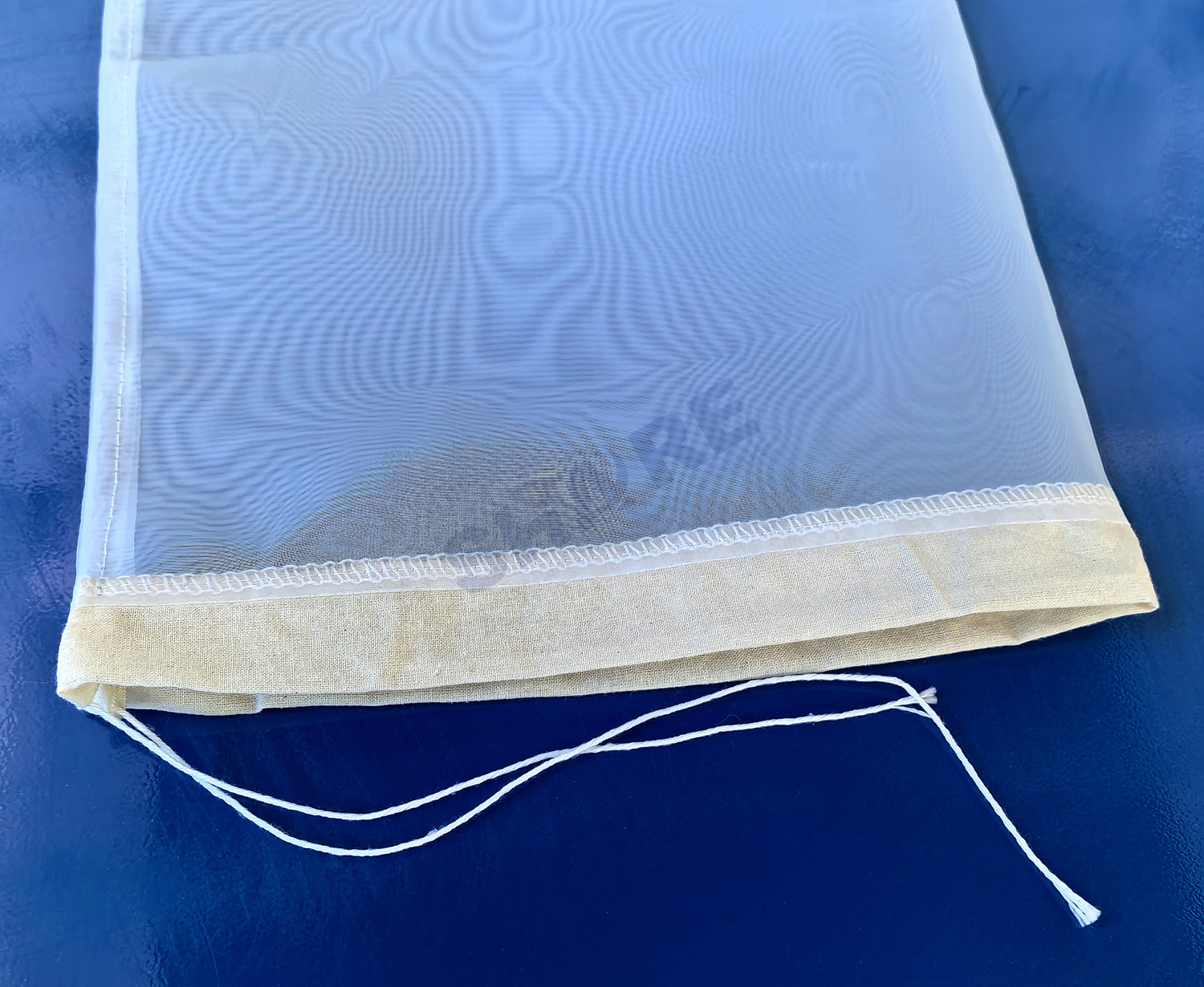

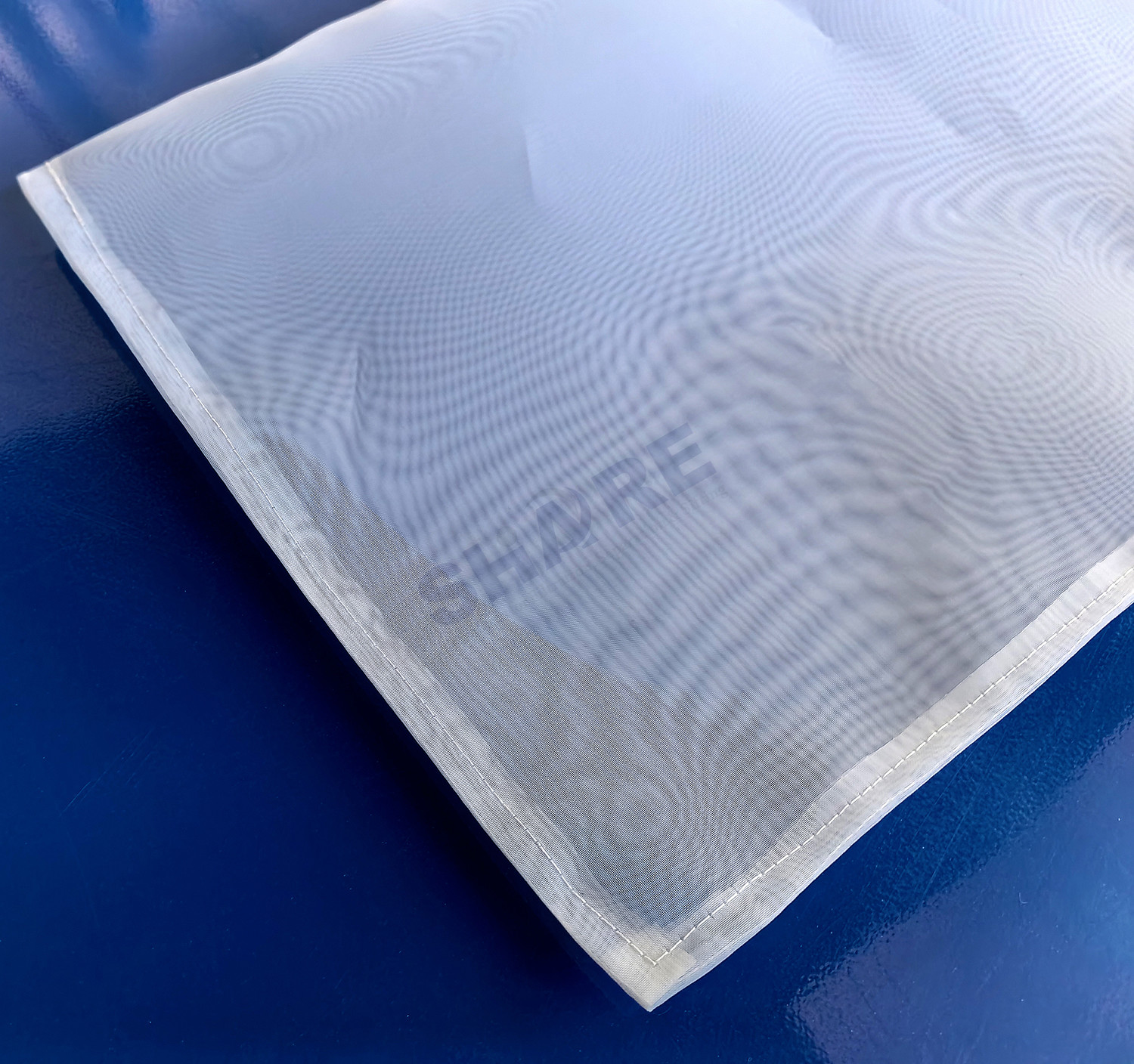

Nylon Honey Strainer Mesh & Bag































SHARE nylon straining mesh GG(Grit gauze) series is woven by 100% monofilament yarn. It's non-toxic, odorless, anti-aging, high strength, large elongation, elastic, good wear resistance, high temperature resistant, resistant to decay, oil resistance, corrosion resistance, alkali resistance, chemical stability, electrical insulation, good anti vibration and sound, certain flame retardancy.

Our nylon/polyamide GG mesh is commonly used for the coarse sieves, and our filters are made of ISO-certified food-grade nylon material, which contains no formaldehyde, so it is ideal for honey straining. The nylon mesh we recommend for honey straining are:

SHARE PA-22GG / 950 Microns
SHARE PA-44GG /425 Microns
SHARE PA-48GG / 363 Microns
SHARE PA-54GG / 315 Microns

Other pore size from 3 um to 2500 um are available.



Product Parameters



Product name	Honey Straining Cloth, Nylon Strainer Mesh Bag
Manufacturer	Taizhou Share Filters Co. Ltd.
Brand	SHARE FILTERS
Material	Food grade nylon PA6
Color	Natural
Weave type	Plain weave
Common width	110cm, 127cm, 136cm, 158cm or customized
Roll length	30-100 meters or customized
Micron size	PA-22GG / 950 Microns, PA-44GG /425 Microns, PA-48GG / 363 Microns, PA-54GG / 315 Microns 100um to 2000um are available
Certificate	ISO19001 SGS ROHS REACH
Samples availability	1 meter free
Physical characteristics	Material : manufactured by 100% monofilament nylon yarn Opening :the mesh with great precision exact and regular square holes Dimensional :very good dimensional stability
Chemical properties	Temperature : working temperature under 100ºC Chemicals: no unwanted chemicals, no any chemicals treatment in the production process Safe Grade: food grade
Advantages	Thicker fabric Uniform and stable meshes Strong and efficient filter result Food grade materials Complete specifications High efficiency
Applications	Food processing screening filter Plansifter in flour milling Single and double bin flat screen Aluminium alloy screen Grinder screen Powder cleaner screen Vibration screen Sieve bone Press filter cloth Starch filter cloth And many more



Gallery























































































































































Technical Datasheet



The data are compiled to the best of our knowledge.
Subject to change without notice.
Complete product range is available on request.



Nylon Monofilament

• Excellent diameter control for precise openings
• High flow rates and low pressure drops
• Filtration by surface particle capture
• Excellent surface particle release, easy to clean
• High degree of stiffness

























Plain Weave



Plain weave is made by passing each weft thread or filling thread over and under each warp thread. Think of threads like tiny strings. Warp threads go up and down, and weft go side to side. When the threads are equal in thickness and number, the holes in the fabric are square. This happens in fabrics made from monofilament thread, ensuring the mesh opening precise and even.



SHARE plain weave nylon woven mesh is woven by 100% monofilament yarn. In plain weave constructions the straight-through pores of monofilament fabrics offer minimal flow restriction and surface loading of particles.











Your Benefits



• Free samples
• Wide range of filter materials(mainly in nylon, polyester, polypropylene, stainless steel) and micron sizes available
• Supplied in the form of rolls, pieces, shapes, ribbons, tubes, bags, plastic molded filters
• Decades of filtration manufacturing expertise and experience support
• Customization, full traceability, consistent reliable performance and lot-to-lot accuracy
• Precision uniform mesh opening and clean smooth surface, burr-free and flash-free
• High flow rates and low pressure drop
• Custom cutting and molding service, tight tolerances
• Unlimited shapes, non-fraying sealed edges
• 2 days or less lead time



For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.







FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
