Anti-mildew Nylon Filter Mesh For Refrigerators Water Filtration System
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 500 M2 | Price : | $1.5 for 500 M2, $1.4 for 10,000 M2, $1.2 for 50, 000 M2 |
|---|---|---|---|
| Packaging Details : | 30M-70M / Roll | Delivery Time : | 5 to 20 Working Days |
| Payment Terms : | L/C, T/T, Paypal | Supply Ability : | 10, 0000 M2 / Week |
| Place of Origin: | Zhejiang, China | Brand Name: | SHARE FILTERS |
|---|---|---|---|
| Certification: | Reach Svhc, SGS RoHS, US California Proposition 65 | Model Number: | SG-NF-35 |
|
Detail Information |
|||
| Material: | Nylon Monofilament Mesh | Feature: | Chemical And Solvent Resistance, Great Precision Smooth Surface Abrasion Resistance |
|---|---|---|---|
| Micron Ratings: | 3 To 2500 Micron | Weave Type: | Plain Weave, Twill Weave |
| Mesh Color: | White And Black | Roll Width: | 100, 127, 145, 165, 200, 220, 260, 310, 360cm |
| Roll Length: | 30m-70m | Forms: | Rolls, Discs, Ribbons, Tubes, Bags, And Plastic Filters |
| HS Code: | 5911200090 | Edge Quality: | Smooth, Clean, Burr Free, Flash Free |
| Processing Technologies: | Ultrasonic, Laser, Heat, Mold | ||
| High Light: | 100% Monofilament Polyamide Yarn Filter Mesh,Woven Nylon Filter Mesh |
||
Product Description
SHARE plain weave nylon woven mesh is woven by 100% monofilament yarn. In plain weave constructions the straight-through pores of monofilament fabrics offer minimal flow restriction and surface loading of particles.
These versatile precision woven fabrics meet stringent technical requirements in automotive, biomedical, chemical processing, and water treatment applications.
In addition, nylon material has the features of non-toxic, odorless, anti-aging, high strength, large elongation, elastic, good wear resistance, high temperature resistant, resistant to decay, oil resistance, corrosion resistance, alkali resistance, chemical stability, electrical insulation, good anti vibration and sound, certain flame retardancy, SHARE precision woven nylon meshes are widely used by our customers for many applications, including paint filters, automotive filters, air purifier filters, air conditioner filters , circulating & waster water filter , cell strainer, blood filter transfusion , wound care, injector filtration, coffee filter, biopsy bag, milling mesh, test/sample sieve, filters for agricultural instruments, filtration of powder and liquid chemicals, etc.
Specifications
| Item Name | Woven Nylon Filter Mesh Made of 100% Monofilament Polyamide Yarn |
| Manufacturer | Taizhou Share Filters Co., Ltd. |
| Brand | SHARE FILTERS |
| Material | 100% nylon monofilament yarn |
| Color | White |
| Weave type | Plain woven |
| Mesh opening | 3um to 2500um are available |
| Open area | 1% to 67% |
| Thickness | 50um to 1900um |
| Roll width | Commonly roll width 39.3 inch/100 cm, 50 inch/127 cm, 78.7 inch/200 cm, 118 inch/300 cm 1cm to 390cm are available. |
| Roll length | 30-70 meters or customized |
| Supplied in the form of | Rolls, discs, belts, ribbons, sheets, shapes, tubes, tube cuts, bags, pleated elements, plastic filters |
| Features | 1. No toxic, silicone free, no chemicals treatment or additive, odourless, tasteless, high strength, high elongation, good elasticity 2. With high toughness, resistance to weak acid, oil resistance, alkali resistance, heat resistance and other characteristics, it also has good insulation, low lubricating coefficient characteristics, wide application range 3. High quality material, corrosion resistance, wear resistance, long use life, smooth surface high strength 4. Good dimensional stability, great precision, uniform thread diameter and regular square holes 5. Smooth surface for easy particle separation 6. Available in roll, disc, shape, piece, tube, ribbon, bag and customized molded parts 7. Available for water, air, oil, paint, powder filtration 8. Compliance with food grade 9. RoHs Reach certificate |
| Quality control | Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment |
| Certificate | ISO9001 SGS ROHS REACH |
| Sample | 2 meter free |
| Applications | Wide ranges of industrial applications, such as paint filters, automotive filters, air purifier filters, air conditioner filters , circulating & waster water filter , cell strainer, blood filter transfusion , wound care, injector filtration, coffee filter, biopsy bag, milling mesh, test/sample sieve, filters for agricultural instruments, filtration of powder and liquid chemicals, etc. |
Converting Capabilities
Customers have different requirements for filtration, separation and sifting, and relying only on single fabrication technology is not sufficient to meet the challenges of today's demanding filtration market. Therefore, SHARE has developed expertises and experiences in almost all processing technologies including cutting, stitching, gluing, welding, laser cutting, molding and more after decades of developments.
Forms

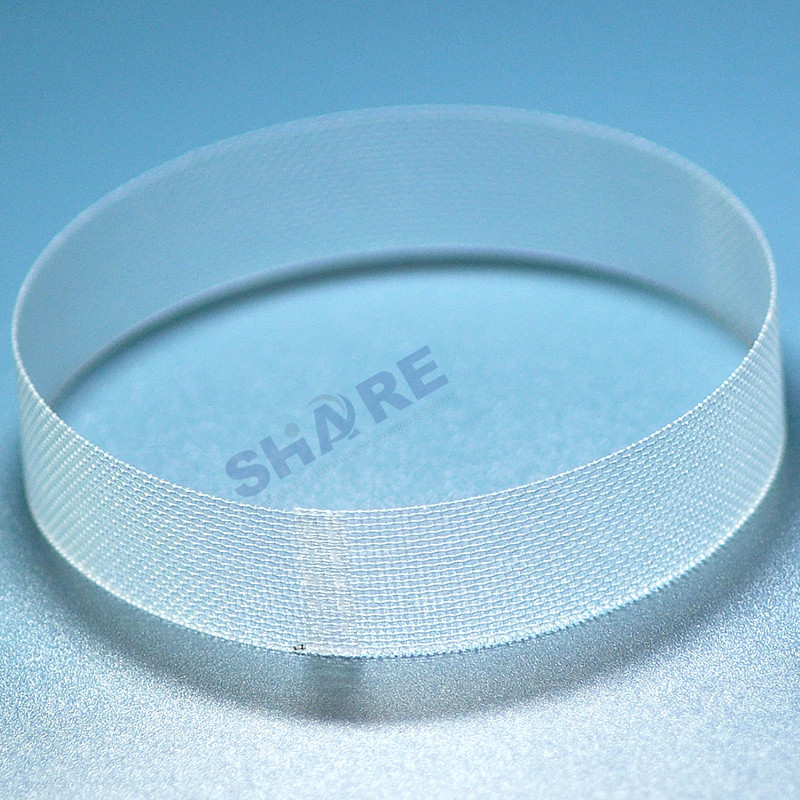

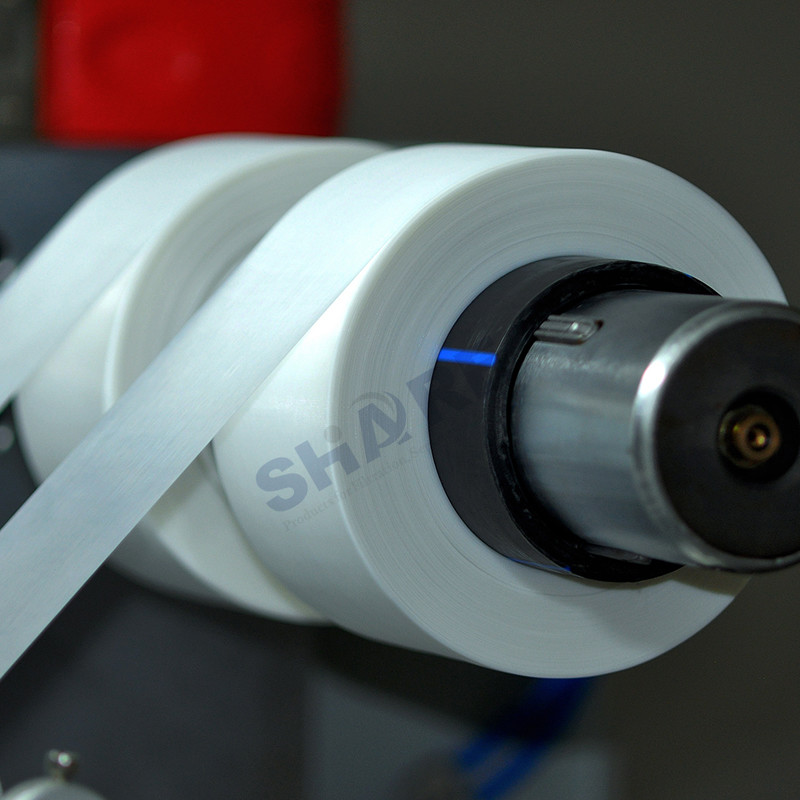

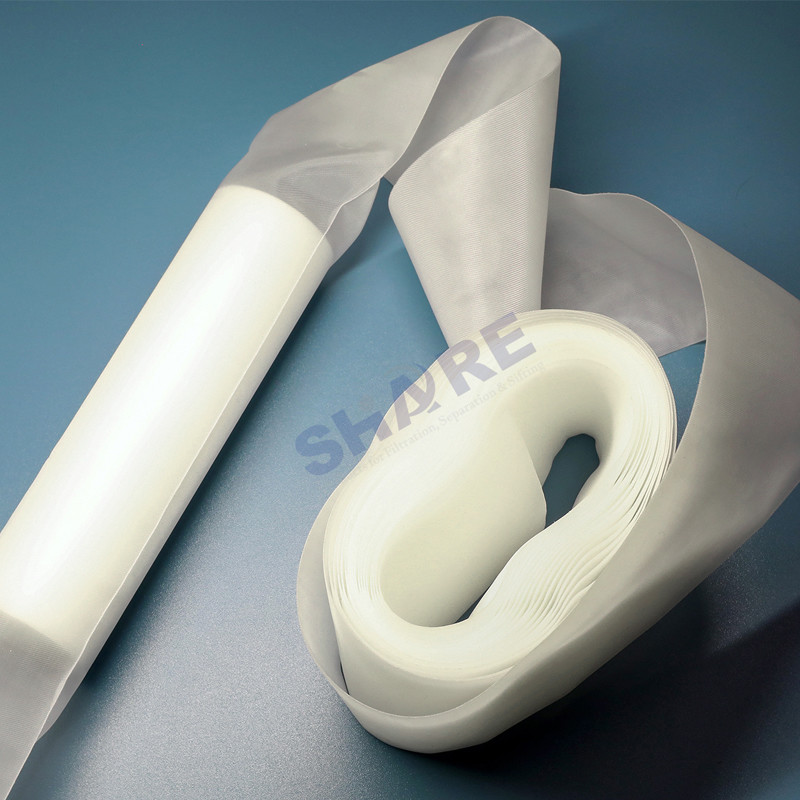

Rolls, discs, ribbons, tubes, bags, and plastic filters
Production Process
Yarn
Monofilament
Weave
Plain Weave
Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.
Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.
Product Procedure
Yarn→Raw yarn inspection→Warping arranging→Drawing in heddle→Drawing in reed→Weaving→Initial survey→Washing→Heat setting treatment→Physical properties inspection→Products inspection→Product→Fabricated mesh if needed→Plastic molded filters if needed
Mesh
SHARE precision filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise open area ranging from 1% to 92%, mesh opening from 3um to 4400um, and thicknesses from 10um to 2000um. These allow for the different sized filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.
SHARE can further processed filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fuifil customers and markets' demanding filtration and screening needs.
Company Profile
Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.
Our products are categorized into three classes.
|
Monofilament Mesh Rolls
|
|
|
Discs, Tubes, Ribbons, Bags
|
|
|
Plastic Molded Filters
|
|
Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.
Contact SHARE today for additional information and how we can help you with your specific filtration requirements.
Packaging & Shipping
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
| Port to Port | Door to Door | |
| Express(DHL,UPS,FEDEX, EMS) | 1 - 5 days | |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
