Home ProductsNylon Filter Mesh350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area
350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area
350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area
Contact Now

350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area

Minimum Order Quantity : 500 m2 Price : $0.5 for 500 m2, $0.48 for 10,000 m2, $0.4 for 50, 000 m2
Packaging Details : PE Bags and Standard Export Cartons Delivery Time : 5 to 20 Days
Payment Terms : L/C, T/T, Paypal Supply Ability : 1, 0000 m2 / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, US California Proposition 65 Model Number: SG-NM-21

Detail Information
Material: 100% Nylon Monofilament Thread Color: White
Micron Ratings: 350 Micron, 3 Um To 2500um Available Forms: Roll, Disc, Ribbon, Tubes, Bags, Plastic Filters
Abrasion Resistance: Good Alkaline Resistance: Good
Solvents Resistance: Good Chemicals Resistance: Good
Hydrolysis Resistance: Good Stability To Light: Limited
Moisture Absorbency: Higher Compared With Polyester HS Code: 59112000
High Light:

Heat Setting Treatment Nylon Filter Mesh

,

350 Micron Nylon Monofilament Filter Mesh

Product Description





SHARE nylon monofilament filter mesh is made with a single filament weave, providing excellent fabric strength and uniform openings. Our nylon monofilament filter mesh is available in a wide range of options, including micron ratings from 3um to 2500um, open area from 1% to 67%, thread diameter from 30um to 1000um, mesh count from 6 mesh/inch to 700 mesh/inch, and thickness from 50um to 1900um.




350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 0

350 Micron Nylon Monofilament Filter Mesh,
49% Open Area

Descriptions

  • Monofilament nylon 6 fiber 50 threads per inch
  • 350 micron hole opening with 49% open area
  • High water absorption
  • Good abrasion resistance and low coefficient of friction
  • Good resistance to alkalis and common solvents
  • Limited strong acid resistance
  • Working temperature 115ºC
  • Weighs 98 grams per square meter
  • Maximum roll width 390cm or custom converted using hot cut



Specifications

  • Material: 100% nylon mesh
  • Color: Natural white
  • Mesh Opening: 350um
  • Open Area: 49%
  • Thickness: 375um
  • Roll Length: 30-100 meters or customized
  • Roll Width: commonly in 100cm, 127cm, 200cm, 300cm



350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 1Applications



Nylon mesh has the features of non-toxic, odorless, anti-aging, high strength, large elongation, elastic, good wear resistance, high temperature resistant, resistant to decay, oil resistance, corrosion resistance, alkali resistance, chemical stability, electrical insulation, good anti vibration and sound, certain flame retardancy, SHARE precision woven nylon filter mesh fabrics meet stringent technical requirements in automotive, medical, industrial & chemical processing, and water treatment applications.



350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 2























Typical application examples by SHARE customers:



insert molding filters, paint filters, automotive filters, air purifier filters, air conditioner filters, circulating & waster water filter , cell strainer, blood filter transfusion , wound care, injector filtration, coffee filter, biopsy bag, milling mesh, test & sample sieve, filters for agricultural instruments, filtration of powder and liquid chemicals, etc.



























Technical Datasheet



Precision Nylon Filter Mesh Technical Data Sheet
Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
No. n/cm n/inch μm μm % μm g/m2
PA 3233/58.3 2.3 6 1000 3233 58.3 1900 412
PA 2300/51.3 3.1 8 900 2300 51.3 1700 450
PA 1950/61 4 10 550 1950 61 950 262
PA 1500/58 5 12 500 1500 58 850 271
PA 1267/56 6 16 400 1267 56 780 208
PA 1079/57 7 18 350 1079 57 675 186
PA 900/52 8 20 350 900 52 685 212
PA 860/58 9 24 250 860 58 455 145
PA 700/49 10 25 300 700 49 576 195
PA 583/49 12 30 250 583 49 470 162
PA 533/41 12 30 300 533 41 585 234
PA 414/34 14 35 300 414 34 595 273
PA 425/46 16 40 200 425 46 370 139
PA 375/36 16 40 250 375 36 485 217
PA 350/49 20 50 150 350 49 375 98
PA 300/36 20 50 200 300 36 385 173
PA 267/41 24 60 150 267 41 285 117
PA 237/44 28 70 120 237 44 215 87
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/42 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/41 59 150 60 110 41 98 46
PA 100/38 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/34 100 250 42 60 34 65 35
PA 42/24 120 305 42 42 24 75 42
PA 44/29 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/33 120 305 35 45 33 60 28
PA 55/40 120 305 30 55 40 52 20
PA 40/25 130 330 38 40 25 74 36
PA 42/29 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22
PA 32/21 140 355 38 32 21 68 36
PA 37/26 140 355 35 37 26 65 33
PA 38/33 140 355 30 38 33 53 25
PA 31/18 150 380 38 31 18 68 40
PA 35/29 150 380 30 35 29 57 26
PA 34/26 150 380 30 34 26 50 26
PA 30/25 165 420 30 30 25 59 28
PA 30/19 145 368 38 30 19 64 40
PA 25/21 180 460 30 25 21 60 31
PA 25/15 165 420 38 25 15 75 42
PA 20/16 200 508 30 20 16 65 34
PA 10/4.3 208 530 38 10 4.3 77 53
PA 8/3 220 560 38 8 3 78 56
PA 6/1.7 228 580 38 6 1.7 80 59
PA 3/1 236 600 38 3 1 85 61
PA 1/2 256 650 34*38 1 2 80 62
PA 2/1 275 700 34*38 2 1 80 66
PA10GG 4 10 550 2000 61 950 238
PA12GG 4.5 11 400 1822 67 760 153
PA14GG 5 13 400 1600 64 770 170
PA15GG 5.5 14 400 1418 61 780 187
PA16GG 6 15 350 1317 62 665 156
PA18GG 6.5 17 350 1180 59 670 170
PA19GG 7 18 350 1079 57 675 182
PA20GG 7.5 19 300 1023 60 560 144
PA22GG 8 20 300 950 58 560 153
PA24GG 8.5 22 300 876 56 565 163
PA26GG 9 23 300 811 54 570 172
PA27GG 10 25 250 750 56 475 133
PA28GG 10.5 27 250 702 54 475 140
PA30GG 11 28 250 659 53 480 146
PA31GG 11.5 29 250 619 51 485 153
PA34GG 12 30 250 583 49 490 159
PA36GG 12.5 32 250 550 47 490 166
PA38GG 14 36 200 514 52 360 119
PA40GG 14.5 37 200 489 50 365 123
PA42GG 15 38 200 466 49 365 128
PA44GG 16 41 200 425 46 370 136
PA46GG 17 43 200 388 44 375 145
PA50GG 18 46 200 355 41 380 153
PA52GG 20.5 52 150 338 48 270 98
PA54GG 21.5 55 150 315 46 275 103
PA58GG 22 56 150 304 45 275 105
PA60GG 23 58 150 285 43 280 110
PA62GG 23.5 60 150 275 42 285 112
PA64GG 24 61 150 267 41 285 115
PA66GG 28.5 72 100 251 51 163 61
PA68GG 29 74 100 245 50 165 63
PA70GG 29.5 75 100 239 48 166 64
PA72GG 30.5 77 100 227 47 168 66
PA74GG 32 81 100 213 46 170 69
PA-6XXX 30 76 120 213 40 225 94
PA-7XXX 31 79 120 200 40 228 98
PA-8XXX 35.5 90 100 182 42 178 78
PA-8.5XXX 38 97 100 163 38 190 84
PA-9XXX 41 104 90 154 40 170 60
PA-9.5XXX 43 109 90 143 38 175 63
PA-10XXX 47 117 80 135 39 145 61
PA-10.5XXX 49 124 80 125 37 146 64
PA-11XXX 50 130 80 115 36 147 65
PA-12XXX 55 140 70 112 38 130 48
PA-12.5XXX 57 145 70 105 36 132 50
PA-13XXX 59 150 70 99 35 135 52
PA-14XXX 60 152 70 97 34 136 53
PA-15XXX 66 168 60 92 36 108 53
PA-16XXX 69 175 60 85 35 110 55
PA-17XXX 71 180 60 81 33 112 57

The data are compiled to the best of our knowledge.
Subject to change without notice.
Complete product range is available on request.



Nylon Monofilament350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 3

  • Excellent diameter control for precise openings
  • High flow rates and low pressure drops
  • Filtration by surface particle capture
  • Excellent surface particle release, easy to clean
  • High degree of stiffness

























Plain Weave350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 4



Plain weave is made by passing each weft thread or filling thread over and under each warp thread. Think of threads like tiny strings. Warp threads go up and down, and weft go side to side. When the threads are equal in thickness and number, the holes in the fabric are square. This happens in fabrics made from monofilament thread, ensuring the mesh opening precise and even.



SHARE plain weave nylon woven mesh is woven by 100% monofilament yarn. In plain weave constructions the straight-through pores of monofilament fabrics offer minimal flow restriction and surface loading of particles.











Your Benefits



  • Free samples
  • Wide range of filter materials(mainly in nylon, polyester, polypropylene, stainless steel) and micron sizes available
  • Supplied in the form of rolls, pieces, shapes, ribbons, tubes, bags, plastic molded filters
  • Decades of filtration manufacturing expertise and experience support
  • Customization, full traceability, consistent reliable performance and lot-to-lot accuracy
  • Precision uniform mesh opening and clean smooth surface, burr-free and flash-free
  • High flow rates and low pressure drop
  • Custom cutting and molding service, tight tolerances
  • Unlimited shapes, non-fraying sealed edges
  • 2 days or less lead time



Company Profile

Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.


Our products are categorized into three classes.

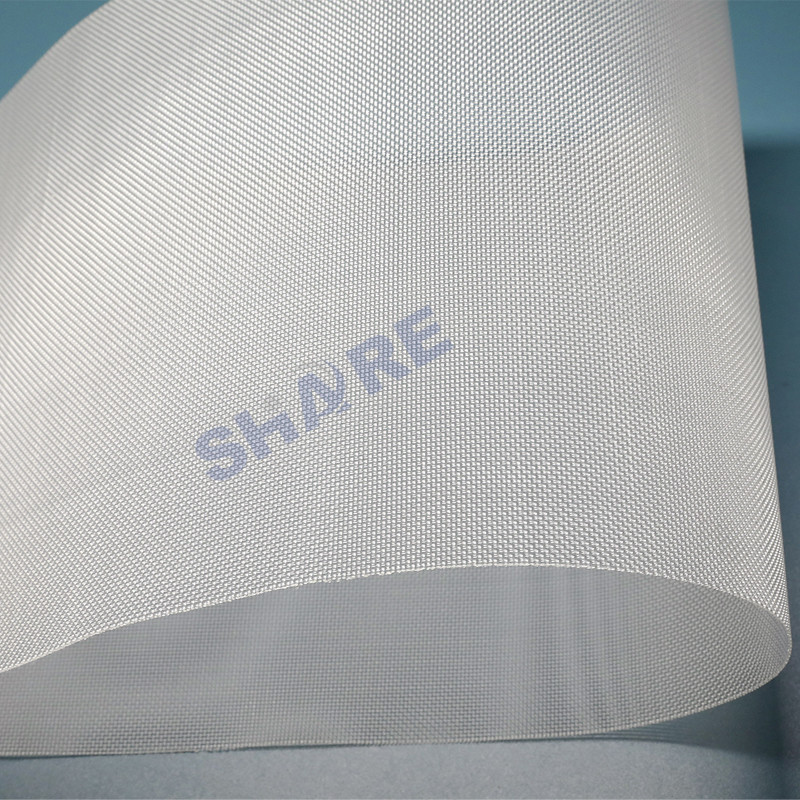

Monofilament Mesh Rolls
  • 30 years of experience & capabilities
  • PA, PET, PP, PE, PPS, PEEK etc.
  • Characterized by precise mesh opening, open area and thickness
  • Excellent converting capabilities from yarn over weaving to converted items
350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 5

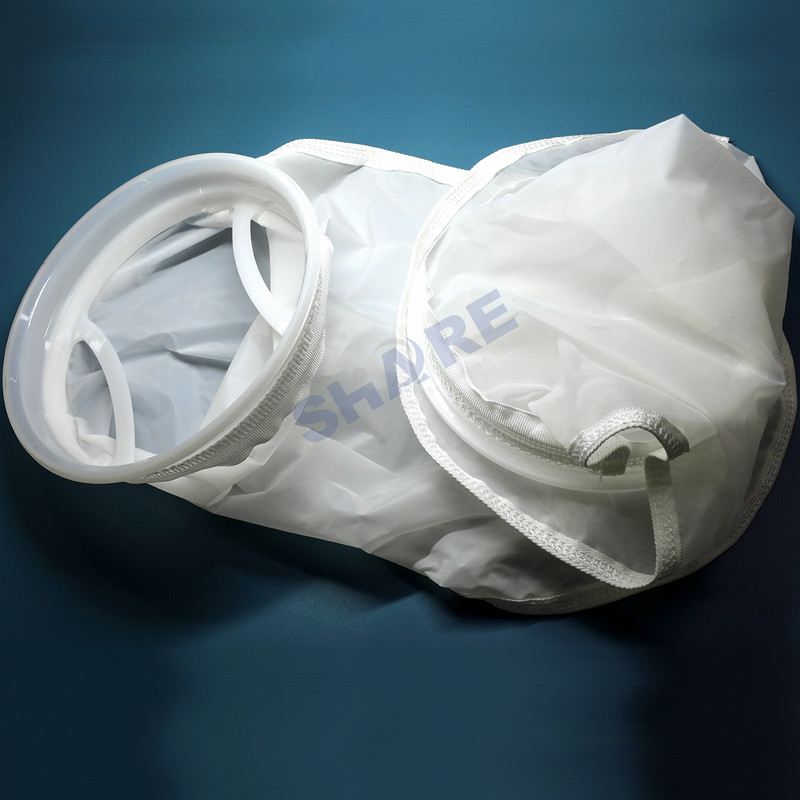

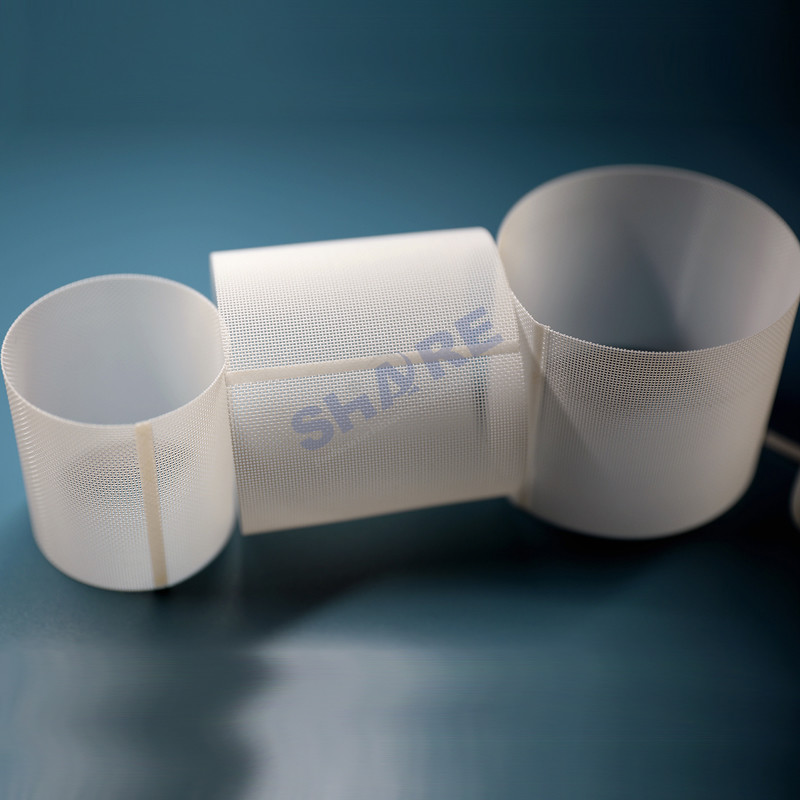

Discs, Tubes, Ribbons, Bags
  • Cutting, calendering, welding, slitting, sewing, pleating, molding
  • Various converting capabilities by stamping or slitting technology: cold, heat, laser, ultrasonic
  • Clean, smooth & closed edge quality
  • Maximum compatibility with injection molding process
350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 6

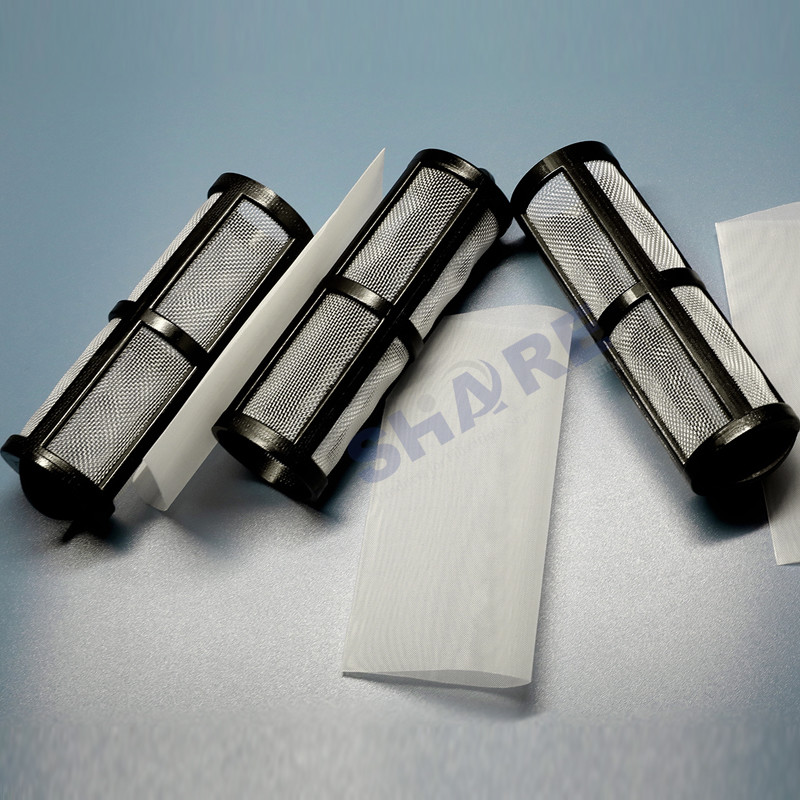

Plastic Molded Filters
  • Insert molding and over molding
  • Mold design, modeling, prototyping, manufacturing and testing
  • High efficiency, excellent particles holding capacity and low pressure drop
  • High stability, repeatability and reliability
  • Extensive material options and industry-best lead times
350 Micron Heat Setting Treatment Nylon Monofilament Filter Mesh 49% Open Area 7



Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.



Contact SHARE today for additional information and how we can help you with your specific filtration requirements.





Packaging & Shipping



For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.



  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
